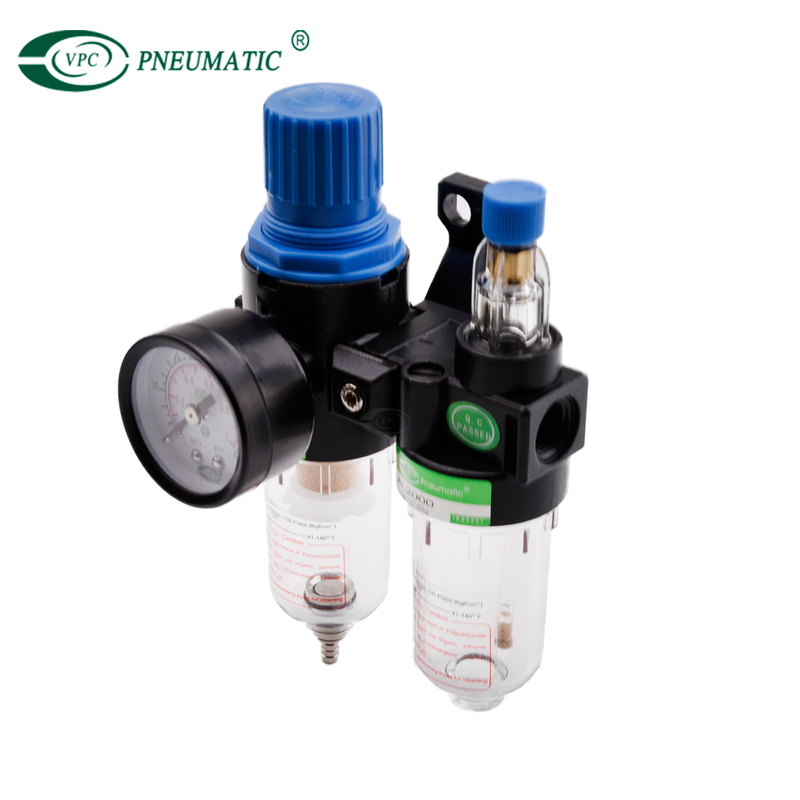

AFC Series FRL Combination Air Preparation Units

Share to:
  • Air filter, regulator w/built-in pressure gauge and lubricator
  • Clean looking, modular design
  • Mounting angle of regulator pressure gauge is selectable, depending on piping direction
  • Rc, G or NPT threads
  • AFC
  • VPC Pneumatic
  • 8412909000
Working medium:
Working temperature:
Working pressure:
Quality Warranty:

Product Specifications

ModelAFC1500AFC2000BFC2000BFC3000BFC4000
Working mediumCompressed Air
Port sizeG1/8G1/4G1/4G3/8G1/2
Filter precision25um(5/40 um is optional)
Adjusting pressure range0.05~0.85Mpa
Max. Adjusting pressure0.95Mpa
Guaranteed. pressure1.5Mpa
Working temperature5~60°C
Filter bowl capacity15(CC)60(CC)
Lubricator bowl capacity25(CC)90(CC)
Recommended OilISO VG32 or equivalent Oil
Weight0.7kg0.9kg


Components

Filter Regulator
AFR1500AFR2000BFR2000BFR3000BFR4000
LubricatorAL1500AL2000BL2000BL3000BL4000

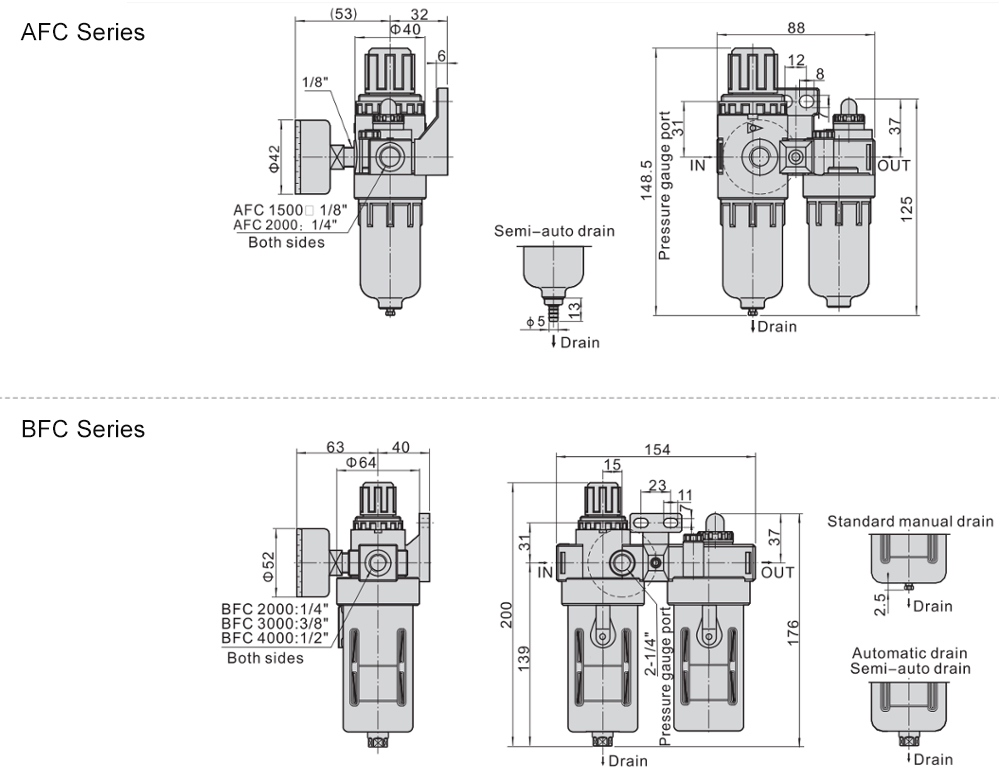

Main Dimensions
