| Working medium: | |
|---|---|
| Guaranteed pressure : | |
| Guaranteed pressure resistance: | |
| Filter precision: | |
| Bowl material: | |
| Valve type: | |
Product Description
Product Specifications
| Guaranteed pressure resistance | 1.5Mpa |
| Max working pressure | 1.0Mpa |
| Working temperature | 5 to 60℃ |
| Recommended Oil | Turbine No1 Oil ISOVG32 |
| Bowl material | Polycarbonate |
| Valve type | With overflow |
| Bowl guard | AC1000 to 2000(None) AC2500 to 5000(Avaiable) |
Note: NPT, PT Port size is optional.
| Model | Specification | Accessories | ||||
| Minimal flow of oil drop(L/min) | Rated flow(L/min) | Port size(G) | Bowl Capacity(cm³) | Weight(kg) | Bracket (2pcs) | |
| AL1000-M5 | 4 | 95 | M5 | 7 | 0.07 | / |
| AL2000-01 | 15 | 800 | G1/8" | 25 | 0.22 | B240 |
| AL2000-02 | G1/4" | |||||
| AL3000-02 | 30 | 1700 | G1/4" | 50 | 0.3 | B340 |
| AL3000-03 | 40 | G3/8" | ||||
| AL4000-03 | 40 | 5000 | G3/8" | 130 | 0.56 | B440 |
| AL4000-04 | 50 | G1/2" | ||||
| AL4000-06 | 50 | 6300 | G3/4" | 130 | 0.58 | B540 |
| AL5000-06 | 190 | 7000 | G3/4" | 130 | 1.08 | B640 |
| AL5000-10 | G1" | |||||
Note:The above information is based on 0.7Mpa(7. 1kgf/cm2) supply pressure and 0.5Mpa(5. 1kgf/cm2) setted pressure.

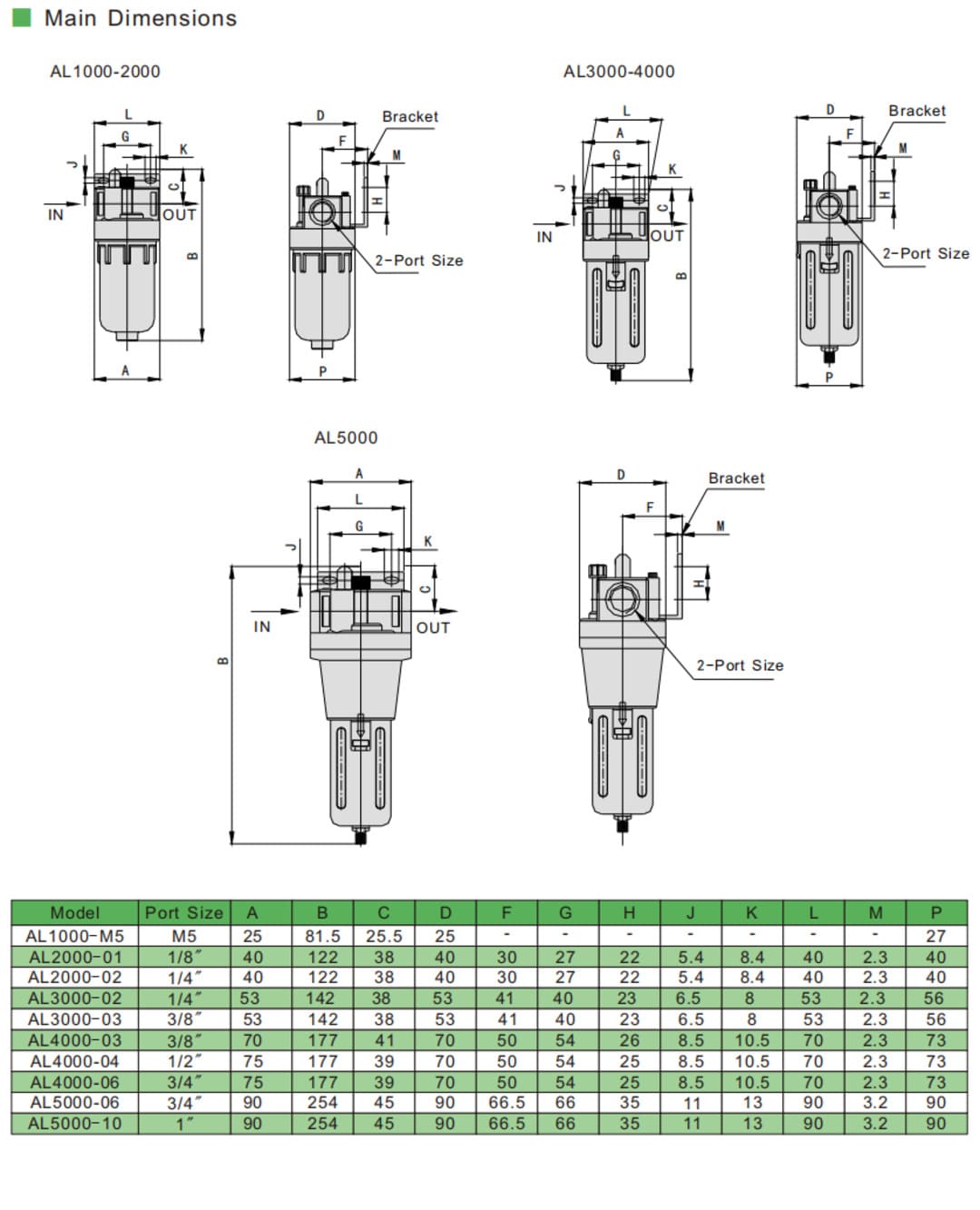

Main Dimensions
