AM Series Mist Separator

Series AM mist separators range from 1/8" to 2" and feature rugged aluminum housing. These coalescing filters are nominally rated at 0.3 microns for an initial stage of oil removal after a particulate filter.

Model:
AM650-10D
Brand:
VPC Pneumatic

Working medium:	Compressed air
Filtration rating:	3 µm (Filtration efficiency: 99.9%)
Max. working pressure:	1.0Mpa
Working temperature:	5 to 60℃
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

AM series articulate filtration, oil mist separation.

1. Can remove oil mist in compressed air and separate and remove particles such as rust or carbon of more than 0.3 µm.

2. Modular connection capable AM150C~550C/AM650,850.

3. Optional element life indicator.

4. Available port sizes: 1/8" to 2" (Rc, NPT or G)

5. ISO9573-1 air quality class: 2, -3

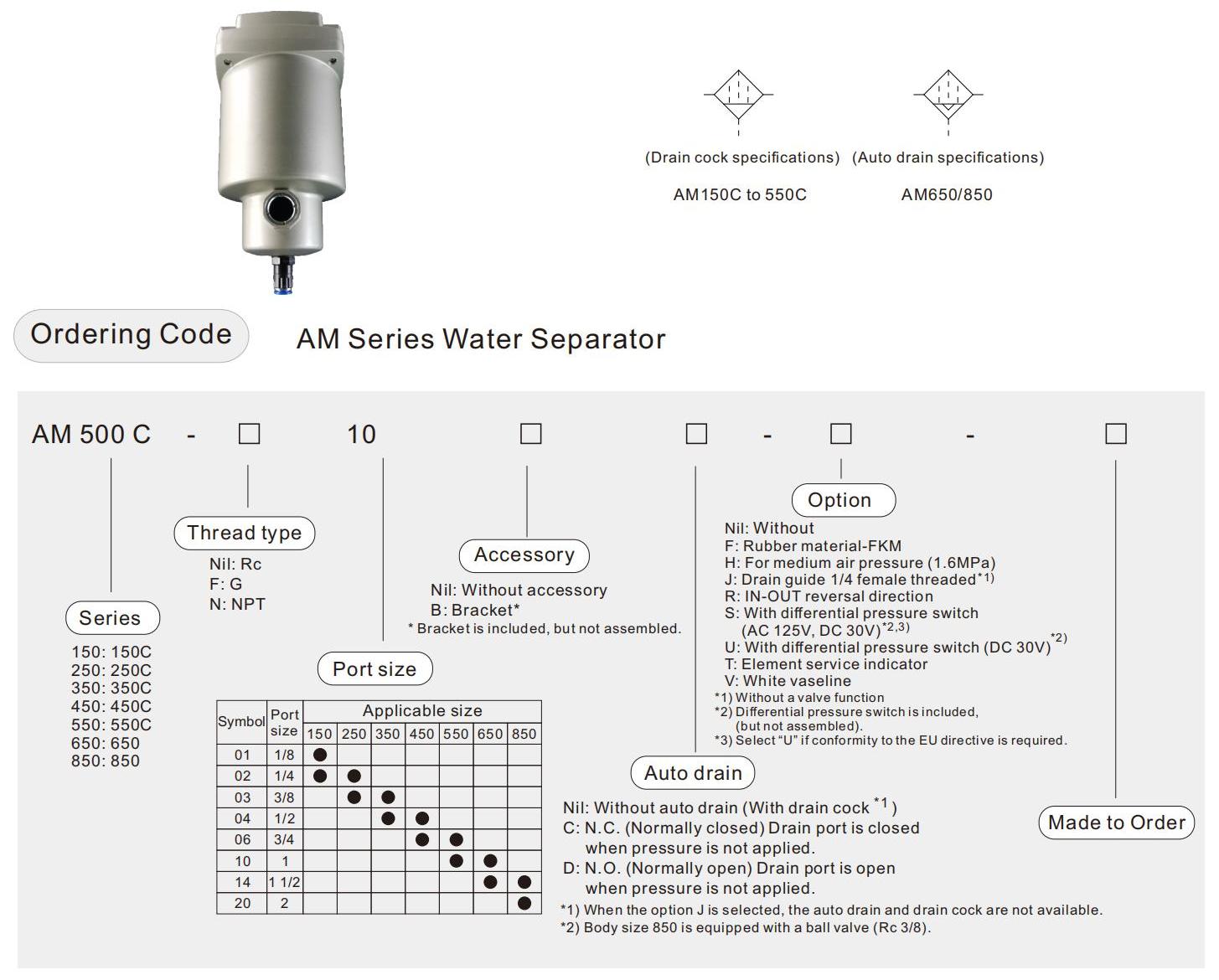

■ Symbol

water separator

Product Specifications

Working medium	Compressed air
Max. working pressure	1.0MPa
Min. working pressure^*1	0.05MPa
Proof pressure	1.5MPa
Working temperature	5 to 60℃
Nominal filtration rating	0.3 µm (Filtration efficiency: 99.9%)
Oil mist density at outlet	Max. 1mg/m³(ANR)(≈0.8ppm)^*2）
Element replacement period	2 years^*1 or when pressure drop reached 0.1MPa

*1) With auto drain: 0.1 MPa (N.O. type) or 0.15 MPa (N.C. type)

*2) When the inlet oil mist density is 30 mg/m³ (ANR).

Can remove oil mist in compressed air and separate and remove particles such as rust or carbon of more than 0.3 µm.

Model		Specification				Accessory part No.(Option)	Spare parts
Manual operation	Auto drain	Compressor power (approx.)	Flow rate	Port size	Weight	Bracket assembly	Element assembly
AM150C-01-□	AM150C-01D-□	2.2KW	300L/min	1/8	0.38kg	AM-BM101	AM-EL150
AM150C-02-□	AM150C-02D-□			1/4
AM250C-02-□	AM250C-02D-□	3.7KW	750L/min	1/4	0.55kg	AM-BM102	AM-EL250
AM250C-03-□	AM250C-03D-□			3/8
AM350C-03-□	AM350C-03D-□	7.5KW	1500L/min	3/8	0.9kg	AM-BM103	AM-EL350
AM350C-04-□	AM350C-04D-□			1/2
AM450C-04-□	AM450C-04D-□	11KW	2200L/min	1/2	1.4kg	AM-BM104	AM-EL450
AM450C-06-□	AM450C-06D-□			3/4
AM550C-06-□	AM550C-06D-□	22KW	3700L/min	3/4	2.1kg	AM-BM105	AM-EL550
AM550C-10-□	AM550C-10D-□			1
AM650-10-□	AM650-10D-□	37KW	6000L/min	1	4.2kg	BM56	AM-EL650
AM650-14-□	AM650-14D-□			1 1/2
AM850-14-□	AM850-14D-□	75KW	12000L/min	1 1/2	10.5kg	BM57	AM-EL850
AM850-20-□	AM850-20D-□			2
