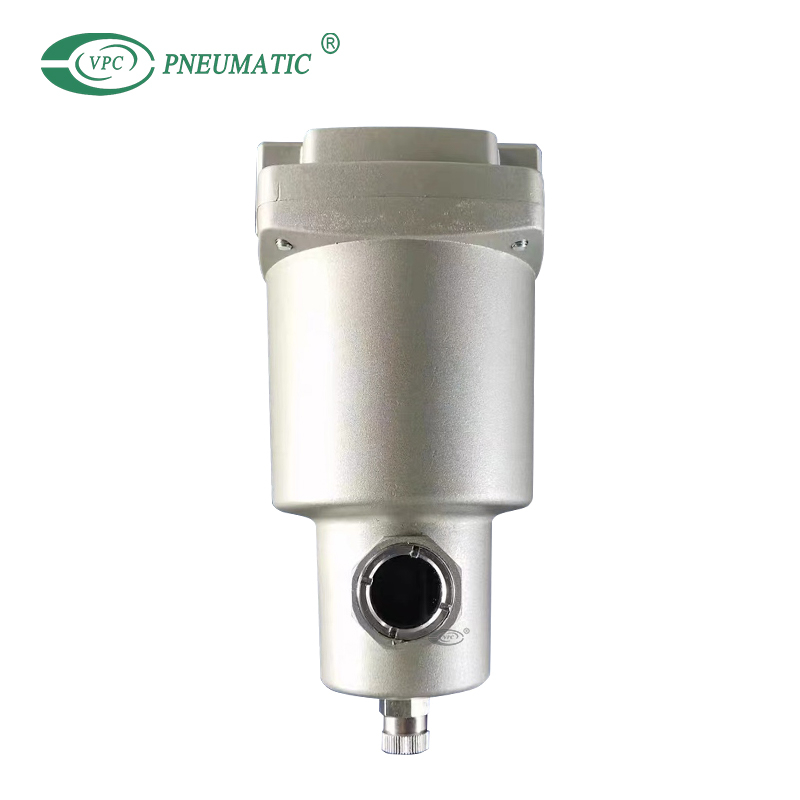

Product Description
1. Modular connection is possible for AMF150C to 550C.
2. Options include: Fluororubber material, medium air pressure (1.6MPa), drain guide, IN-OUT reversal direction, differential pressure switches, element service indicator, and degreasing wash.
3. Efficiently can remove odor in compressed air with an activated carbon element. AMH air separator filters are used in odor-sensitive environments, such as clean rooms.
Product Specifications
| Working medium | Compressed air |
| Max. working pressure | 1.0MPa |
| Min. working pressure | 0.05MPa |
| Proof pressure | 1.5MPa |
| Working temperature | 5 to 60℃ |
| Filtration rating | 0.01 µm (Filtration efficiency: 99.9%) |
| Cleanliness at outlet | Less than 100 particles of 0.3 µm or larger per cubic foot [Less than 35 particles per 10 liters (ANR)] (The “AME” series is required on the inlet side.) |
| Oil mist density at outlet | Max. 0.004 mg/m³(ANR)(≈0.0032ppm) (The “AME” series is required on the inlet side.) |
| Element replacement period | 1. Replace the element when you notice an odor coming from the outlet side. |
2. Even if the deodorization performance is normal, the replacement interval for the element is when the pressure drop reaches 0.1 MPa or after two years of operation, whichever comes fifirst. |
| Model | Specification | Accessory part No.(Option) | Spare parts | ||
| Flow rate | Port size | Weight | Bracket assembly | Element assembly | |
| AMF150C-01 | 200L/min | 1/8 | 0.3kg | AM-BM101 | AMF-EL150 |
| AMF150C-02 | 1/4 | ||||
| AMF250C-02 | 500L/min | 1/4 | 0.48kg | AM-BM102 | AMF-EL250 |
| AMF250C-03 | 3/8 | ||||
| AMF350C-03 | 1000L/min | 3/8 | 0.8kg | AM-BM103 | AMF-EL350 |
| AMF350C-04 | 1/2 | ||||
| AMF450C-04 | 2000L/min | 1/2 | 1.3kg | AM-BM104 | AMF-EL450 |
| AMF450C-06 | 3/4 | ||||
| AMF550C-06 | 3700L/min | 3/4 | 2.0kg | AM-BM105 | AMF-EL550 |
| AMF550C-10 | 1 | ||||
| AMF650-10 | 6000L/min | 1 | 4.2kg | BM56 | AMF-EL650 |
| AMF650-14 | 1 1/2 | ||||
| AMF850-14 | 12000L/min | 1 1/2 | 10.5kg | BM57 | AMF-EL850 |
| AMF850-20 | 2 | ||||

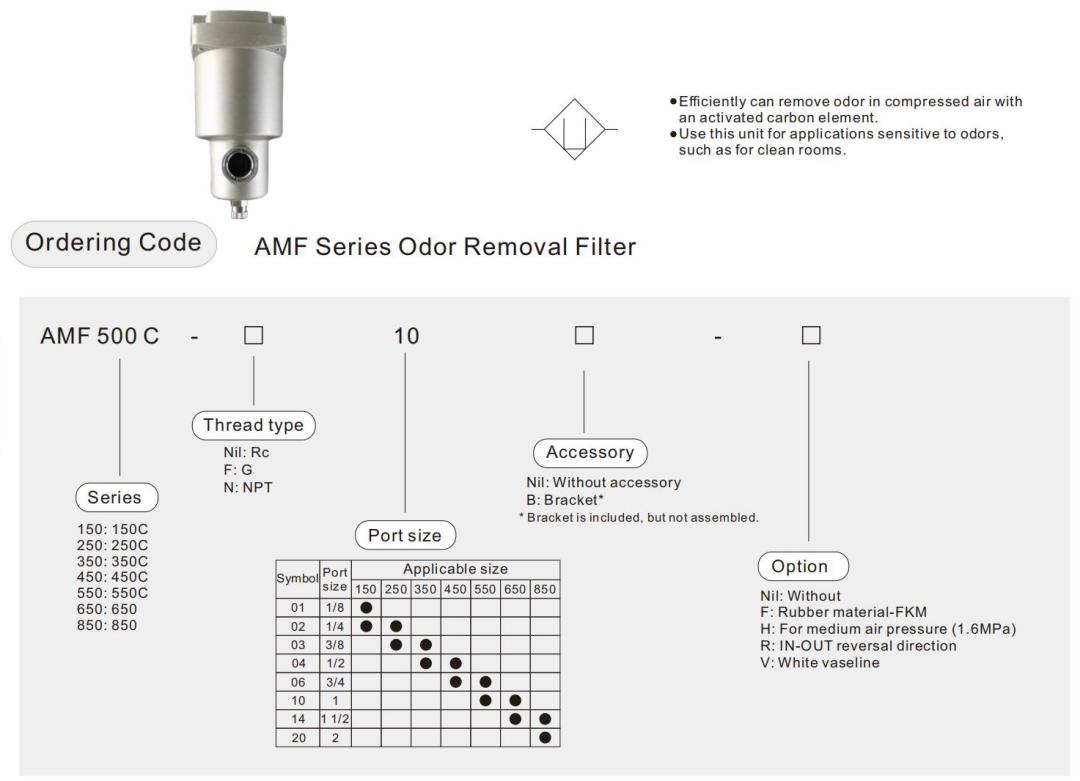

Order Example: Flow rate 1000L/min, G1/2 port size
Model: AMF350C-04

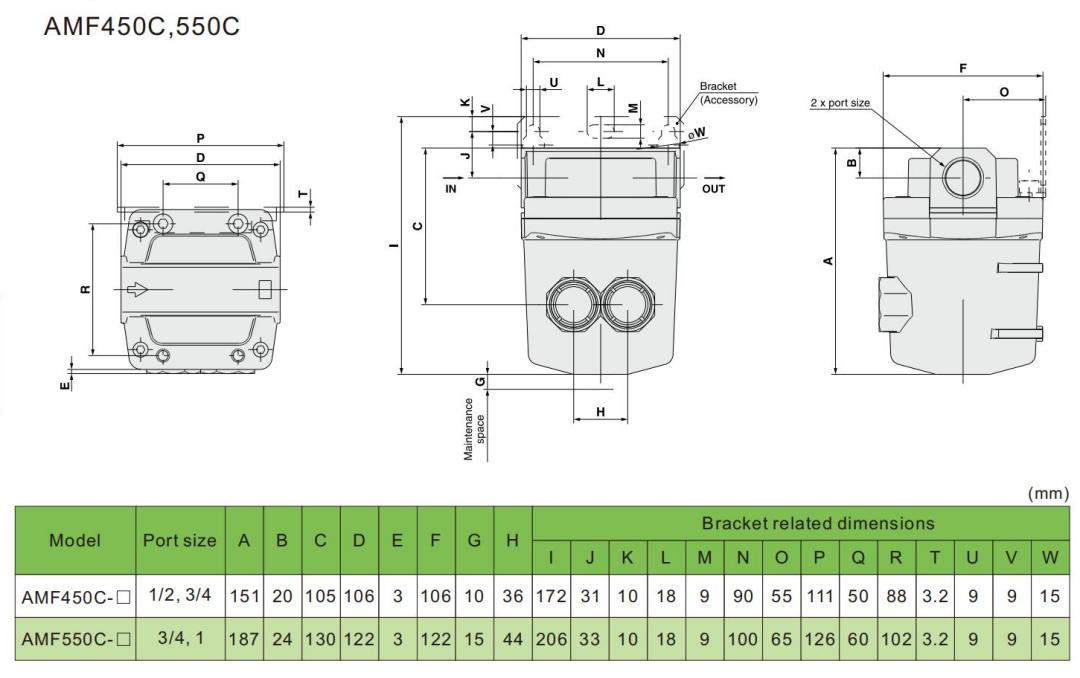

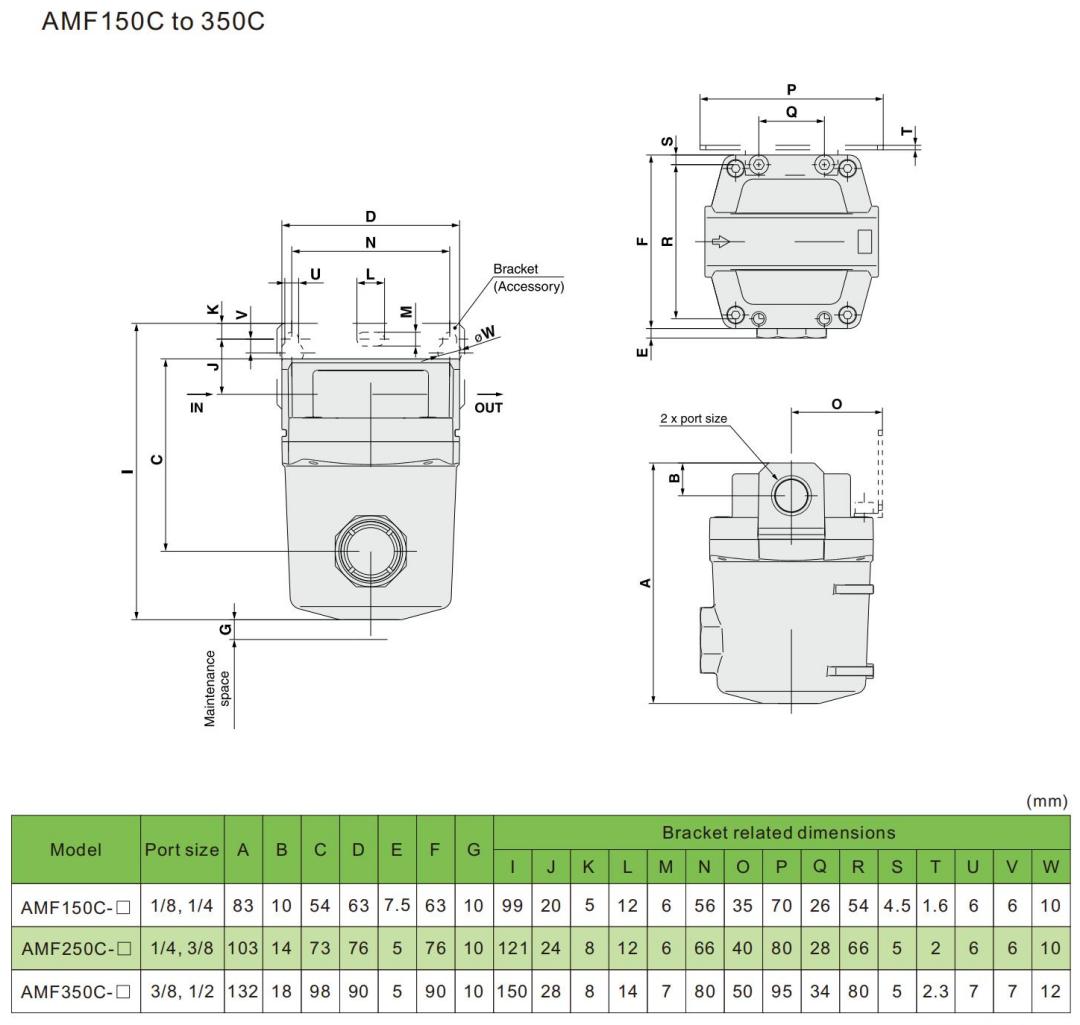

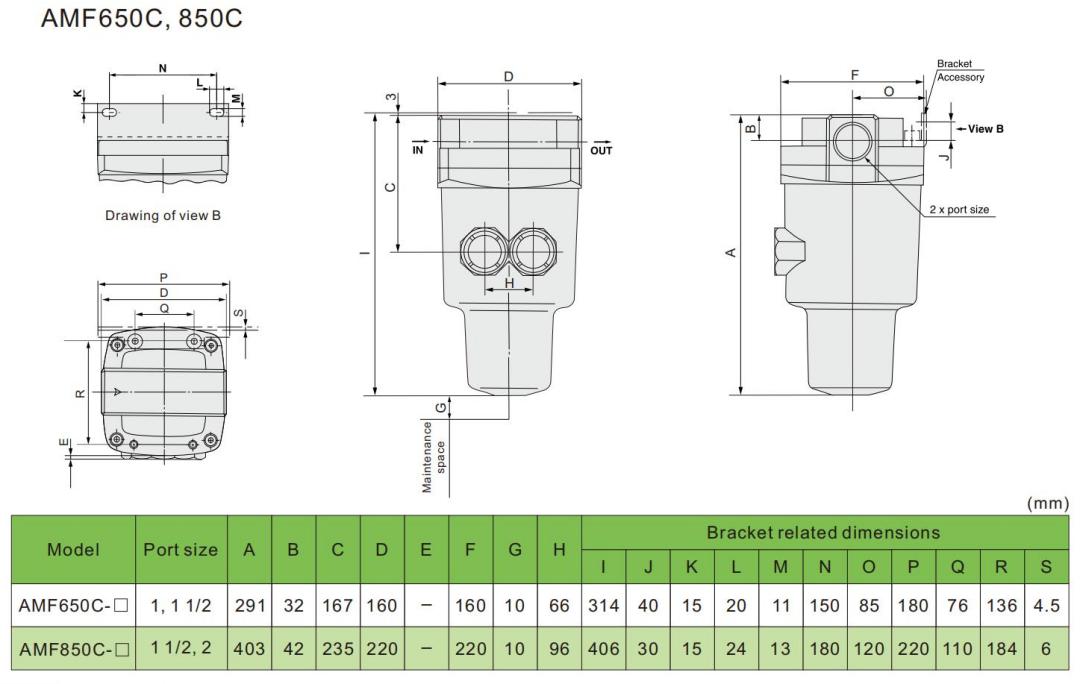

Main Dimensions
