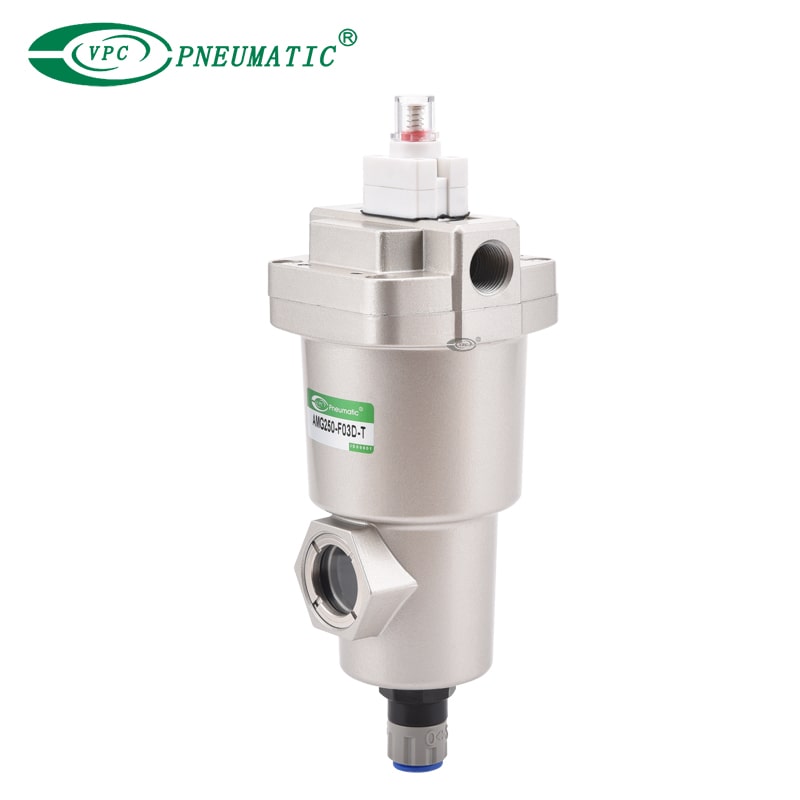

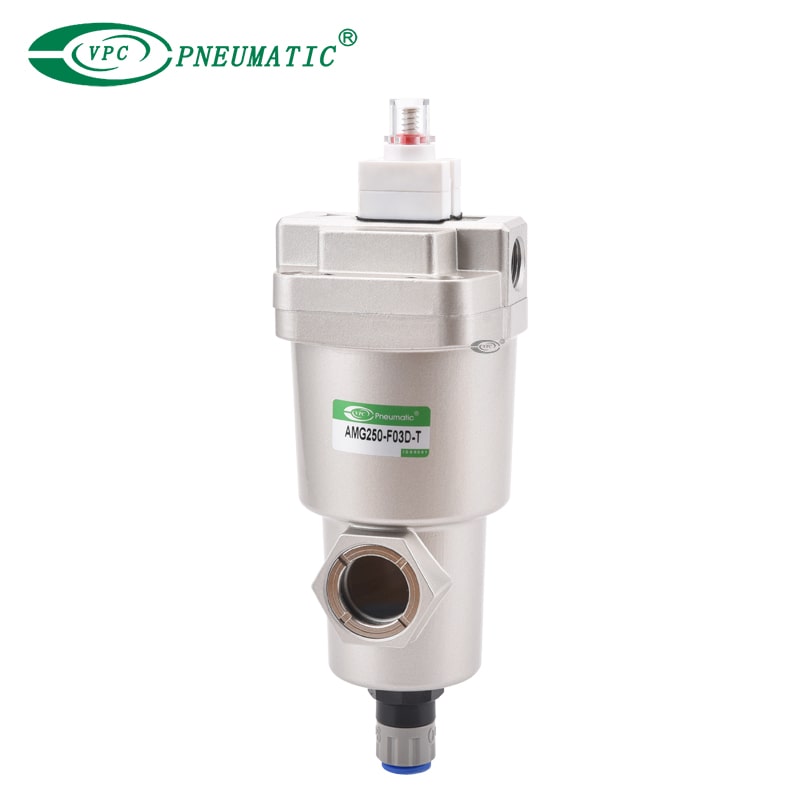

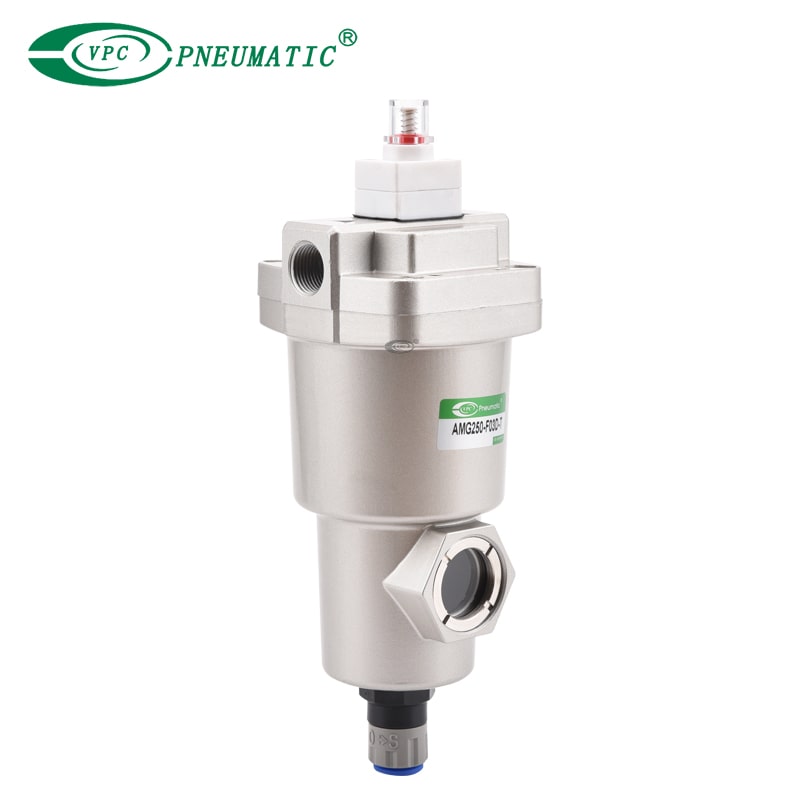

AMG Series Water Separator

■ Product Feature

Water Separator w/possible modular connection

1. Can remove water droplets in compressed air. Use this product in cases where “water must be avoided, but not so dry as when an air dryer is used”.

2. Through the adoption of a dedicated element and ample housing interior space, a 99% water removal rate has been achieved.

3. Options: Fluororubber material, medium air pressure, drain guide, IN-OUT reversal direction, degreasing wash, white vaseline.

■ Symbol

 * With auto drain: 0.1MPa (N.O. type) or 0.15MPa (N.C. type)

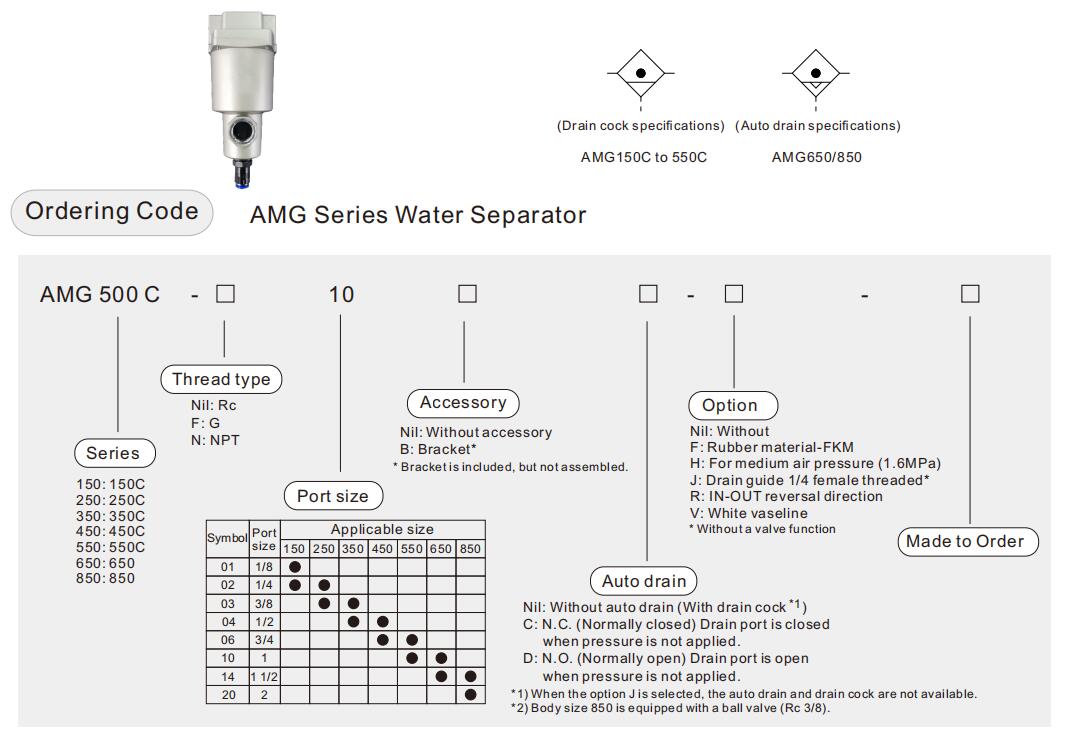

Order Example: Flow rate 1500L/min, Rc1/2 port size, auto drain type

Model: AMG350C-04D
