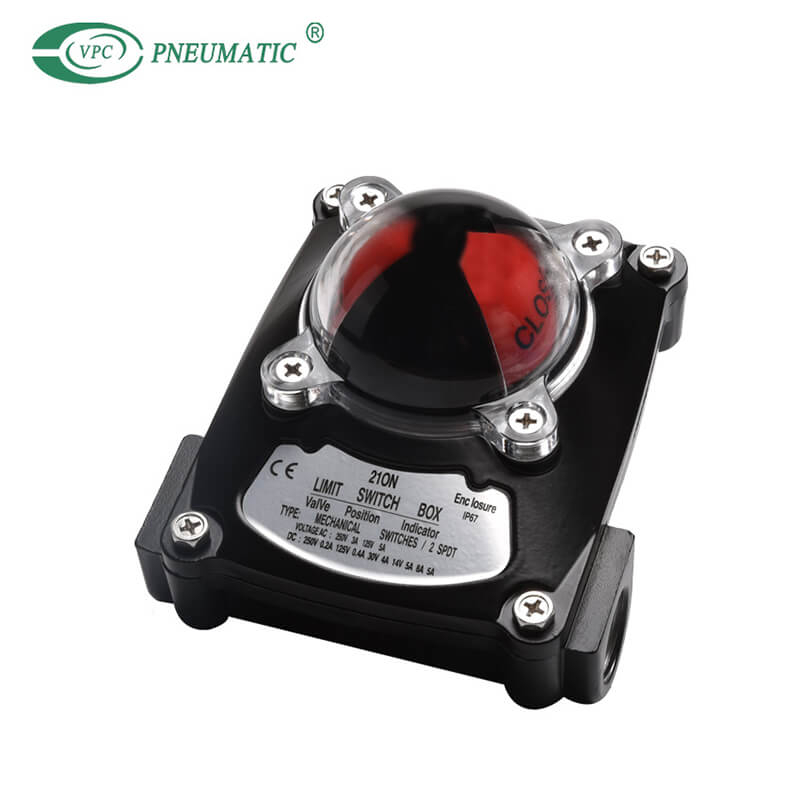

APL-210N Limit Switch Box

The APL-2N Series Limit Switch Box from VPC Pneumatic is a compact, weatherproof enclosure with internal adjustable position switches and an external visual indication. It has a NAMUR-standard mounting and drive, and is ideally suited for mounting on to quarter turn actuators and valves.

Model:
APL-210N
Brand:
VPC Pneumatic
Code:
8481802190

Body:	Aluminum IP-67 Black
Connection port:	G1/2" or NPT 1/2"
Limit switch:	Mechanical
Availability:



Inquire Add to Basket

Product Description

■ Description

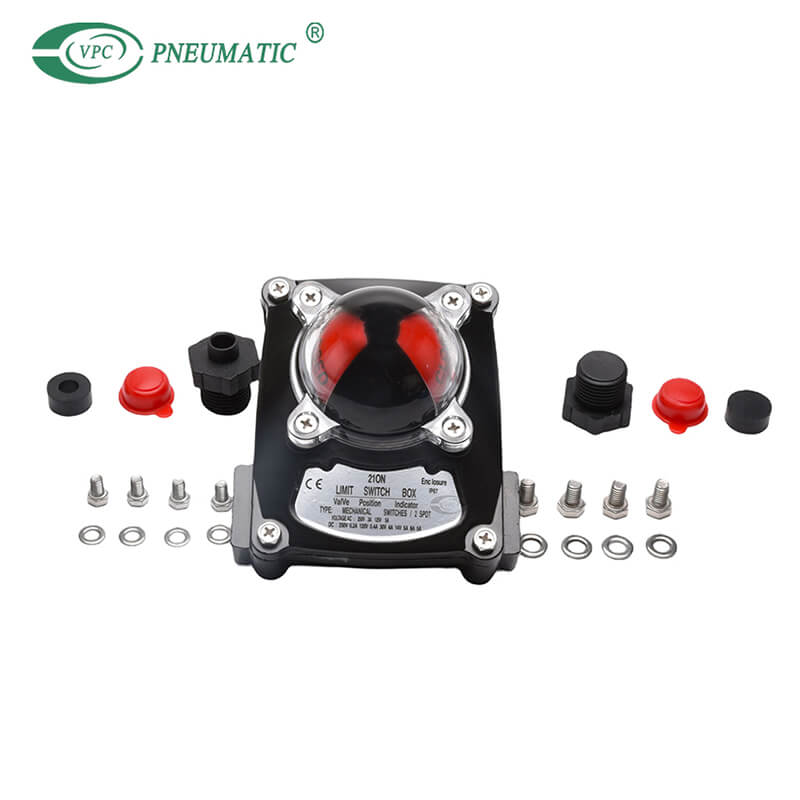

The APL Series Limit Switch Boxes Feature:

● Solid and compact design aluminium die-cast housing with polyester powder-coated finish.

● Bolt-on visual position indicator.

● Quick-set spring loaded splined cam. No need to adjust again after initial setting. Easy setting without tools.

● Dual cable entries.

● Captive cover bolts to prevent loss when the cover is removed.

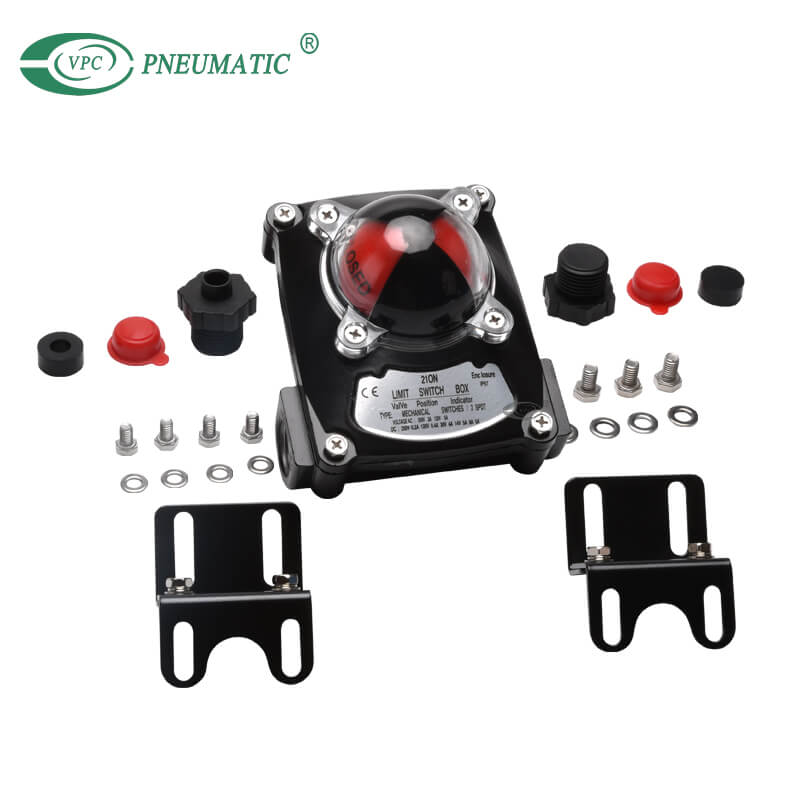

● NAMUR-standard stainless steel shaft and bracket.

Product Specification

■ Specifications

Limit switch box

Model	APL-210N
Enclosure explosion proof	IP67
Explosion proof grade	Non-explosion Proof, EXiaIIBT6
Temperature range	-20℃ to 80℃
Connection port	G1/2" or NPT 1/2"
Terminal connection	8 Points ( 0.08 to 2.5mm²)
Indicator position	0 to 90°
Switch	Mechanical switch (SPDT)x2
Position indication color	Close: Red, Open: Yellow
Potentiometer	1KΩ
Current feedback	4~20mA
