| Working medium: | |
|---|---|
| Proof pressure: | |
| Working temperature: | |
| Body Material: | |
| Guide: | |

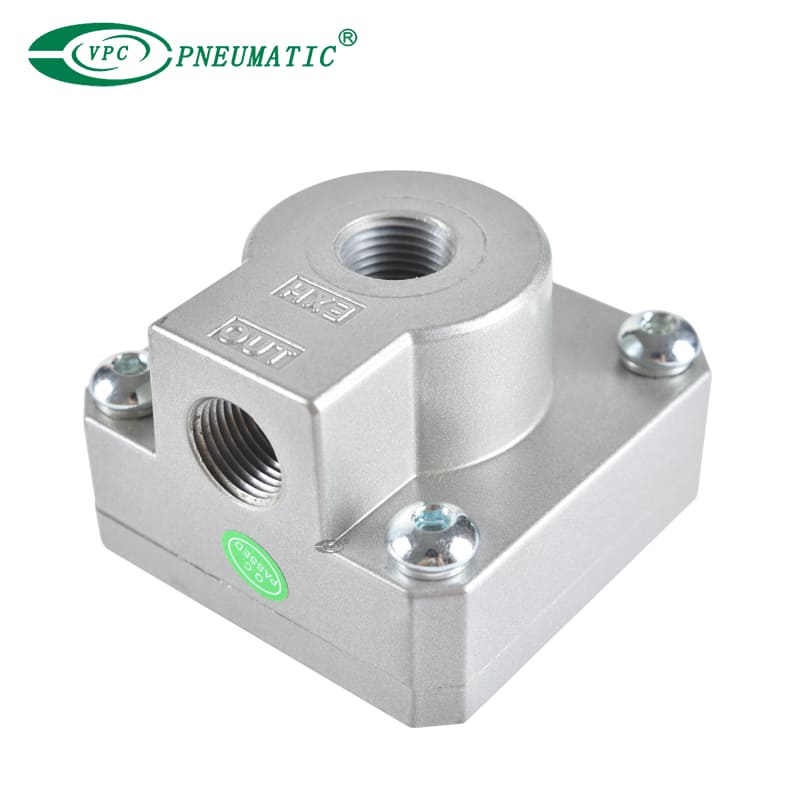

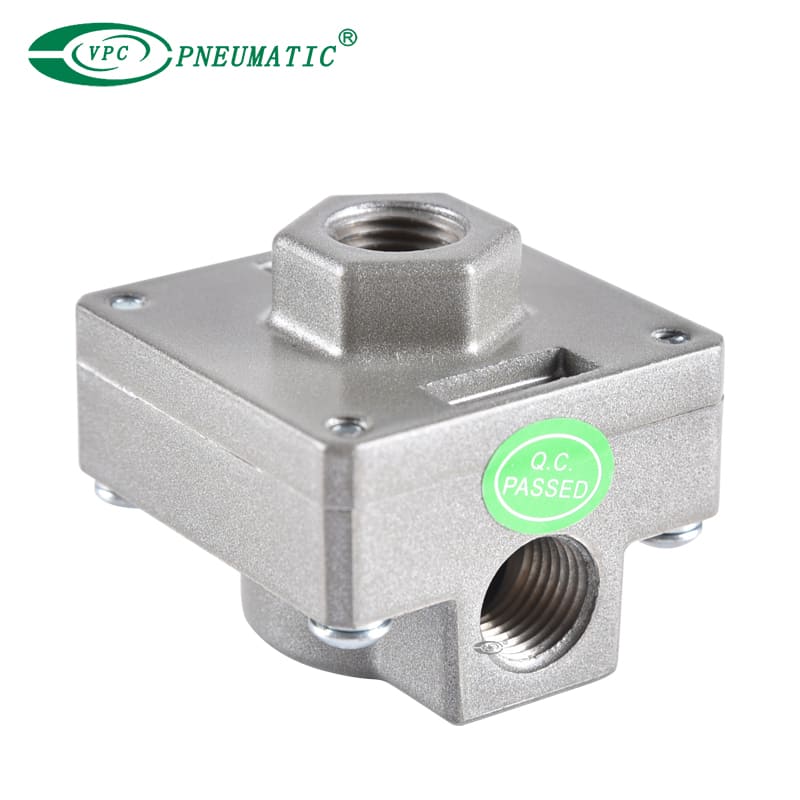

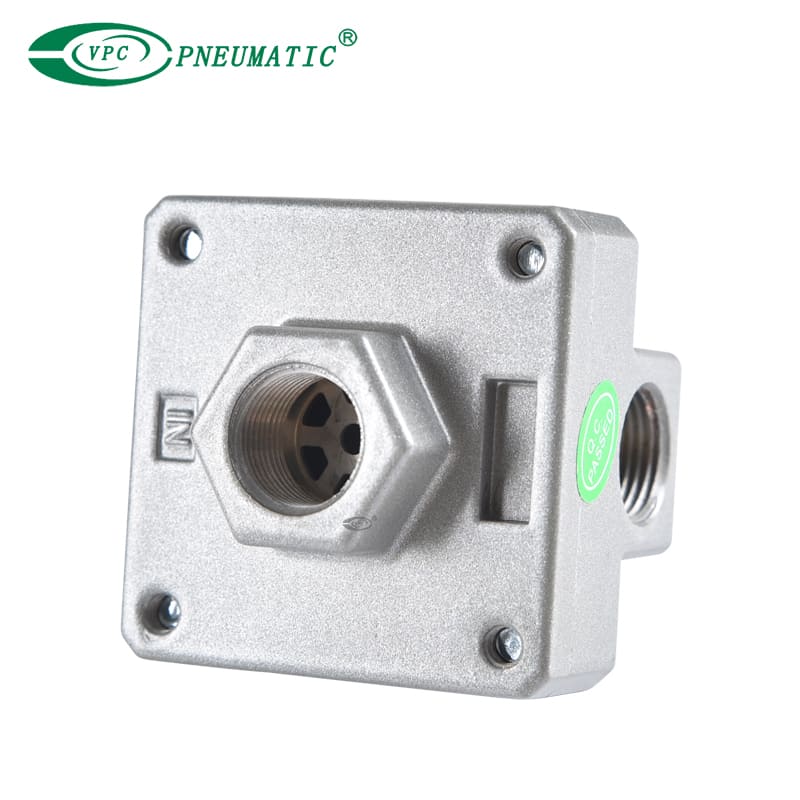

Product Description
1. Available in lip or diaphragm type.
2. Excellent exhaust characteristics.
3. Large flow capacity and low differential pressure.
4. Compact and lightweight valve body.
5. Wide selection of models available with port sizes ranging from M5 to 3/4.
Product Specifications
| Working medium | Air | |
| Proof pressure | 1.5 MPa | |
| Max. working pressure | AQ15□0 | 0.7 MPa |
| AQ2000 to 5000 | 1 MPa | |
| Min. working pressure | AQ15□0 | 0.1 MPa |
| AQ2000 to 5000 | 0.05 MPa | |
| Working temperature | -5 to 60℃ (No freezing) | |
| Model | Port size | Sonic conductance [dm3/(s-bar)] | Critical pressure ratio | ||
| IN→OUT | OUT→EXH | IN→OUT | OUT→EXH | ||
| AQ1500-M5 | M5 x0.8 | 0.4 | 0.56 | 0.35 | 0.3 |
| AQ1510-01 | 1/8 | 0.8 | 1.16 | ||
| AQ2000-01 | 1/8 | 5 | 5 | 0.45 | 0.35 |

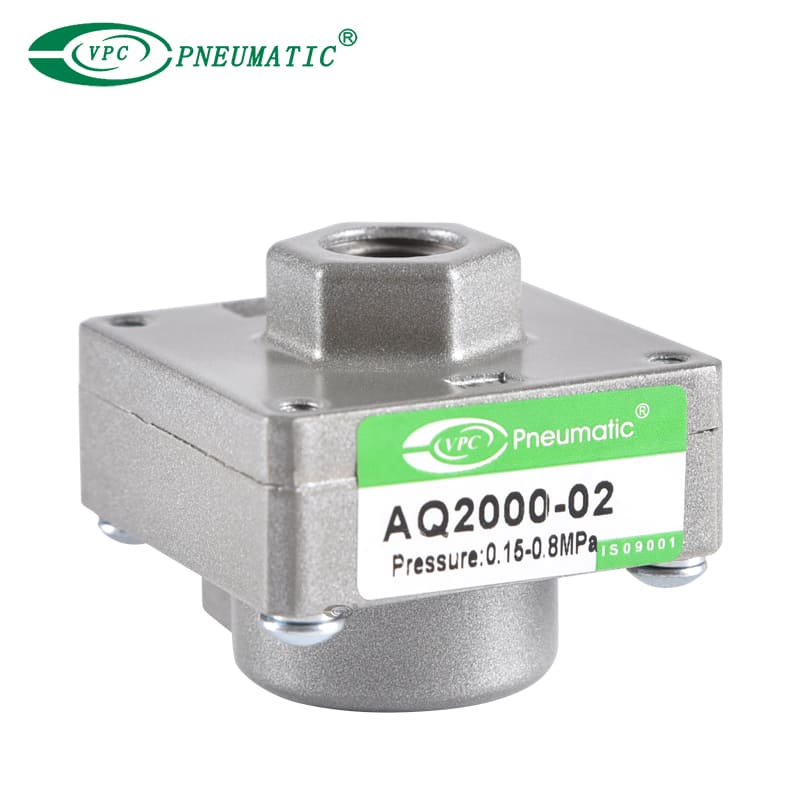

| AQ2000-02 | 1/4 | 7 | 8 | ||
| AQ3000-02 | 1/4 | 8 | 8.4 | ||

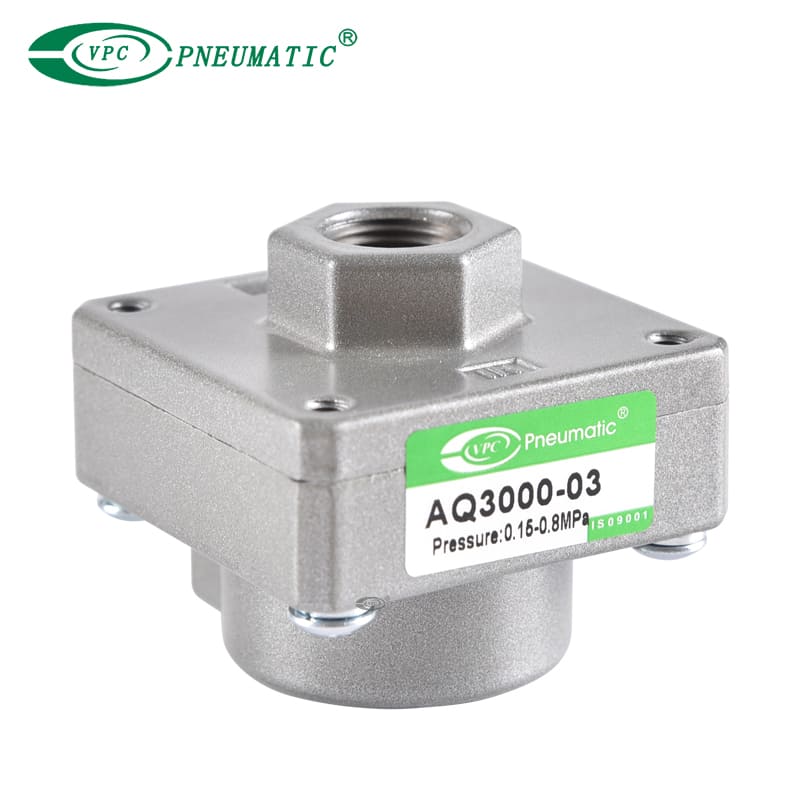

| AQ3000-03 | 3/8 | 12 | 14 | ||

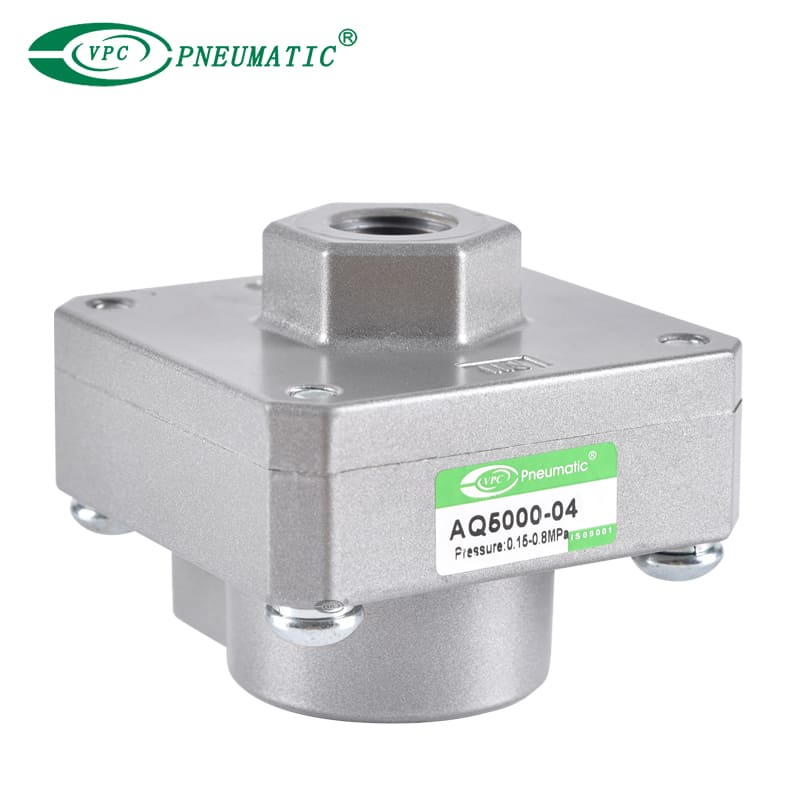

| AQ5000-04 | 1/2 | 21 | 23 | ||
| AQ5000-06 | 3/4 | 27 | 36 | ||
Main Dimensions
| Model | Port size | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | D |
| AQ1500 | M5x0.8 | 23 | 20 | 14 | 3 | 12.5 | 12 | 15 | 5.5 | 6.5 | 3.1 |
| AQ1510 | 1/8 | 45 | 33 | 25 | 4 | 21 | 15 | 25 | 8 | 11 | 4.3 |
| Model | Port size | L1 | L2 | L3 | L4 |
| AQ2000 | 1/8,1/4 | 45 | 40 | 10 | 45 |
| AQ3000 | 1/4,3/8 | 56 | 50 | 12.5 | 56 |
| AQ5000 | 1/2,3/4 | 85 | 75 | 18 | 85 |
