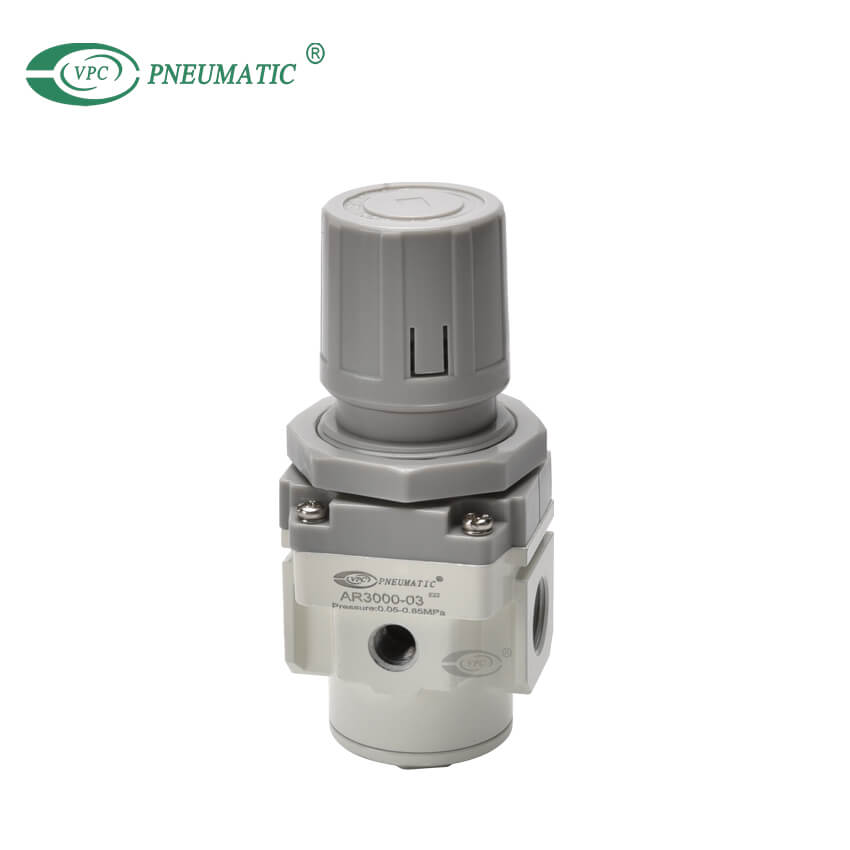

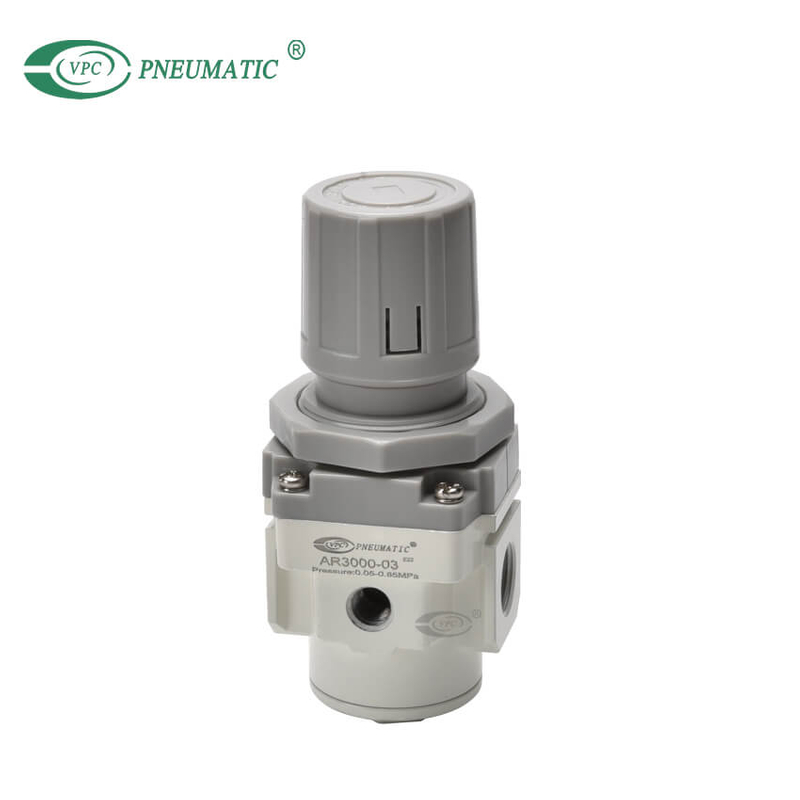

AR Series Air Regulator

Air Regulator series AR have been create a more efficient unit with a maximum set pressure of 145 psi. The locking adjustment knob prevents accidental setting changes. Options include a mounting bracket and set nuts for panel mounting as well as pressure gauges. The modular design of the AR series connects with other VPC air preparation equipment of similar size. AR seires is available in five body sizes with piping from M5 to 1" in Rc and NPT thread types.

Model:
AR3000-02
Brand:
VPC Pneumatic
Code:
8421399000

Working medium:	Compressed air
Guaranteed pressure :	5 to 60℃
Guaranteed pressure resistance:	1.5Mpa
Valve type:	With overflow
Pressure Adjusting Range:	0.05 to 0.85Mpa
Availability:



Inquire Add to Basket

Product Description

Air Regulator

Product Specifications

Guaranteed pressure resistance	1.5Mpa
Max working pressure	1.0Mpa
Working temperature	5 to 60℃
Pressure adjusting range	0.05 to 0.85Mpa
Valve type	With overflow

Note: NPT, PT Port size is optional.

Model	Specification				Accessories
	Rated flow(L/min)	Port size(G)	Pressure gauge thread size	Weight(kg)	Bracket (2pcs)

AR1000-M5	100	M5	G1/16"	0.08	B120
AR2000-01	550	G1/8"	G1/8"	0.27	B220
AR2000-02		G1/4"
AR2500-02	2000	G1/4"	G1/8"	0.27
AR2500-03		G3/8"
AR3000-02	2500	G1/4"	G1/8"	0.41	B320
AR3000-03		G3/8"
AR4000-03	6000	G3/8"	G1/4"	0.84	B420
AR4000-04		G1/2"
AR4000-06	6000	G3/4"	G1/4"	0.94
AR5000-06	8000	G3/4"	G1/4"	1.19
AR5000-10		G1"
