Product Description

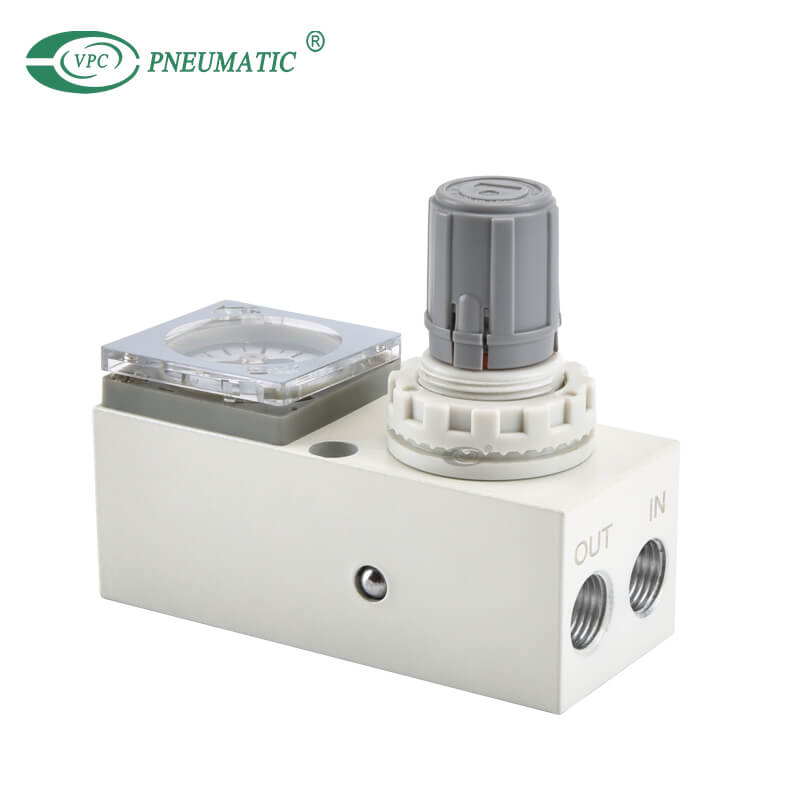

1. Regulator for manifold, front handle type
2. IN/OUT fitting type: straight & elbow (metric & inch)
3. IN/OUT piping position: bottom, top
4. Options: 0.35MPa setting, non-relieving, oil free
5. NPN or PNP digital pressure switch output
*A standard model is equipped with a backflow function.
*Main valve opens when the inlet pressure is released, and then the outlet pressure backflows into the inlet side.
Product Specifications
| Model | ARM10 | ARM10F | |
| Regulator construction | Direct acting | ||
| Working principle | Piston type | ||

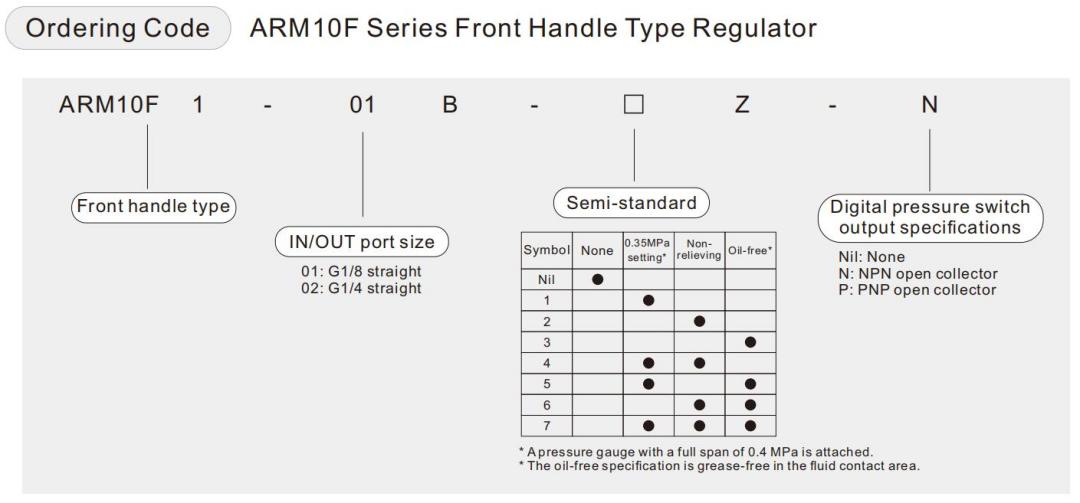

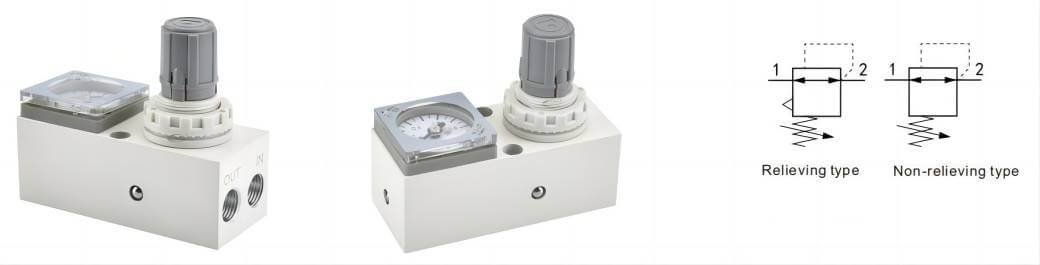

| Relief mechanism | Standard | Relieving type | |
| Semi-standard | Non-relieving type | ||
| Backflow function | Within(unbalanced type) | ||
| IN side tubing O.D. | Φ4, Φ6 | ||
| Out side tubing O.D. | Φ4, Φ6 | ||
| Proof pressure | 1.5MPa | ||
| Max. working pressure | 1.0MPa | ||
| Set pressure range | Standard | 0.05 to 0.7MPa | |
| Semi-standard | 0.05 to 0.35 MPa(Low pressure type) | ||
| Working medium | Air | ||
| Working temperature | 5 to 60℃ | ||
*0.1MPa or greater set pressure is required when used in the reverse flow.
*5 to 50℃ when the digital pressure swtich will be used.
