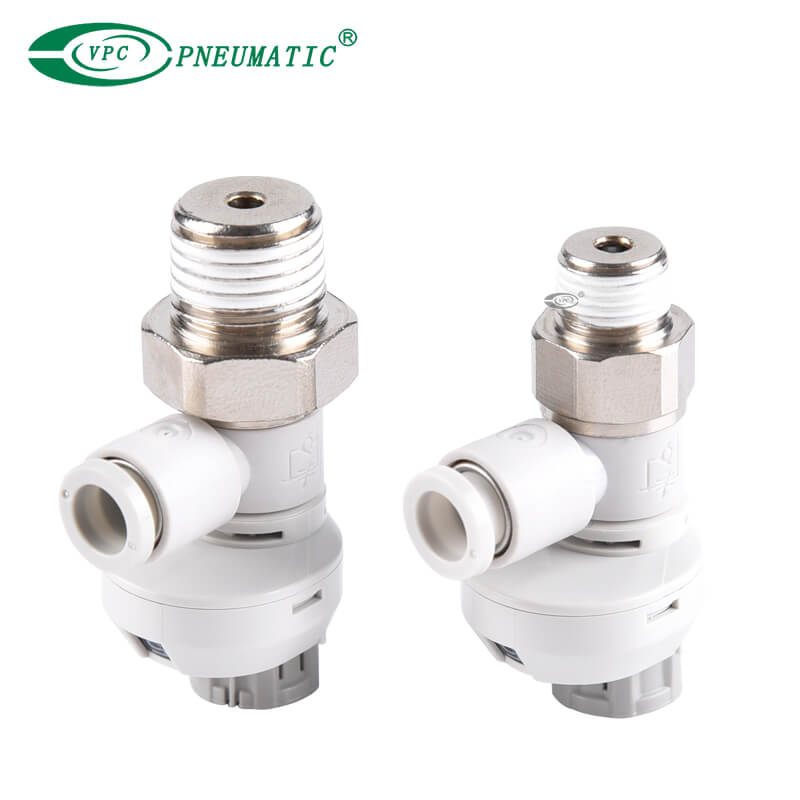

AS-FS Series Speed Controller with Indicator, Elbow Type

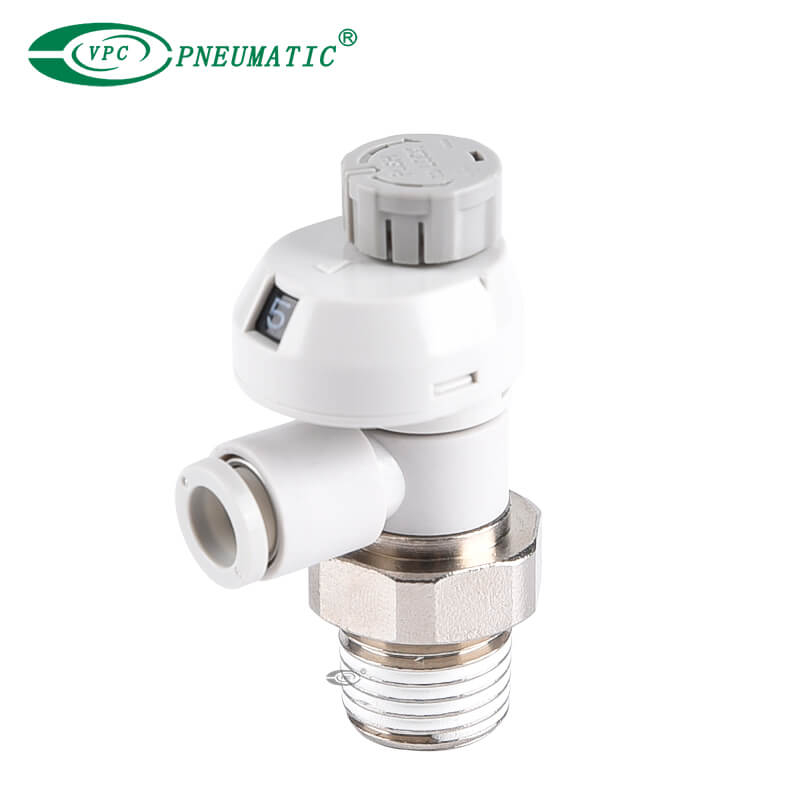

AS-FS speed controller with indicator is a precise and efficient flow control device designed to enable the control of air flow rates, ensuring optimal performance of pneumatic cylinders and actuators.
1. Indicator window allows for numerical verification of flow rate setting, which can significantly reduce setting time and errors.
2. Body size options available in different sizes to accommodate various tubing diameters and flow requirements.
3. Control type features a larger push-lock type handle for easy operation.

Model:
AS2201FS-02-06S
Brand:
VPC Pneumatic

Working medium:	Compressed air
Type:	Elbow Universal
Thread type:	R, NPT, G
Quality warranty:	2 years
Availability:



Inquire Add to Basket

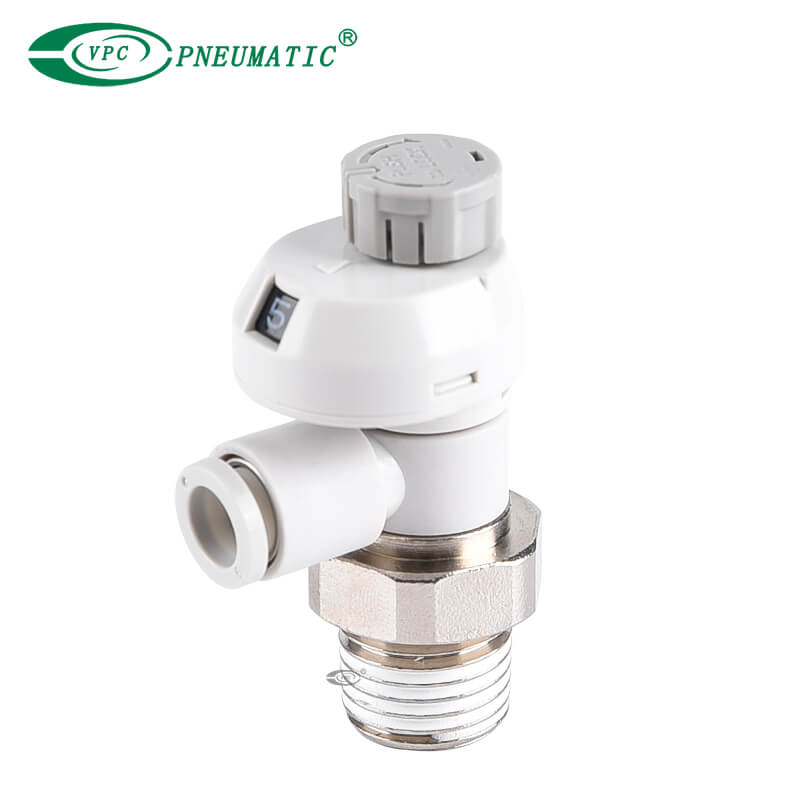

Product Description

■ Product Feature

1. The numerical indication of flow rate knob rotations reduces flow setting time and setting errors.

2. 4 indicator window directions offer improved visibility, 0°, 90°,180°, 270°.

3. Larger push-lock type knob, easy to turn large knob Easy to make fine adjustments. And marking of every 90° mark allows for easier operation.

4. Improved reproducibility of flow rate. Stable knob position when fully closed (no flow rate) onto the contact face

stopper (rotating stopper). Minimal flow rate variations between knob rotations.

5. One-touch fittings make easier to insert and remove the tube.

■ Symbol

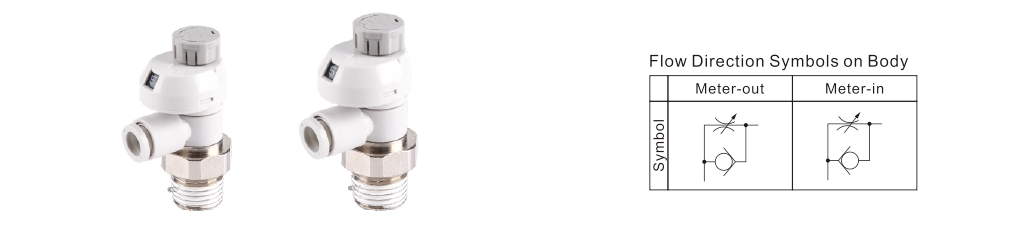

AS-FS Series Speed Controller with indicator symbol

speed controller

Product Specifications

■ Specifications

Working medium	Air
Proof pressure	1.5 MPa
Working pressure	1 MPa
Min.working pressure	0.1 MPa
Working temperature	-5 to 60℃ (No freezing)
Applicable tubing material	Nylon, Soft nylon, Polyurethane, FEP, PFA

* Use caution regarding the max. operating pressure when soft nylon or polyurethane tubing is used.

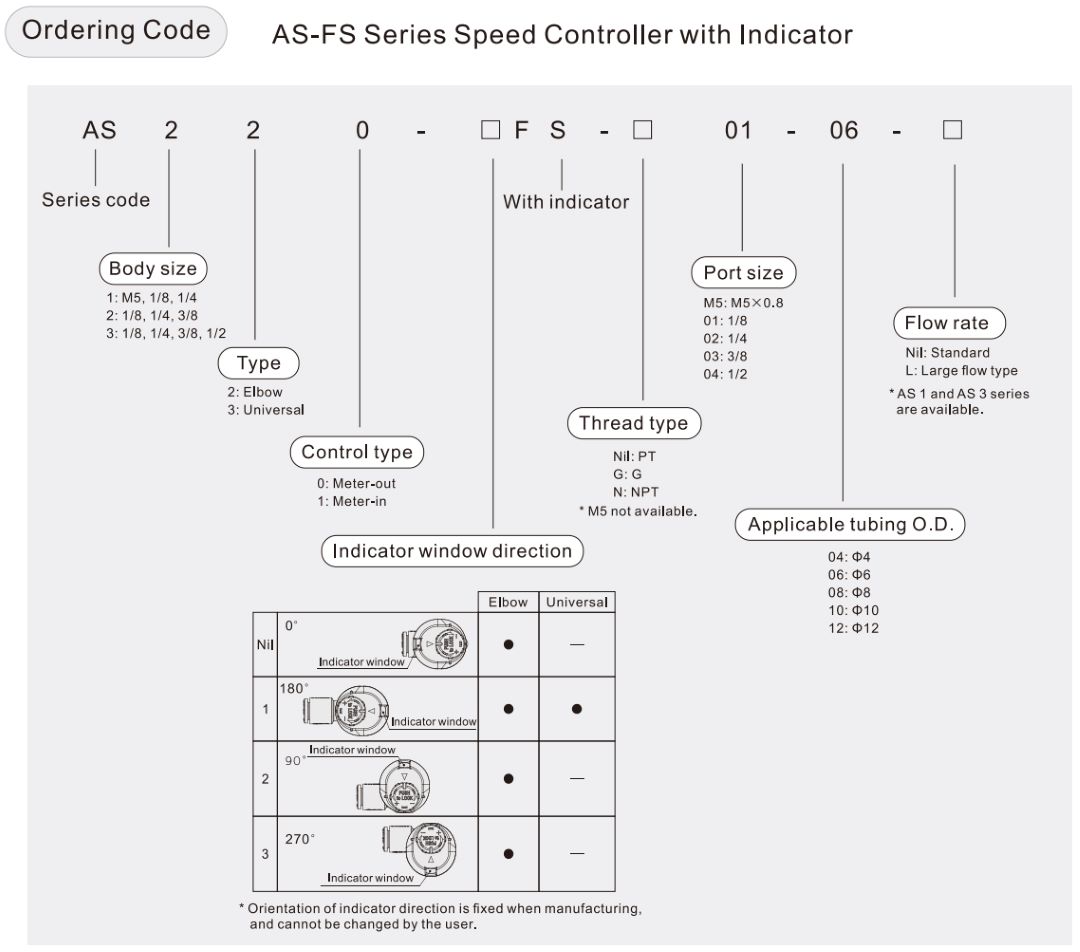

■ Model

Model	Port size		Seal method	Applicable tubing O.D.					Max. number of rotations
				Metric size
				4	6	8	10	12
AS1□□1FS□-M5□	M5x0.8		Gasket seal	●	●	●			8
AS1□□1FS□-U10/32□	10-32UNF		Gasket seal	●	●	●			8
AS2□□1FS□-□01	R NPT	1/8	Sealant	●	●	●	●		10
AS2□□1FS□-□02		1/4		●	●	●	●
AS3□□1FS□-□02		1/4				●	●	●
AS3□□1FS□-□03		3/8				●	●	●
AS4□□1FS□-□04		1/2					●	●
AS2□□1FS□-G01	G	1/8	Face seal	●	●	●	●
AS2□□1FS□-G02		1/4		●	●	●	●
AS3□□1FS□-G02		1/4			●	●	●	●
AS3□□1FS□-G03		3/8			●	●	●	●
AS4□□1FS□-G04		1/2					●	●

*1. “Without sealant” type can be selected as a standard option.

*2. Only polyurethane tubing is applicable for 2.

*3. There are differences in actual rate as by the indicator window over the maximum number of rotations depending on the individual product.

*4. The universal type is not available.

■ Flow Rate and Sonic Conductance

Model		AS1□□1FS-M5□	AS2□□1FS-01		AS2□□1FS-02			AS3□□1FS			AS4□□1FS
Tubing O.D.	Metric size	Ф4 Ф6	Ф4	Ф6 Ф8 Ф10	Ф4"	Ф6	Ф8 Ф10	Ф6	Ф8	Ф10 Ф12	Ф10	Ф12


C values: Sonic conductance dm³/(s.bar)	Free flow	0.3	0.6	0.6	1	1.3	0.5	1.6	1.7	2.5	4.4	4.8
	Controlled flow	0.3	0.7	0.8	0.9	1.3		2.1	2.4	3.3	4.4	4.9
b values: Critical pressure ratio	Free flow	0.4	0.2	0.3	0.3	0.4		0.4		0.3	0.3
	Controlled flow	0.2	0.2	0.3	0.3			0.3			0.3
