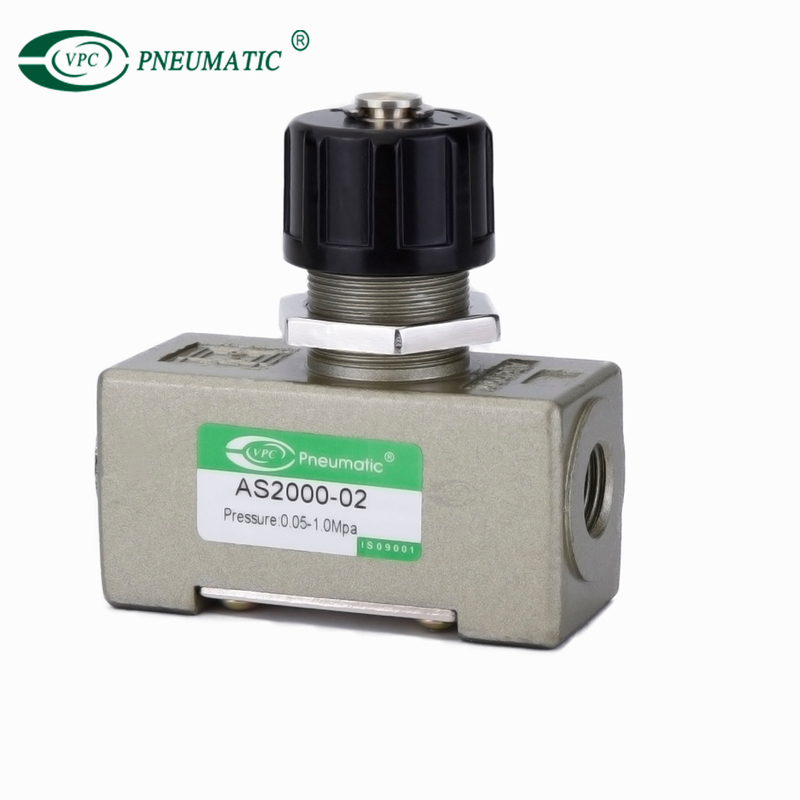

AS Series One-way Big Flow Control Valve

Share to:
  • Small and compact structure.
  • Allows big flow air to exhaust and cut off air flow. The adjustment screw is both sensitive and precise;
  • Can be mounted in various position to facilitate installation and application.
  • ASC300
  • VPC Pneumatic
  • 8412909000
Working medium:
Working pressure:
Working temperature:
Body Material:
Quality Warranty:
Availability:

Product Description

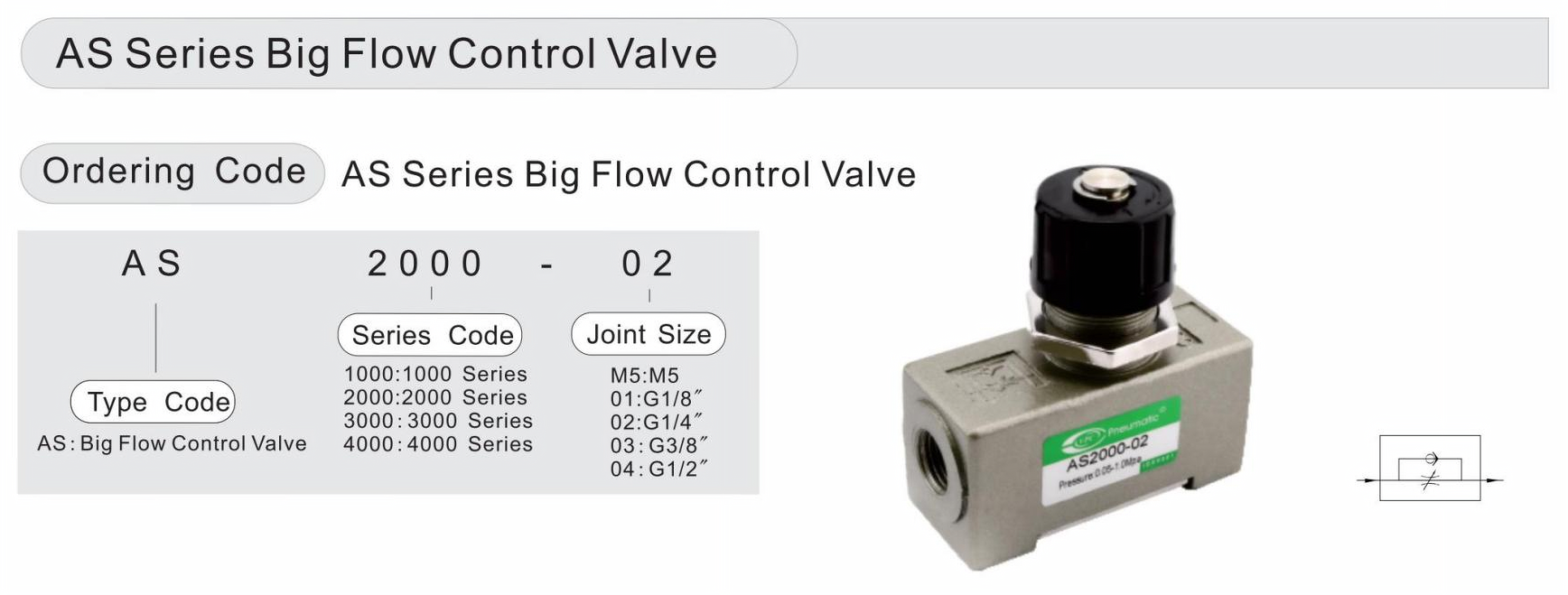

AS 参数-1

Product Specifications

ModelAS1000AS2000AS3000AS4000
Working MediumClean air(40μm Filteration)
Working Pressure1.05Mpa1.5Mpa
Max.Pressure0.7Mpa1.0Mpa
Min.Pressure0.1Mpa0.05Mpa
Working Temperature5 to 60℃
Adjustable cycles NO
10988



Model

Joint Size

Free flowControl flow
Flow(L/min)Sectional AreaFlow(L/min)Sectional Area
AS1000-M5M5901.4801.2
AS2000-01G1/8"3405.22503.8
AS2000-02G1/4"3405.22503.8
AS3000-02G1/4"81012.381012.3
AS3000-03G3/8"81012.381012.3
AS4000-02G1/4"167025.5167025.5
AS4000-03G3/8"167025.5167025.5
AS4000-04G1/2"167025.5167025.5

Note:Orifice is base on input pressure 0.5Mpa.

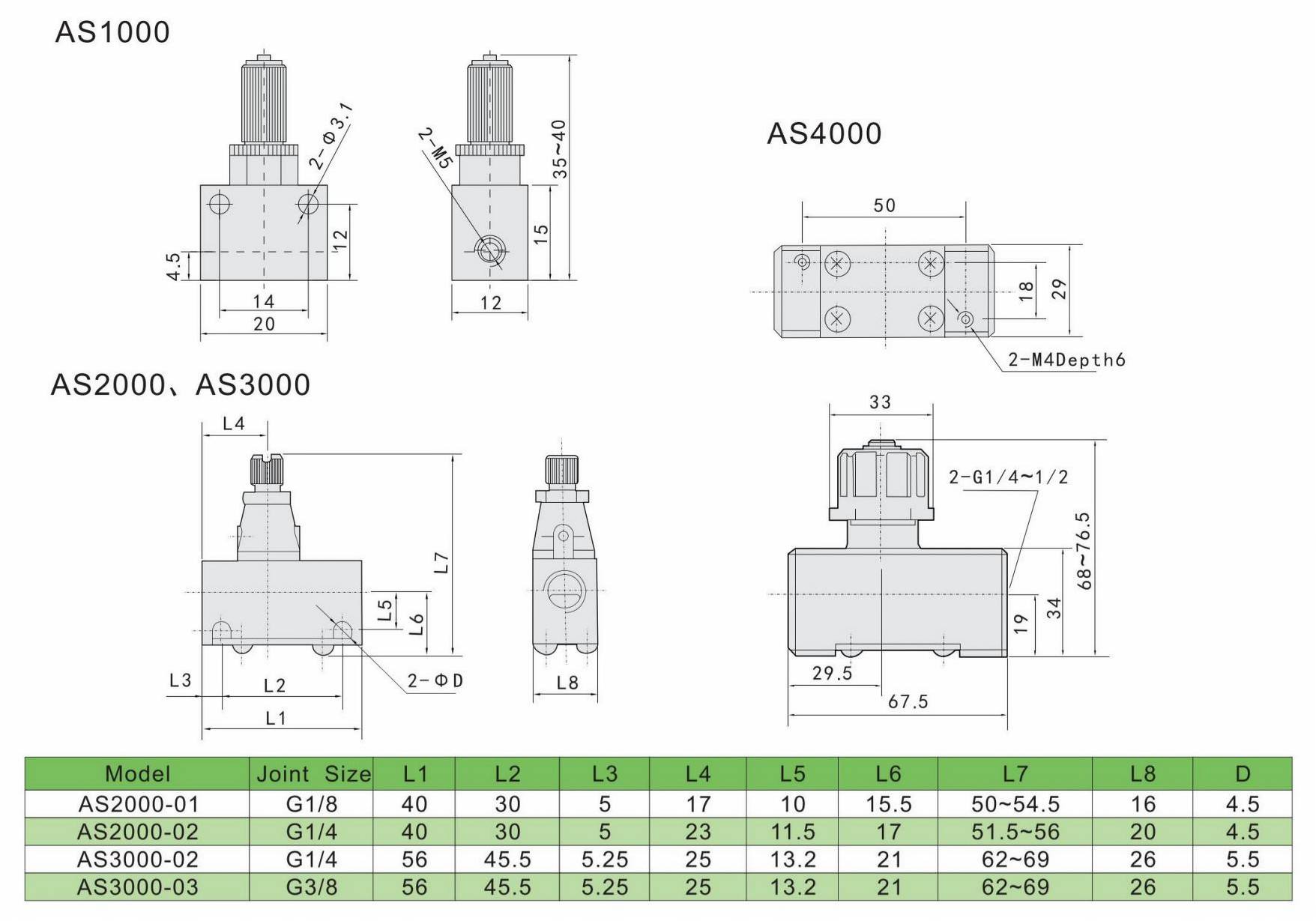

Main Dimensions

ASC参数-1
