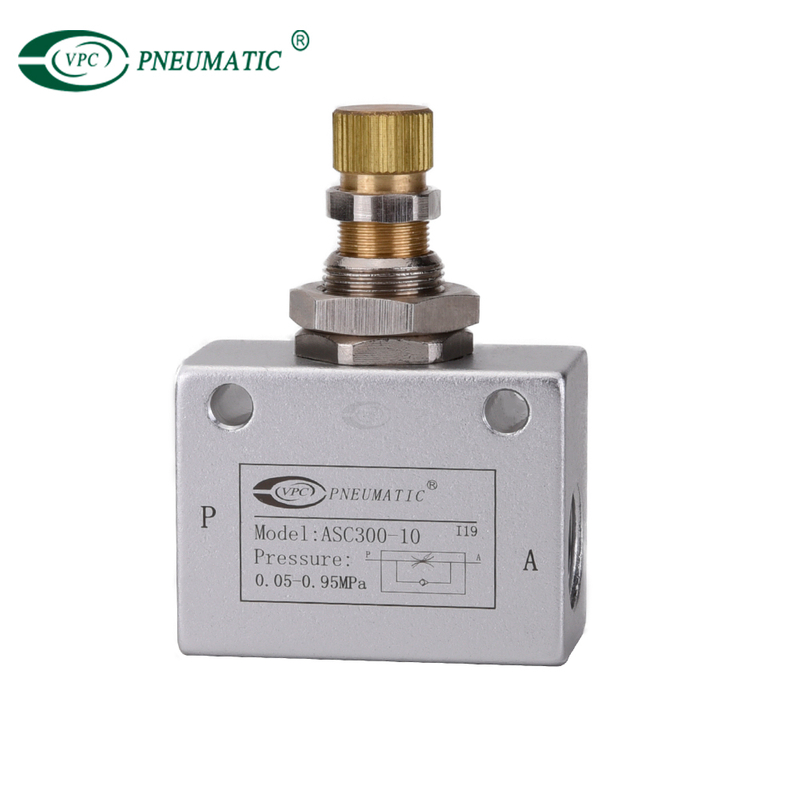

ASC Series One-way Throttle Valve
ASC Series One-way Throttle Valve ASC Series One-way Throttle Valve
ASC Series One-way Throttle Valve ASC Series One-way Throttle Valve
ASC Series One-way Throttle Valve ASC Series One-way Throttle Valve
ASC Series One-way Throttle Valve ASC Series One-way Throttle Valve
ASC Series One-way Throttle Valve ASC Series One-way Throttle Valve

loading

ASC Series One-way Throttle Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Small and compact structure.
  • Allows air to exhaust and cut off air flow. The adjustment screw is both sensitive and precise;
  • Can be mounted in various position to facilitate installation and application.

  • ASC300

  • VPC Pneumatic

  • 8412909000

Working medium:
Clean air
Working pressure:
0 to 1Mpa
Working temperature:
0 to 60℃
Body Material:
Aluminum
Joint size:
G1/8" to G3/8"
Availability:
Inquire Add to Basket

Product Description

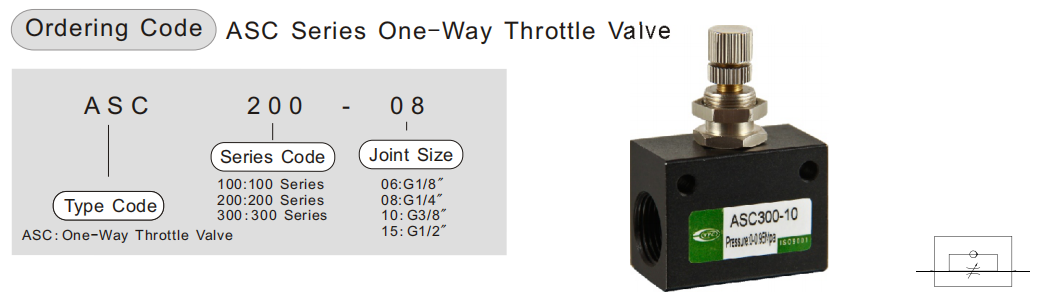

ASC参数-2

Product Specifications

ModelASC100-06ASC200-08ASC300-10ASC300-15
Working MediumClean air(40μm Filteration)
Working Pressure0~1.0Mpa
Max.Pressure1.2Mpa
Working Temperature0~60℃

Body Material

Aluminum


Standard rated flow

Throttle


200L/min450L/min1250L/min1650L/min

One way

400L/min800L/min1500L/min2500L/min

Joint Size

G1/8”G1/4”G3/8”G1/2”

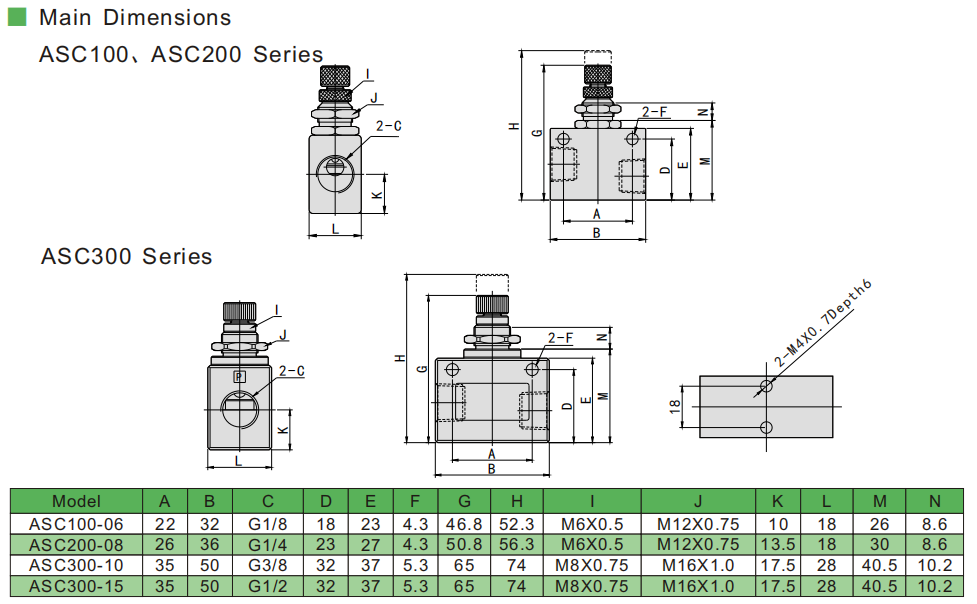

Main Dimensions

ASC参数-1
