AW Series Filter Regulator

Share to:

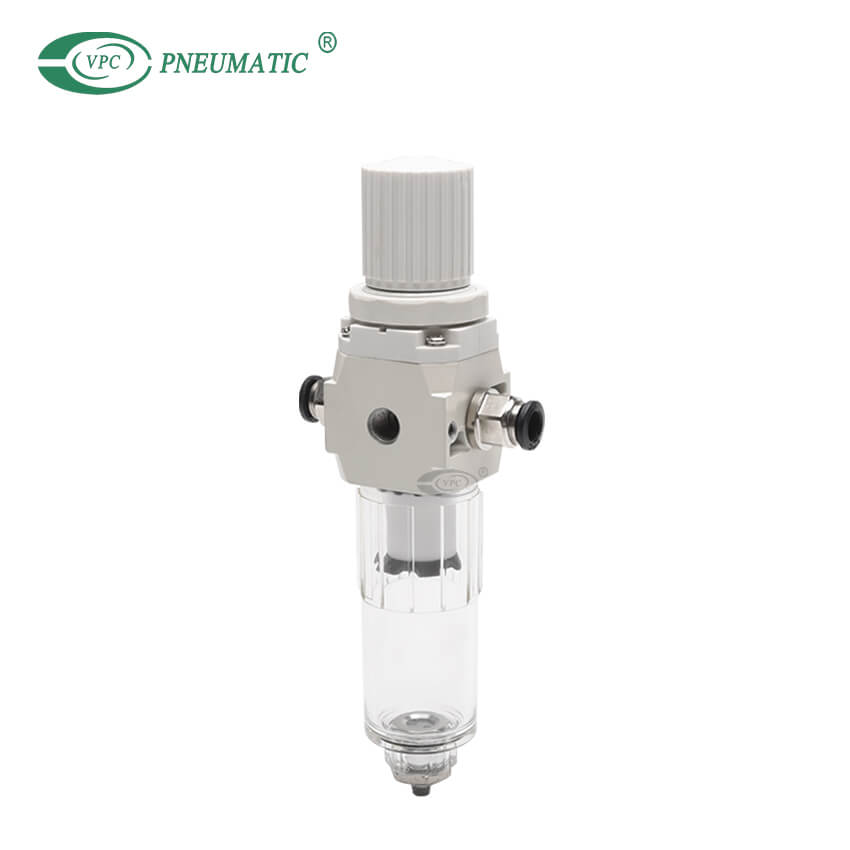

VPC'S series AW is a combination filter/regulator, minimizing space and piping by integrating two units into one. The pressure drop across the regulator section has been reduced creating a more efficient unit with a maximum set pressure of 145 psi. The element and bowl on the AW series is now one-piece, making element replacement easier. Bowls on the size 10 and 20 are covered with a transparent bowl guard, completely protecting them from the environment and making the interior contents visible from 360 degrees. This series is part of the family of modular air preparation units and can be combined with other similar sized products. AW is available in five body sizes with piping from M5 to 1" in Rc and NPT thread types.
  • AW3000-02
  • VPC Pneumatic
  • 8421399000
Working medium:
Working temperature:
Pressure adjusting range:
Filter precision:
Valve type:
Availability:

Product Description

英文样本转曲_91(1)

Product Specifications

Guaranteed pressure resistance1.5Mpa
Max working pressure1.0Mpa
Working temperature5-60℃
Filter Precision25um(5um is optional)
Bowl materialPolycarbonate
Bowl guardAC1000-2000(None)                 AC2500-5000(Avaiable)
Pressure adjusting rangeAC1000:0.05-0.7Mpa              AC2000-5000:0.05-0.85Mpa
Valve typeWith overflow

Note: NPT, PT Port size is optional.

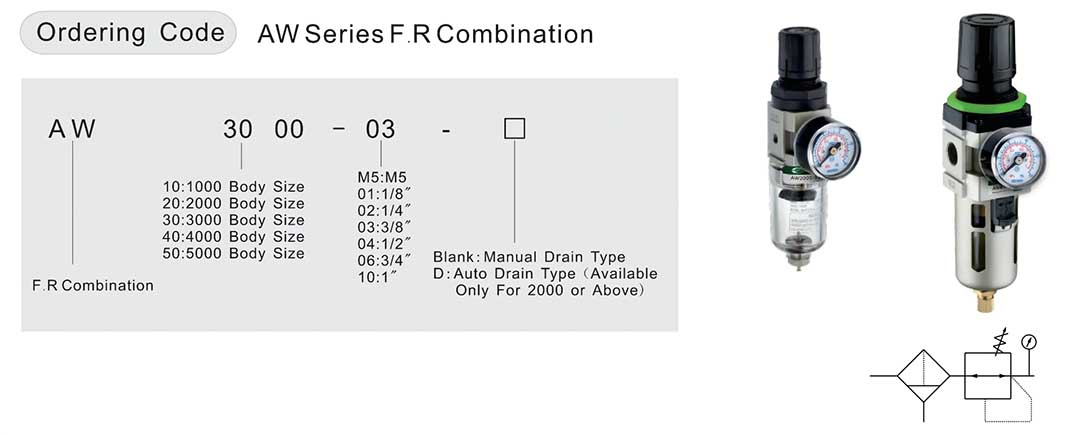

ModelSpecificationAccessoriesDrian FunctionAuto drain model
Rated flow(L/min)Port size(G)Pressure gauge thread size(G)Weight(kg)Bracket (2pcs)
AW1000-M5100M51/160.09B120Manual drain/
AW2000-01550G1/8"1/80.36B220Manual drainAW2000-01D
AW200-02G1/4"AW2000-02D
AW3000-022000G1/4"1/80.56B320

A.Zero pressure drain

B.Manual drain

AW3000-02D
AW3000-03G3/8"AW3000-03D
AW4000-034000G3/8"1/41.15B420AW4000-03D
AW4040-04G1/2"AW4000-04D
AW4000-064500G3/4"1/41.21B420AW4000-06D
AW5000-065500G3/4"1/41.7B420AW5000-06D
AW5000-10G1"AW5000-10D

Note:The above information is based on 0.7Mpa(7. 1kgf/cm2) supply pressure and 0.5Mpa(5. 1kgf/cm2) setted pressure.

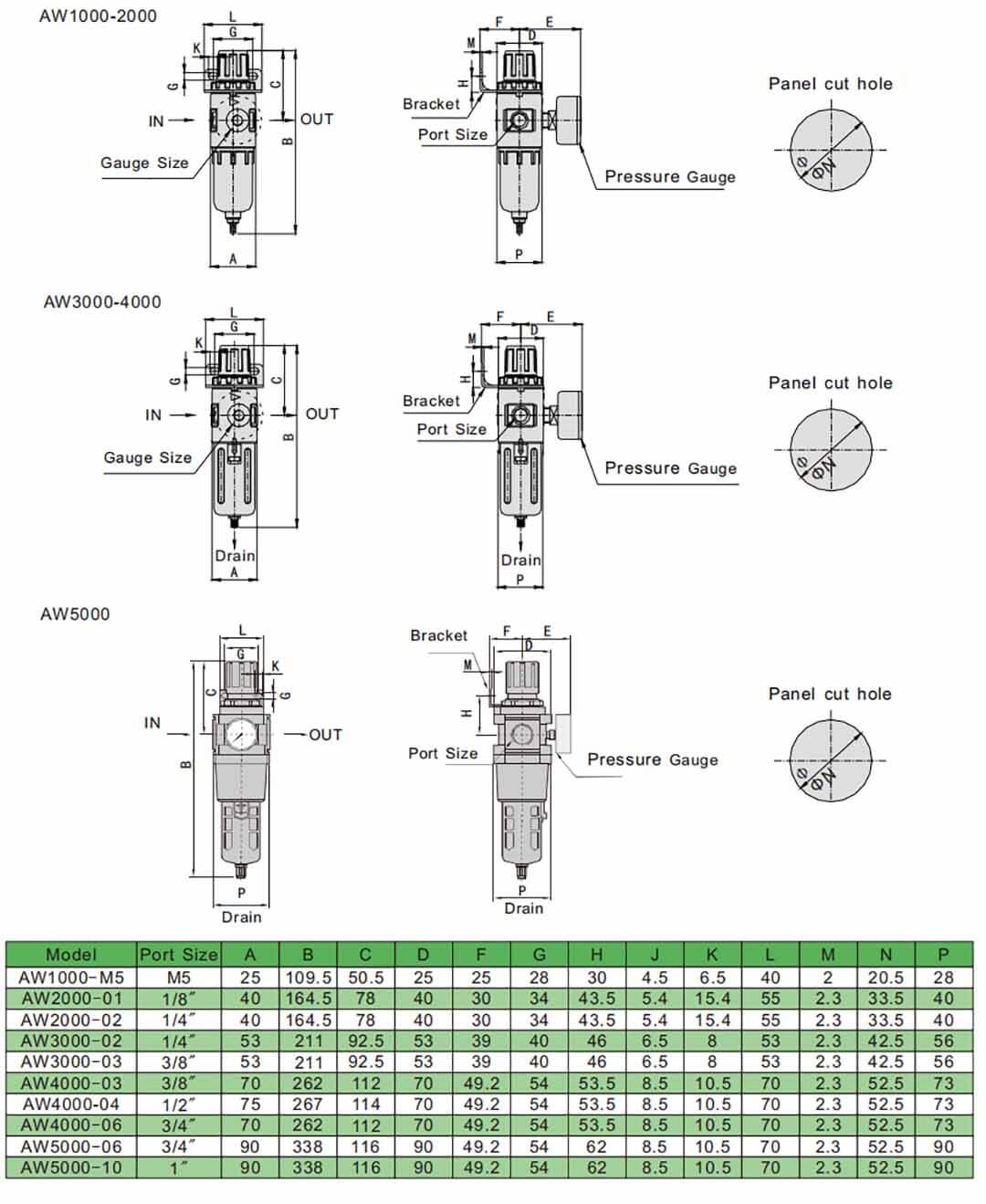

Main Dimensions

AW参数-1
