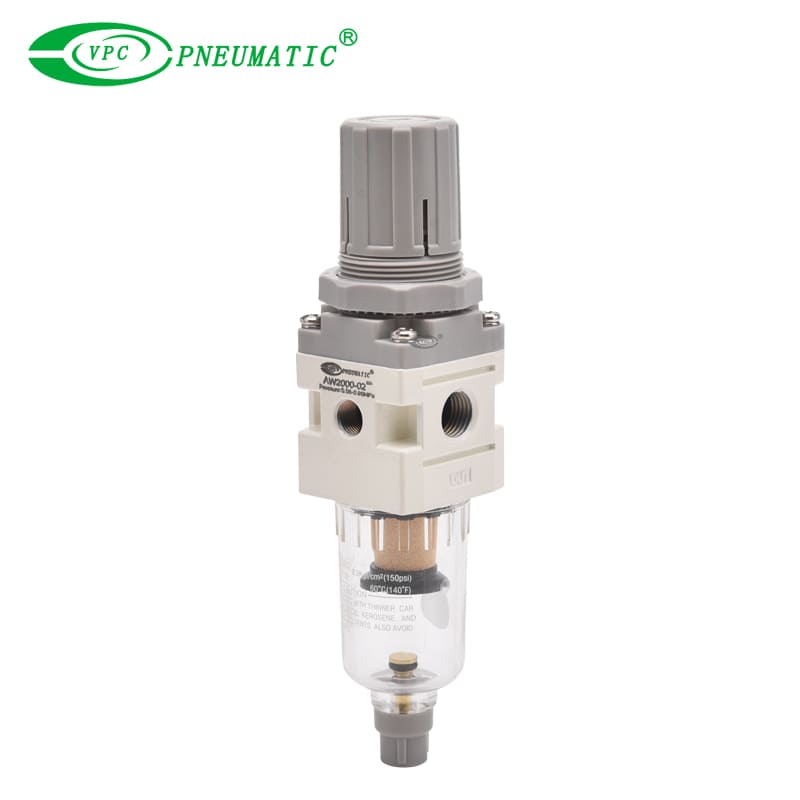

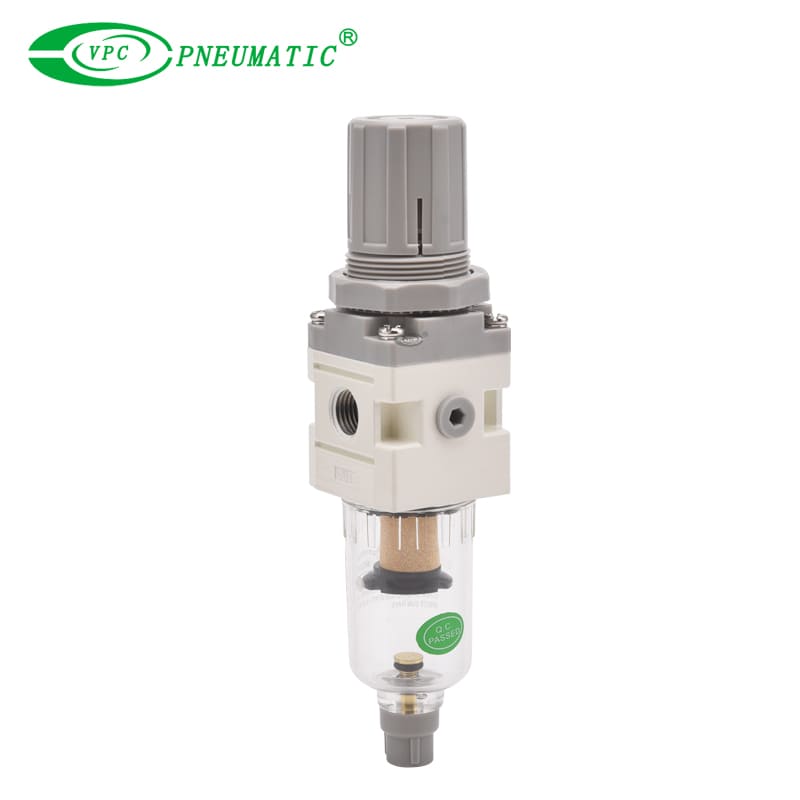

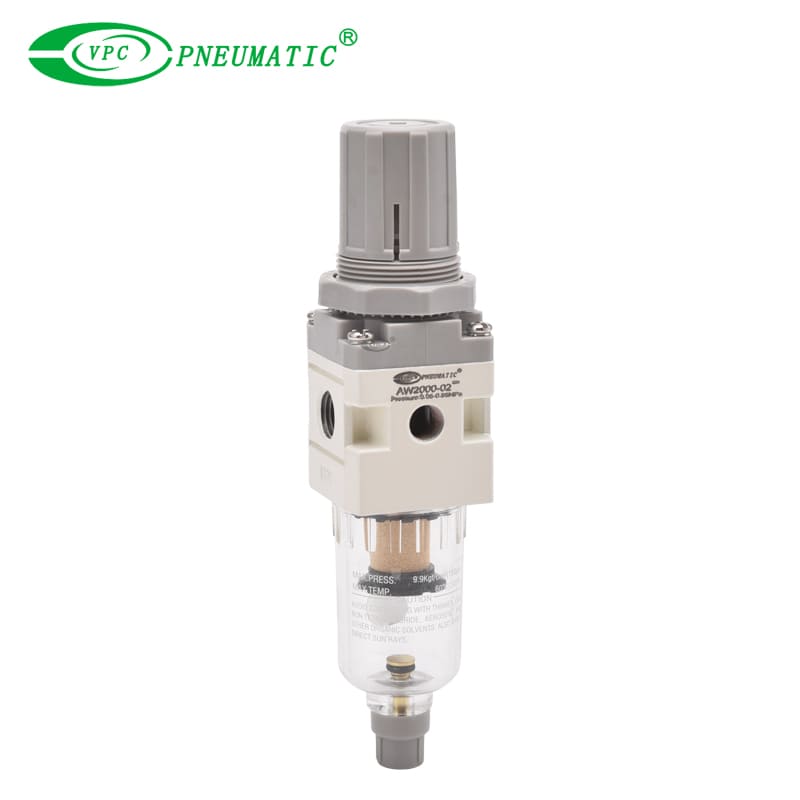

AW Series Pneumatic Filter Regulator

AW combines filter and regulator in one unit, reducing space and piping. Max. set pressure: 145 psi (1MPa). One-piece element & bowl for easy replacement. Transparent bowl guard (sizes 10 & 20) provides 360° visibility. Five body sizes, piping from M5 to 1" in Rc or NPT threads. Modular design allows seamless combination with other VPC air prep units.

Model:
AW2000-02
Brand:
VPC Pneumatic
Code:
8421399000

Working medium:	Compressed air
Working temperature:	5 to 60℃
Pressure adjusting range:	AC1000: 0.05 to 0.7Mpa AC2000~5000: 0.05 to 0.85Mpa
Filter precision:	25 μm (5 μm is optional )
Valve type:	With overflow
Availability:



Inquire Add to Basket

Product Description

■ Symbol

air filter regulator

Product Specifications

Guaranteed pressure resistance	1.5 Mpa
Max. working pressure	1.0 Mpa
Working temperature	5 to 60℃
Filter precision	25um (5um is optional)
Bowl material	Polycarbonate
Bowl guard	AC1000 to 2000 (None) AC2500 to 5000 (Avaiable)
Pressure adjusting range	AC1000: 0.05 to 0.7Mpa AC2000-5000: 0.05 to 0.85Mpa
Valve type	With overflow

Note: NPT, PT Port size is optional.

Model	Specification				Accessories	Drian Function	Auto drain model
	Rated flow (L/min)	Port size (G)	Pressure gauge thread size (G)	Weight (kg)	Bracket (2pcs)

AW1000-M5	100	M5	1/16	0.09	B120	Manual drain	/
AW2000-01	550	G1/8"	1/8	0.36	B220	Manual drain	AW2000-01D
AW200-02		G1/4"					AW2000-02D
AW3000-02	2000	G1/4"	1/8	0.56	B320	A.Zero pressure drain B.Manual drain	AW3000-02D
AW3000-03		G3/8"					AW3000-03D
AW4000-03	4000	G3/8"	1/4	1.15	B420		AW4000-03D
AW4040-04		G1/2"					AW4000-04D
AW4000-06	4500	G3/4"	1/4	1.21	B420		AW4000-06D
AW5000-06	5500	G3/4"	1/4	1.7	B420		AW5000-06D
AW5000-10		G1"					AW5000-10D
