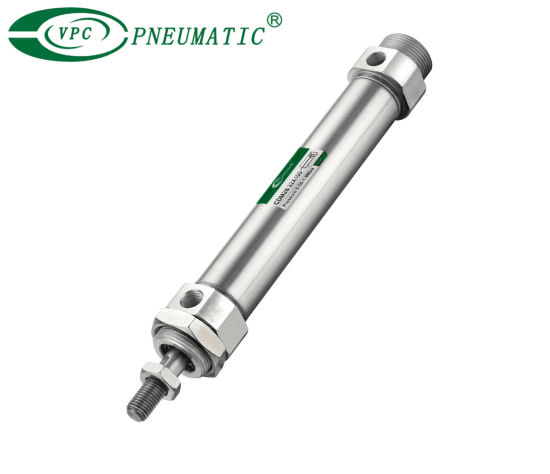

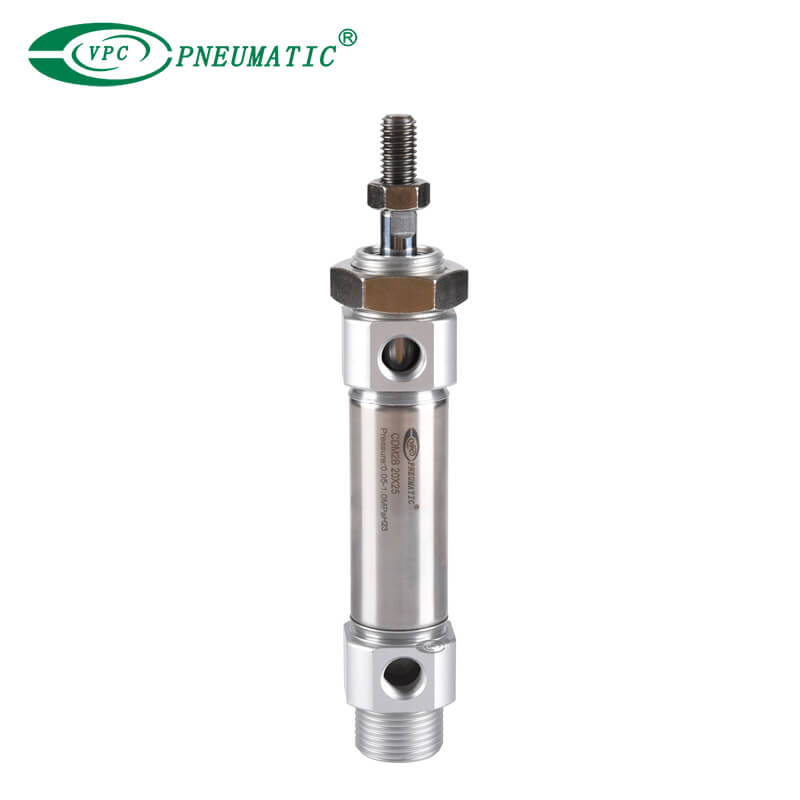

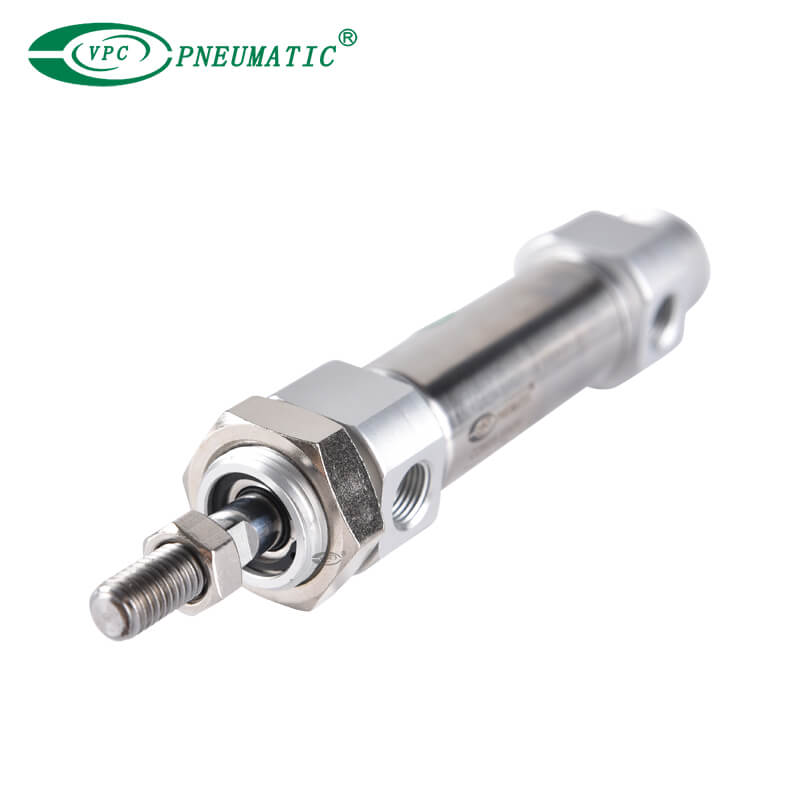

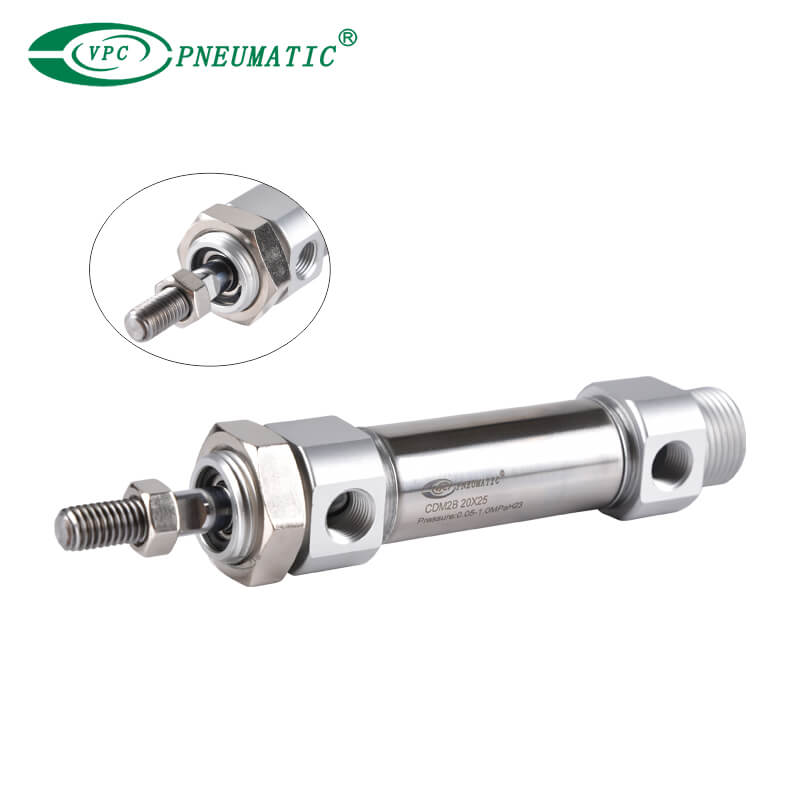

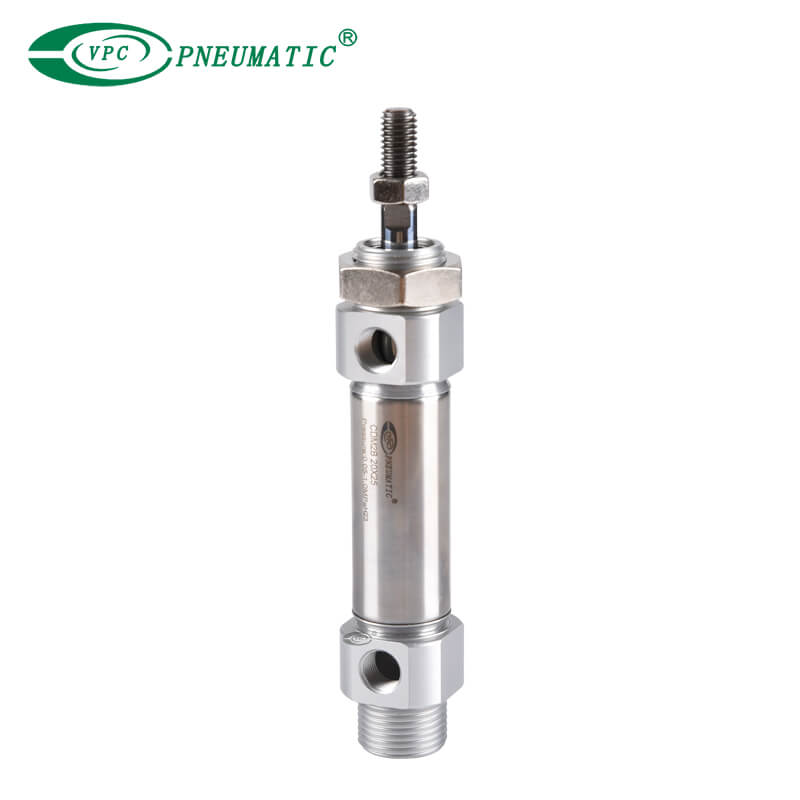

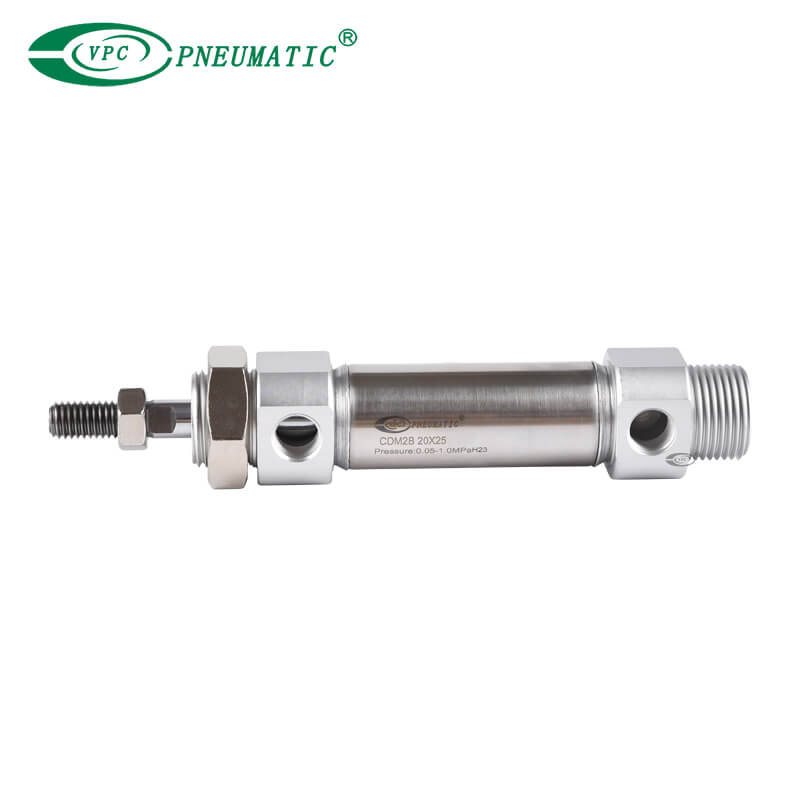

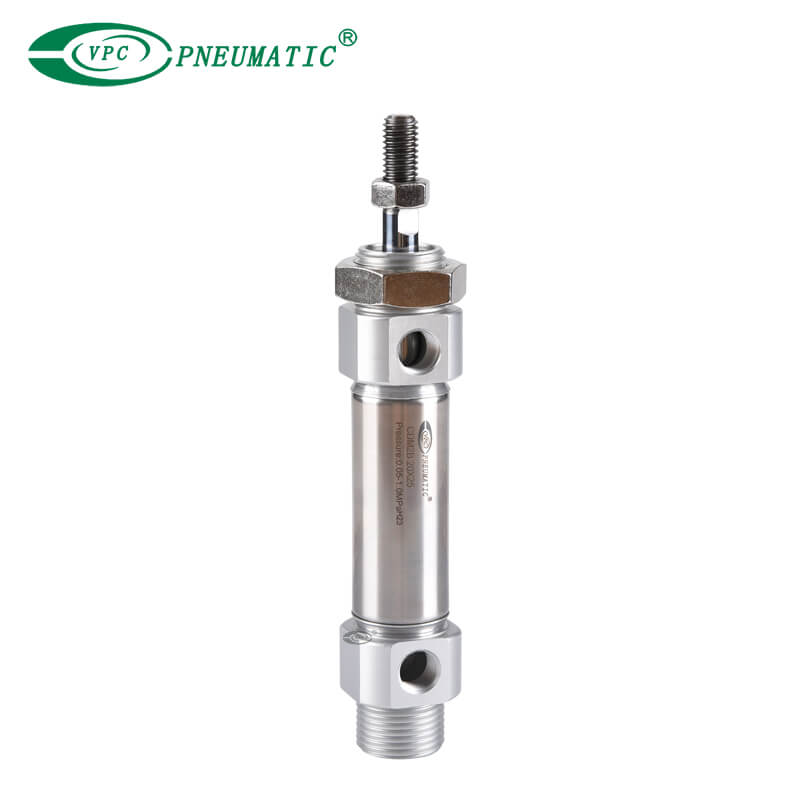

C(D)M2B Seriesdouble Acting Single Rod Mini Cylinder

  • CM2B Series double acting, single rod, stainless steel cylinders are compact, lightweight and offer high performance. The piston seal and rod seal design provides excellent life. Transparent auto switch bracket provides visibility of the status of the switch.
  • The CM2B series delivers extra flexibility including the option of male and female rods. Where space is at a premium, you can select a female rod end (up to 29 mm shorter) and/or boss-cut type (up to 16 mm shorter). Rubber bumpers are standard.
  • The CM2B series offers a variety of mounting options.
Working medium:
Acting type:
Working temperature:
Working pressure:
Speed range:
  • C(D)M2B
  • VPC Pneumatic
  • 8412310090

Product Description

CDM2B英文参数

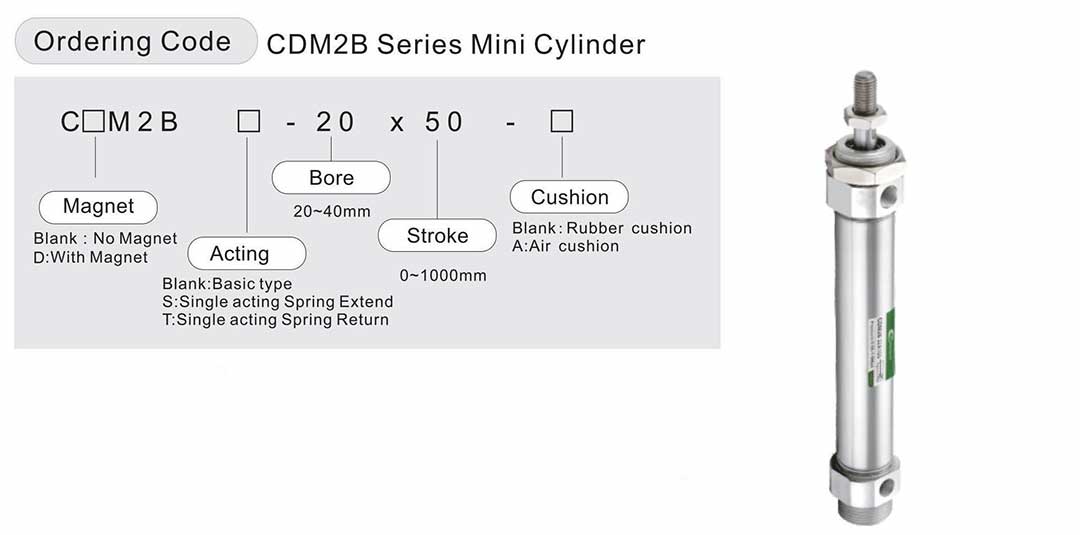

Product Specifications

Bore(mm)20253240
Working mediumClean air
Acting typeDouble acting
Guaranteed pressure

0.05 to 1.0Mpa

Working temperature-10 to 70℃
Cushion typeRubber cushion(standard),Air cushion (optional)
Speed rangeMin:10mm/sMax:1000mm/s
