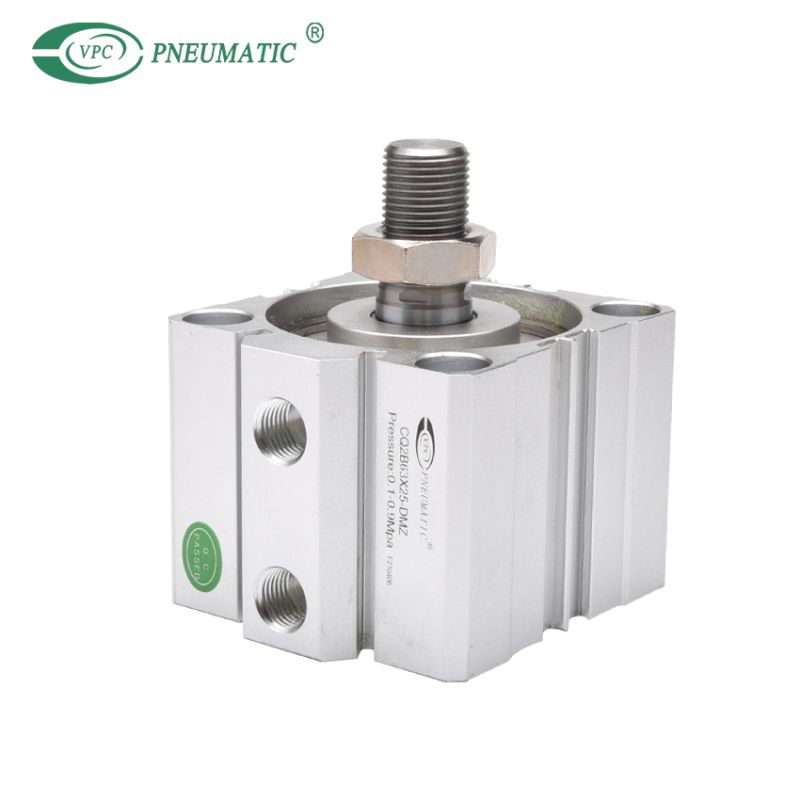

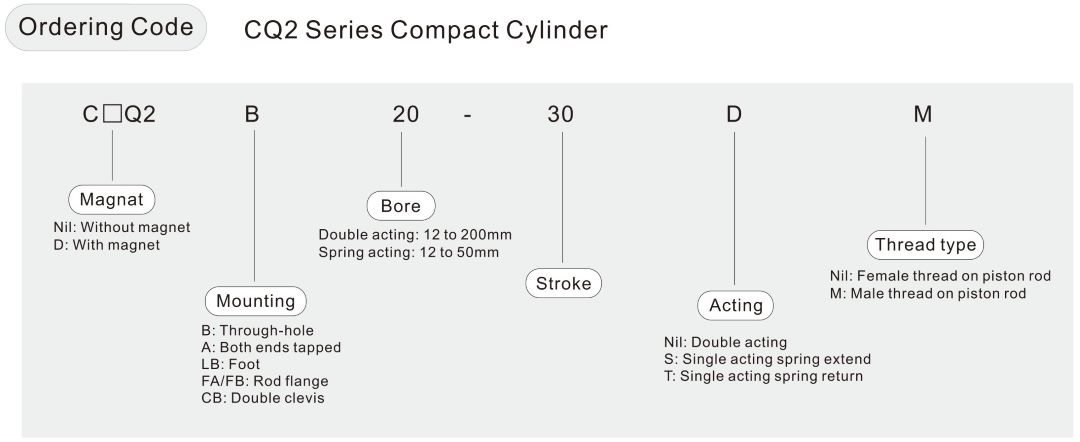

Product Description

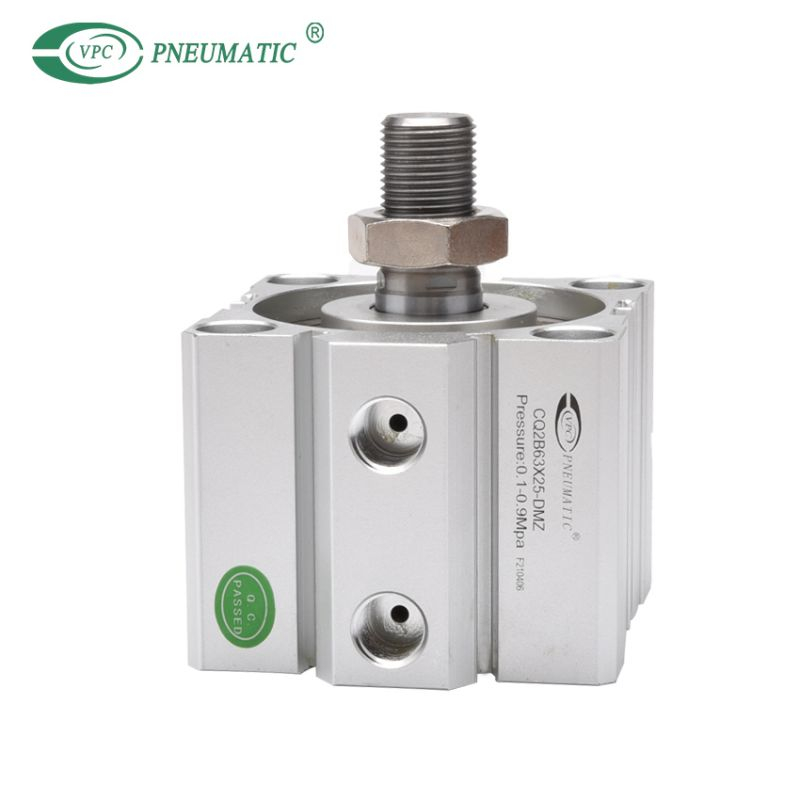

1. Compact design: CQ2B cylinders are small in size, suitable for applications with limited installation space.
Lightweight: Made of aluminium alloy, it is lightweight and easy to install and move.
2. Adjustable stroke: The cylinder's stroke length can be adjusted as needed, providing more flexible application solutions.
3. High Accuracy: Highly accurate stroke control and repetitive positioning capability ensures consistent motion.
4. Multiple mounting methods: Supports a variety of mounting methods, such as side mounting, base mounting, etc., increasing the flexibility of installation.
5. Good durability: Adopting high-quality seals and materials to ensure long-term stable operation and durability of the cylinder.
6. Wide range of applications: suitable for automated production lines, assembly equipment, packaging machinery and many other industrial fields.
Product Specifications
| Bore（mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 140 | 160 | 180 | 200 | |
| Acting type | Double acting single rod/Single acting single rod | Double acting single rod | ||||||||||||||
| Working medium | Clean air (40μm filteration) | |||||||||||||||
| Proof pressure | 1.5MPa | 1.05MPa | ||||||||||||||
| Max. Working pressure | 1.0MPa | 0.7MPa | ||||||||||||||
| Min. Working pressure | Double acting single rod | 0.07MPa | 0.05MPa | |||||||||||||
| Single acting single rod | 0.25 | 0.25 | 0.18 | 0.18 | 0.17 | 0.15 | 0.13 | ﹣ | ||||||||
| Working temperature | Without auto switch magnet: –10 to 70°C With auto switch magnet: –10 to 60°C | |||||||||||||||
| Lubrication | Not required | |||||||||||||||
| Speed range | 50~500mm/s | 20~400mm/s | ||||||||||||||
| Cushion type | No or Bumper cushion | |||||||||||||||
| Stroke tolerance | +1.0mm 0 | +1.4mm 0 | ||||||||||||||
Main Dimensions

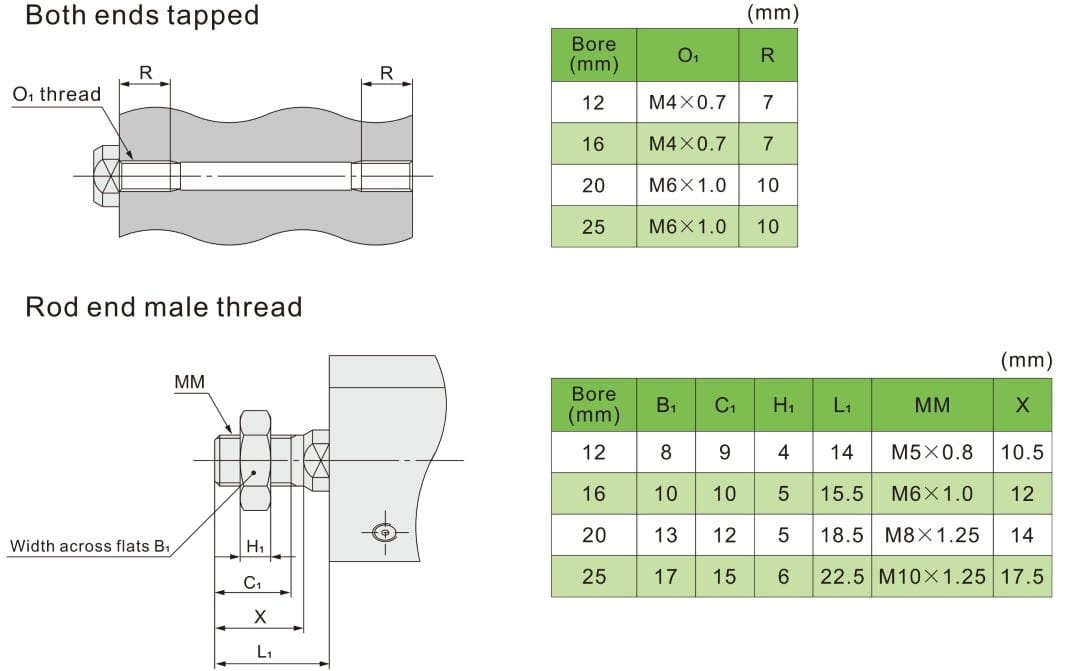

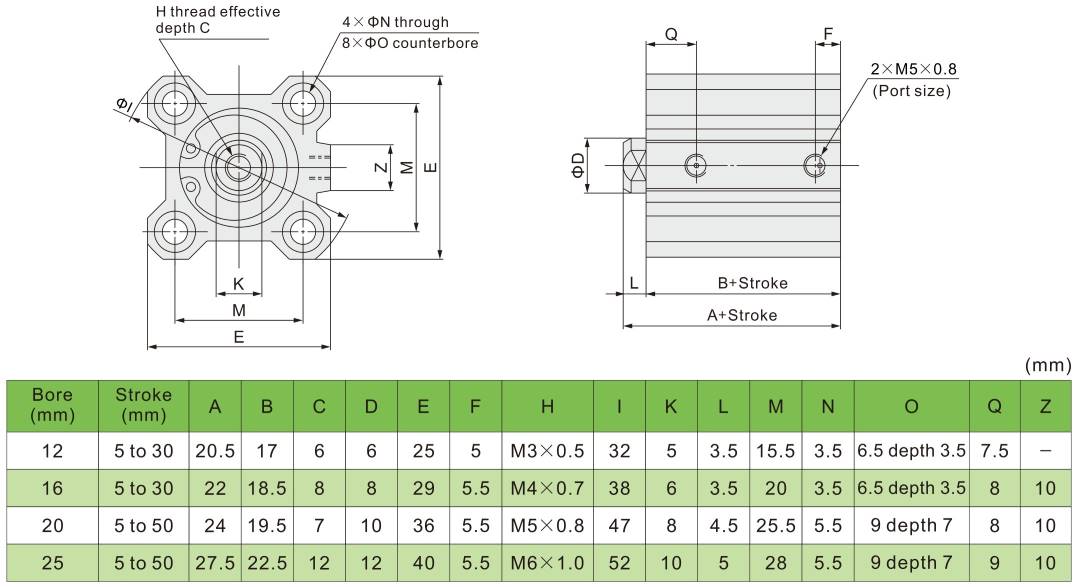

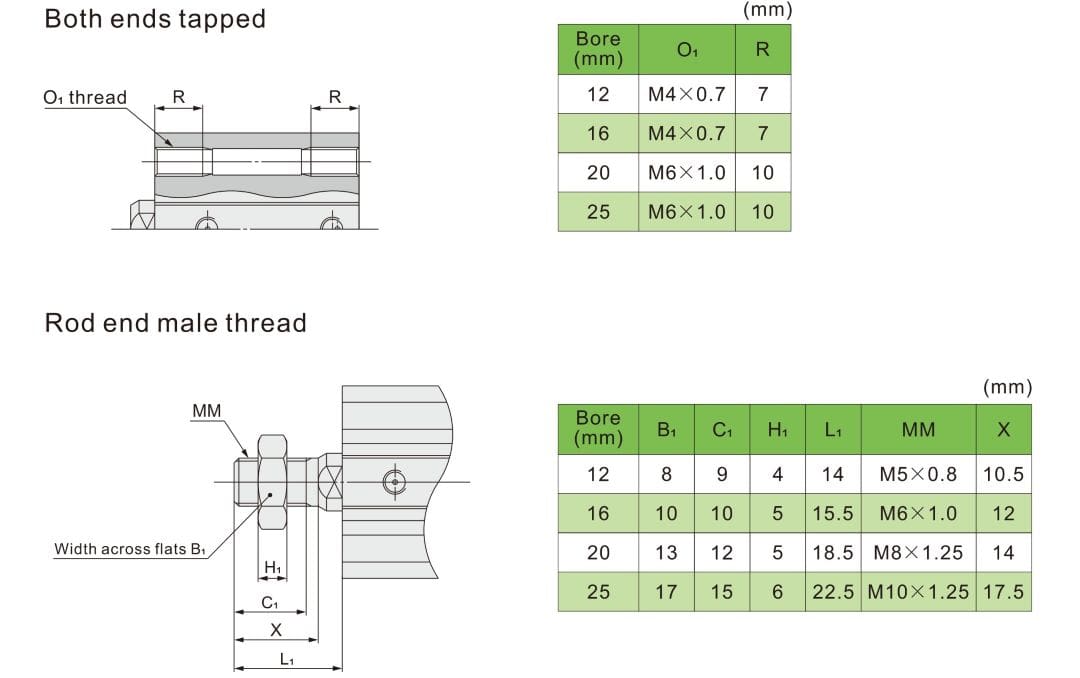

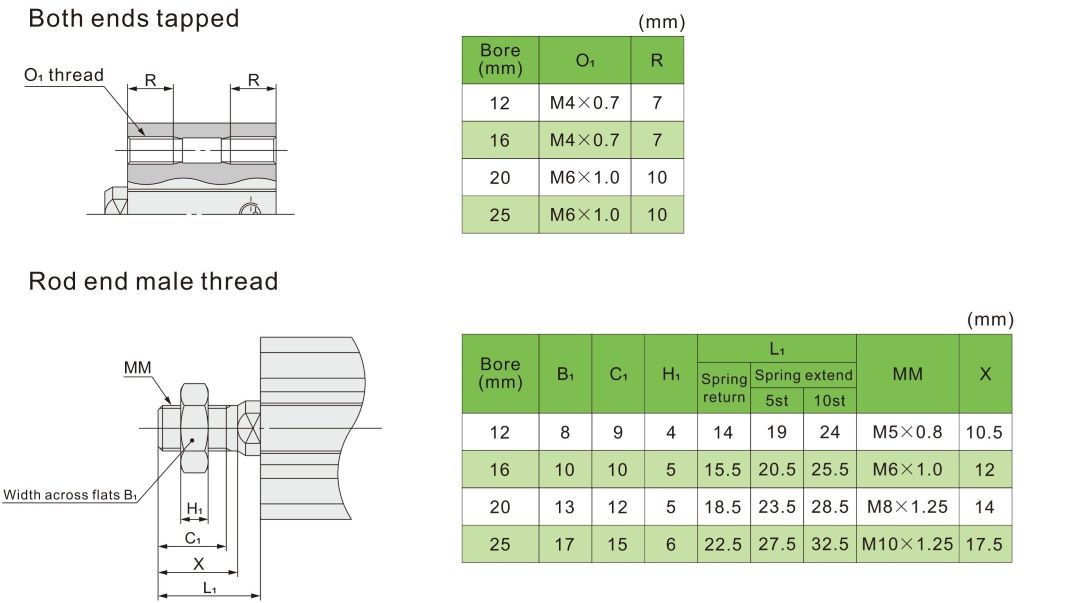

Ф12~Ф25 Without Auto Switch Magnet
Through-hole:CQ2B (Standard Type)

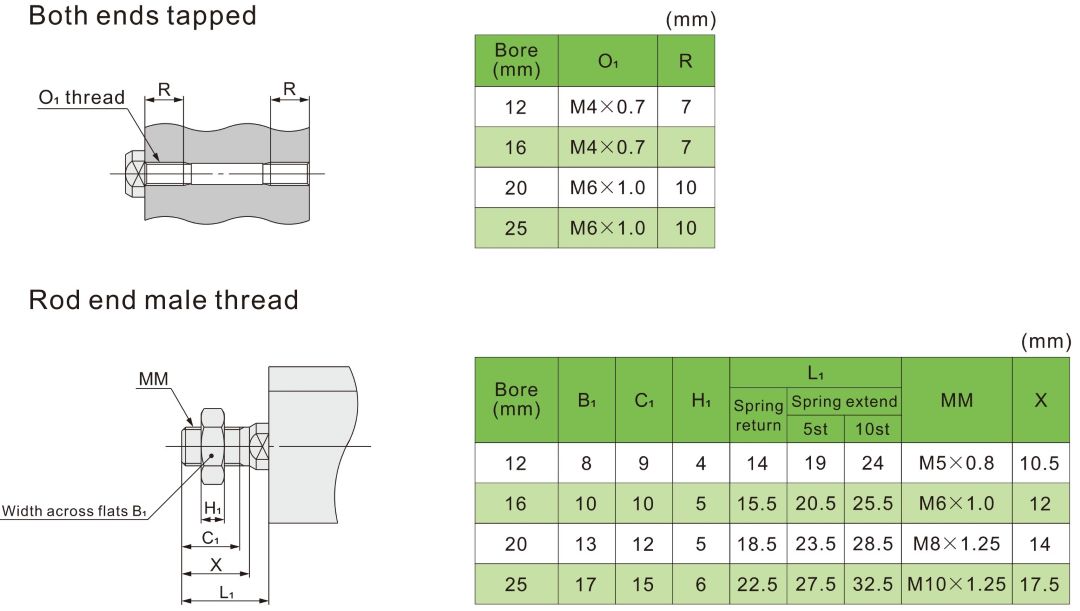

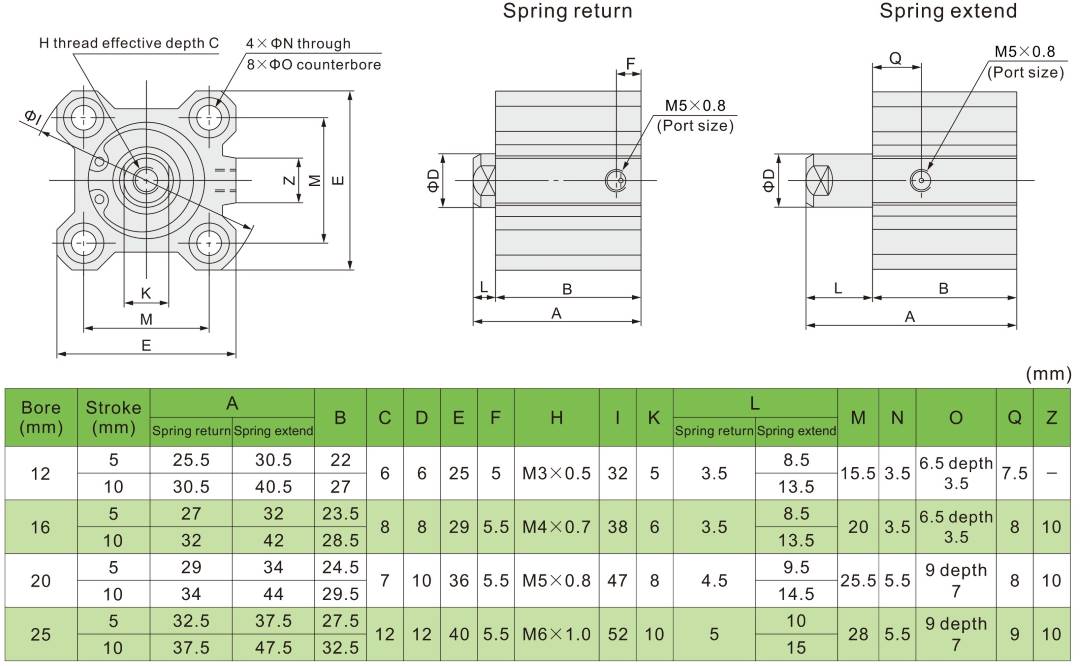

Ф12~Ф25 Spring Return/Extend: Without Auto Switch Magnet
Through-hole: CQ2B□S/T

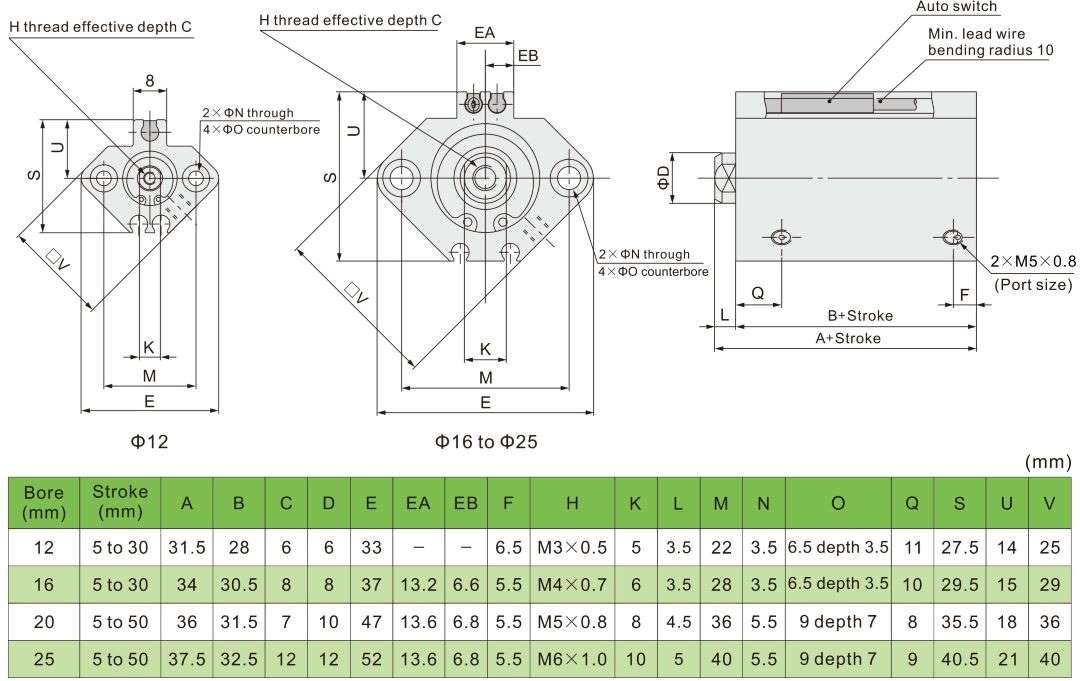

Ф12~Ф25 With Auto Switch Magnet
Through-hole: CDQ2B

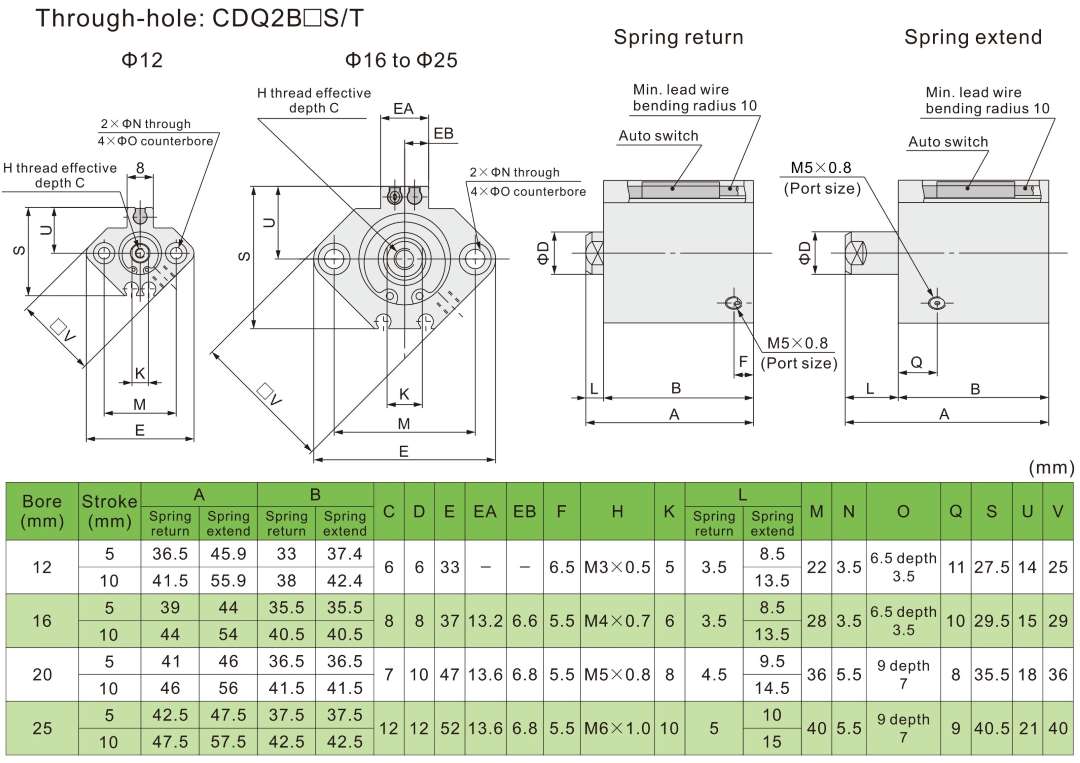

Ф12~Ф25 Spring Return/Extend: With Auto Switch Magnet
Through-hole: CQ2B□S/T

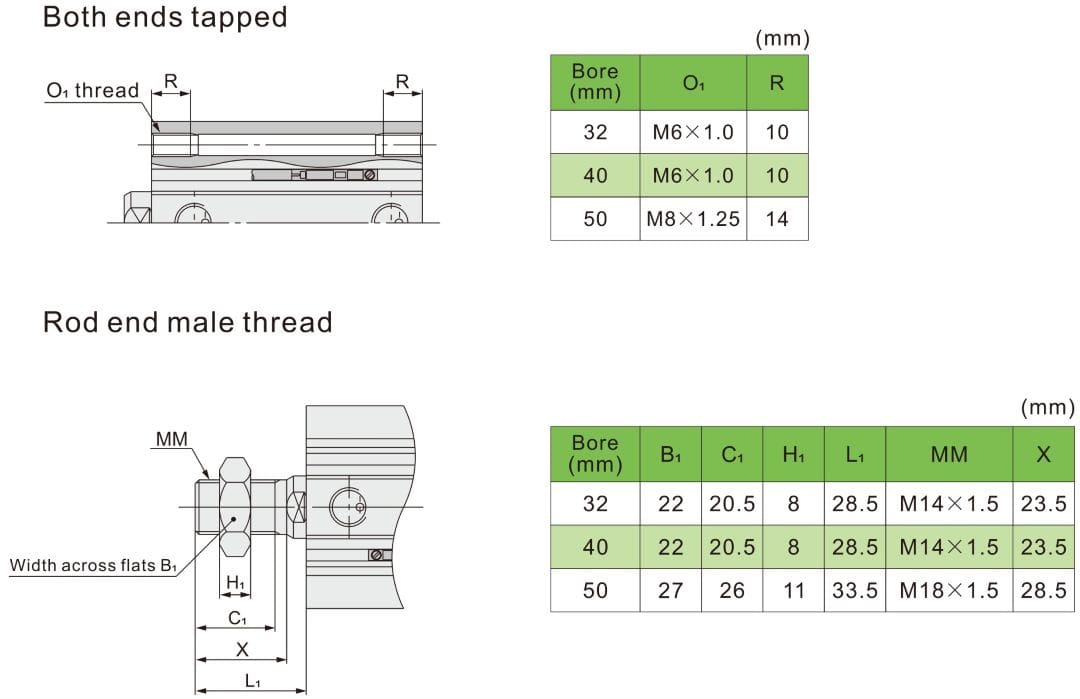

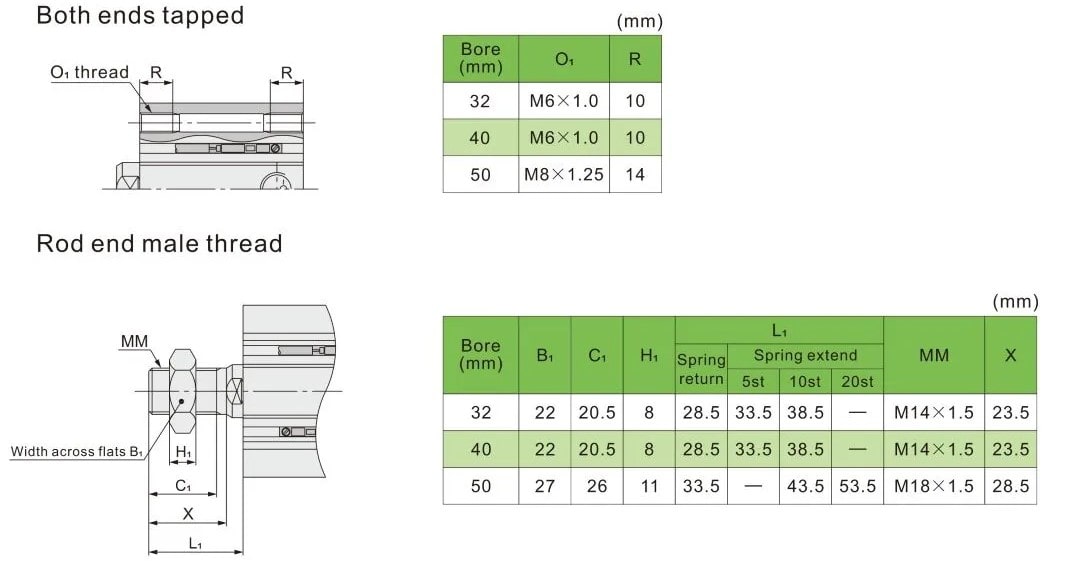

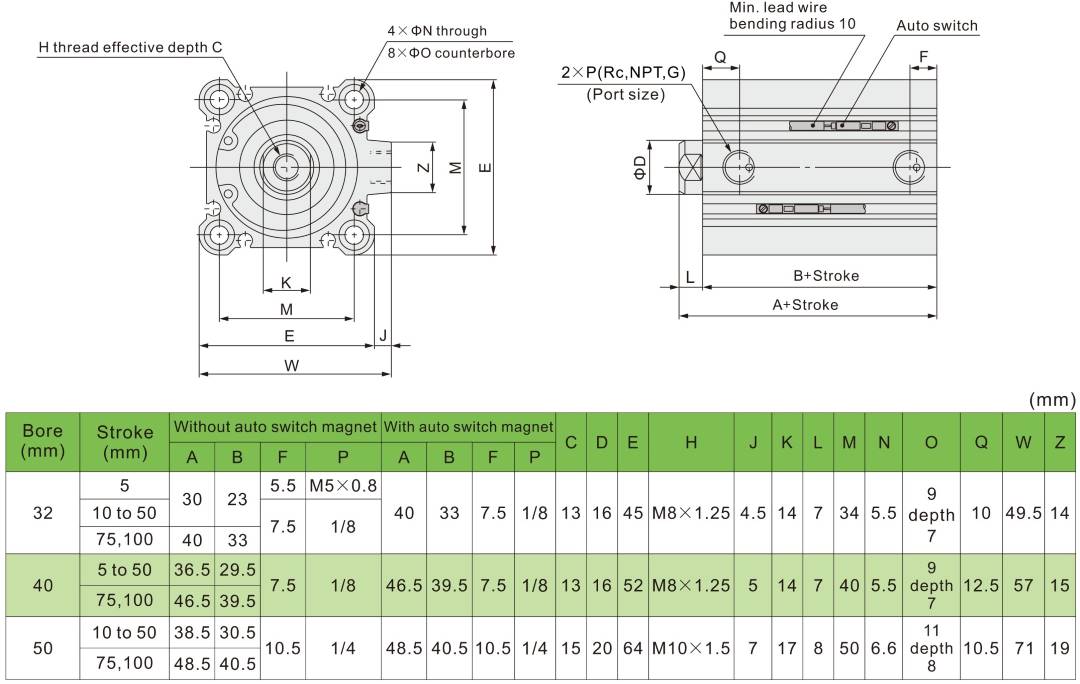

Ф32~Ф50 With/Without Auto Switch Magnet
Through-hole: CDQ2B

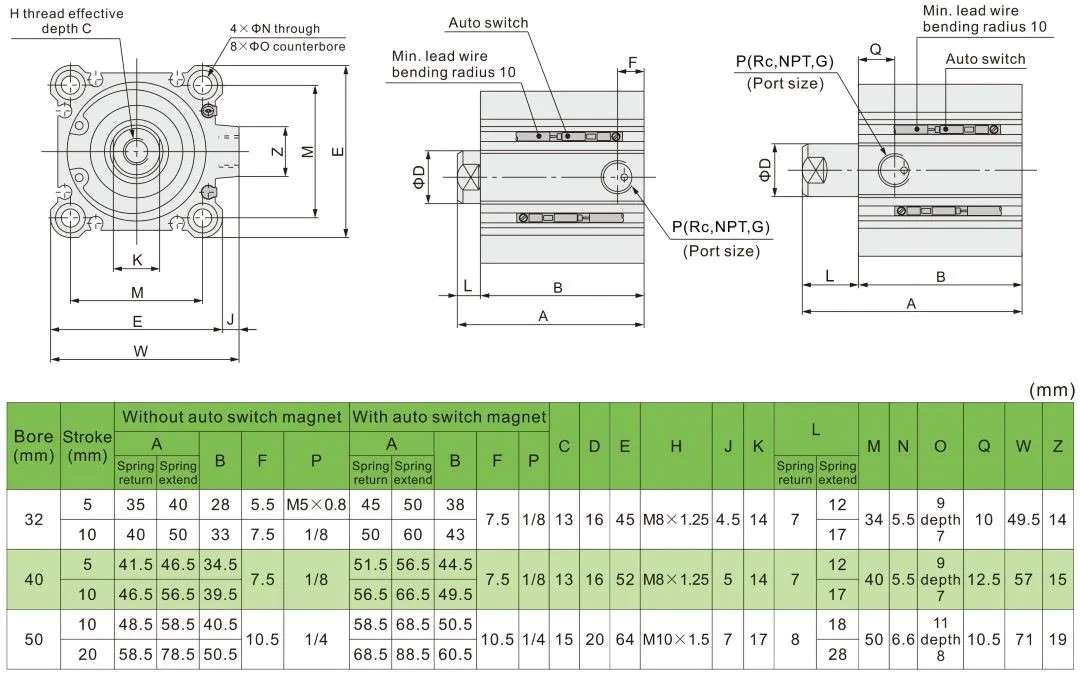

Ф32~Ф50 Spring Return/Extend: With/Without Auto Switch Magnet
Through-hole: CDQ2B□S/T

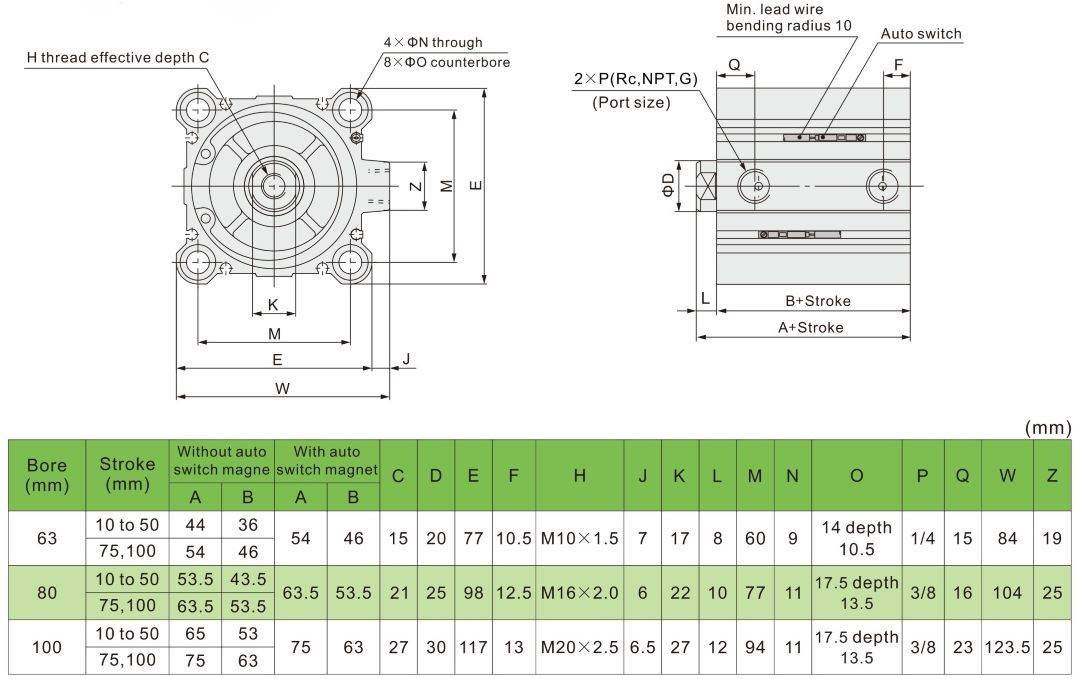

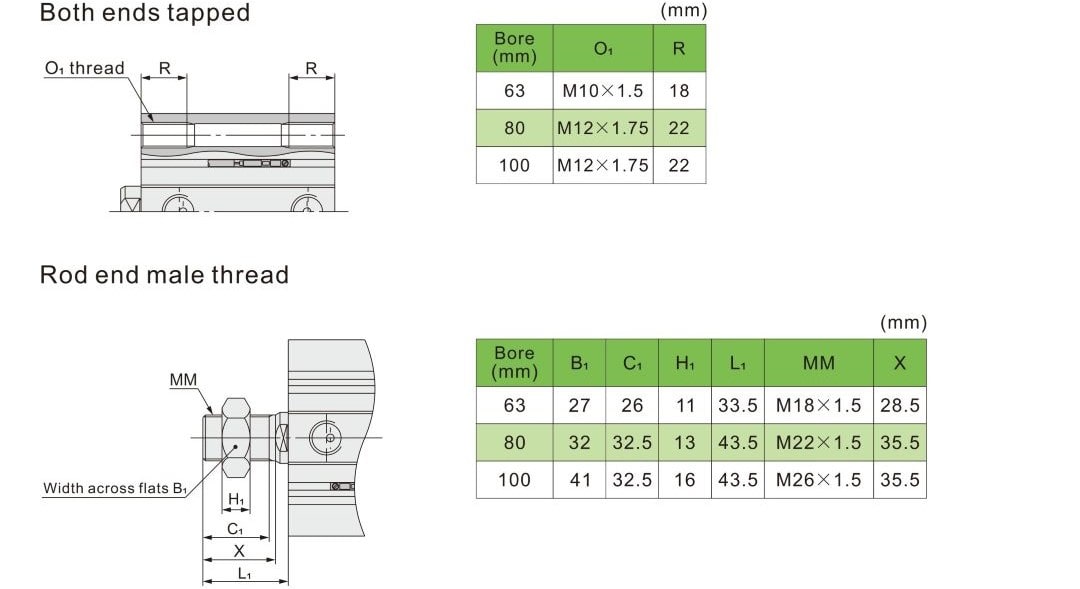

Ф63~Ф100 With/Without Auto Switch Magnet
Through-hole: CDQ2B

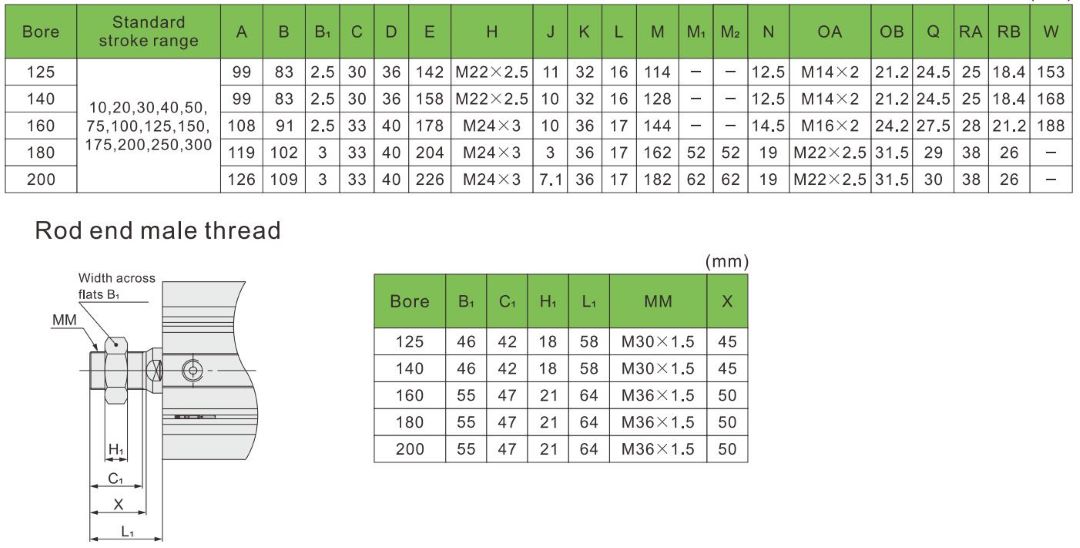

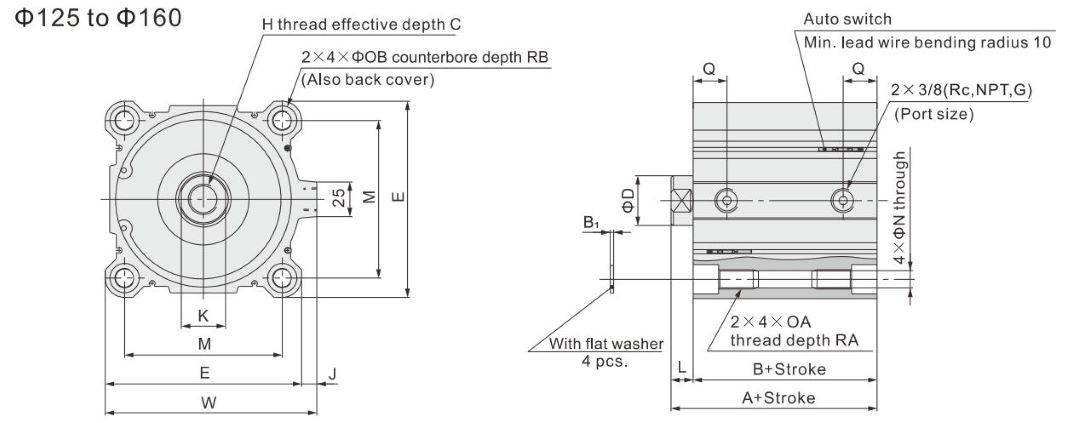

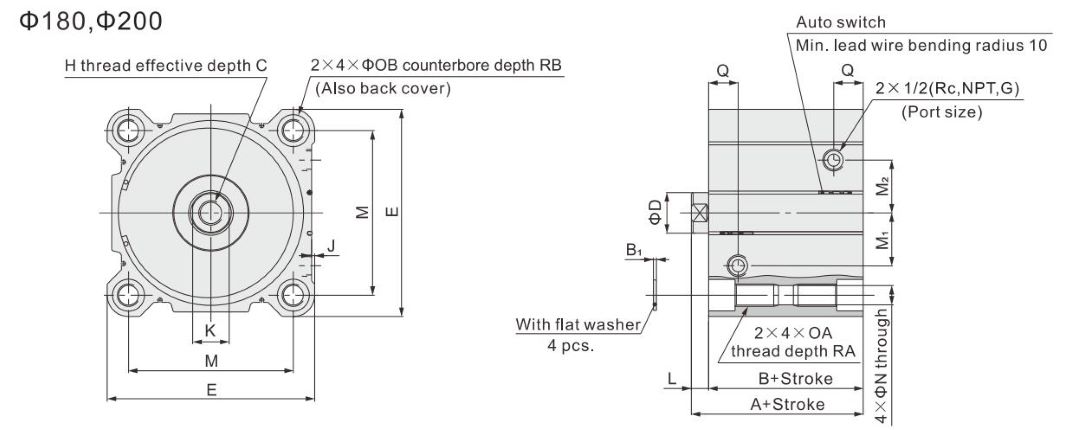

Ф125~Ф200
Through-hole: CDQ2B Double Acting, Single Rod
