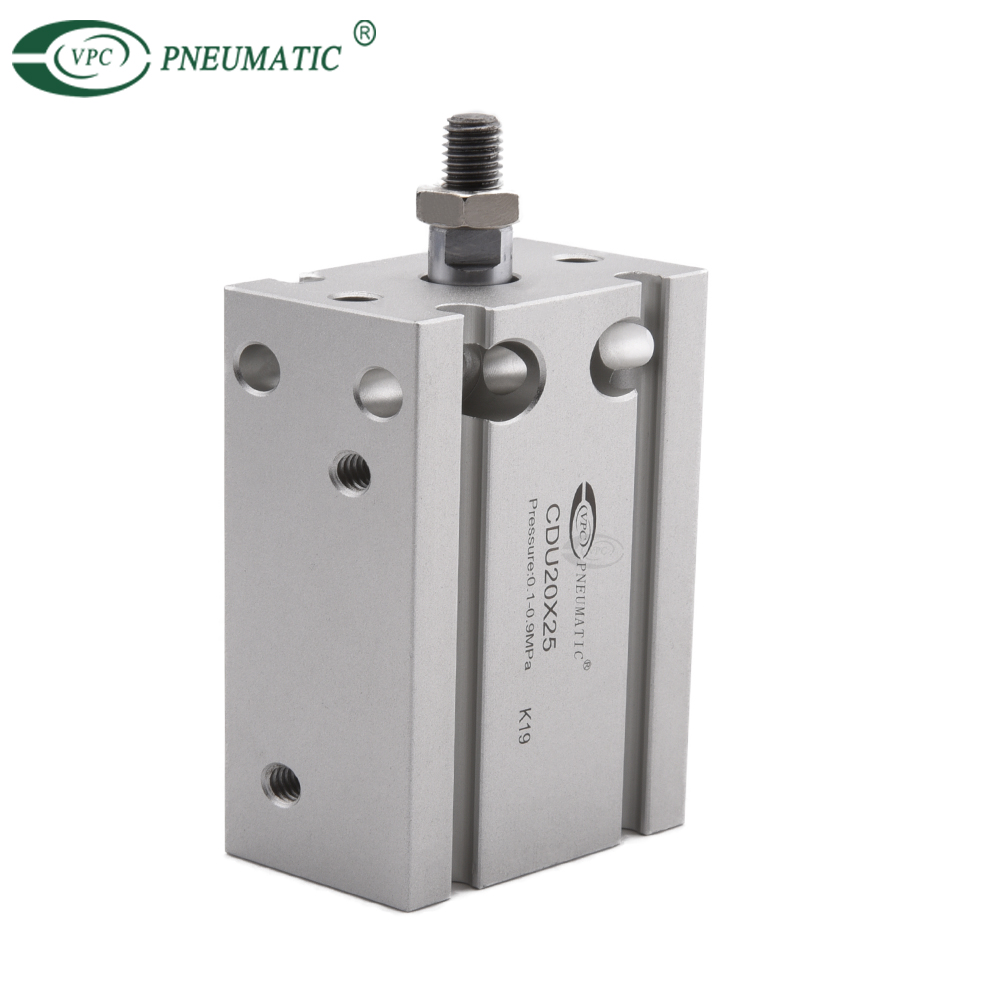

C(D)U Free Mount Installation Double Acting Pneumatic Air Cylinder

Share to:
Bore sizes from 6mm to 32mm available
  • Stroke lengths up to 50mm
  • Any surfaces can be used for mounting
  • Space saving
  • Auto switch capable

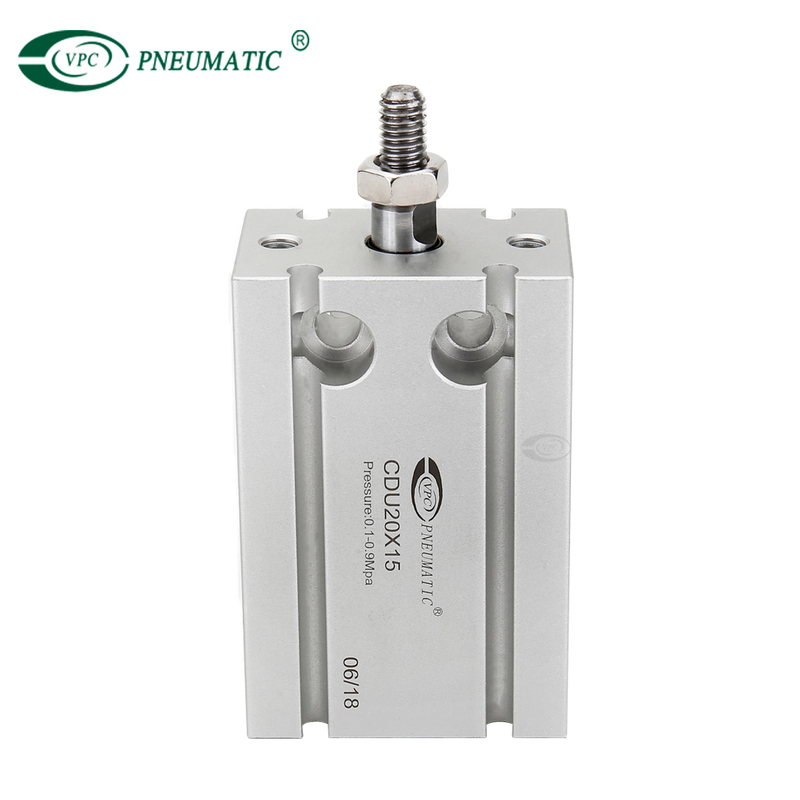

  • CDU20x15
  • VPC
  • 8412310090
Port size:
Working temperature:

Product Description

The series CU single rod, double acting free mount cylinder saves space and allows direct and precise mounting. It is available in 6mm to 32mm bore sizes with stroke lengths up to 50mm. Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard.

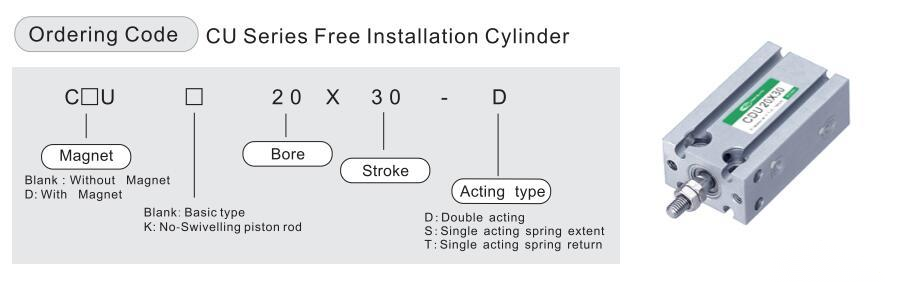

CU 参数-4

Product Specifications

Working MediumClean Air(40μm Filteration)
Acting TypeDouble Acting/Single Acting
Min Pressure
Double acting Single piston rod0.120.060.05
Double piston rod0.150.10.08
Double piston rod0.180.130.11
Single actingStandard0.20.150.13
Max Pressure0.7Mpa
Working Temperature5~60°C
Cushion TypeRubber Cushion
Stroke Tolerance(mm)±0.1
LubricationNot required
Non-rotating accuracy±0.8°±0.5°
Port Size M5x0.8G1/8

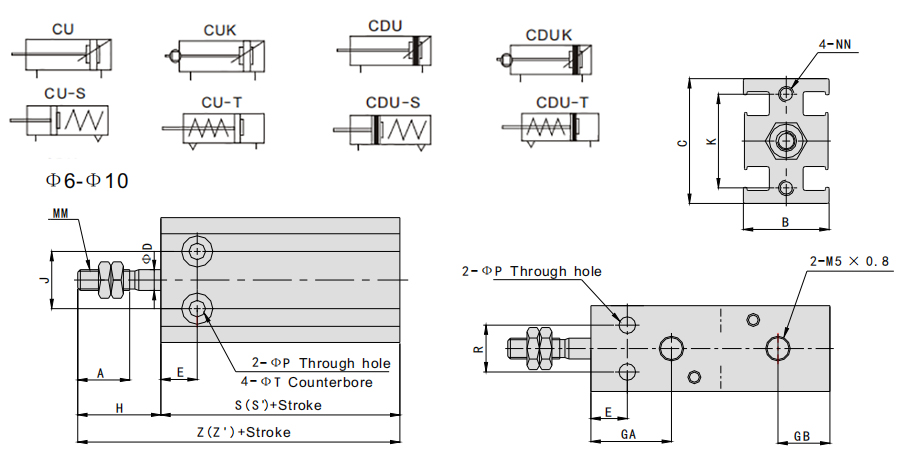

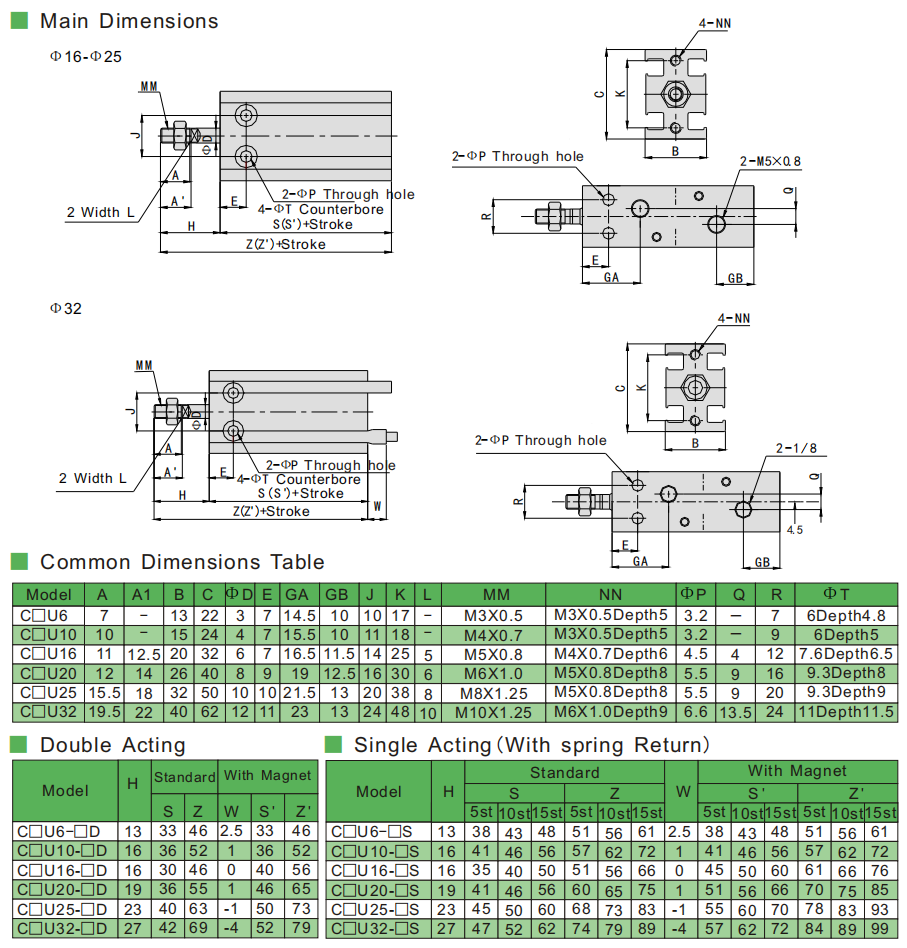

Main Dimensions

CU 参数-3CU 参数-1
