| Acting type: | |
|---|---|
| Bore ranges: | |
| Thread type: | |
| Rod end bracket: | |
| Standard stroke : | |
| Max. manufaturable stroke: | |

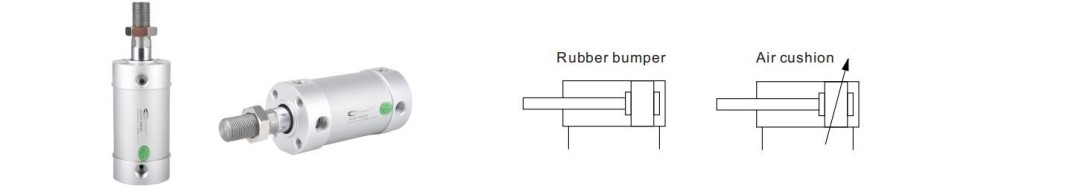

Product Description
1. Double acting, single rod design for reliable automation performance.
2. Impact extruded aluminum tube ensures smooth surface and stable stroke.
3. Bore sizes: 20, 25, 32, 40, 50, 63, 80, 100 mm.
4. Female rod end provided as standard.
5. Compatible with auto switches, easy fine adjustment of switch position.
6. Multiple mounting bracket options for flexible installation.
Product Specifications
| Bore size(mm) | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | ||
| Acting type | Double acting,Single rod | |||||||||
| Working medium | Clean air(40um Filteration) | |||||||||
| Proof pressure | 1.5Mpa | |||||||||
| Max. working pressure | 1.0Mpa | |||||||||
| Min. working pressure | 0.05Mpa | |||||||||
| Working temperature | without auto swtich: -10℃ to 70℃ with auto switch: -10℃ to 60℃（No freezing） | |||||||||
| Speed range | 50 to 1000mm/s | 50 to 700mm/s | ||||||||
| Stroke tolerance | Up to 1000st+1.4mm, Up to 1500st+1.8mm | |||||||||
| Cushion | Rubber bumper, Air cushion | |||||||||
| Mounting | Basic, Basic(without trunnion mounting female thread), Axial foot, Rod flange, Head flange, Rod trunnion, Head trunnion, Clevis | |||||||||
| Allowable kinetic energy(J) | Rubber bumper | Male rod end | 0.28 | 0.41 | 0.66 | 1.2 | 2.00 | 3.40 | 5.90 | 9.90 |
| Female rod end | 0.11 | 0.18 | 0.29 | 0.52 | 0.91 | 1.54 | 2.71 | 4.54 | ||
| Air cushion | Male rod end | R: 0.35 H: 0.42 | R: 0.56 H: 0.65 | 0.91 | 1.80 | 3.40 | 4.90 | 11.80 | 16.70 | |
| Female rod end | 0.28 | 0.28 | 0.29 | 0.52 | 0.91 | 1.54 | 2.71 | 4.54 | ||
*1) Does not include the amount of bumper change.
*2) Cylinder sizes ø80 and ø100 do not have basic (with trunnion mounting female thread), rod trunnion, and head trunnion types. Foot, flange, and clevis types of cylinder sizes from Φ20 to Φ63 do not have trunnion mounting female thread. Operate the cylinder within the allowable kinetic energy.
*3) R: Rod side, H: Head side.

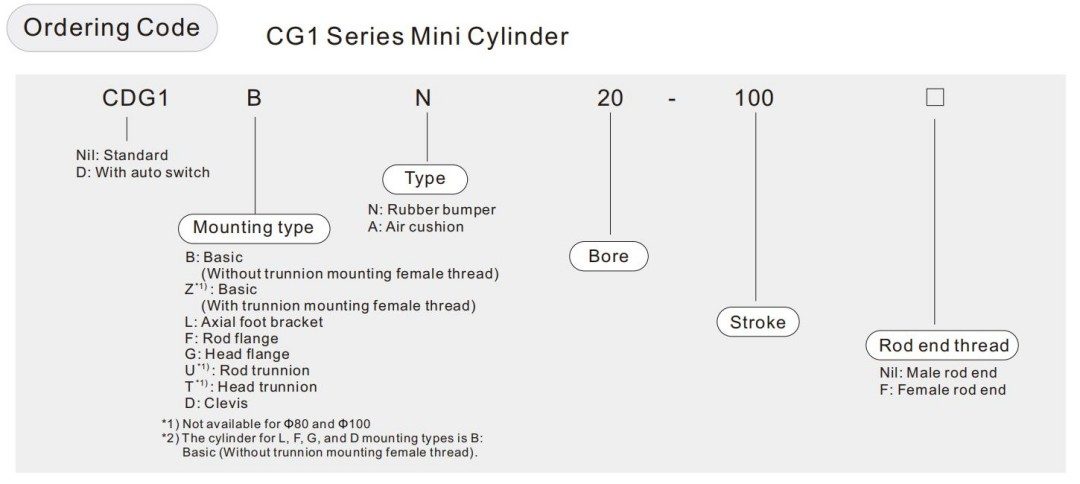

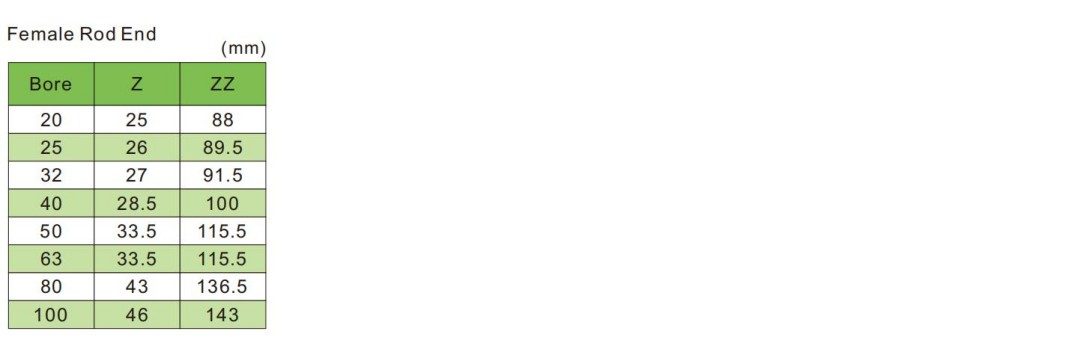

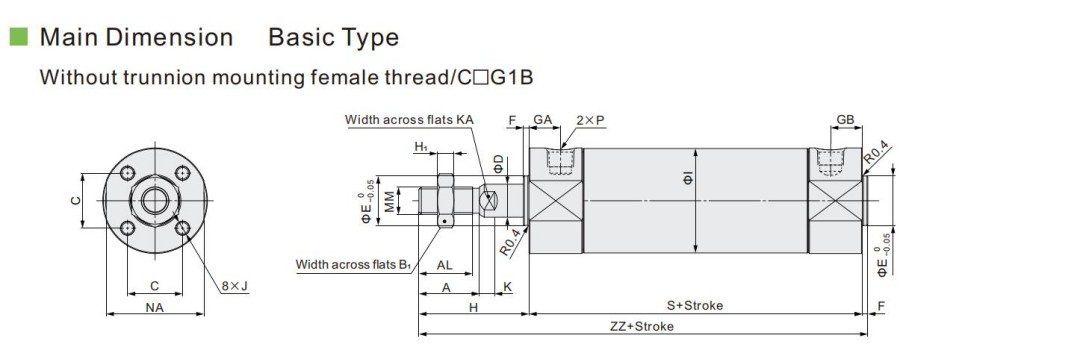

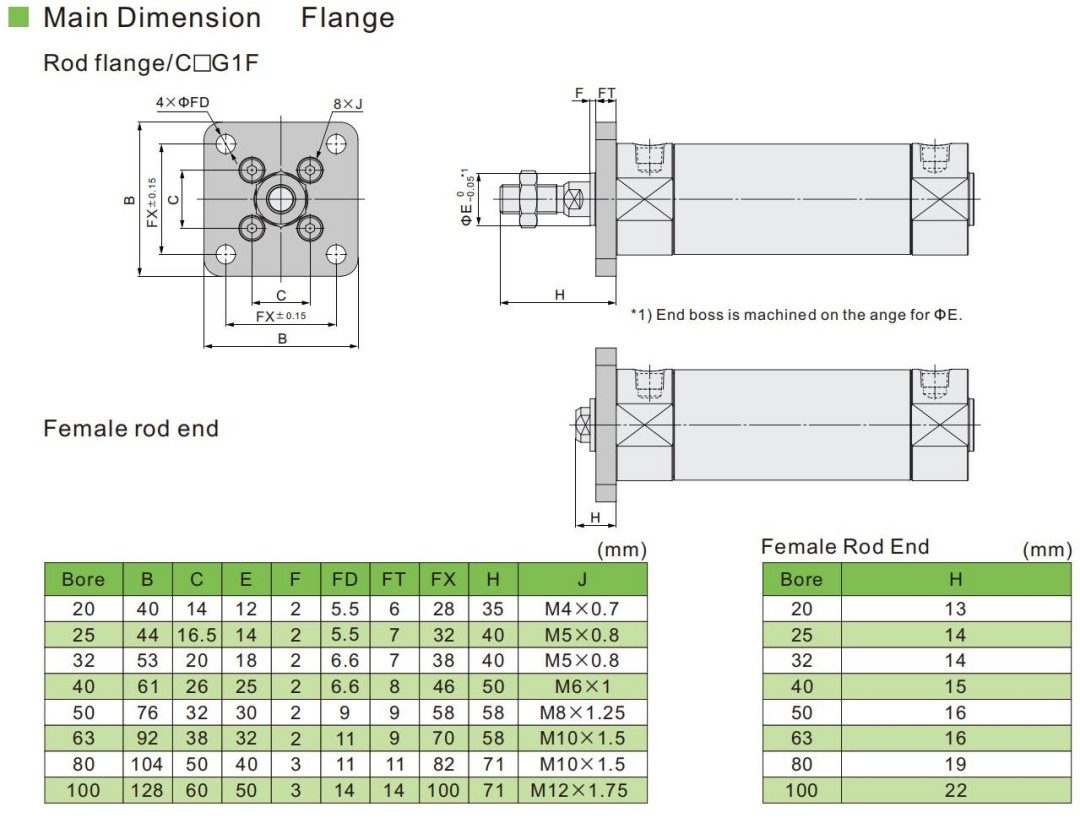

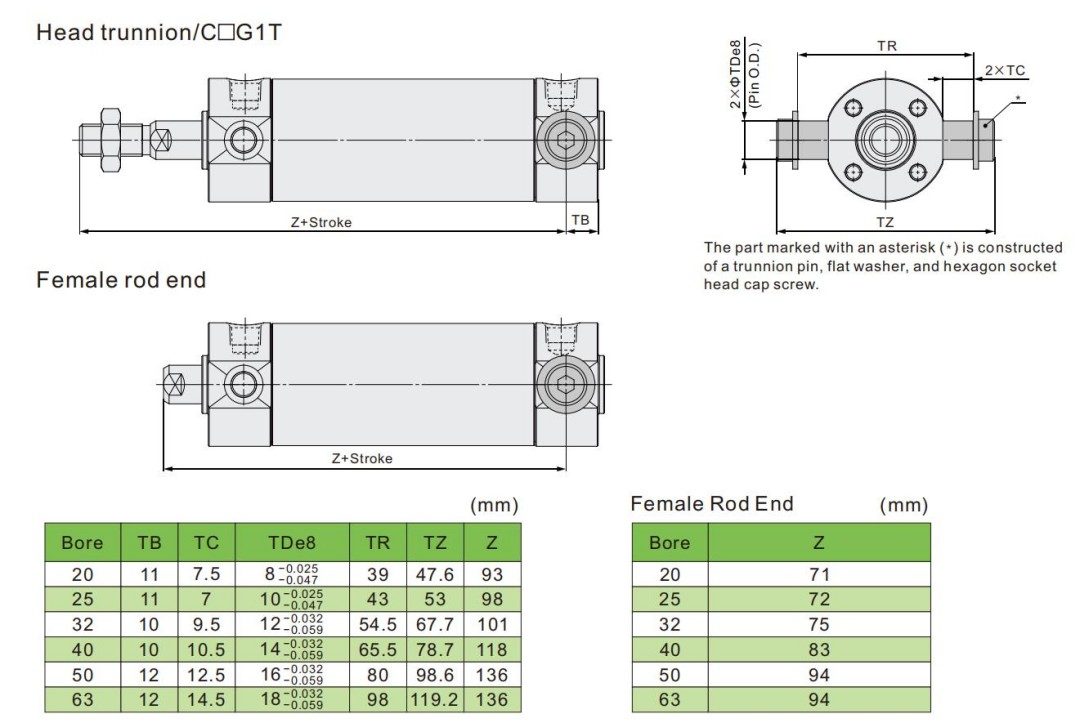

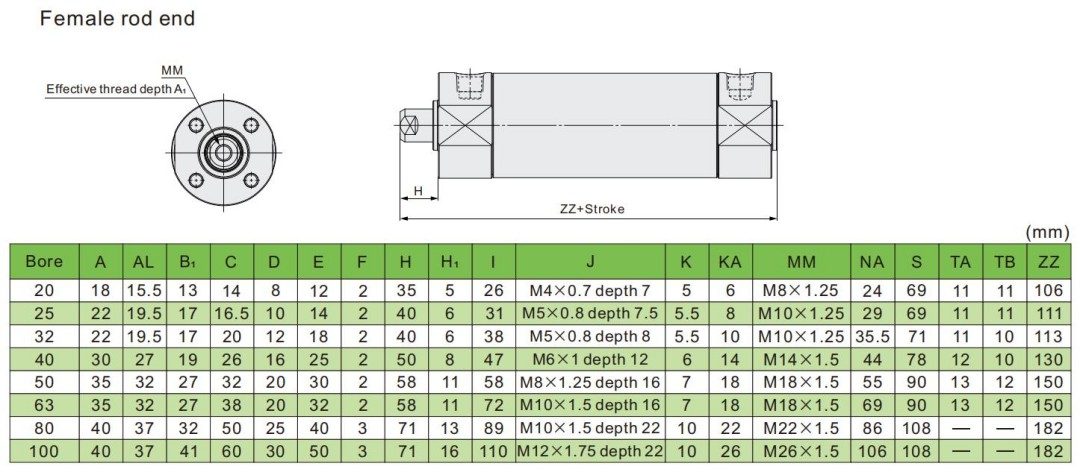

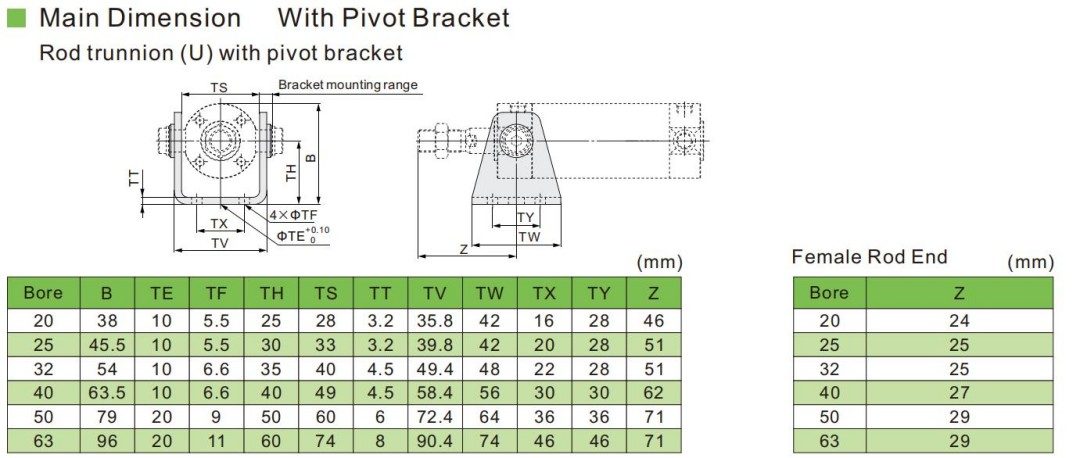

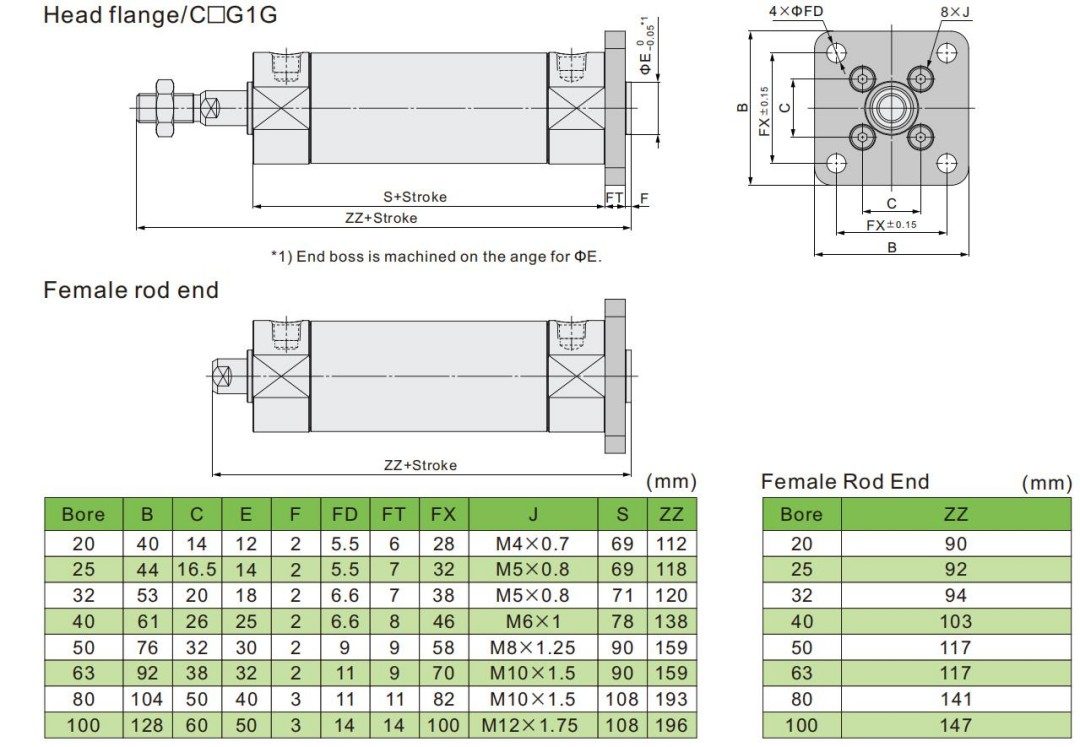

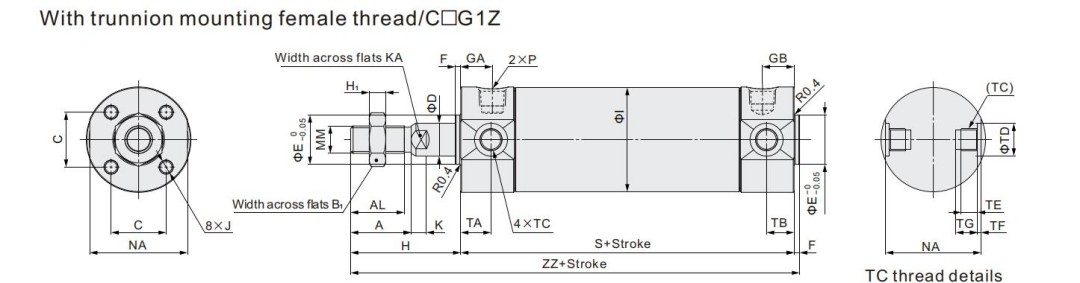

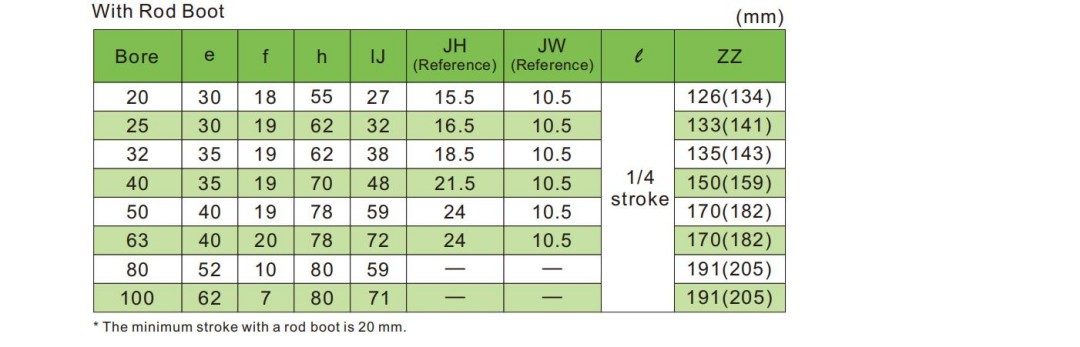

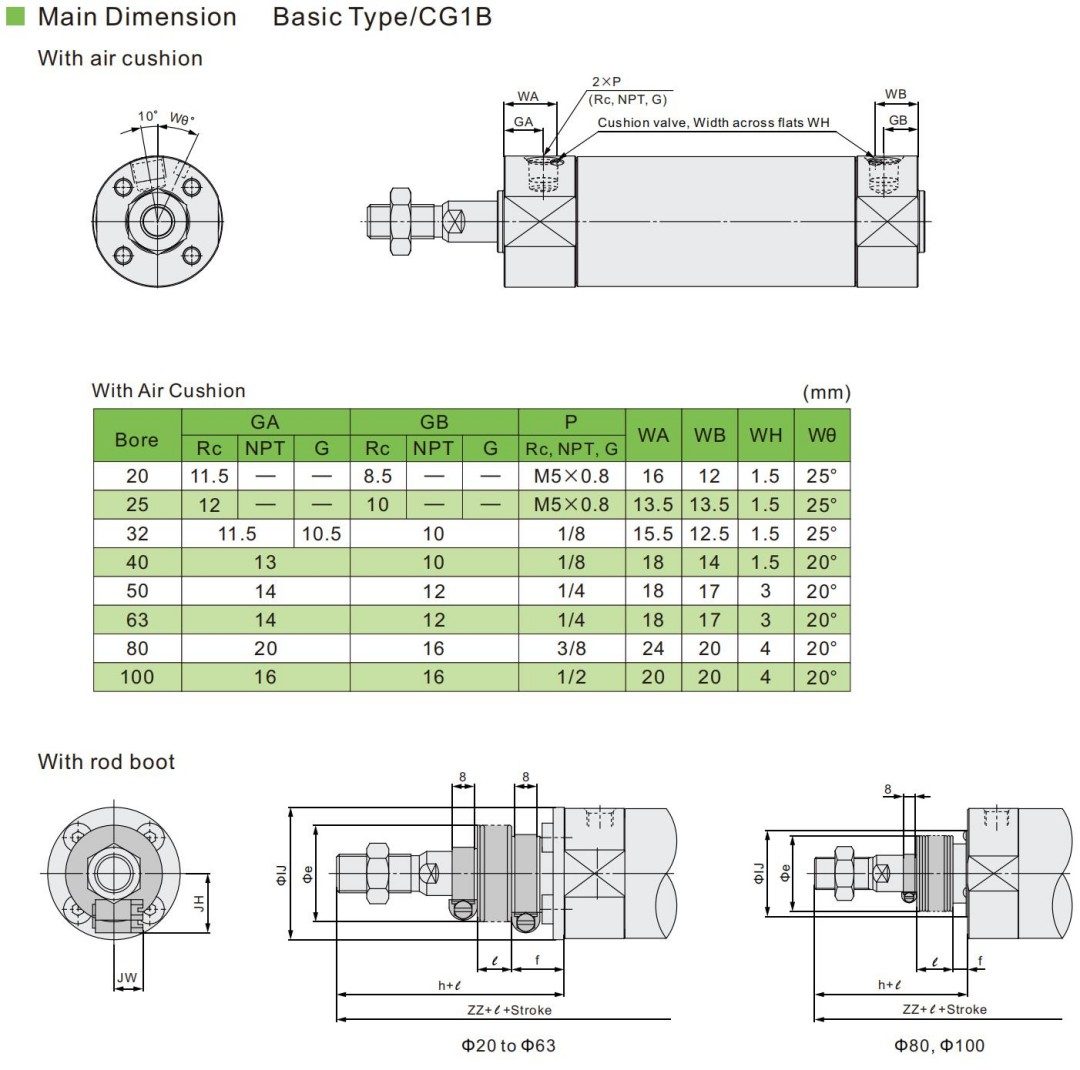

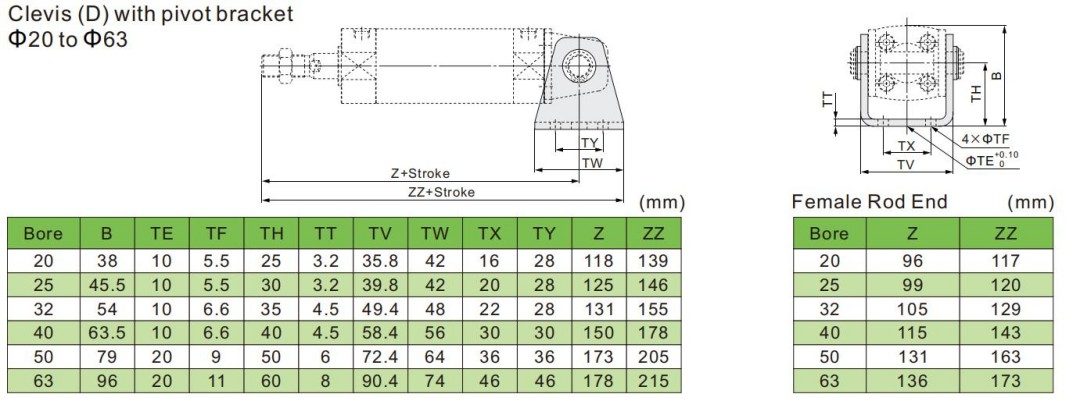

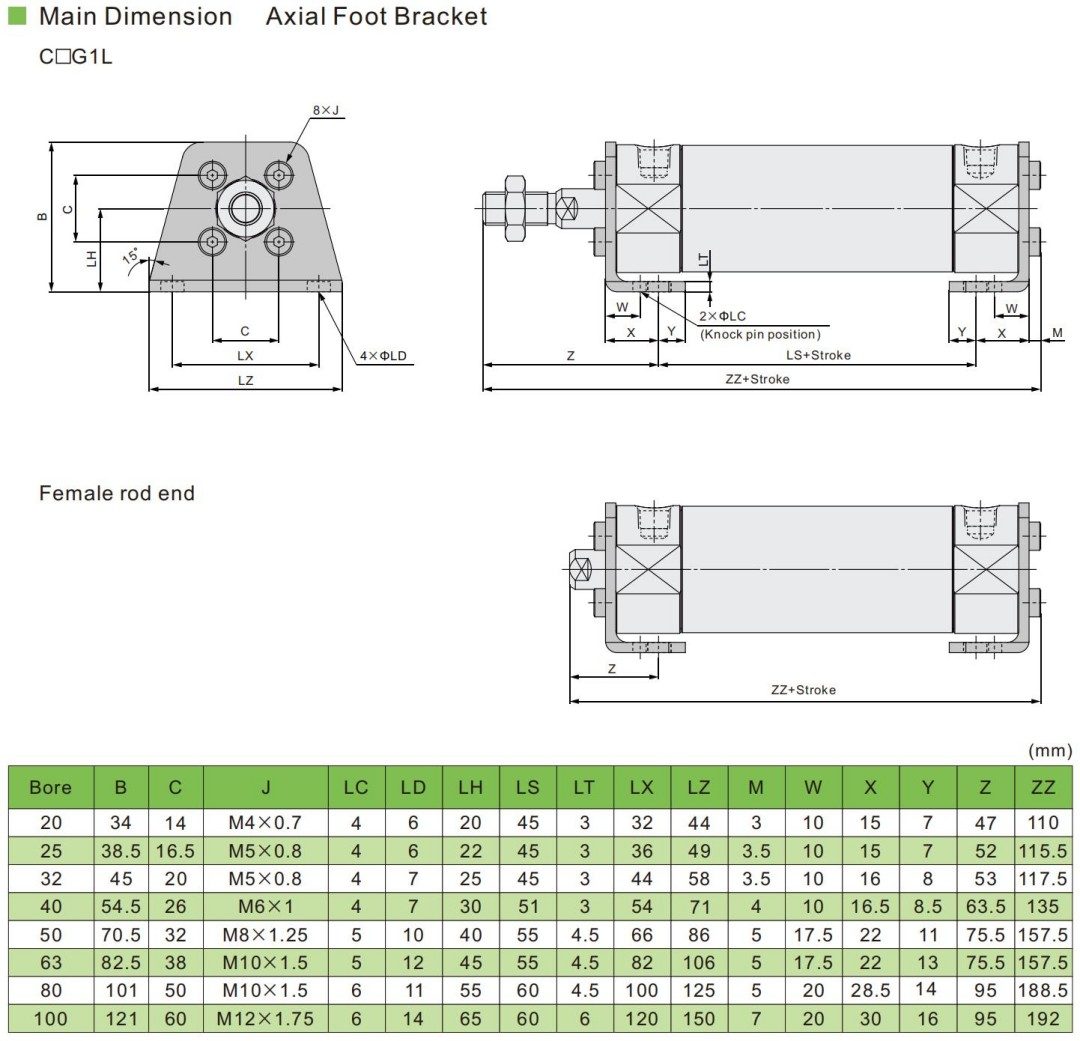

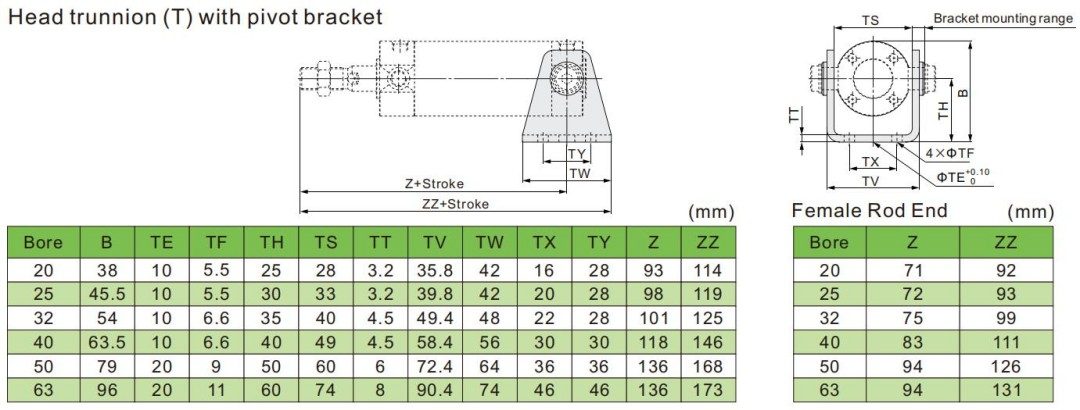

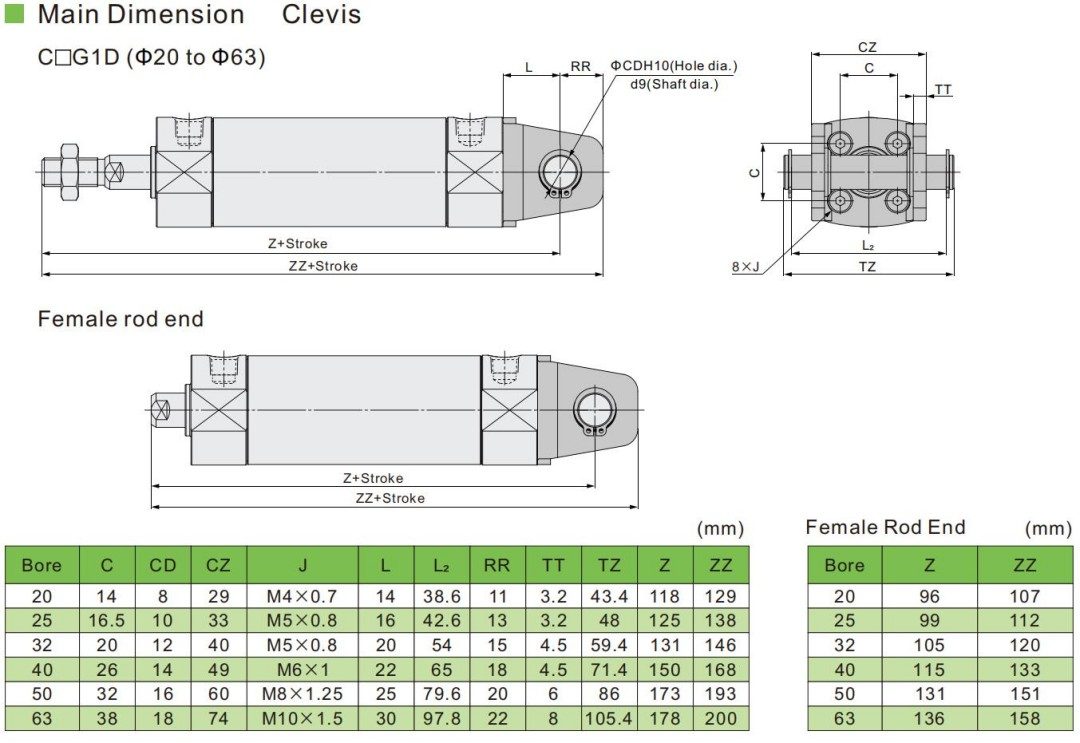

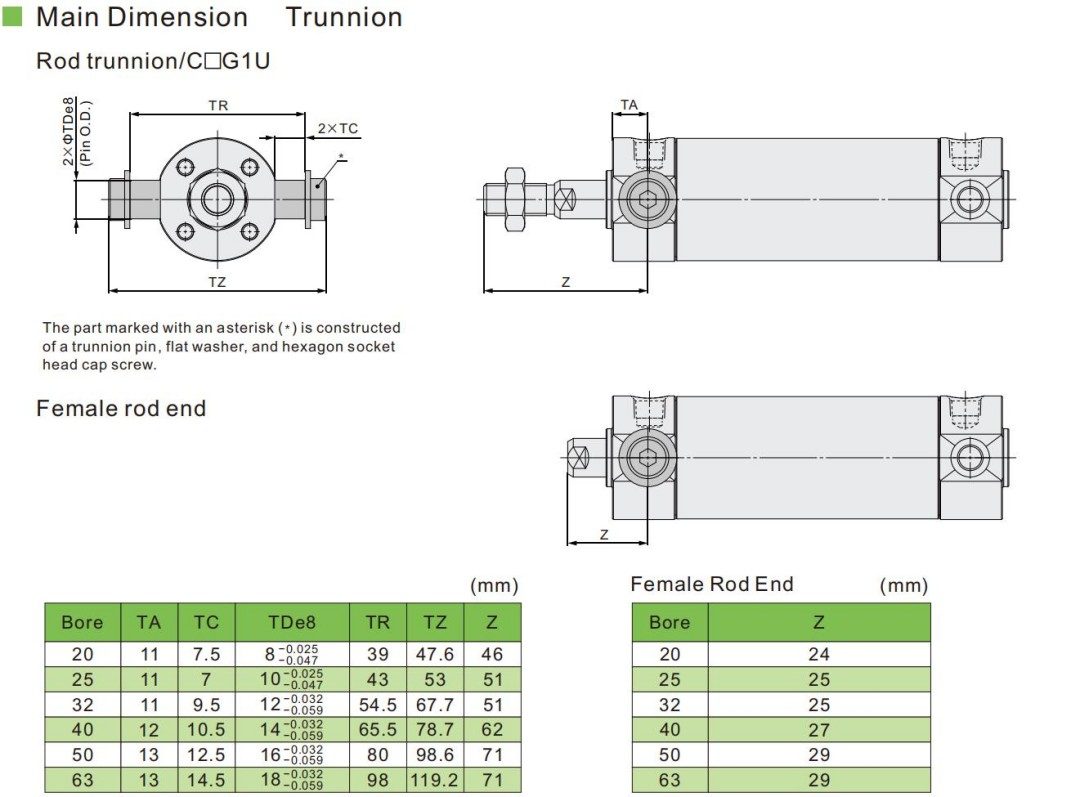

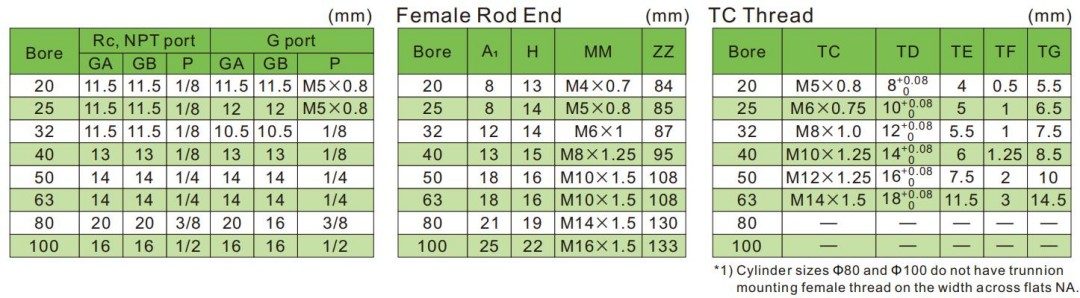

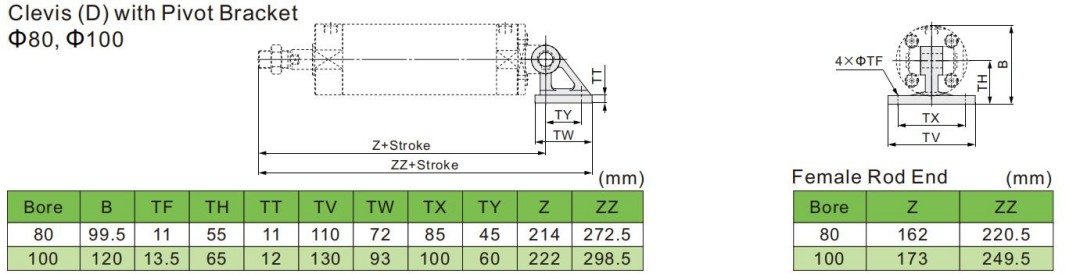

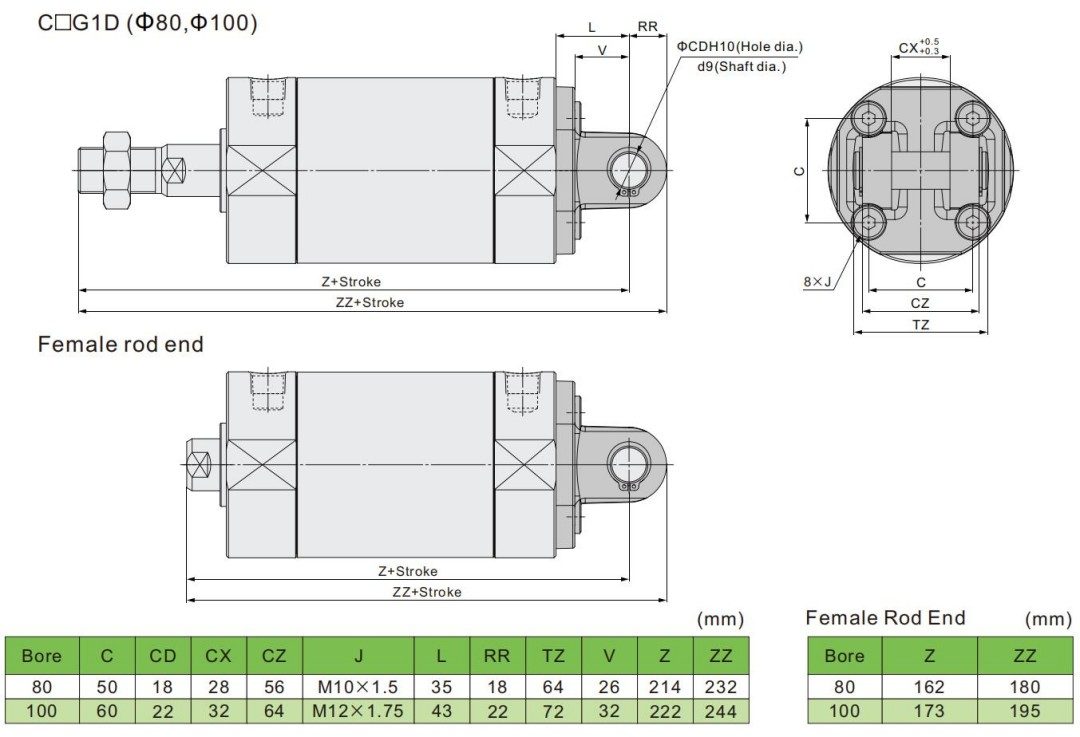

Main Dimensions
