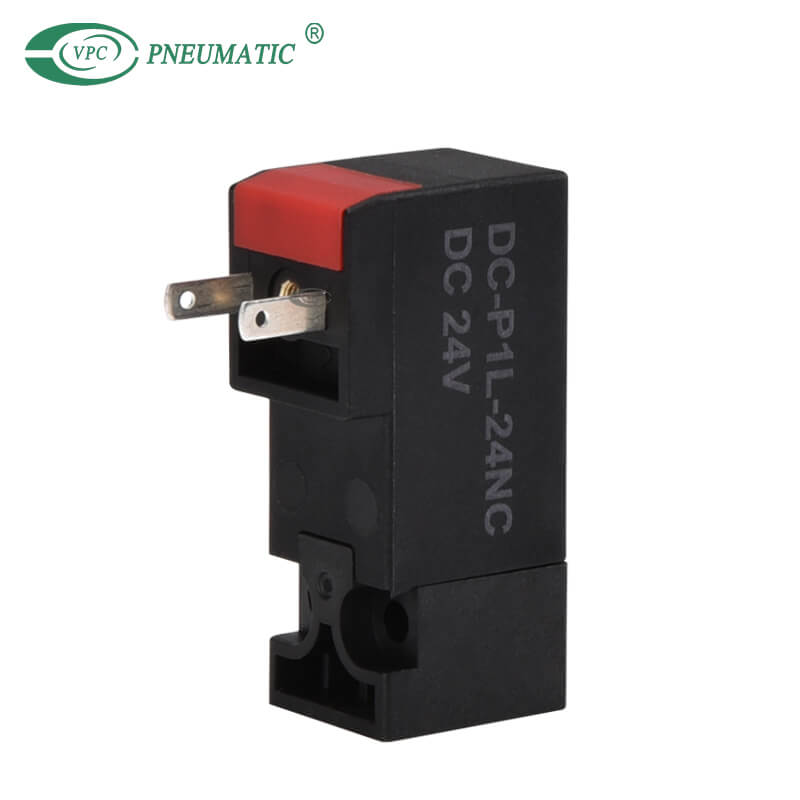

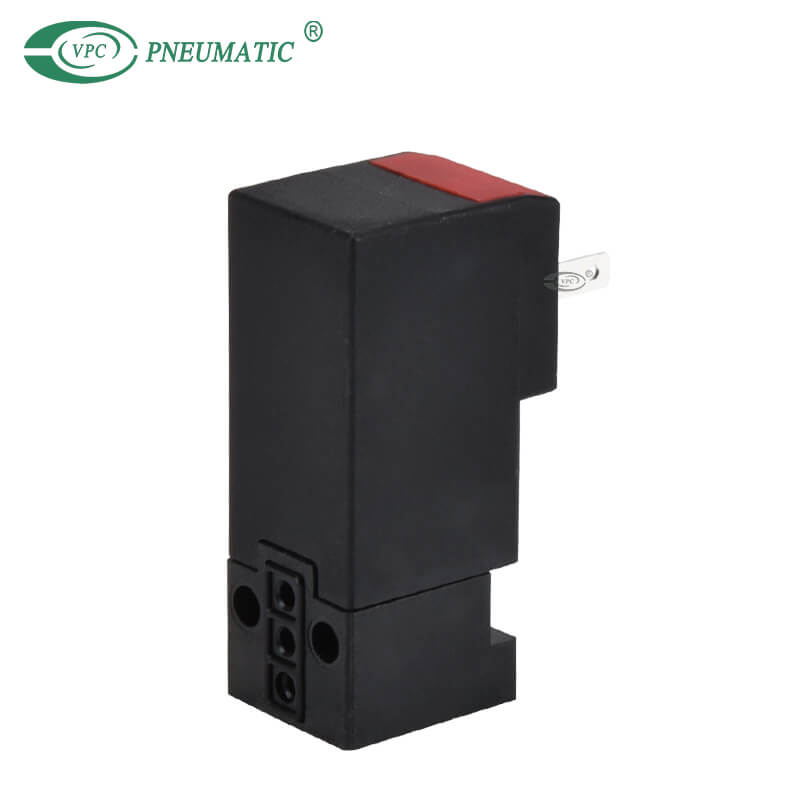

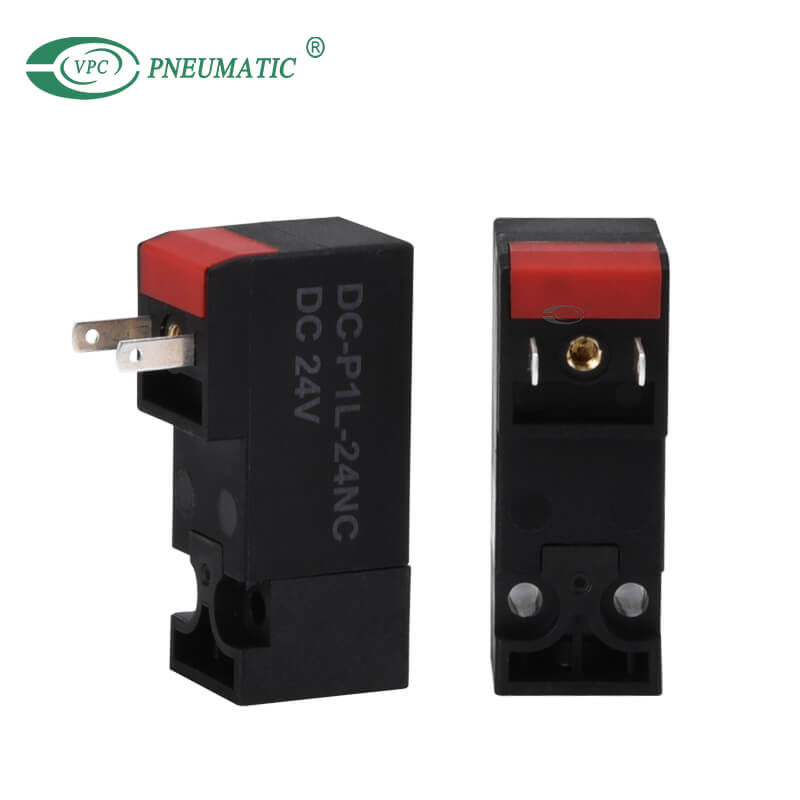

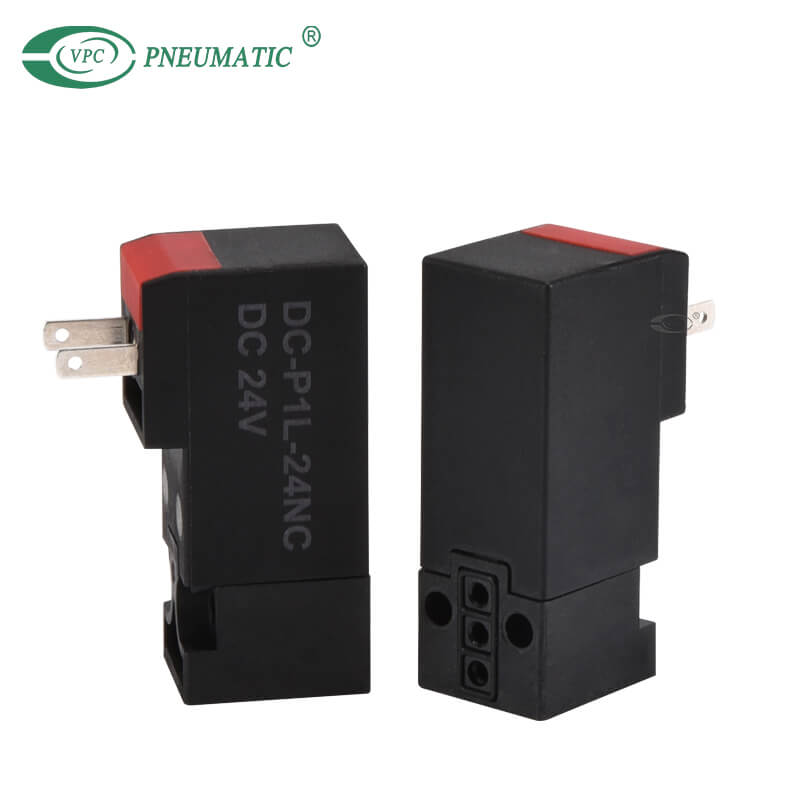

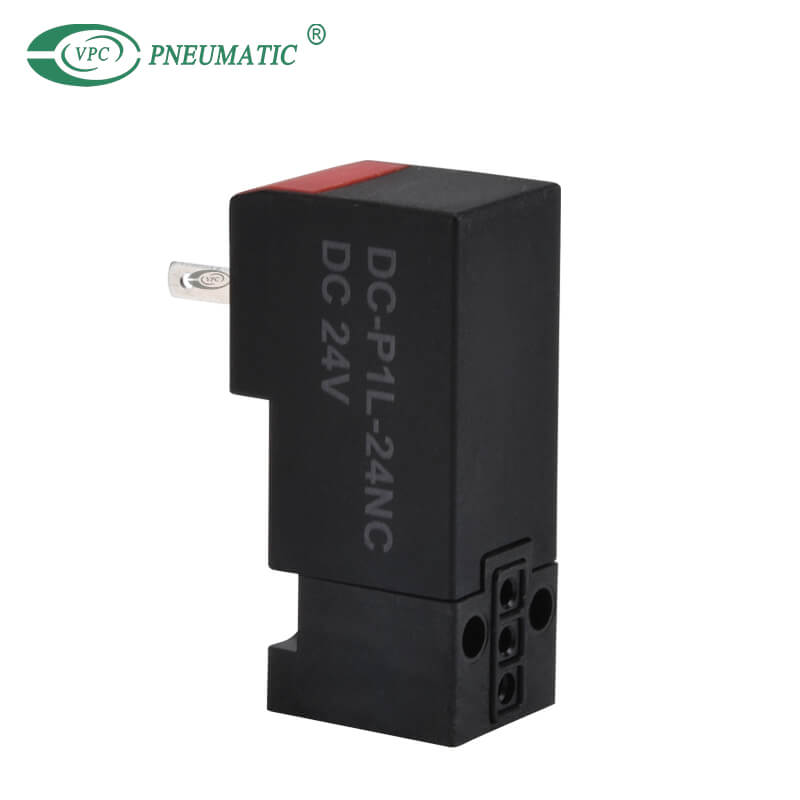

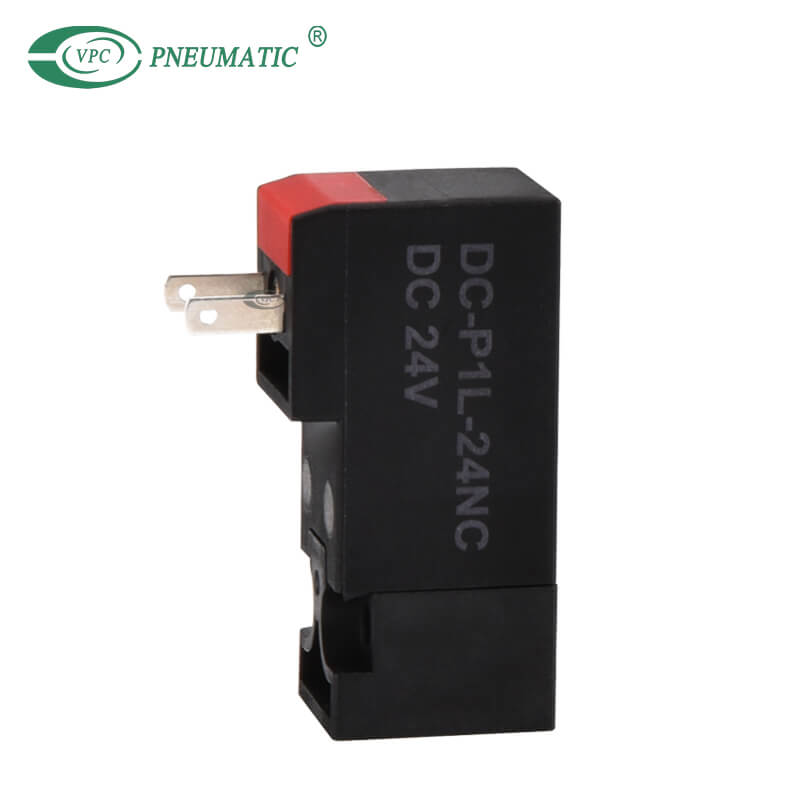

CJ Series 15mm Special Mini Pilot Solenoid Valve

Name: CJ Series 15mm Special Mini Pilot Solenoid Valve
Brand: VPC Pneumatic
Rating: 5.0 (56 reviews)

CJ series 15mm 3/2 way mini solenoid valve: 70 L/min flow, 7ms response, 2.5W power, -20°C to 80°C range. Compact, durable, and ideal for textile machinery & pilot valves.

Model:

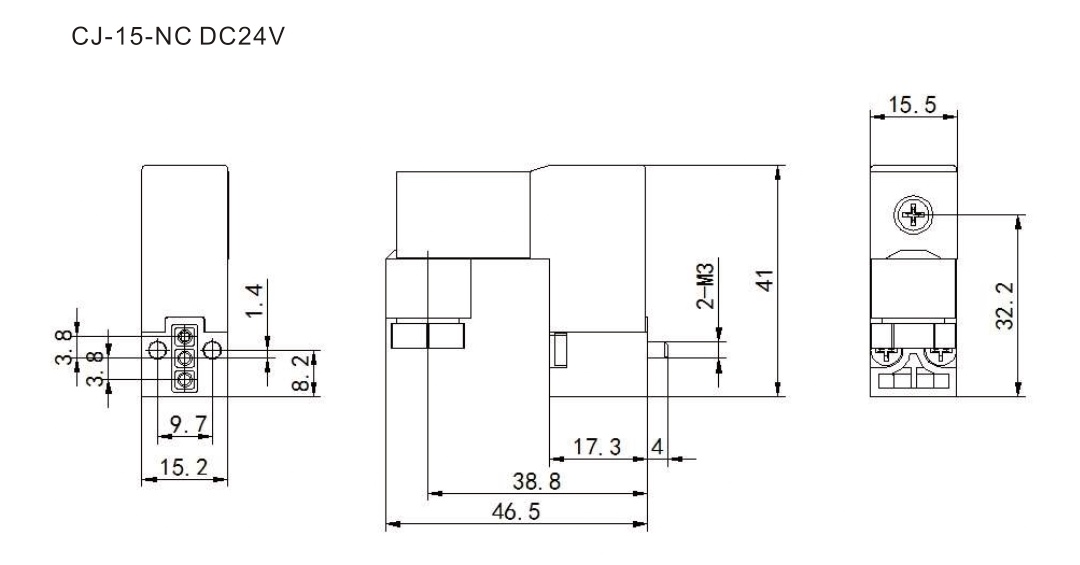

CJ-15-NC DC 24V
Brand:
VPC Pneumatic

Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. High flow rate, with a standard rated flow of up to 70 L/min

2. Fast response time, reaching up to 7ms

3. Compact size and low power consumption, with a power rating of only 2.5W

4. Stable and reliable performance, vibration-resistant, and long service life

■ Applications

Textile machinery, pilot parts of various pneumatic valves

Product Specifications

Working medium	Clean air

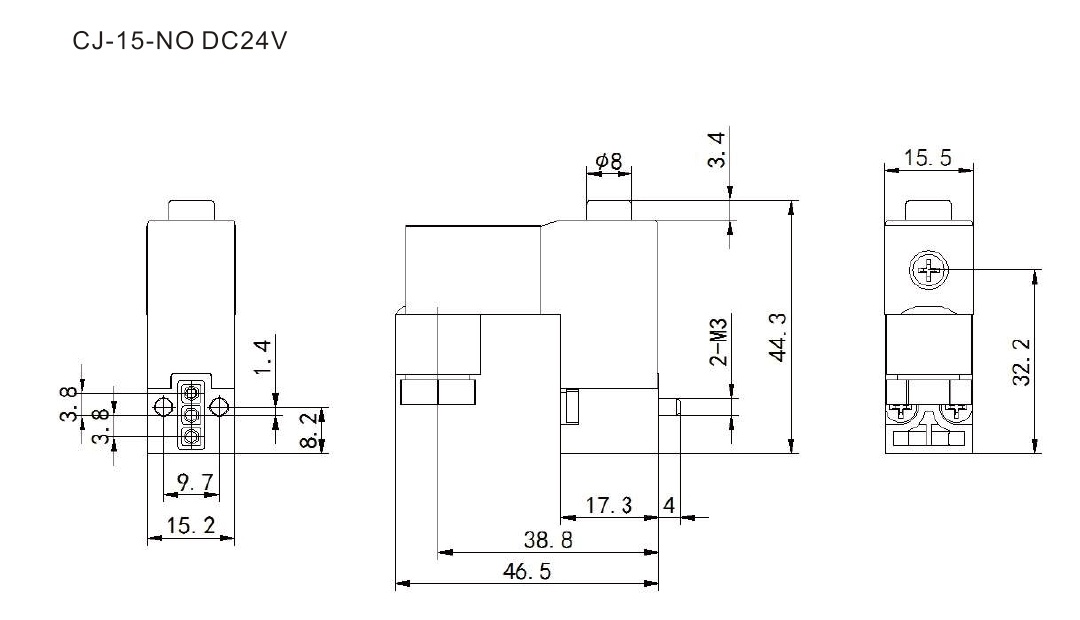

Acting type	3/2 N.C. 3/2 N.O.
Actuation method	Electrically operated
Working pressure	0 to 0.7 MPa
Orifice size	1.5 mm
Valve width	15 mm
Protective class	IP65
Response time	Open 7ms, Colse 3ms
Working voltage	DC 24V
Power	2.5w
