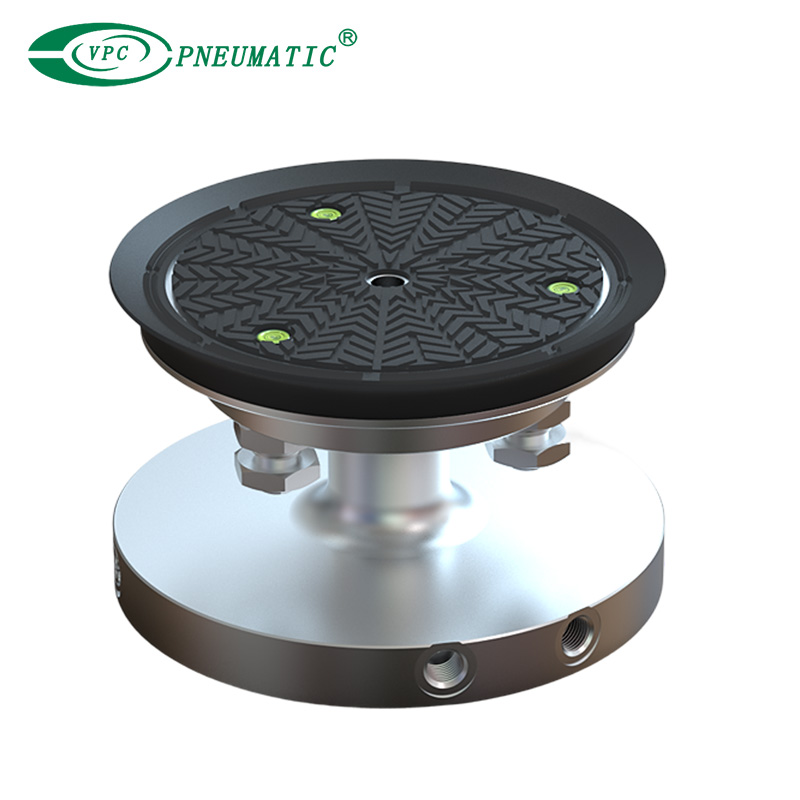

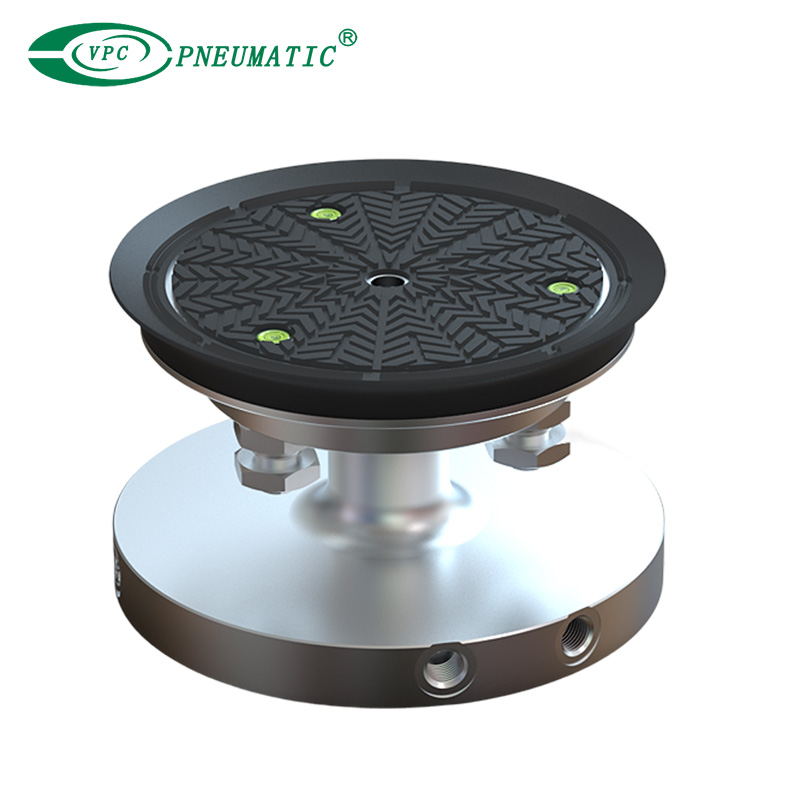

CNC Processing Positioning Suction Cup for Glass

VPC Glass processing positioning suction cup is engineered specifically for glass edge grinding applications. Designed to firmly position and clamp glass workpieces during processing, it ensures high stability, precision, and operational safety even under demanding conditions.

Model:
VGS
Brand:
VPC Pneumatic

Suction cup diameter:	Φ137
Stroke ranges:	2 years
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. Anti-Slip Patterned Base: Specially designed surface structure enhances friction, preventing slippage during glass positioning and edge grinding.

2. Large-Diameter Suction Area: Provides strong holding force for stable clamping of large or thick glass panels during processing or transfer.

3. Horizontal Visual Positioning Support: Supports precise visual alignment and positioning, improving processing accuracy and reducing repositioning time in high-volume production environments.

4. Stable & Secure Clamping: Ensures safe fixation of workpieces throughout high-speed grinding, polishing, or finishing operations.

※ For more information on industrial automation vacuum cups, please contact VPC Pneumatics.

Applications

1. Glass edge grinding positioning and clamping

2. Glass surface finishing and polishing

3. Precision handling of glass sheets in processing lines

Product Specifications

Max. suction force of top suction cup	416N (At 60 kPa vacuum pressure)
Max. suction force of bottom suction cup	600N (At 60 kPa vacuum pressure)
Adjustable height range	0~0.5mm
Adjustable angle range	±1.5°

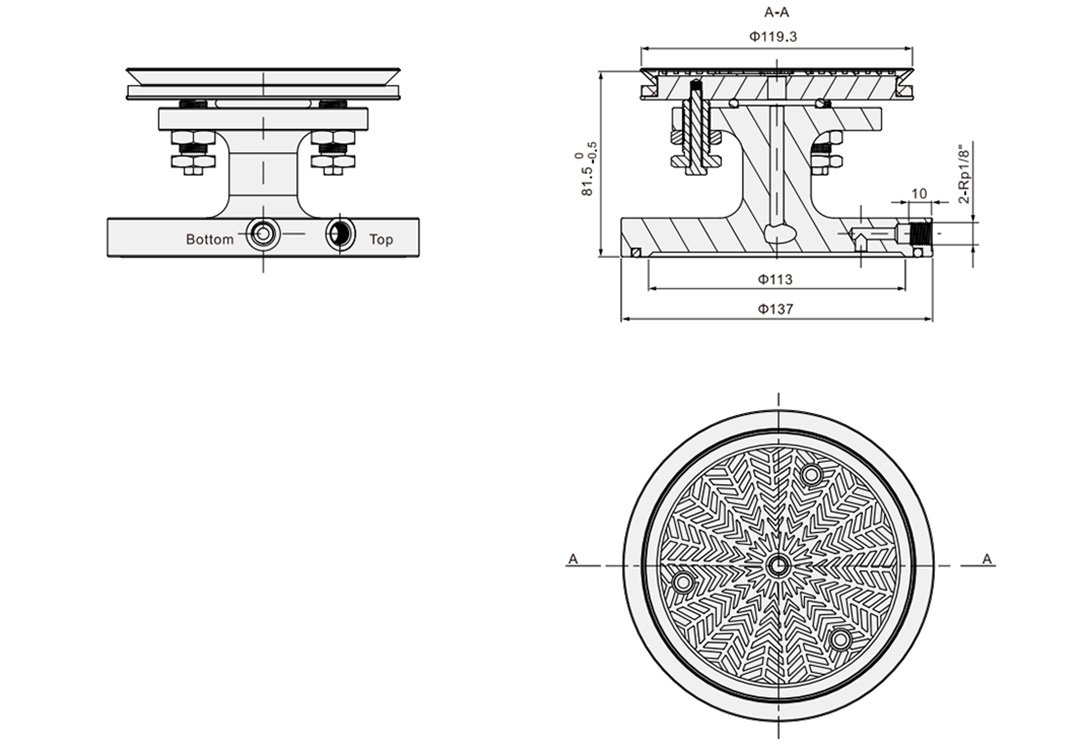

Product Dimensions
