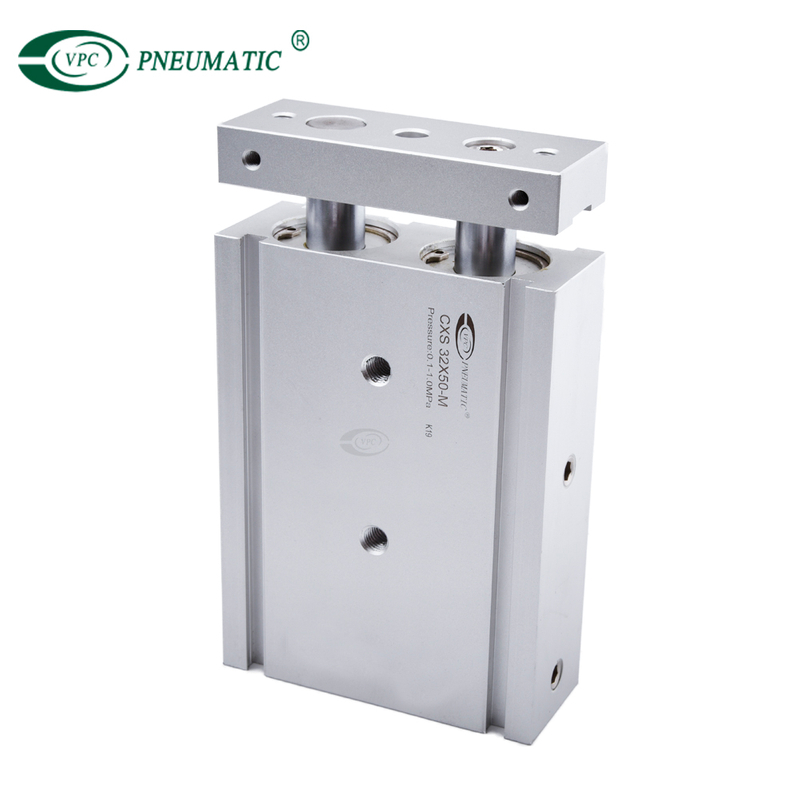

CXSL Ball Bearing Type Double-shaft Cylinder

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
The CXS Series is a dual piston actuator with non-rotating accuracy ± 0.1°. The CXSL high precision ball bushing type allows for smooth operation that ensures stable travel resistance.

  • CXSL

  • VPC Pneumatic

  • 8412310090

Working medium:
Air
Acting type:
Double acting
Working pressure:
0.1 to 1.0Mpa
Working temperature:
-10 to 70℃
Speed ranges:
30 to 800mm/s
Availability:
Inquire Add to Basket

Product Description

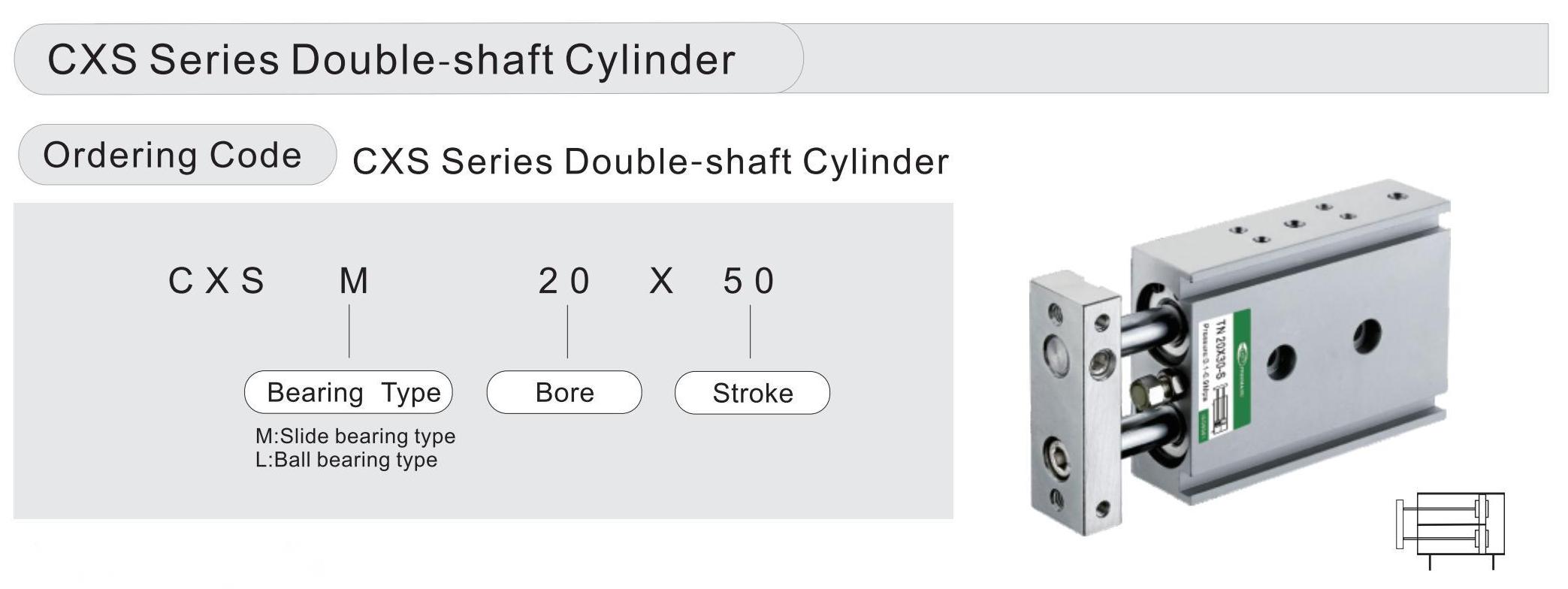

CXS参数-1

Product Specifications

Bore(mm)61015202532
Working MediumClean Air(40μm Filteration)
Acting TypeDouble Acting
Working pressure range0.1 to 1.0Mpa
Guaranteed pressure1.5Mpa
Working temperature-10 to 70℃
Speed range30 to 800mm/s
Adjustable stroke0 to -5mm
Cushion typeRubber Cushion
No rotating accuracy±0.2°
±0.15°±0.1°
Port SizeM5X0.8
G1/8

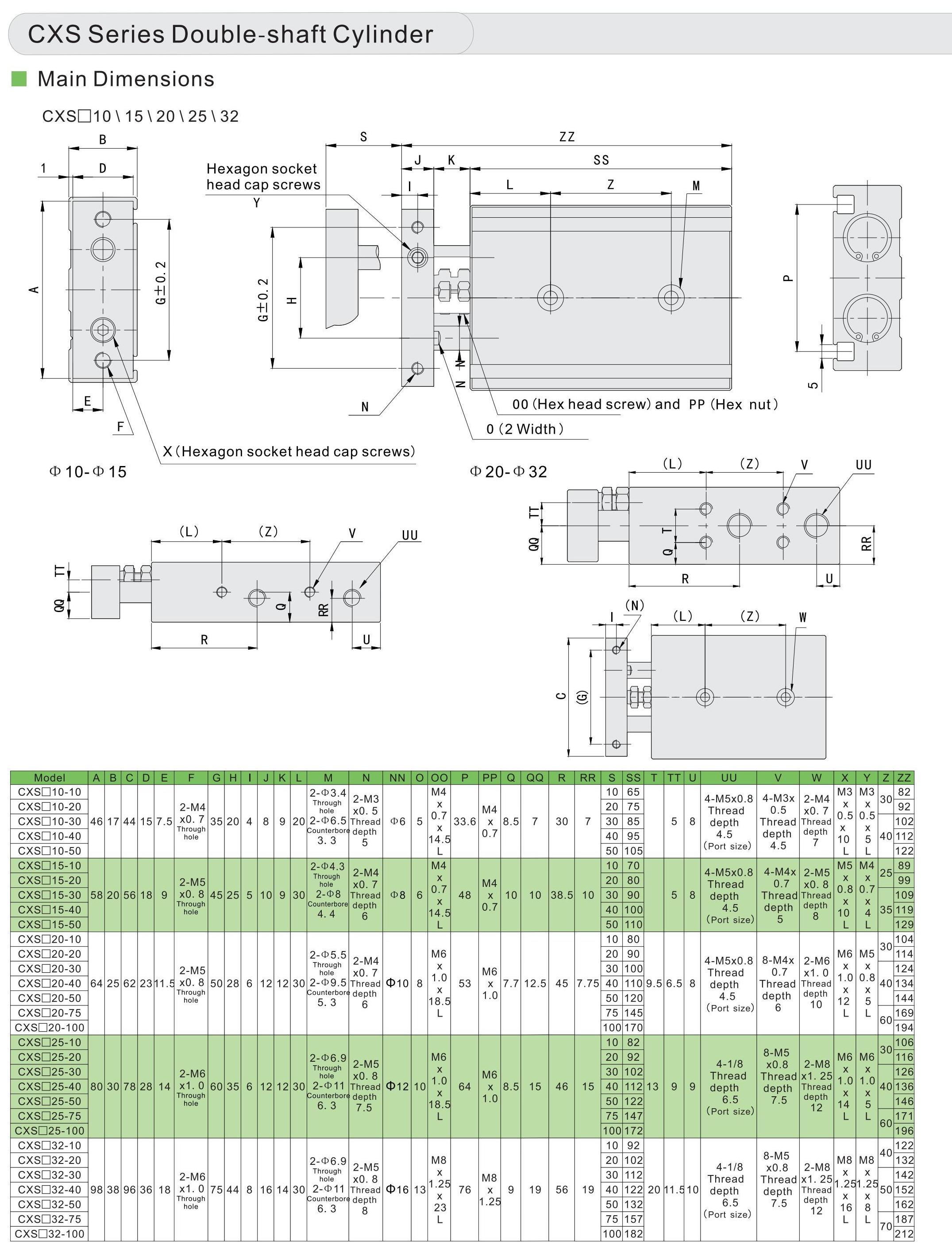

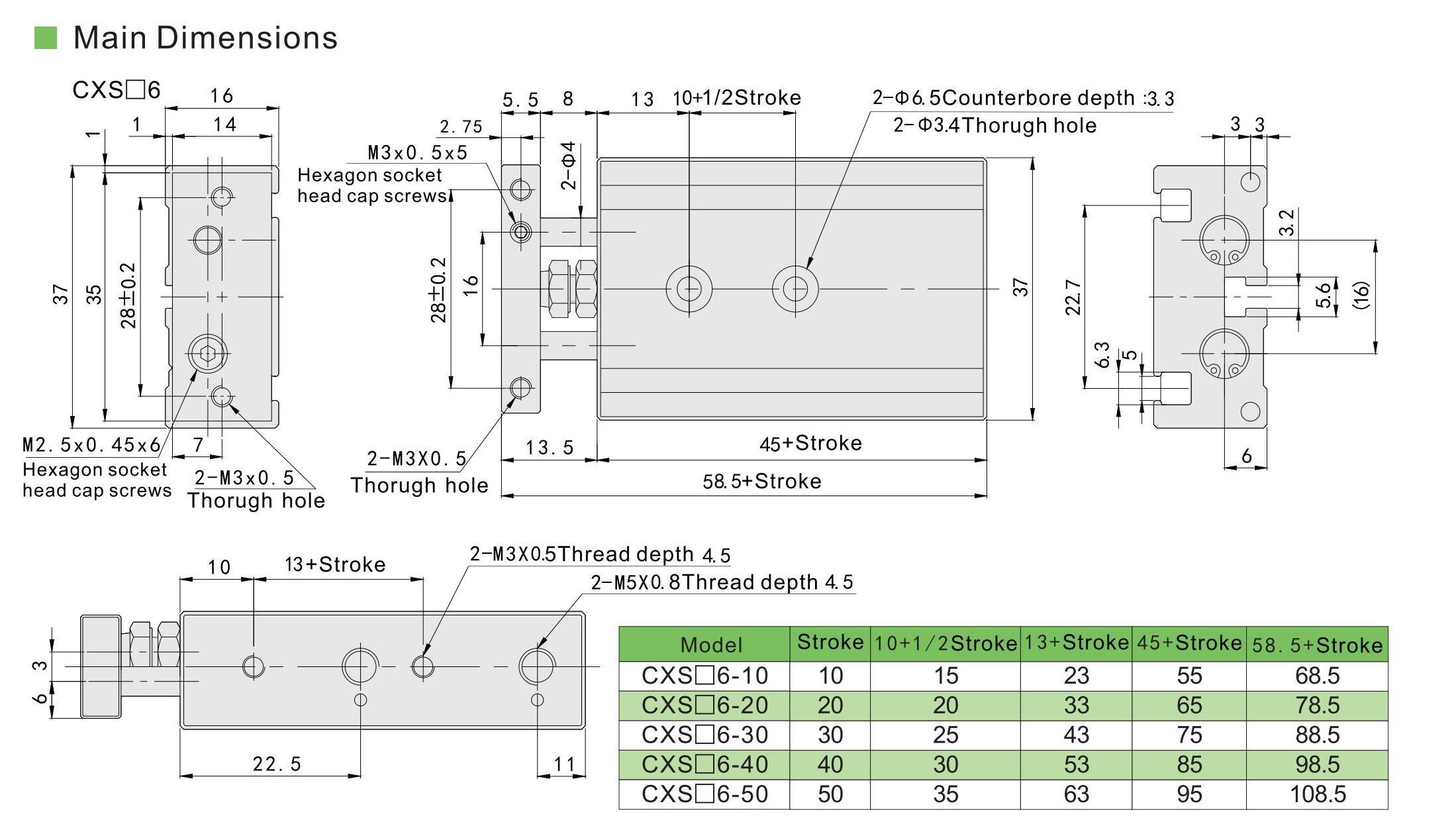

Main Dimensions

CXS参数-2CXS参数-3
