DSNU Series ISO 6432 mini cylinder for food industry

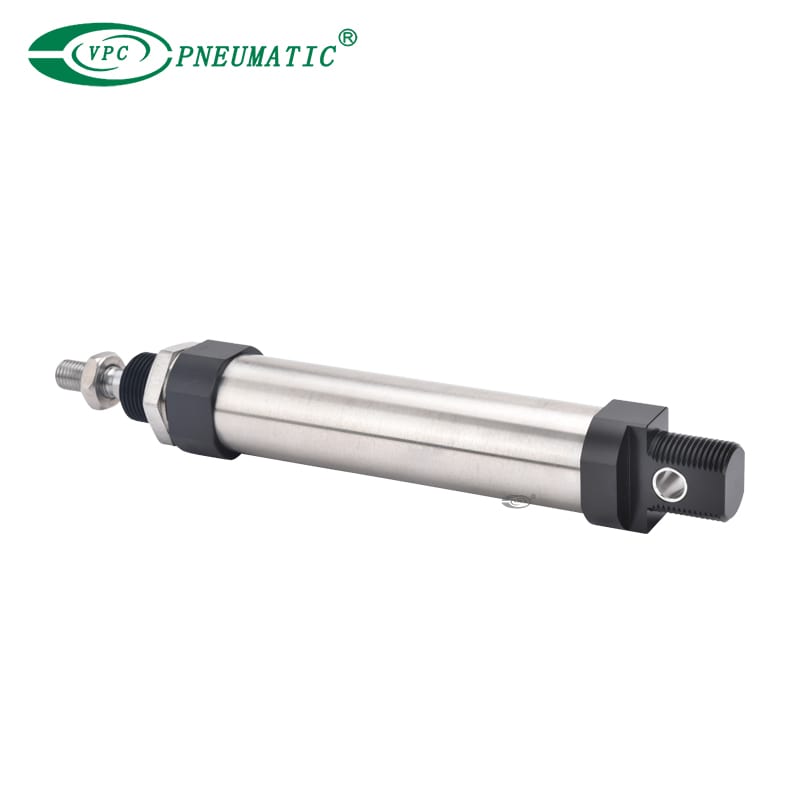

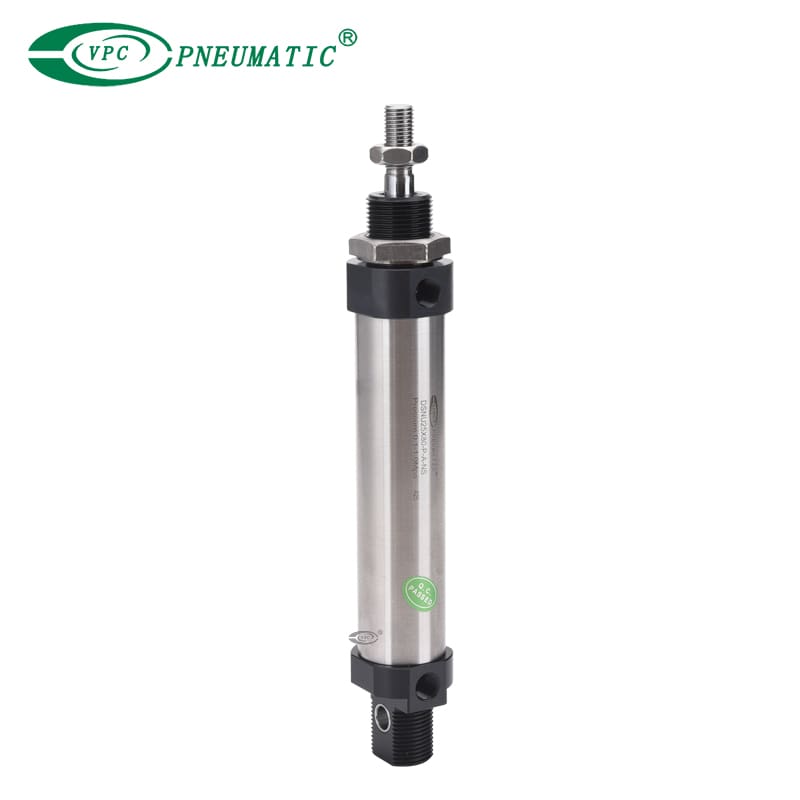

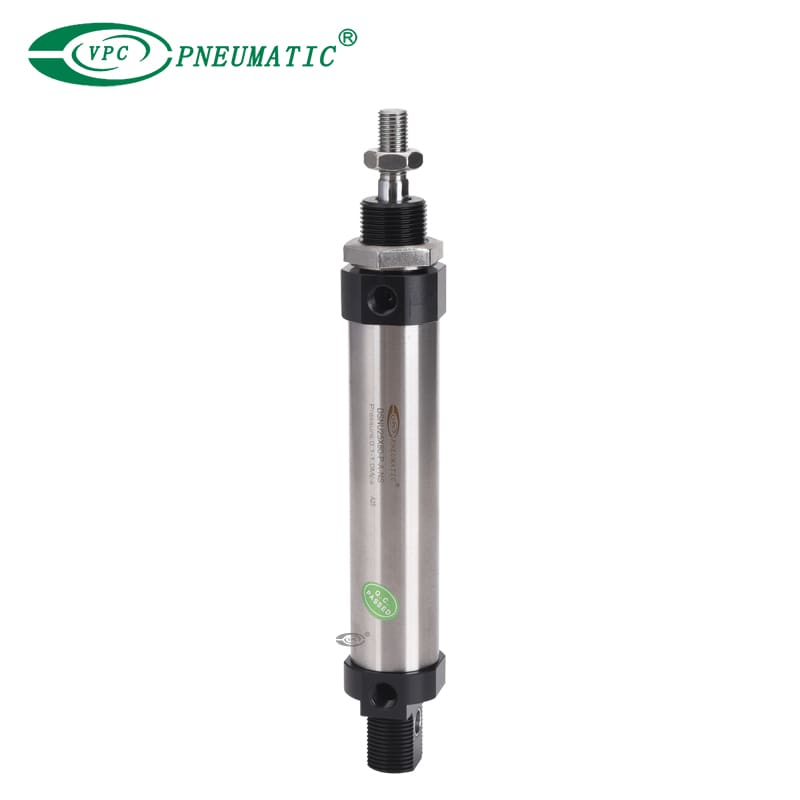

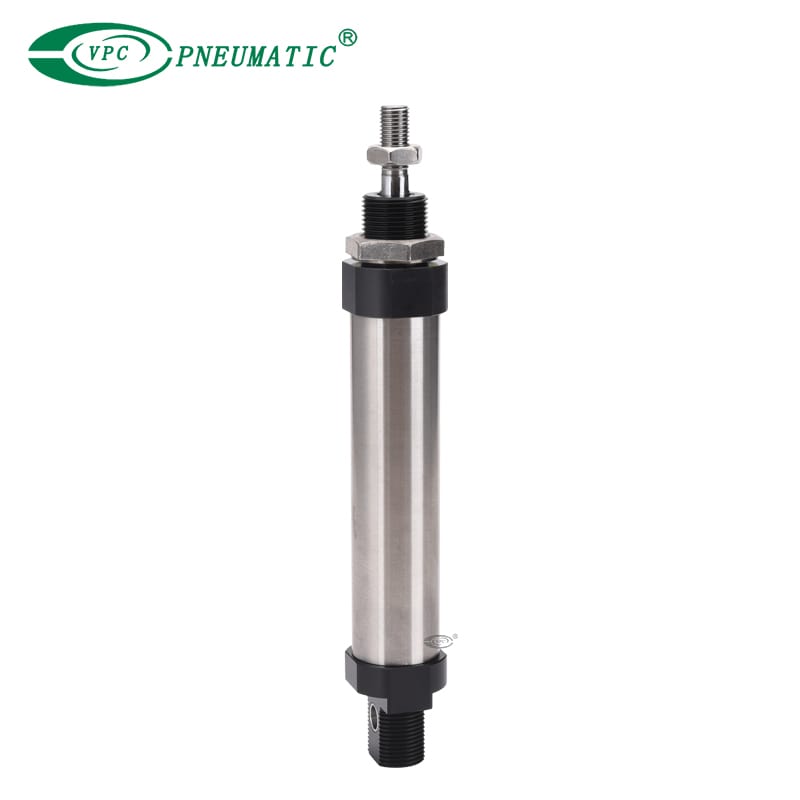

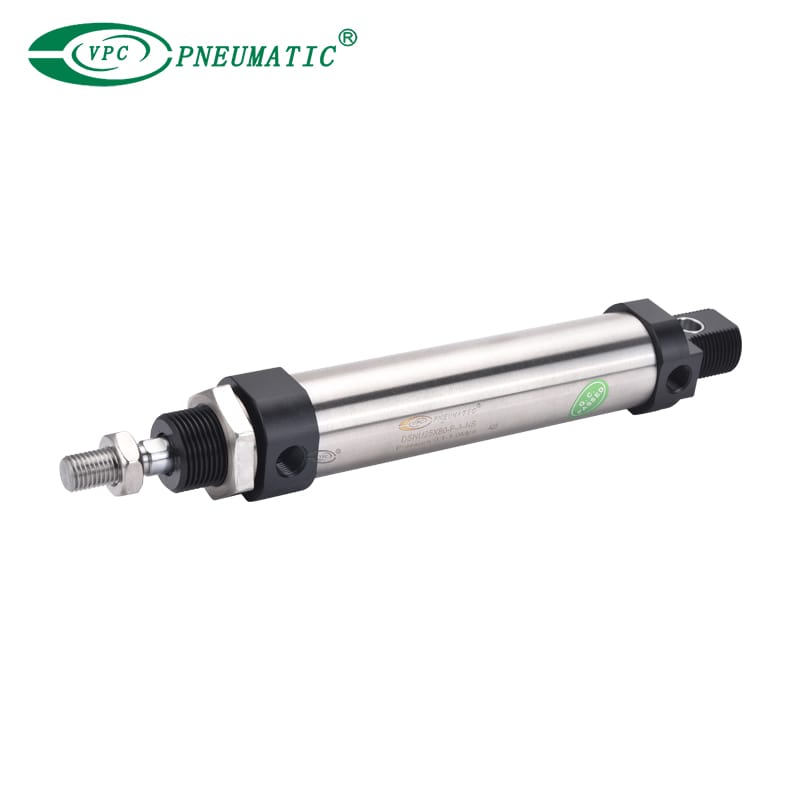

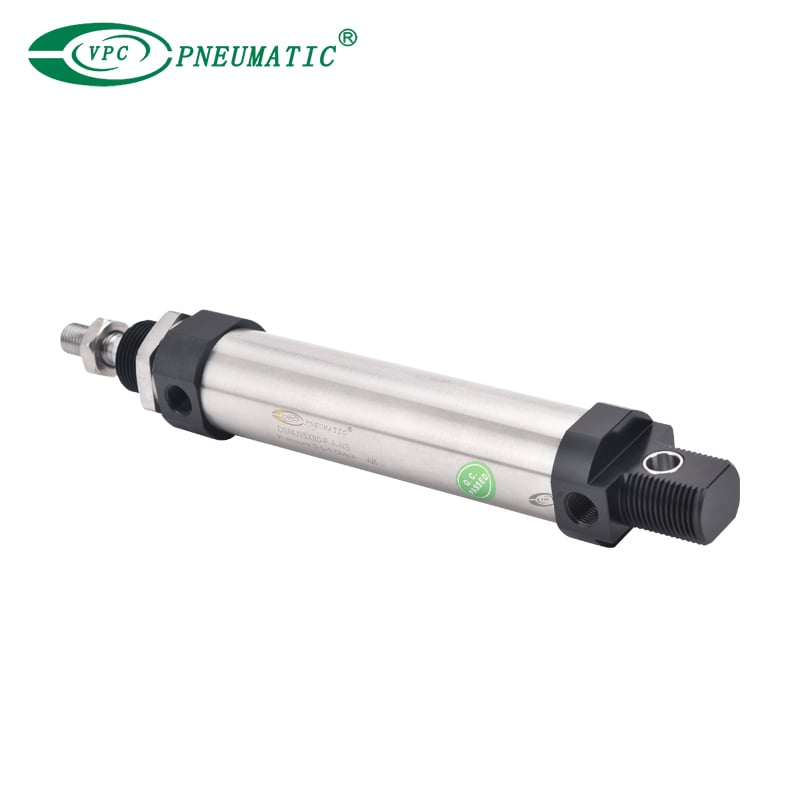

VPC's custom mini stainless steel cylinder is designed for food cutting applications, offering corrosion resistance, precision control, and compact size. Fully customizable with OEM support, it’s a perfect DSNU alternative for automated food processing and packaging, ensuring durability, hygiene, and efficiency.

Model:
DSNU 25X80-P-A-NS
Brand:
VPC Pneumatic

Bore Ranges:	8 to 63 mm
Stroke Range:	5 to 100 mm
Adjustment stroke:	5 to 100 mm
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. High-Quality Stainless Steel Cylinder Barrel – Constructed with corrosion-resistant stainless steel, ensuring durability and compliance with food industry hygiene standards.

2. Customizable Bore Size & Stroke – Fully customizable to meet specific application requirements, providing precise control for various food cutting processes.
3. Food-Grade Safety Design – Non-contaminating and easy to clean, meeting the stringent hygiene demands of food processing machinery.
4. Compact & Space-Saving Structure – Miniature design for seamless integration into limited-space food processing equipment.
5. High-Response Pneumatic Actuation – Fast start-stop performance enhances cutting efficiency, suitable for high-frequency operations.
6. Premium Sealing & Wear-Resistant Piston Rod – Engineered for extended service life, reducing maintenance downtime and operational costs.

■ Symbol

festo pneumatic cylinder

* Bore diameters from 8 to 25 mm are in conformance with ISO 6432.

Product Specifications

Bore(mm)		8	10	12	16	20
Acting type		Double acting, Single acting
Working medium		Clean air(40um Filteration)
Working pressure		0.15 to 1.0Mpa			0.1-1.0Mpa
Working temperature		-20 to 80℃
Lubrication		No required
Speed range		-			10 to 100mm/s
Cushion type	DSNU-□-P	Elastic cushion rings
	DSNU-□-PPV	-		Adjustable cushion
	DSNU-□-PPS	－			Self-adjustable cushion
Cushion stroke	DSNU-□-PPV	－		9mm	12mm	15mm
	DSNU-□-PPS	-			12mm	15mm
Port size		M5	M5	M5	M5	G1/8
Piston rod thread		M4	M4	M6	M6	M8
Mounting type		Direct mounting (variant MH only)
		With accessories

Bore(mm)		25	32	40	50	63
Acting type		Double acting, Single acting
Working medium		Clean air(40um Filteration)
Working pressure		0.1-1.0Mpa
Working temperature		-20 to 80℃
Lubrication		No required
Speed range		10 to 100mm/s	8 to 100mm/s			5 to 100mm/s
Cushion type	DSNU-□-P	Elastic cushion rings
	DSNU-□-PPV	Adjustable cushion
	DSNU-□-PPS	Self-adjustable cushion
Cushion stroke	DSNU-□-PPV	17mm	14mm	18mm	20mm	21mm
	DSNU-□-PPS	17mm	14mm	18mm	20mm	21mm
Port size		G1/8	G1/8	G1/4	G1/4	G3/8
Piston rod thread		M10×1.25	M10×1.25	M12×1.25	M16×1.5	M16×1.5
Mounting type		Direct mounting (variant MH only)
		With accessories
