| Working medium: | |
|---|---|
| Working temperature: | |
| Material: | |
Product Description
■ Symbol
Product Specifications

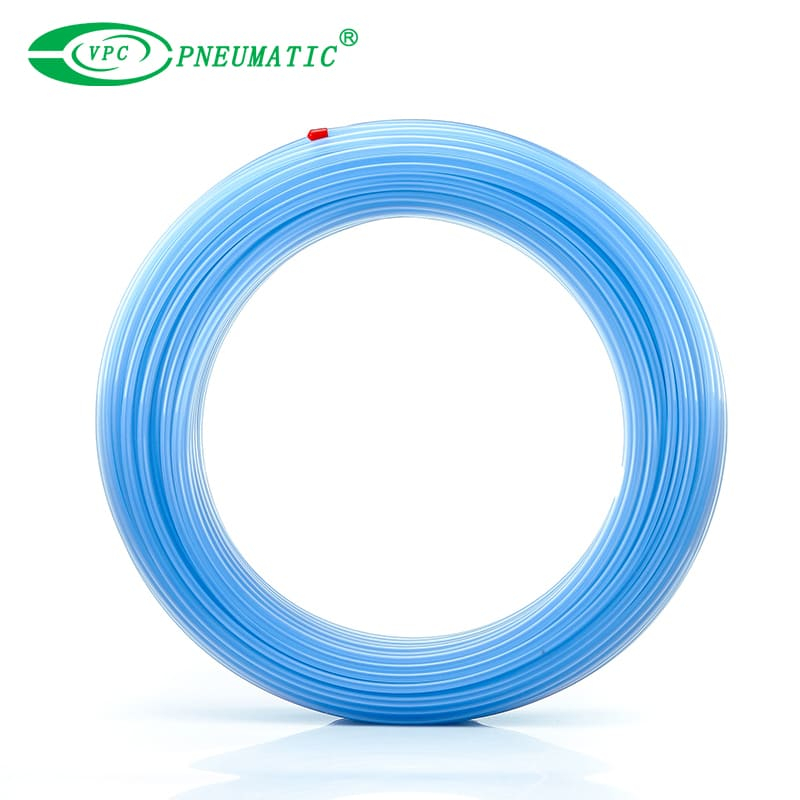

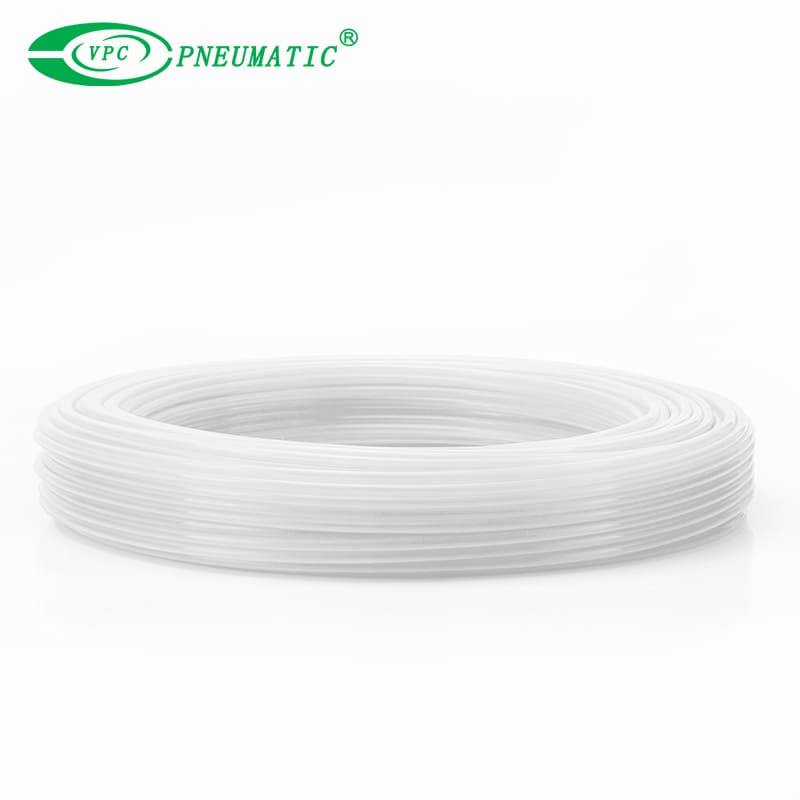

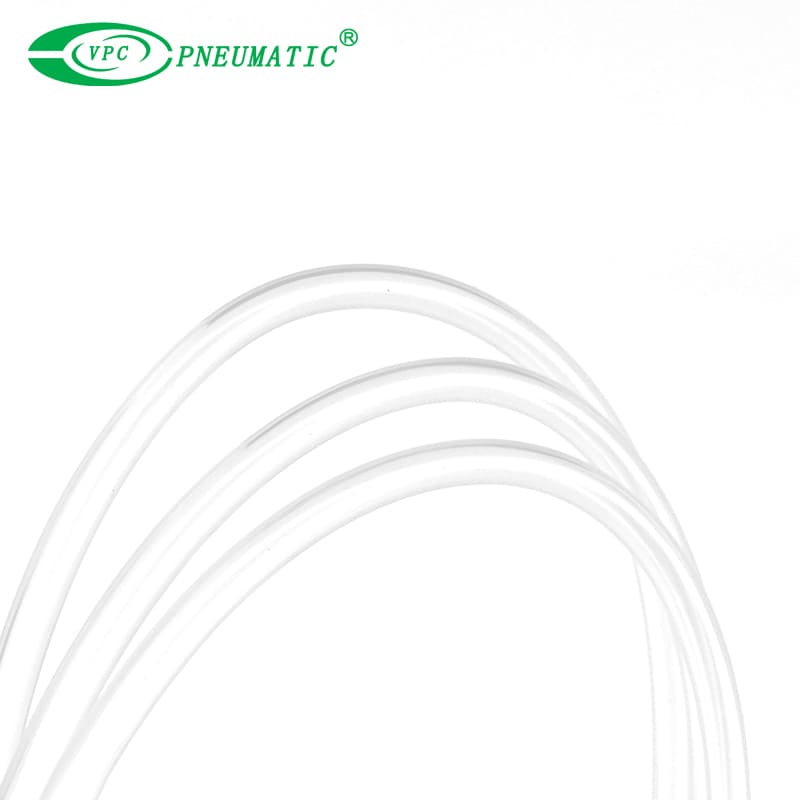

| Product Name | FEP Teflon Tube |
| Material | FEP |
| Fluid | Air, water, inert gas, chemical liquid |
| Working temperature | -65 ℃ ~ +200 ℃ (Air, inert gas) |
| 0 ℃ ~ +100 ℃ (Water) | |
| Length | 100 / 200 m/roll |
| Tolerance | OD3-12mm, tolerance is ± 0.1mm |
| OD14-16mm, tolerance is ± 0.15mm |
* Other sizes and colors can be customized, please contact VPC Pneumatic.
Main Dimensions
| Model | OD × ID (mm) | Working temperature (℃) | Maximum working pressure （MPa) | Minimum bending radius (mm) | ||
| 20 ℃ | 100 ℃ | 200 ℃ | ||||
| FEP0402 | 4 × 2 | -65 ℃ ~ +200 ℃ (Air, inert gas) 0 ℃ ~ +100 ℃ (Water) | 2.3 | 0.85 | 0.4 | 15 |
| FEP0425 | 4 × 2.5 | 1.7 | 0.6 | 0.3 | 20 | |
| FEP0604 | 6 × 4 | 1.5 | 0.55 | 0.3 | 35 | |
| FEP0806 | 8 × 6 | 1 | 0.4 | 0.2 | 60 | |
| FEP1075 | 10 × 7.5 | 1 | 0.4 | 0.2 | 95 | |
| FEP1008 | 10 × 8 | 0.7 | 0.25 | 0.1 | 100 | |
| FEP1209 | 12 × 9 | 1 | 0.4 | 0.2 | 100 | |
| FEP1210 | 12 × 10 | 0.7 | 0.25 | 0.1 | 130 | |
| FEP 1/8 | 3.18 × 2.18 | 1 | 0.4 | 0.2 | 20 | |
| FEP 3/16 | 4.76 × 3.15 | 1.5 | 0.55 | 0.3 | 25 | |
| FEP 1/4 | 6.35 × 3.95 | 1.7 | 0.6 | 0.3 | 35 | |
| FEP3/8 | 9.53 × 6.33 | 1.5 | 0.55 | 0.3 | 60 | |
| FEP 1/2 | 12.7 × 9.5 | 1 | 0.4 | 0.2 | 95 | |
| FEP3/4 | 19.05 × 15.85 | 0.7 | 0.25 | 0.1 | 220 | |
