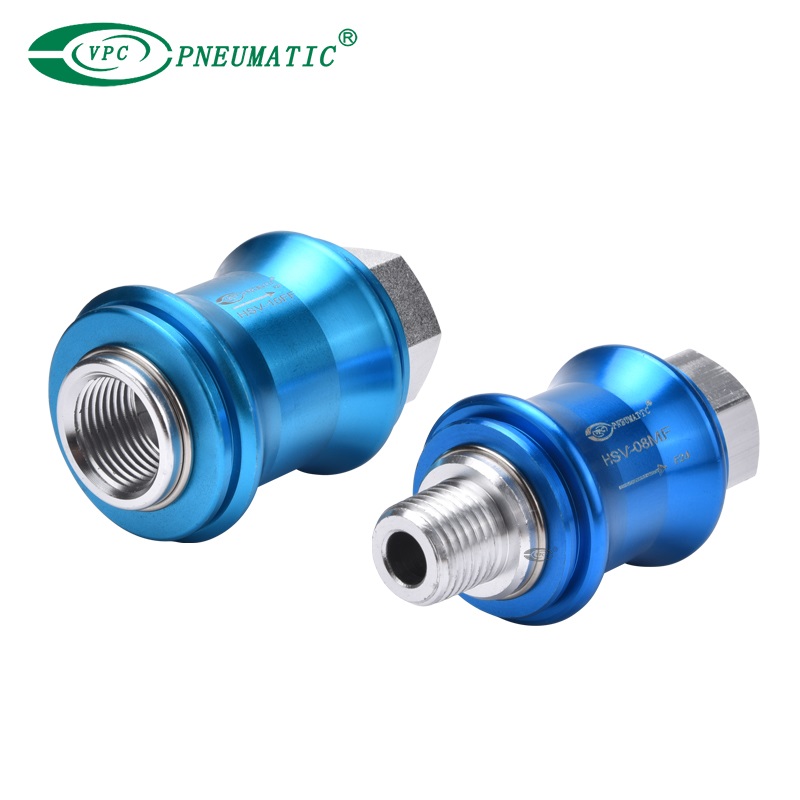

HSV Series Slide Valve

HSV pneumatic hand slide valve controls airflow by manually sliding the valve to open or close the passage. When moved to the working position, it allows air to flow through. Sliding it to the closed position shuts off the air supply while simultaneously exhausting the downstream pressure, ensuring system safety and efficiency.

Model:
HSV-08-MM
Brand:
VPC Pneumatic
Code:
8412909000

Working medium:	Clean air
Working pressure:	0 to 1.0Mpa
Working temperature:	5 to 60℃
Body Material:	Aluminum
Quality Warranty:	1 year
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1.Manual Operation: Simple and reliable hand-controlled slide mechanism.

2. Multiple Connection Options: Available in internal and external thread types, adaptable to different pipeline systems.

3. Smooth Direction Change: Ensures effortless switching for seamless operation.

4. High Flow Efficiency: Large effective circulating area for optimized airflow.

5. Durable Build: Made from high-quality aluminum alloy, ensuring long-lasting performance.

6. Compact & Versatile: Available in different port sizes (G/8", G1/4", G3/8", etc.) for various pneumatic applications.

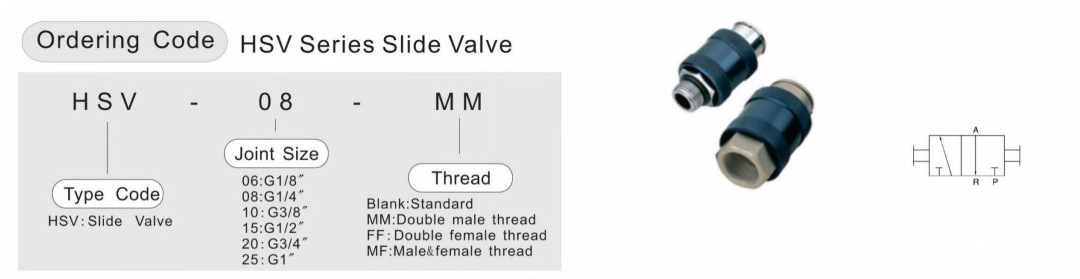

■ Symbol

manual slide valve

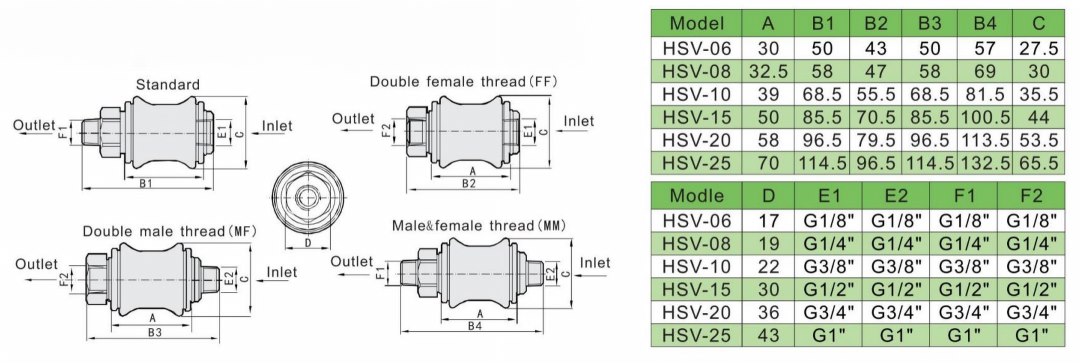

Main Dimensions

manual valve
