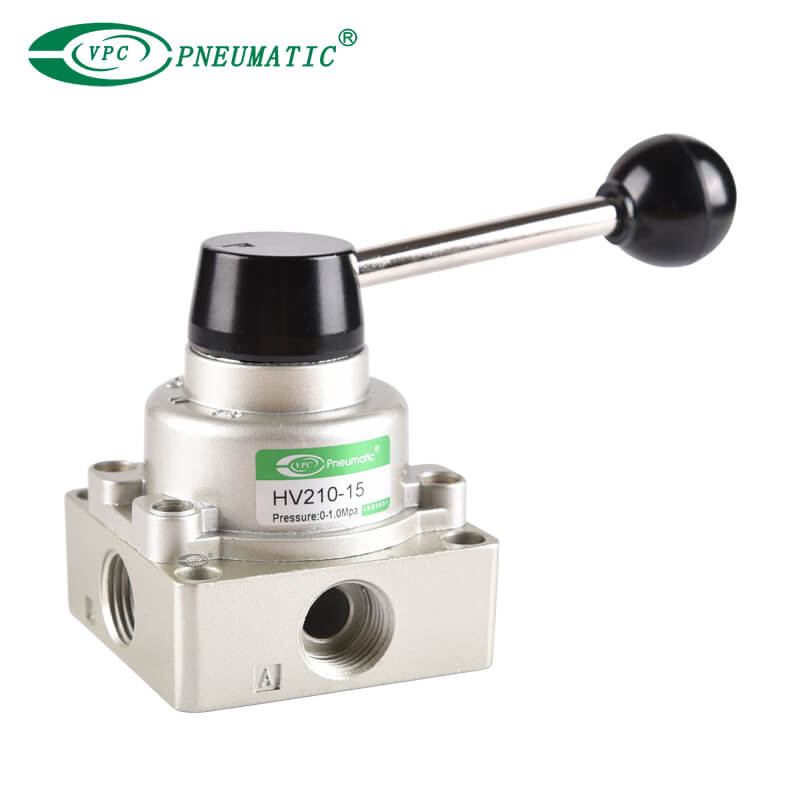

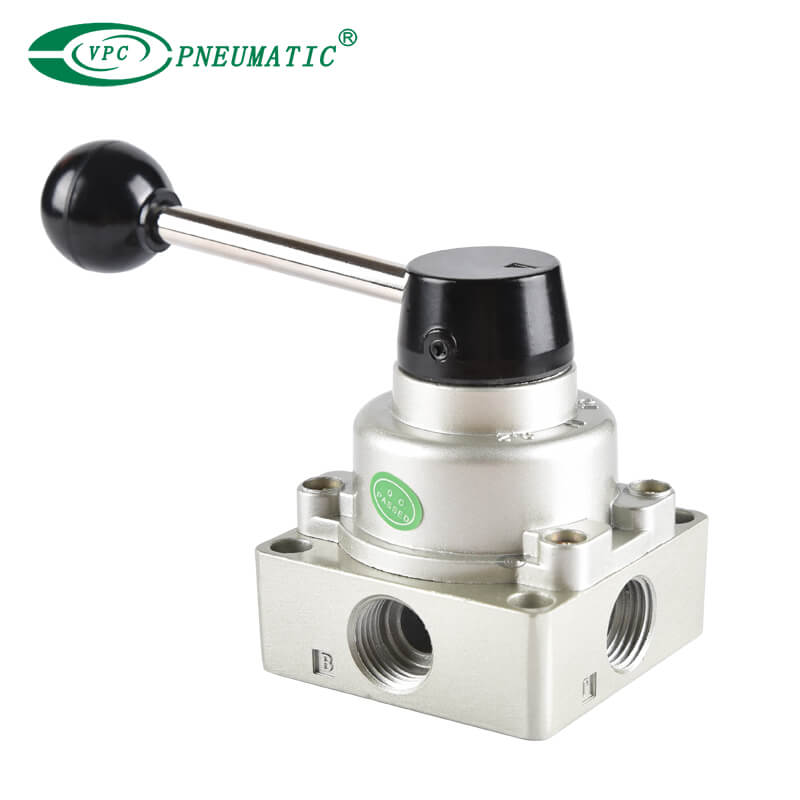

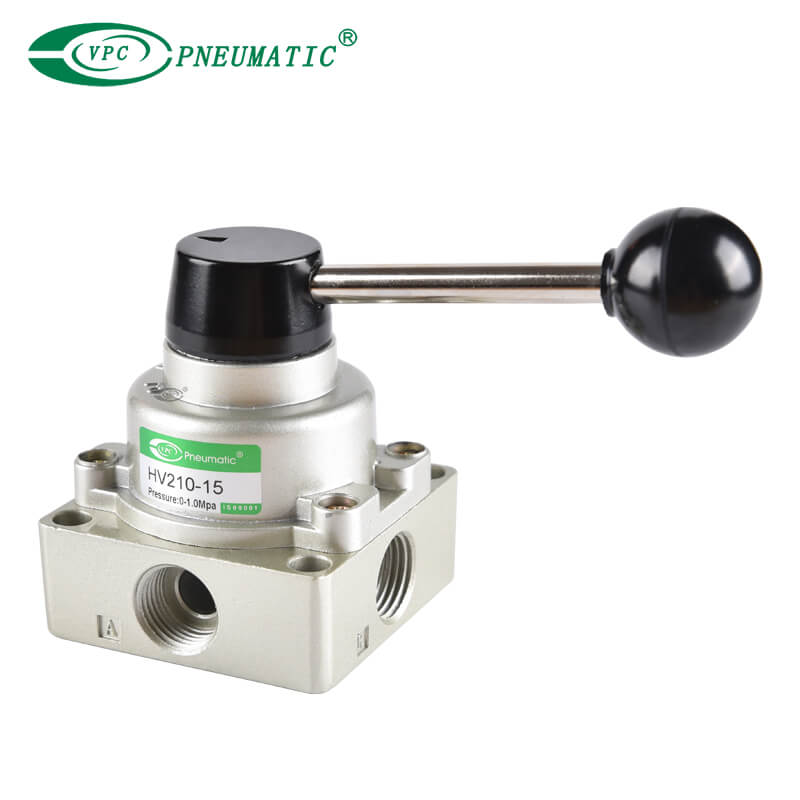

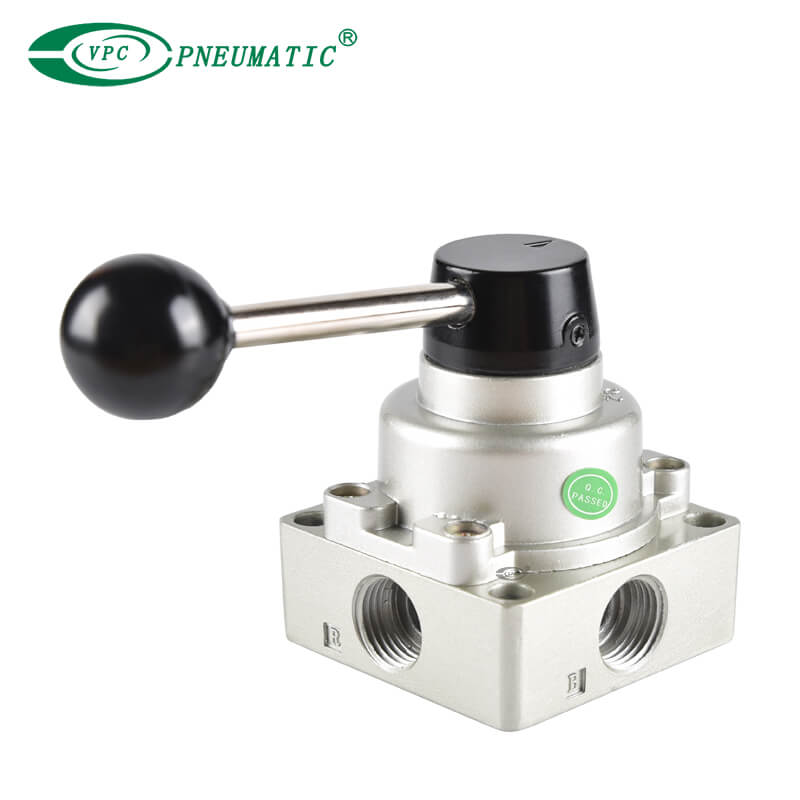

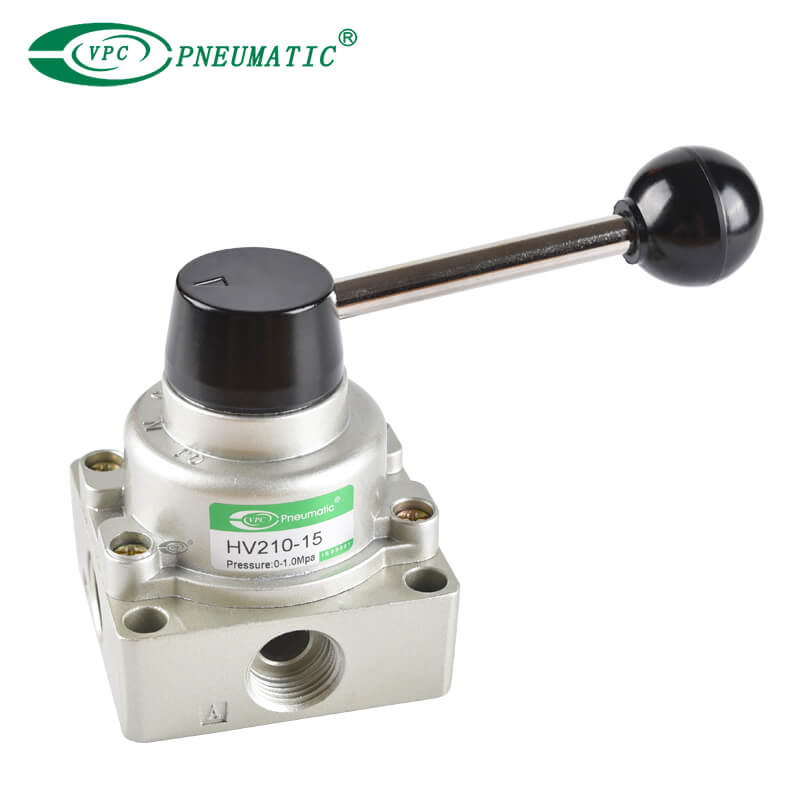

HV Series 3 Position 4 Port Rotary Valve

  • The direction-change turns lightly with good hand feeling and exact orientation;
  • Large effective circulating area leads to little pressure loss;
  • Panel and body installation are optional. The panel installation can be attached with installing nut.
Working medium:
Working pressure:
Working temperature:
Working angle:
Ways:
  • HV210-08
  • VPC Pneumatic
  • 8412909000

Product Description

HV 参数-1

Product Specifications

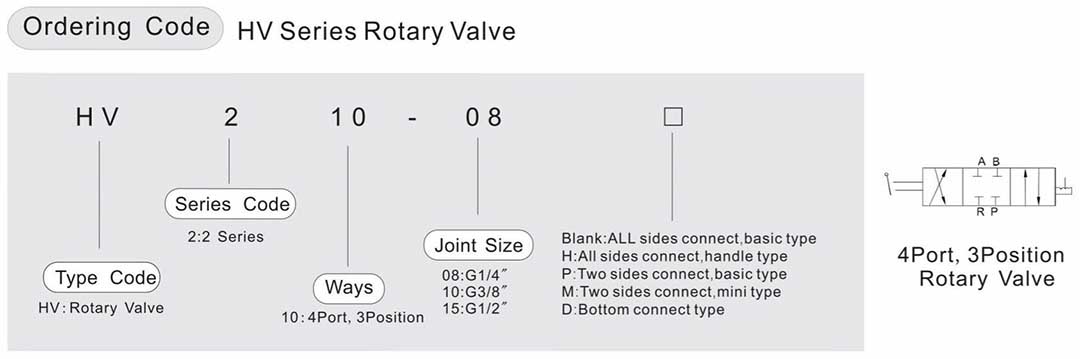

Model

HV210-08HV210-08HHV210-08PHV210-08MHV210-08D
HV210-10HV210-10HHV210-10PHV210-10MHV210-10D
HV210-15HV210-15HHV210-15PHV210-15MHV210-15D
Working MediumClean Air
Acting TypeExternal Control


Joint Size

HV210-08G1/4"HV210-08HG1/8"G1/4"G1/4"G1/4"
HV210-10G3/8"HV210-10HG1/4"
HV210-15G1/2"HV210-15HG3/8"
Ways4 Port 3 Position
LubricationNo
Working Pressure

0 to 1.0Mpa

Max. Pressure1.5Mpa
Working Temperature-20 to 70℃
Working Angle90°

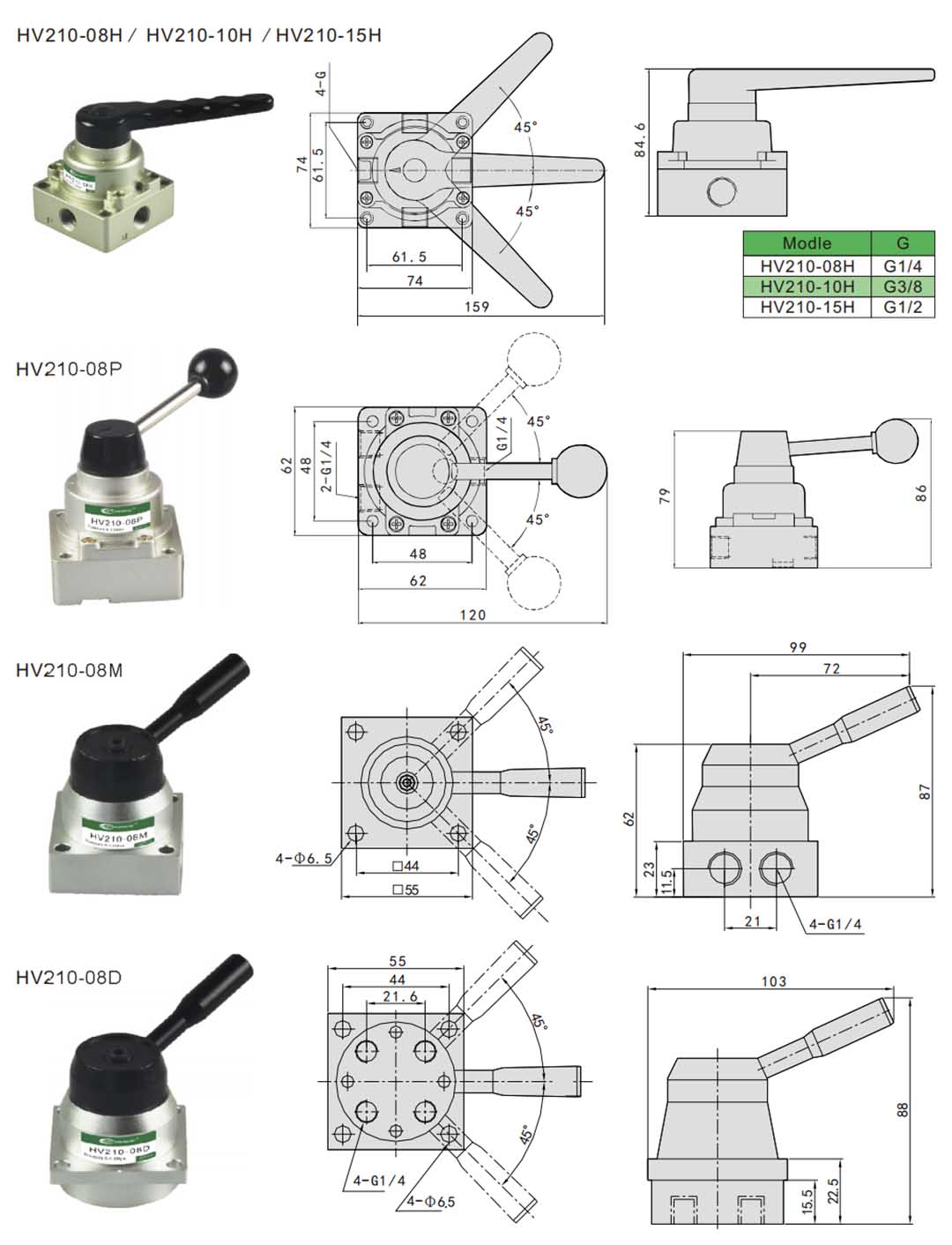

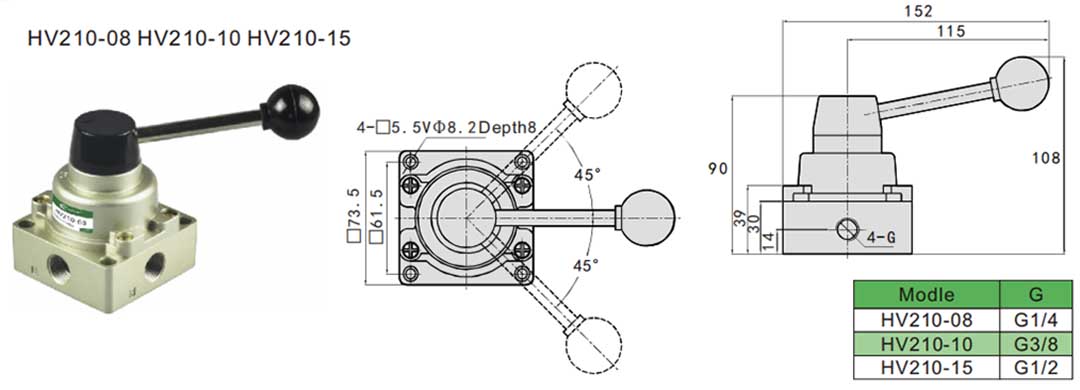

Main Dimensions

HV参数-1HV参数-2
