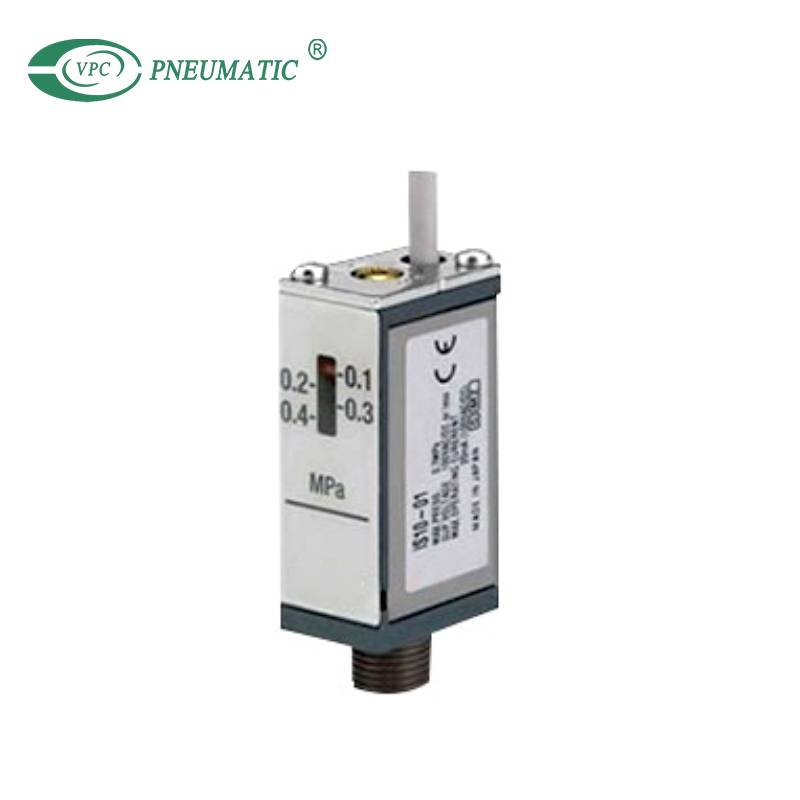

IS10 Series Reed Switch Type Pressure Switch, Analog Indicator

1. IS10 is a pressure switch with a linear mechanical set point indicator, for mounting into any pneumatic system.

2. The switch housing can thread into R1/8 female port. The housing assembly includes a reed switch activated by a piston-mounted magnet.

3. A screw adjusts the spring loading the piston to set the switch point.

4. IS10 is CE and RoHS compliant, with an IP40 enclosure rating.

Product Description

■ Product Feature

IS10 series mechanical pressure switch with a male thread for any pneumatic system.

1. Can be connected to A series F.R.L. units.

2. Set pressure range: 0.1 to 0.4 MPa, or 0.1 to 0.6 MPa

3. Service life: 5 million cycles.

4. Reed switch output of circuit voltage (NO below-set point).

5. Electrical circuit: Up to 100 V AC/DC

Pneumatic Pressure Switch

Product Specification

Model	IS10-01	IS10-01-6
Working medium	Air, Inert gas
Proof pressure	1.0MPa
Max. operating pressure	0.7MPa
Set pressure range	0.1 to 0.4MPa	0.1 to 0.6MPa
Ambient and fluid temperature	-5 to 60℃ (No freezing)
Contacts	1a
Error of scale	±0.05MPa or less
Hysteresis	Fixed 0.08MPa or less
Repeatability	±0.05MPa or less
Wiring specifications	Lead wire length: 0.5m, Option: 3m, 5m
Enclosure	Equivalent to IP40
Port size	R1/8
Weight	62g
