| Working medium: | |
|---|---|
| Port size: | |
| Working pressure: | |
| Working temperature: | |
| Certification: | |
Product Description

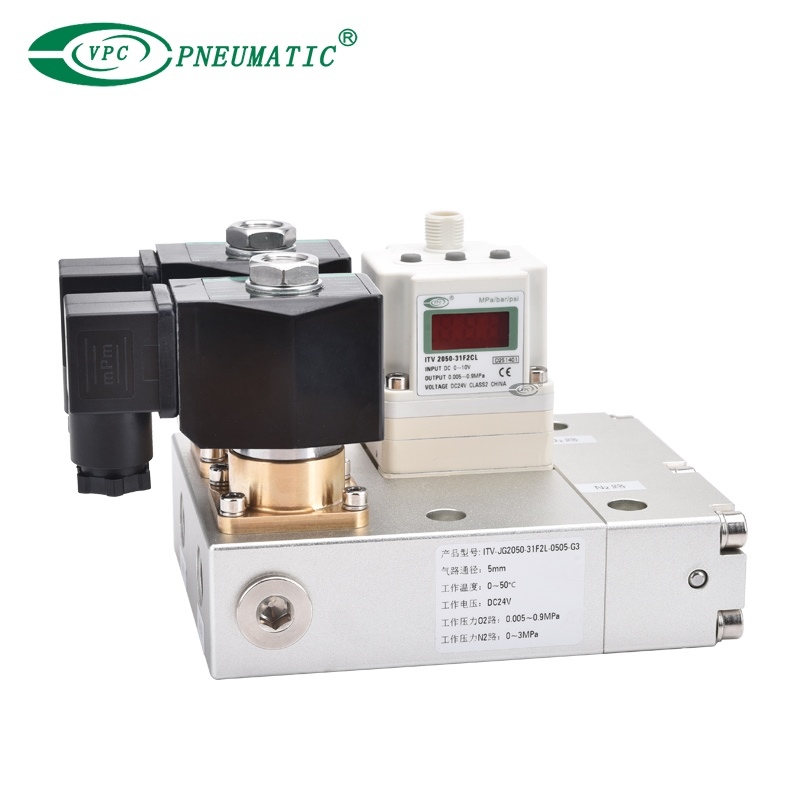

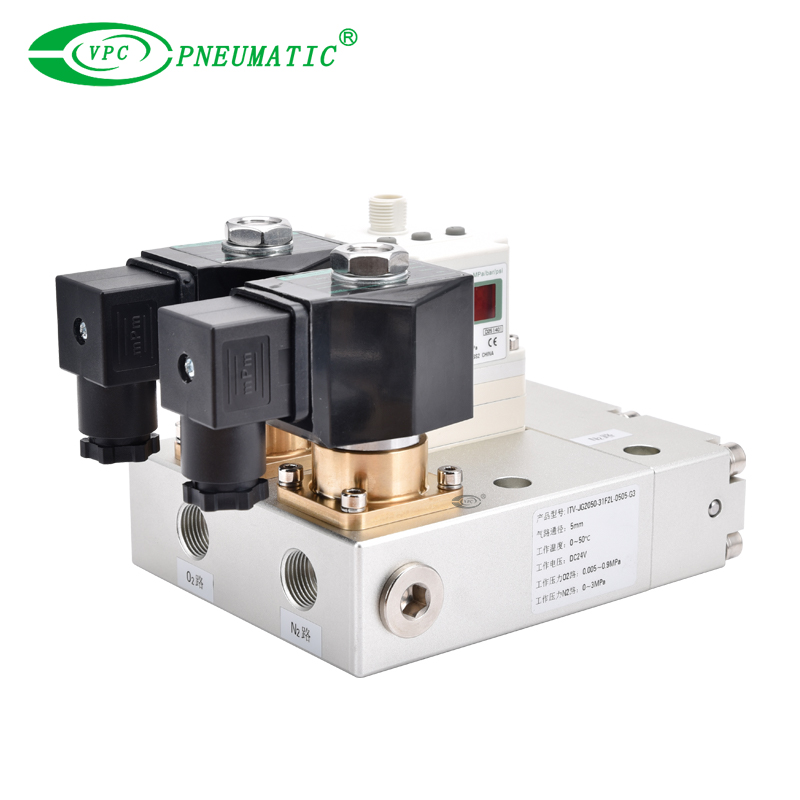

Integrated Gas Control Design
Combines an ITV electro-pneumatic regulator and a high-speed solenoid valve in one compact module for simplified gas control.
Precise Pressure Regulation
Provides accurate and stable gas pressure control to support consistent laser cutting quality.
Fast Gas Switching
High-speed valve response enables rapid switching of assist gases during different cutting processes.
Compact & Space-Saving
Integrated construction reduces piping and installation space, making it suitable for compact CNC laser cutting systems.
Reduced Leakage Risk
Fewer external connections help minimize potential leakage points and improve system reliability.
Easy System Integration
Simplified wiring and piping help reduce installation time and make integration into laser cutting equipment more efficient.
Stable Operation for Laser Cutting
Designed for demanding laser cutting applications requiring reliable pressure control and fast gas response.
Product Specifications
| Model | Specifications |
| Port size | Inlet/Ootlet: 3/8 Exhaust port: 1/4 |
| Working medium | O2, N2 |
| Working pressure | N2 Line: 0 MPa to 3 MPa O2 Line: 0.005 MPa to 0.9 MPa |
| Working temperature | 0 to 50℃ (No freezing) |
| Tubing O.D | Φ5 mm |
| Enclosure | IP65 |
| Model | Specifications |
| Supply voltage | DC 24V±10% |
| Power | 18w |
| Connection method | Terminal Type |
| Working temperature | 0 to 50℃ (No freezing) |
| Acting type | 2-port, 2-position, Normally Closed (N.C.) |
| Model | Specifications |
| Material | Brass |
| Cracking pressure | <0.01 MPa |

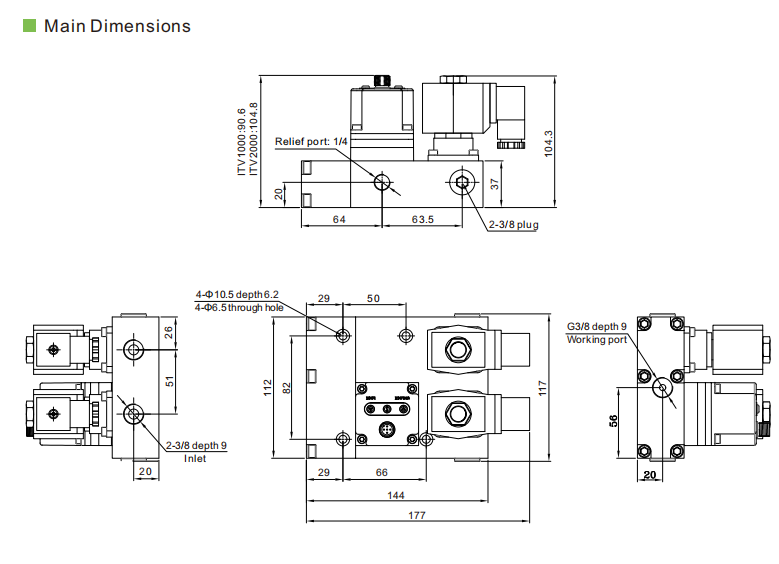

Main Dimensions
