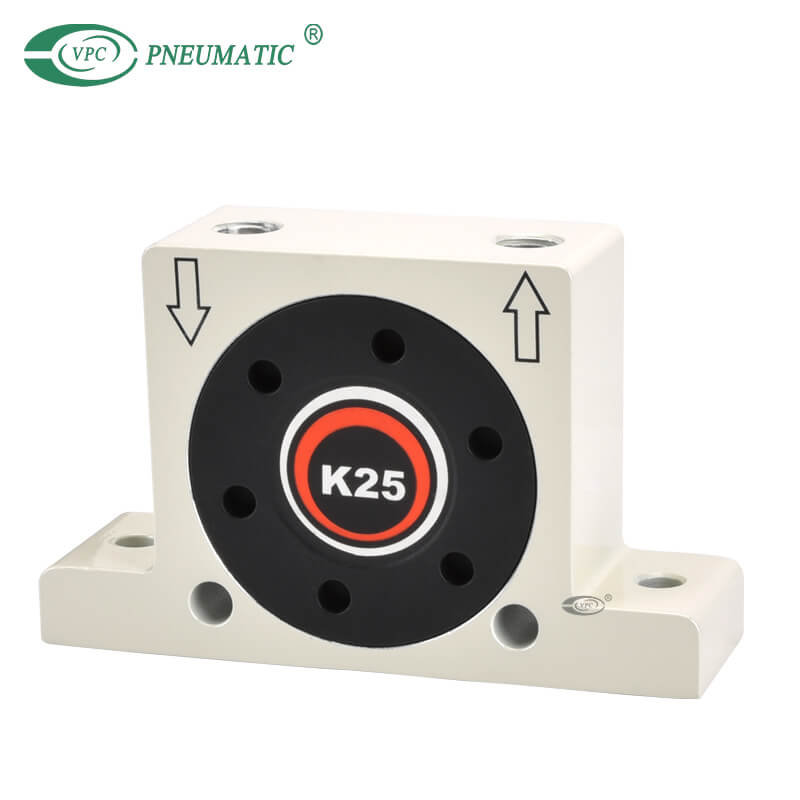

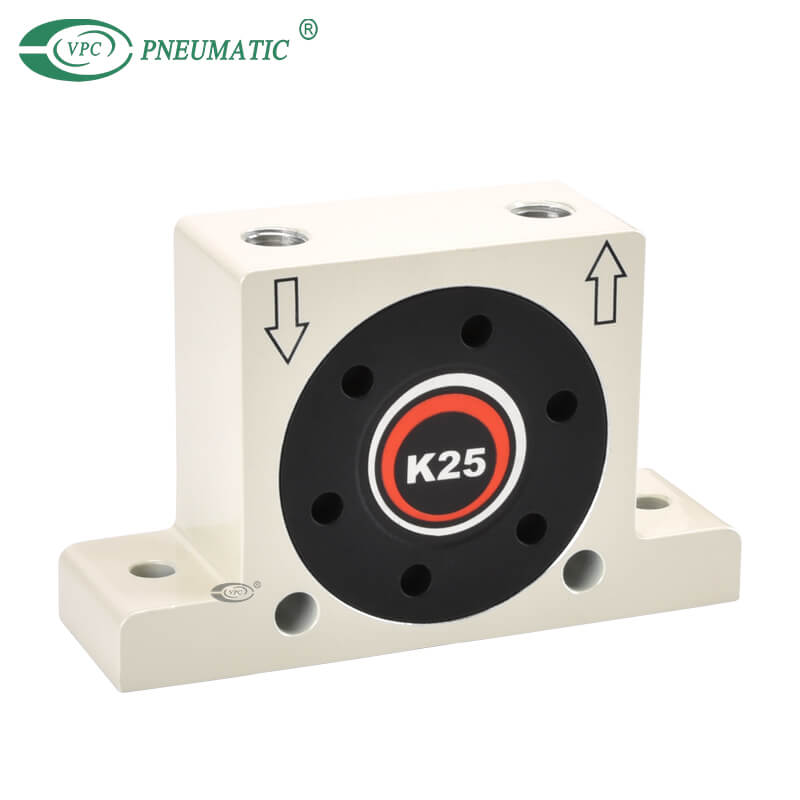

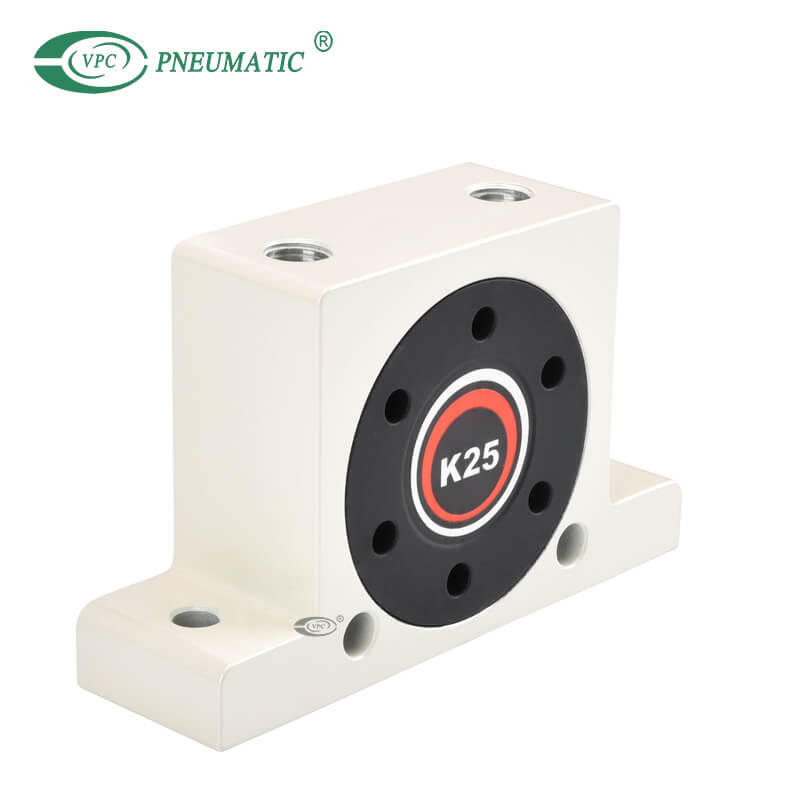

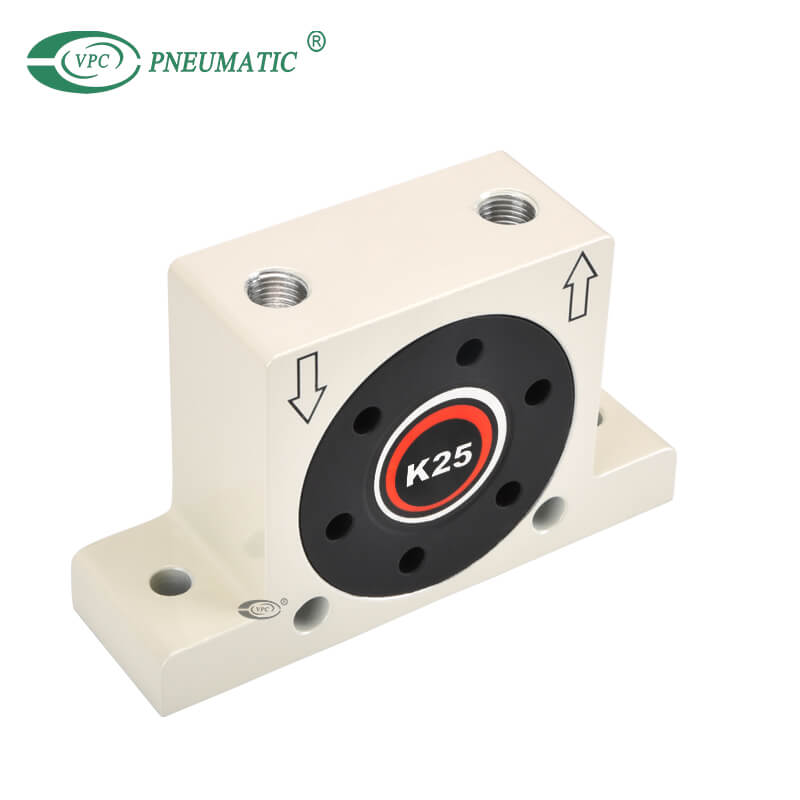

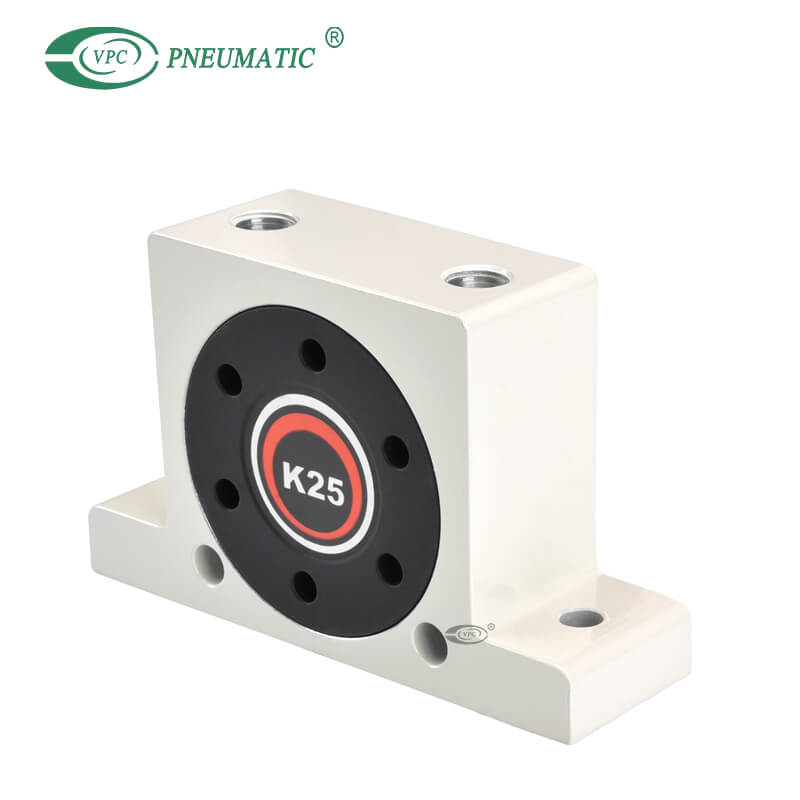

K Series Ball Type Pneumatic Vibrator
K Series Ball Type Pneumatic Vibrator K Series Ball Type Pneumatic Vibrator
K Series Ball Type Pneumatic Vibrator K Series Ball Type Pneumatic Vibrator
K Series Ball Type Pneumatic Vibrator K Series Ball Type Pneumatic Vibrator
K Series Ball Type Pneumatic Vibrator K Series Ball Type Pneumatic Vibrator
K Series Ball Type Pneumatic Vibrator K Series Ball Type Pneumatic Vibrator

loading

K Series Ball Type Pneumatic Vibrator

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. The piston outside the casing contains special grease, which vibrates together with the piston and runs smoothly and quietly.
  2. The pneumatic vibrator can control the amplitude and frequency by adjusting the voltage.
  3. There are standard 1/4in threaded holes on the outside to facilitate smoother exhaust of the vibrator.
  4. Made of high‑quality materials, wear‑resistant and durable, meeting the needs of various work scenarios.
  5. Commonly used for vibrating table, filter screen, silo emptying, bulk material washing and compaction.

  • K-20

  • VPC Pneumatic

  • 8481804090

Working medium:
Compressed Air(Not Liquid)
Working temperature:
0 to 100℃
Noise range:
75 to 95 dBA
Availability:
Inquire Add to Basket

Product Description

Model Vibrations [x 1000 min-1] Vibration Power(N) Air consumption(/min)
0.2MPa 0.4MPa 0.6MPa 0.2MPa 0.4MPa 0.6MPa 0.2MPa 0.4MPa 0.6MPa
K8 25.51 31.1 35.1 132 249 365 0.85 150 190
K10 22.51 28.1 34.1 245 468 715 0.95 155 210
K13 15.1 18.51 22.51 320 560 875 0.95 160 230
K16 13.1 17.1 19.51 455 810 1110 1.25 210 285
K20 10.51 14.51 16.51 715 1200 1750 1.35 235 335
K25 9.21 12.21 14.1 925 1580 2100 1.65 295 420
K30 7.81 9.71 12.51 1520 2480 3250 2.2 380 575
K32 7.56 9.41 11.3 1780 2810 3670 2.4 430 625
K36 7.31 9.1 10.1 2050 3135 4100 2.65 480 678

pneumatic ball vibrator

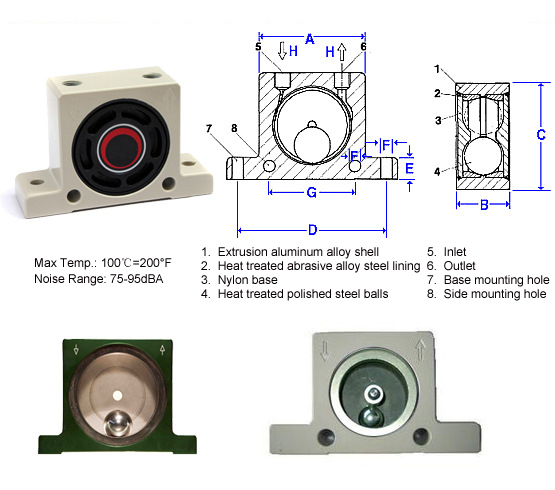

Main Dimensions

pneumatic ball vibrator

Model A(mm) Width(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(Thread BSP) Weight(kgs)
K-08 50 20 86 68 12 7 40 G1/4" 0.14
K-10
K-13 65 27 113 90 16 9 50 G1/4" 0.32
K-16
K-20 80 38 128 104 16 9 60 G1/4" 0.68
K-25
K-30 100 50 160 130 20 11 80 G3/8" 1.4
K-32
K-36
