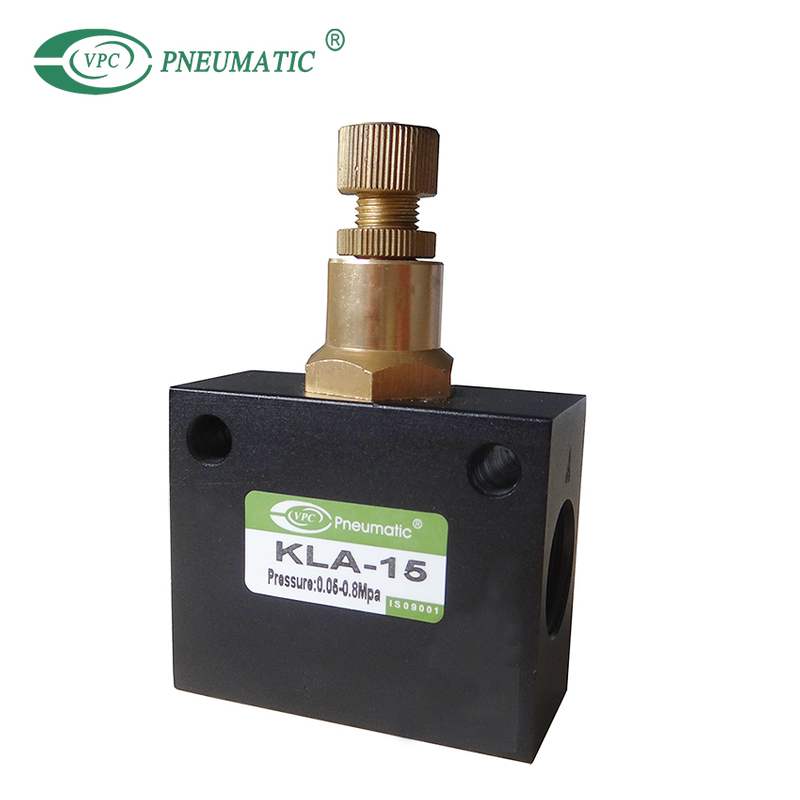

KLA Series Flow Control Valve

Share to:
  • Small and compact structure.
  • Allows air to exhaust and cut off air flow. The adjustment screw is both sensitive and precise;
  • Can be mounted in various position to facilitate installation and application.
  • KLA-15
  • VPC Pneumatic
  • 8412909000
Working medium:
Working pressure:
Working temperature:
Body Material:
Quality Warranty:
Availability:

Product Description

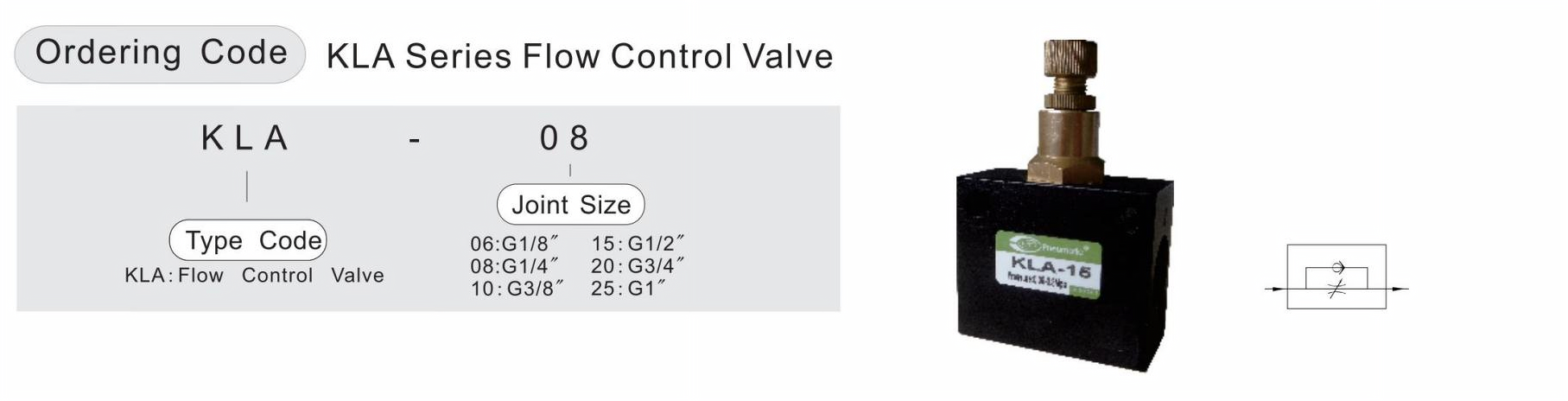

KLA 参数-1

Product Specifications

ModelKLA-06KLA-08KLA-10KLA-15KLA-20KLA-25
Working MediumClean air(40μm Filteration)
Acting typeExternal control
Working Pressure0 to 0.95Mpa
Max.Pressure1.2Mpa
Working Temperature0 to 60℃
Joint SizeG1/8"G1/4"G3/8"G1/2"G3/4"G1"

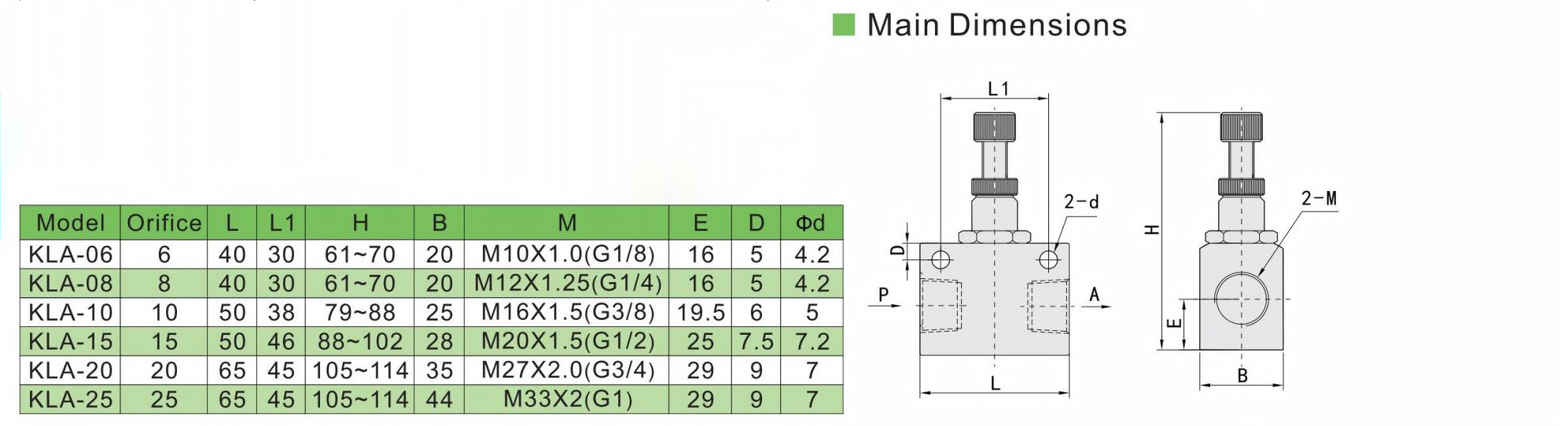

Main Dimensions

KLA 参数-2
