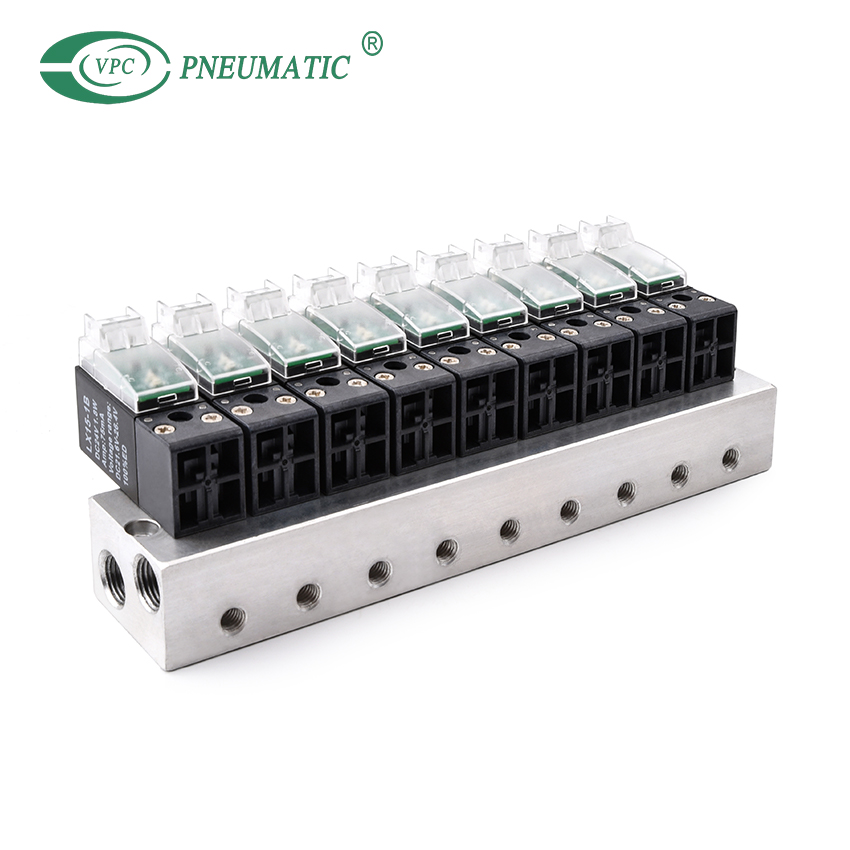

Product Description
Low power consumption, fast repsonse,import oils seals with longer sevice life.
Coils with DIN connection or flying leads.
Custom designs are available.
Good replace Itlay FIM Valvole.
Pneumatics (pilots for valves or modular valves, vacuum pumps, etc.)
Textile (Socks Hosiery knitting machines, carpet, rug making machines, spoolers, winders)
Semiconductors (Pick & Place, Chip sorting machines)
Medical (Oxygen concentrators, ventilators)
Automotive (Wiper systems, Motorcycle air suspensions, etc.)
Chemical (Gas analysers, environmental sampling)
Water curtains (in luxury hotels, etc.)
Dental equipment (dentist chairs, pneumatic drilling, water dispensing)
Product Specification
| Model | LX10 | LX15 |
| Fluid | Air, inert gas | |
| Valve configuration | 2/2-way, 3/2-way | |
| Operating pressure range | 0 to 0.7 MPa | |
| Proof pressure | 1.0 MPa | |
| Operating temperature | −10 to 70 °C | |
| Orifice diameter | Ø0.7 mm, Ø1.0 mm | Ø1.0 mm, Ø1.5 mm |
| Lubrication | Not required | |
| Flow rate (at 4 bar) | Ø0.7: 18 L/min Ø1.0: 28 L/min | Ø1.0: 28 L/min Ø1.5: 60 L/min |
| Lead wire outlet direction | Vertical or horizontal | |
| Standard voltage | DC 6 V, DC 12 V, DC 24 V | |
| Allowable voltage fluctuation | ±10% | |
| Power consumption | DC 1.2 W, 2.0 W, 2.5 W | |
| Service life | >50 million cycles | |
| Indicator light | LED | |
| Operating frequency | >30 Hz | |
| Response time | 6 to 8 ms | |
| Protection | Dustproof | |
| Insulation class | Class H | |

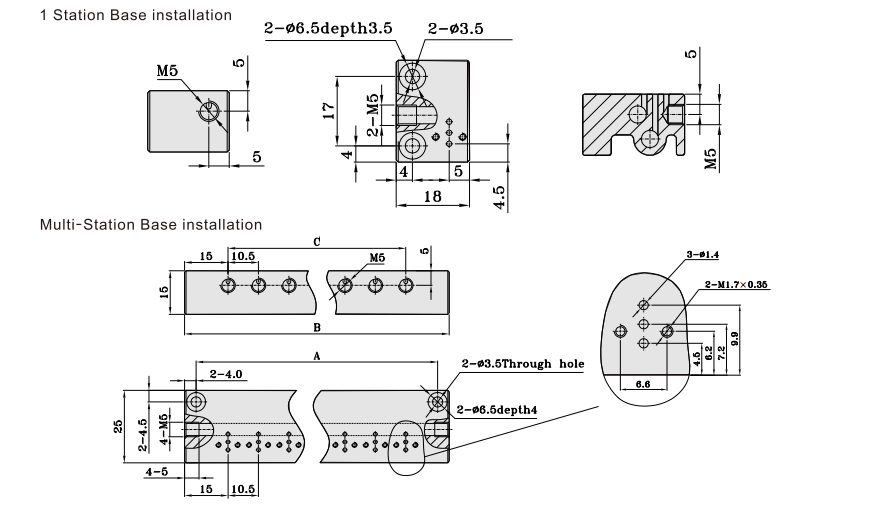

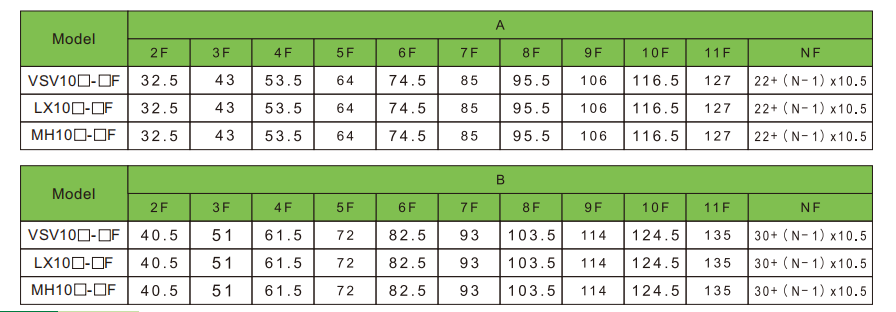

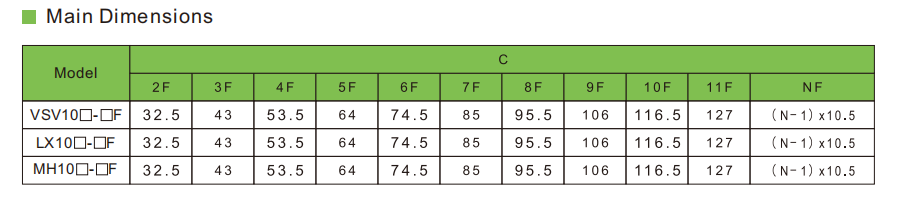

Main Dimensions
