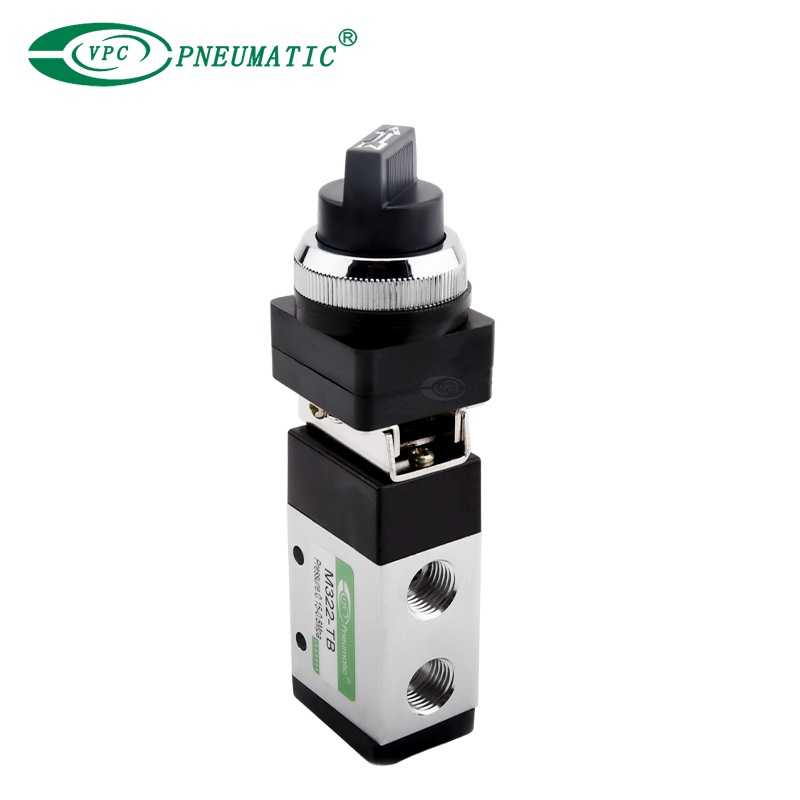

M5 Series 2 Position 5 Port Mechanical Valve

Share to:
M series mechanical valve ideal for controlling cylinders or pneumatic actuators by being triggered by something moving over the roller and pushing the lever down, once it is past the lever will spring return. Simple to use, install and maintain.
  • M522
  • VPC Pneumatic
  • 8412909000
Working medium:
Control mode:
Working pressure:
Working temperature:
Joint size:
Availability:

Product Description

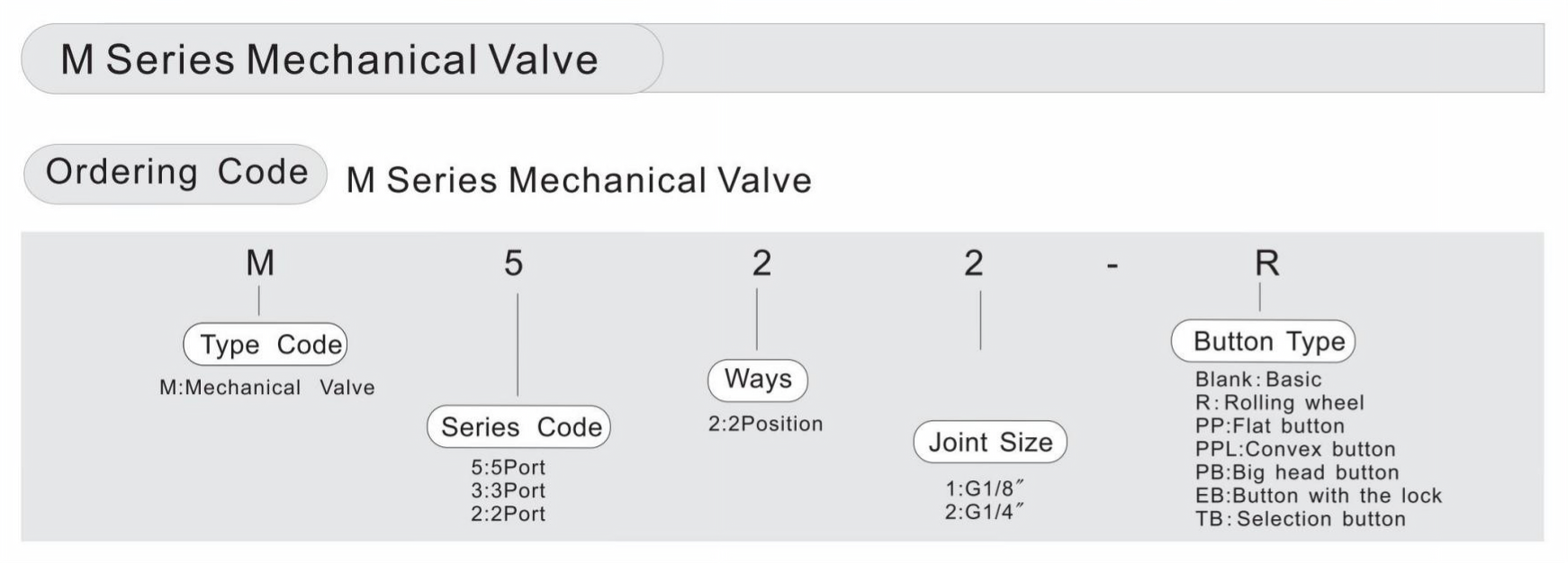

M 参数-1

Product Specifications

ModelM221
M322M522
Working mediumClean air
Control modeMechanical control/Manual control
LubricationNo
Working pressure0.15 to 0.8Mpa
Max pressure1.2Mpa
Working temperature-5 to 80℃
Joint sizeG1/8,G1/4"

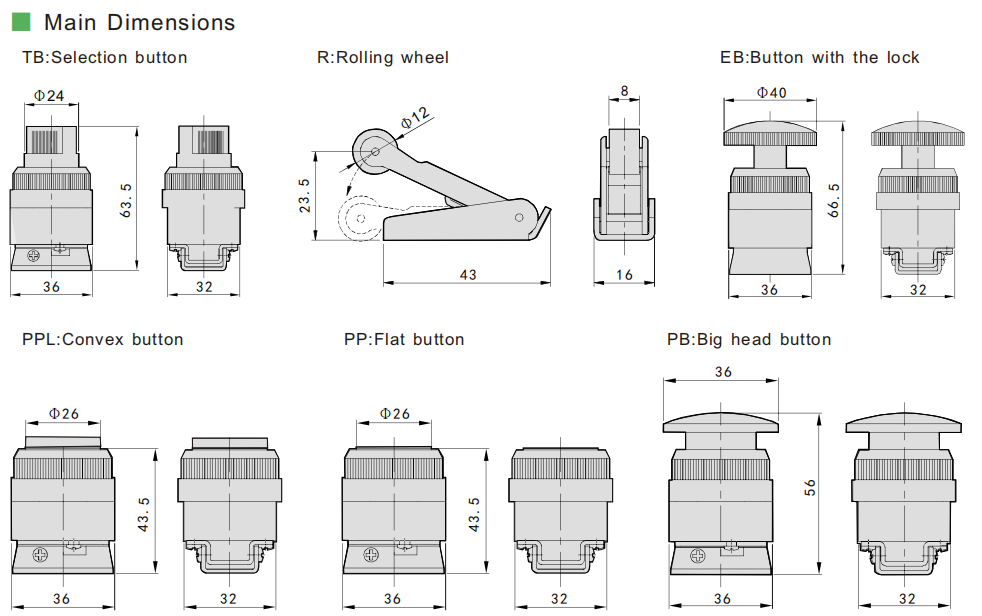

Main Dimensions

M参数

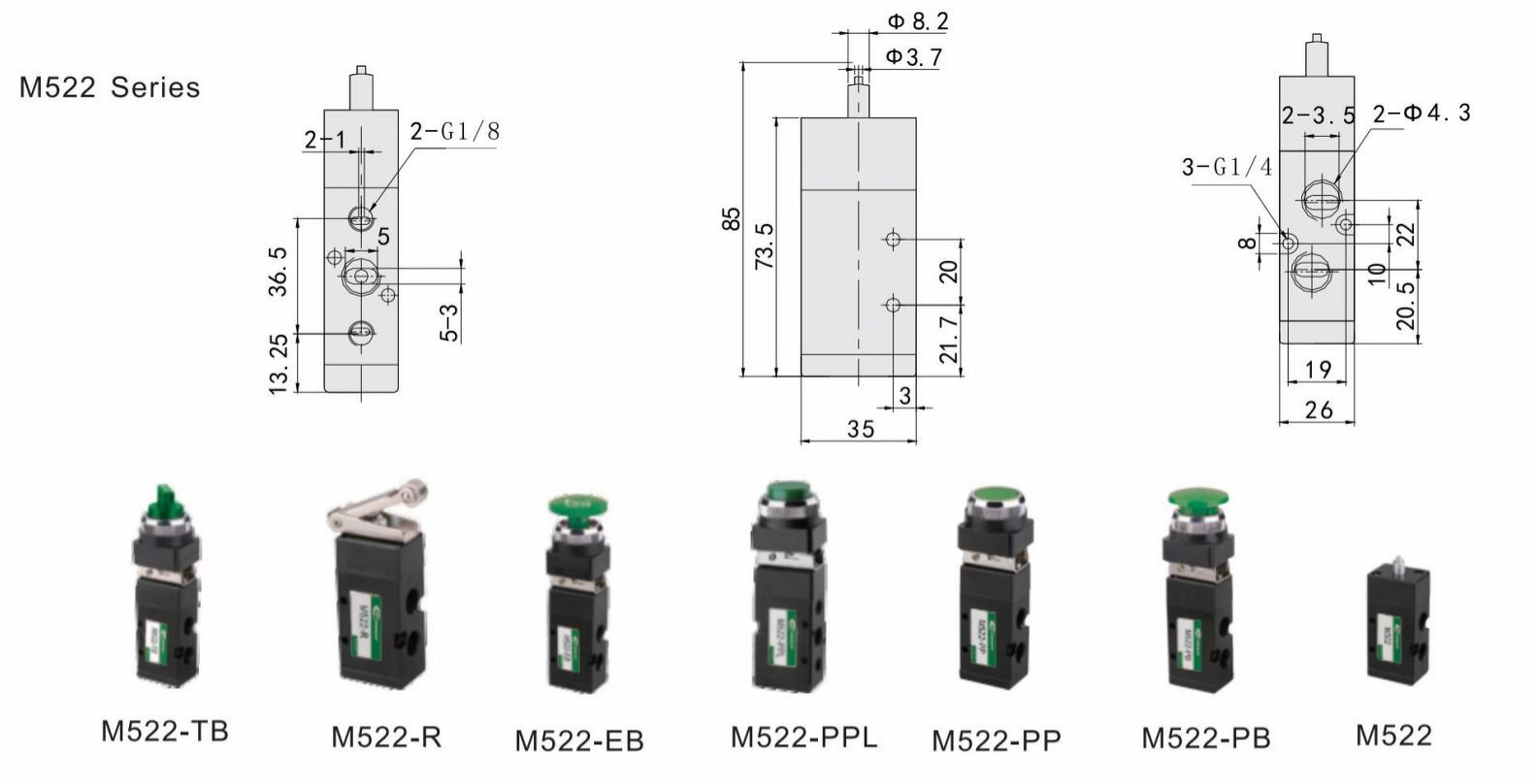

M 参数-4
