| Acting type: | |
|---|---|
| Working pressure: | |
| Ambient temperature: | |
| Proof pressure: | |
| Nominal voltage: | |
Product Description
■ Symbol
* The FESTO type is exclusively configured with manual override and standard nominal size specifications.
Product Specifications
| Model | MH10-L | MH10-M | MH10-G |
| Working medium | Clean air (40μm filtration) | ||
| Acting type | 3/2-way or 2/2-way, single solenoid | ||
| Working temperature | 0 to 0.7MPa | ||
| Ambient temperature | -20 to 70℃ | ||
| Orifice size | Φ0.65mm / Φ0.7mm | ||
| Lubrication | No | ||
| Flow capacity | P→A: Cv=0.075 / A→R: Cv=0.013 | ||
| Proof pressure | 1.0MPa | ||
| Response time | On/Off < 6ms | ||
| Nominal voltage | DC24V | ||
| Voltage range | Rated voltage: ±10% | ||
| Duty cycle | ED 100% | ||
| Max. working frequency | 30 Hz | ||
| Insulation class | F Class | ||
| Degree of protection | IP40 | ||
| Life time expectancy | More than 50 million times | ||
| Coil type | Vertical type | Horizontal type | Flying leads |

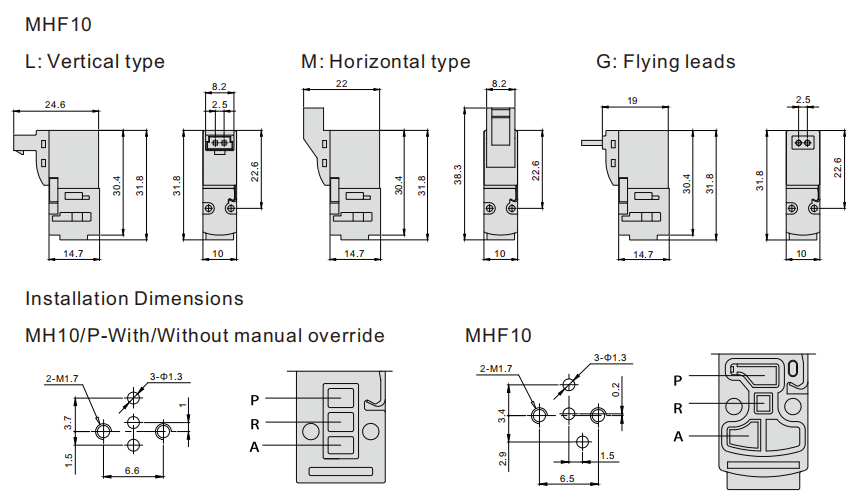

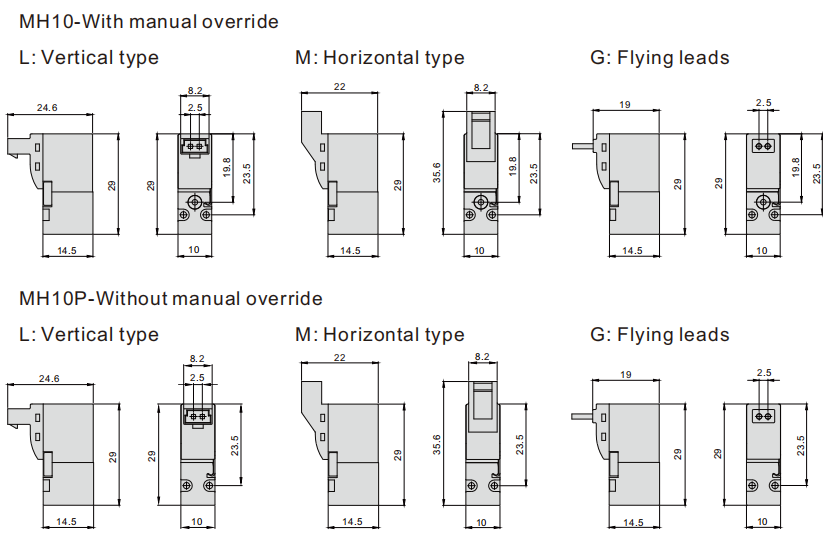

Main Dimensions
■ Main Dimensions
