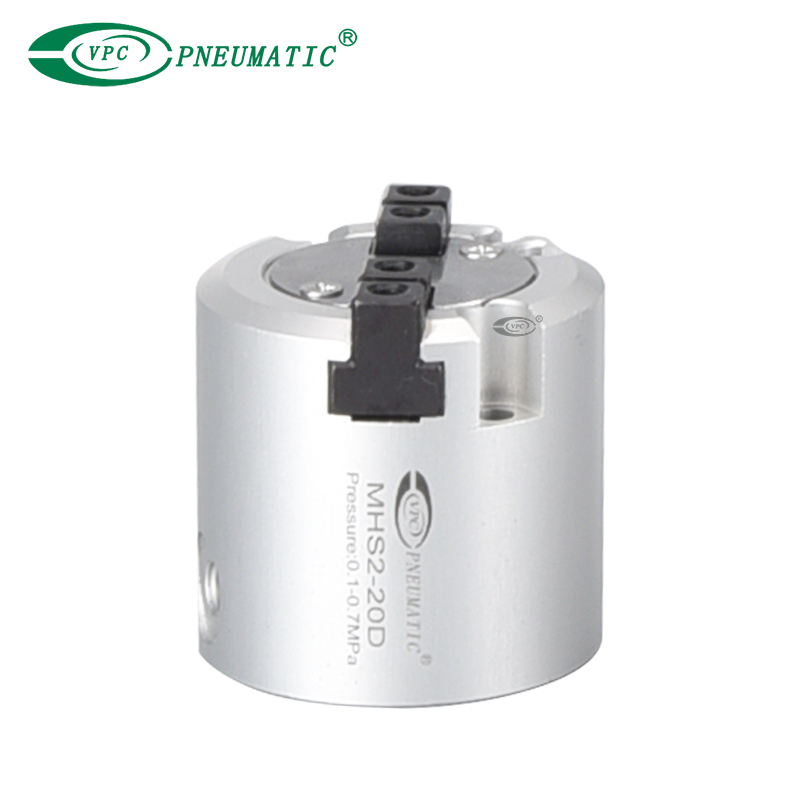

MHS2 Series Parallel Type Air Gripper (2-Finger)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
The series MHS2 grippers utilize a wedge cam design to minimize their overall size, allow no lateral vibration along stroke direction once the workpiece is held, while retaining a high holding force.

  • MHS2-20D

  • VPC Pneumatic

Working medium:
Clean air
Acting type:
Double acting
Working temperature:
-10 to 60℃
Working pressure:
0.2 to 0.6Mpa
0.1to 0.6Mpa
Repeatability :
±0.01 mm
Availability:
Inquire Add to Basket

Product Specifications

ModelMHS2-16DMHS2-20DMHS2-25DMHS2-32DMHS2-40DMHS2-50DMHS2-63D
Bore (mm)16202532405063
Working mediumClean air
Working pressure0.2 to 0.6 MPa0.1 to 0.6 MPa
Working temperature-10 to 60 ℃
Repeatability±0.01 mm
Max. operating frequency120 c.p.m.60 c.p.m.
LubricationNot required
ActionDouble acting
Effective gripping force at 0.5 MPa*External grip21 N37 N63 N111 N177 N280 N502 N
Internal grip23 N42 N71 N123 N195 N306 N537 N
Opening/Closing stroke
(Both sides)		4 mm4 mm6 mm8 mm8 mm12 mm16 mm
* Values for ø16 to ø25 are with gripping point L = 20 mm, for ø32 to ø63 with gripping point L = 30 mm.
