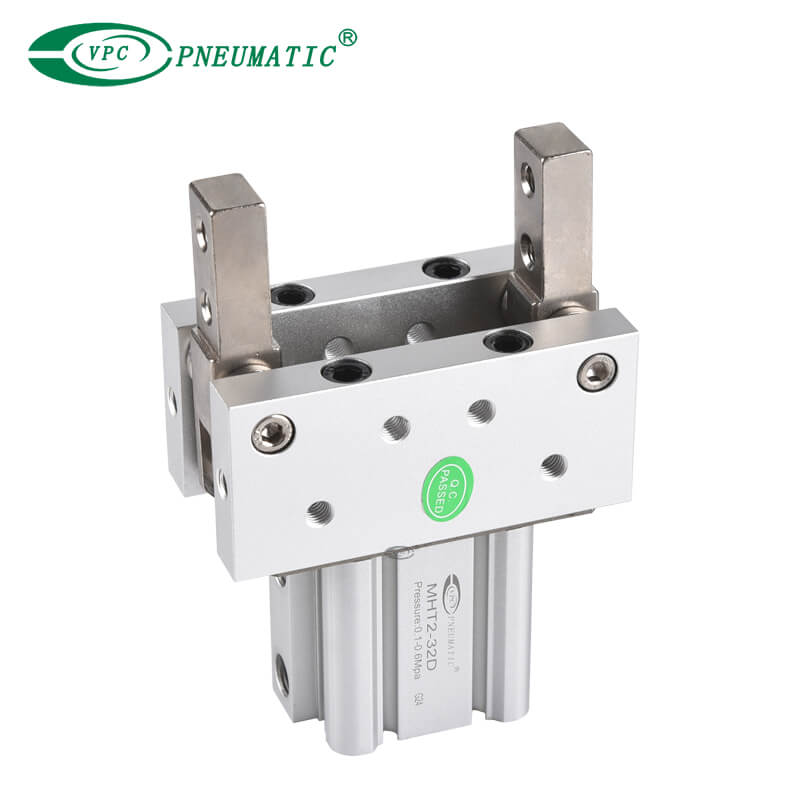

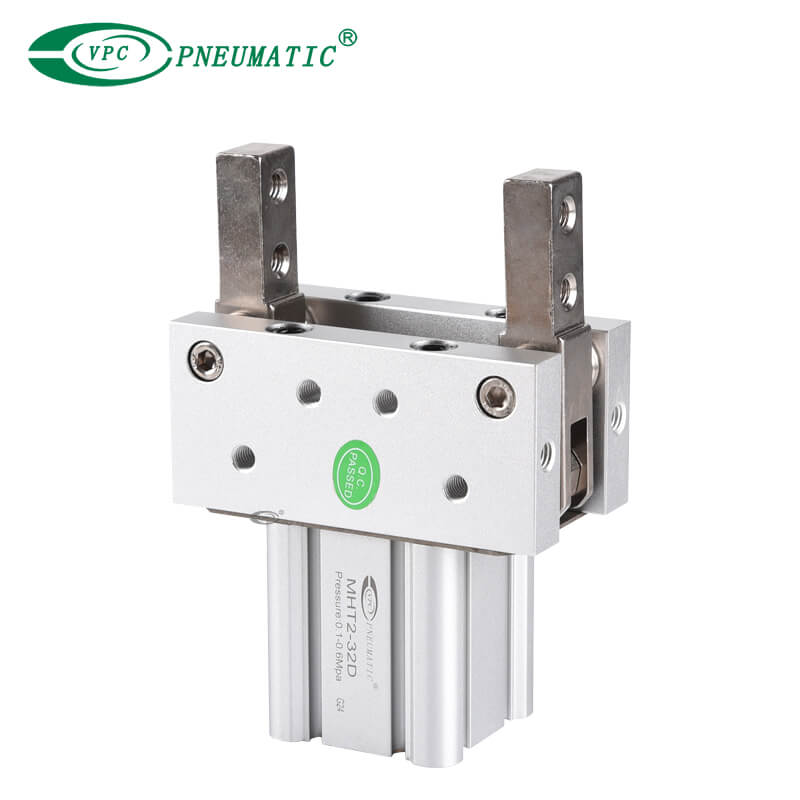

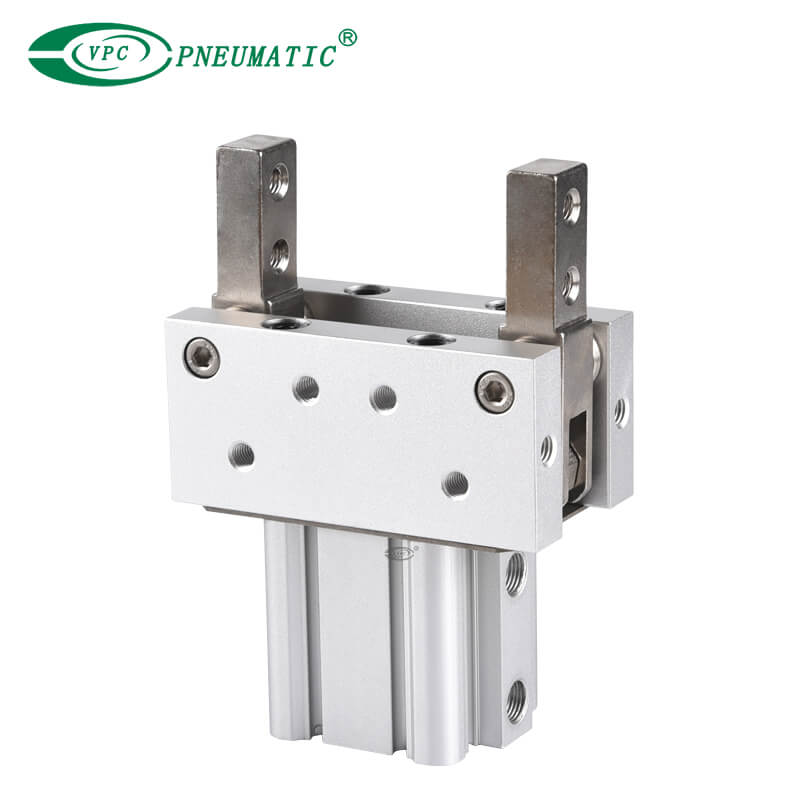

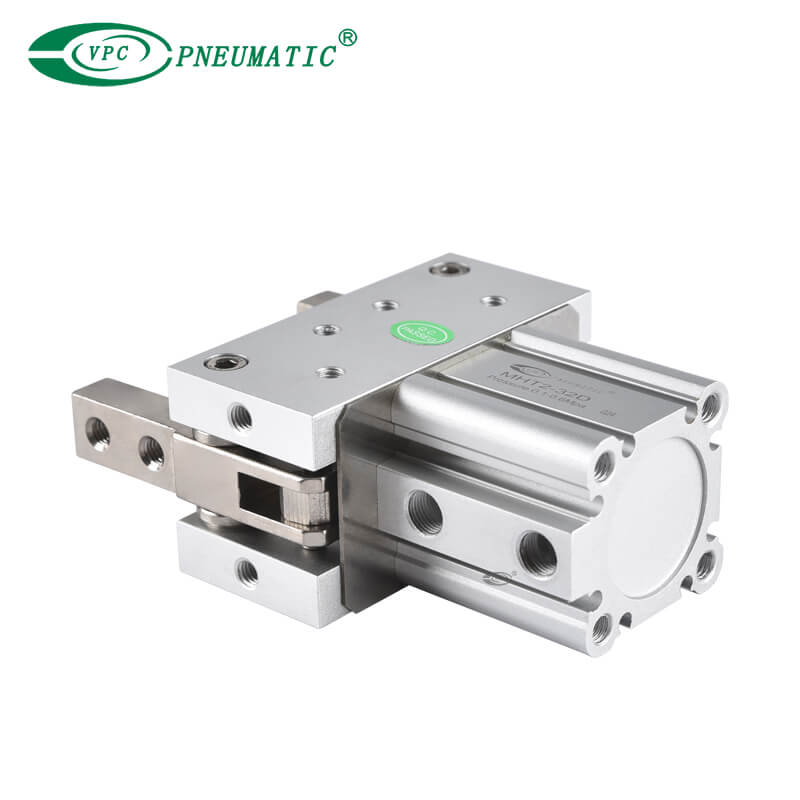

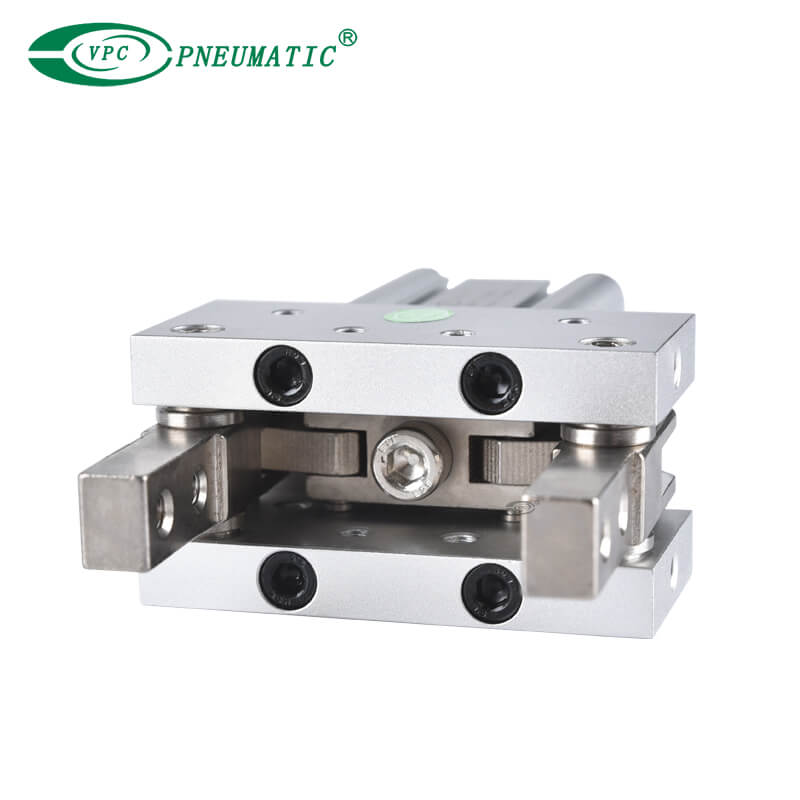

MHT2 Series Angle Style Air Gripper Toggle Type Cylinder

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Gripper series MHT2 includes a toggle mechanism is that is actuated to produce a strong and stable holding force, even when air pressure drops or is lost. The finger opening angle ranges from 28° to -3°.


  • MHT2-32D

  • VPC Pneumatic

  • 8412310090

Working medium:
Clean air
Acting type:
Double acting
Working temperature:
-10 to 60℃
Working pressure:
0.1 to 0.6Mpa
Availability:
Inquire Add to Basket

Product Description

Pneumatic Grippers

Product Specifications

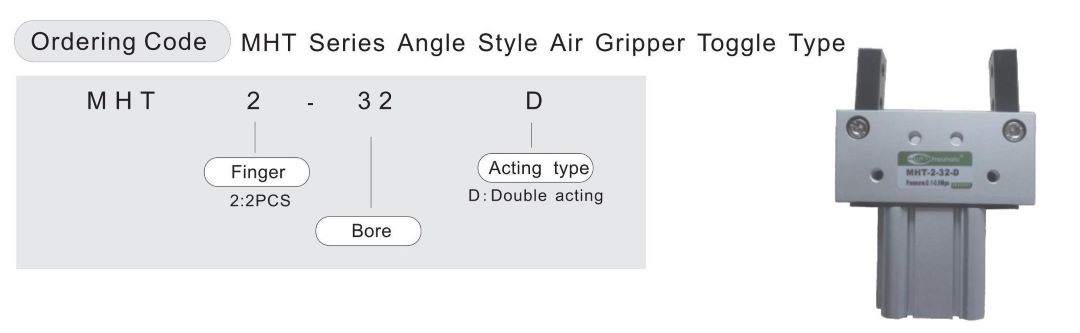

ModelMHT2-32DMHT2-40DMHT2-50DMHT2-63D
Bore(mm)Ф32Ф40Ф50Ф63
Working mediumClean air(40um Filteration)
Min. Working pressure0.6Mpa
Max. Working pressure0.1Mpa
Working temperature-10 to 60℃
LubricationNot Required
Finger open/close angle-3 to 28°-3 to 27°-2 to 23°-2 to 23°
Effective gripping force(N.M)12.436.063.0106
