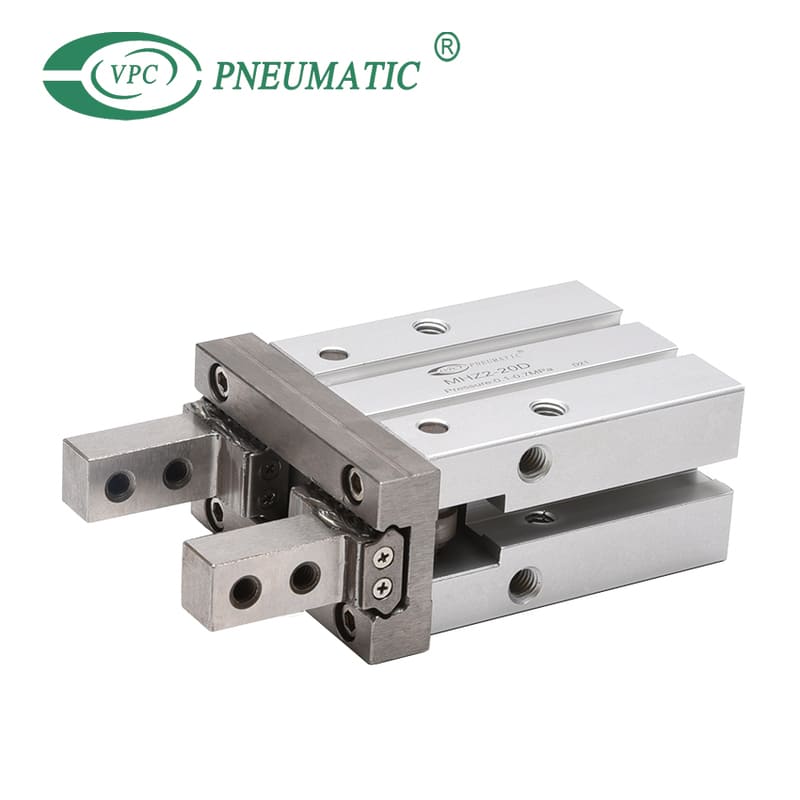

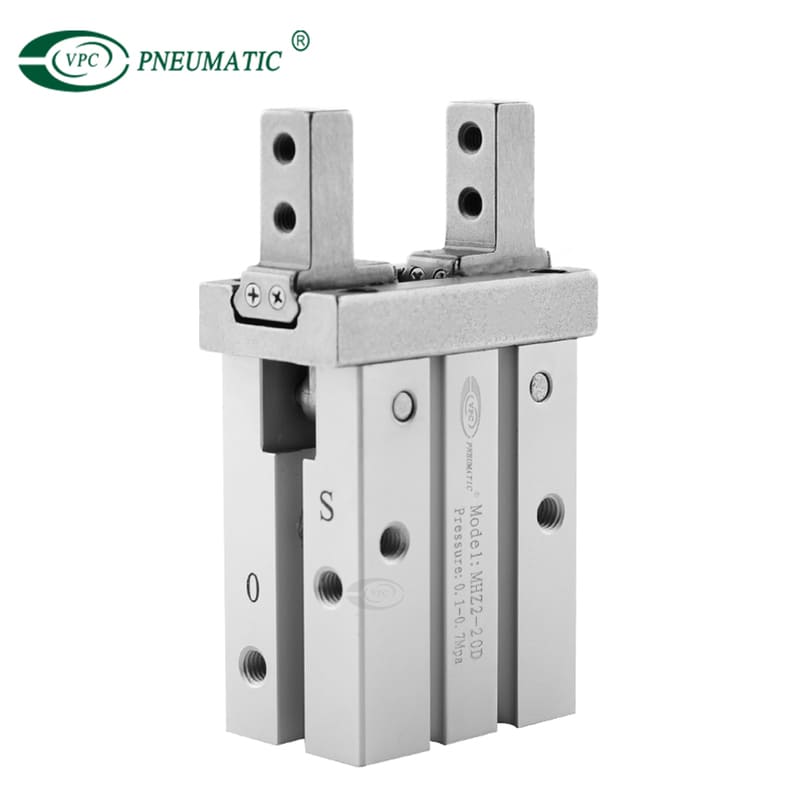

Product Description
Product Specifications
| Working medium | Air | ||
| Operating pressure | Double acting | Ф6: 0.15 to 0.7 MPa Φ10: 0.2 to 0.7 MPa Φ16 to Φ40: 0.1 to 0.7 MPa | |
| Single acting | Normally open | Φ6: 0.3 to 0.7 MPa Φ10: 0.35 to 0.7 MPa Φ16 to Φ40: 0.25 to 0.7 MPa | |
| Normally closed | |||
| Working temperature | -10 to 60℃ | ||
| Repeatability | Φ6 to Φ25: ±0.01 mm Φ32,Φ40: ±0.02 mm | ||
| Max. operating frequency | Φ6 to Φ25: +0.01 mm Φ32,Φ40: ±0.02 mm | ||
| Lubrication | Not required | ||

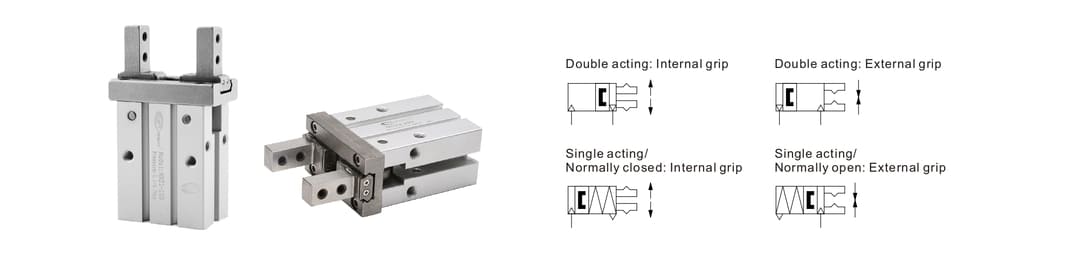

| Action | Double acting/Single acting | ||
※ Use the gripper with dust cover when used in a place where there may be dust.

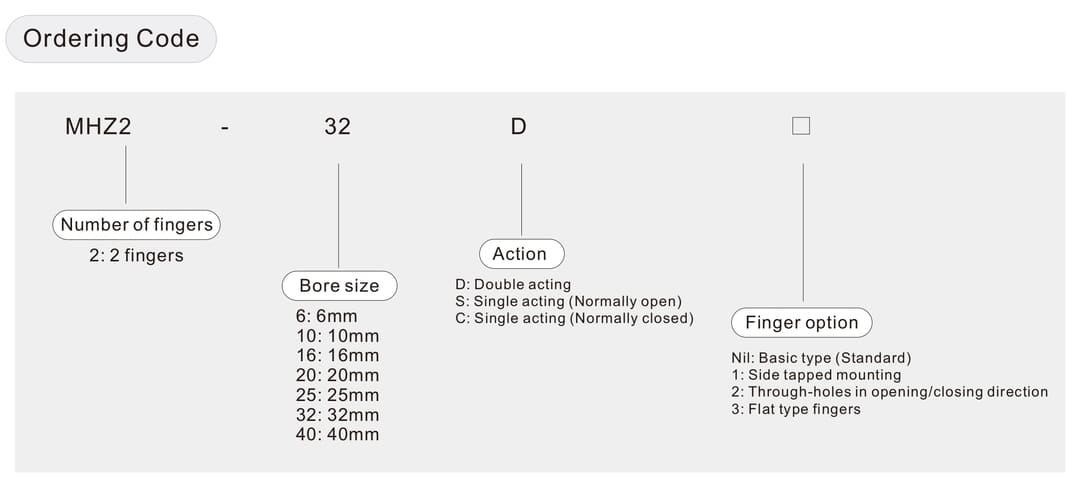

| Action | Model | Bore size (mm) | Gripping force* | Opening/ Closing stroke (Both sides) (mm) | Weight (g) | ||
| Gripping force per finger Effective value (N) | |||||||
| External | Internal | ||||||
| Double acting | MHZ2-6D | 6 | 3.3 | 6.1 | 4 | 27 | |
| MHZ2-10D(N) | 10 | 11 | 17 | 4 | 55 | ||
| MHZ2-16D(N) | 16 | 34 | 45 | 6 | 115 | ||

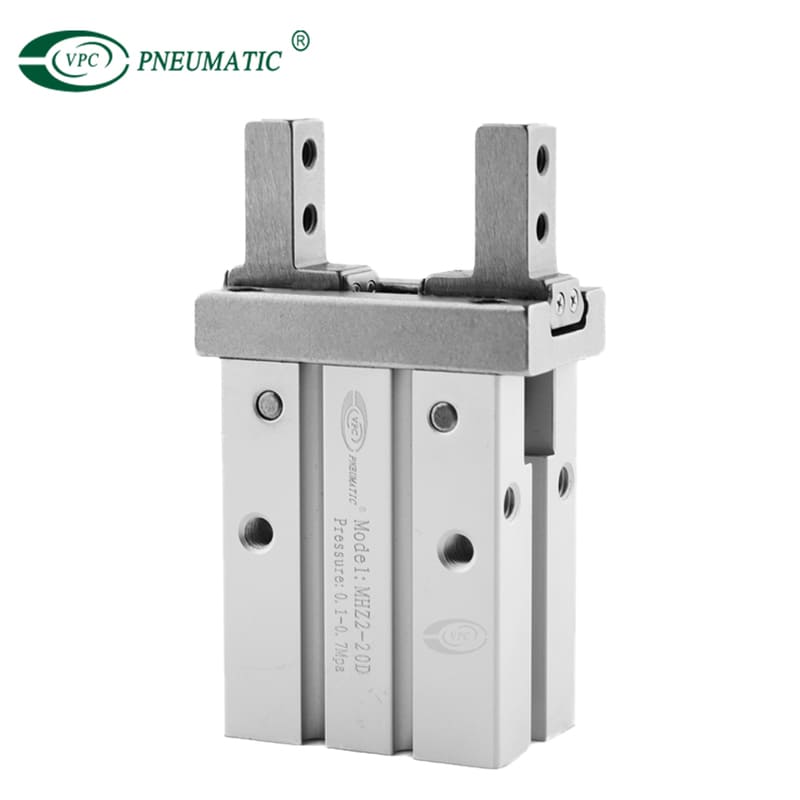

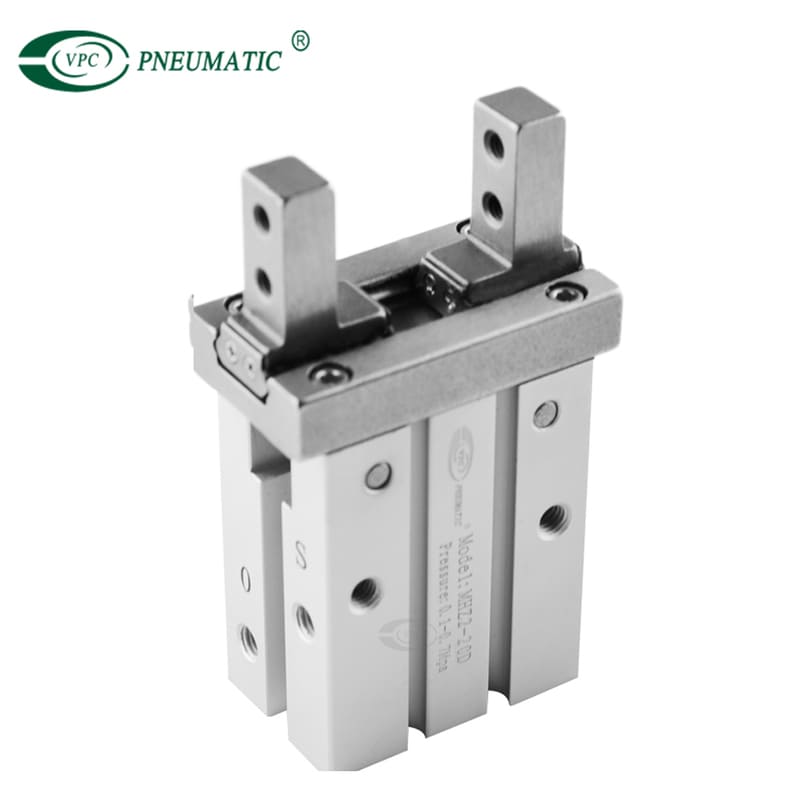

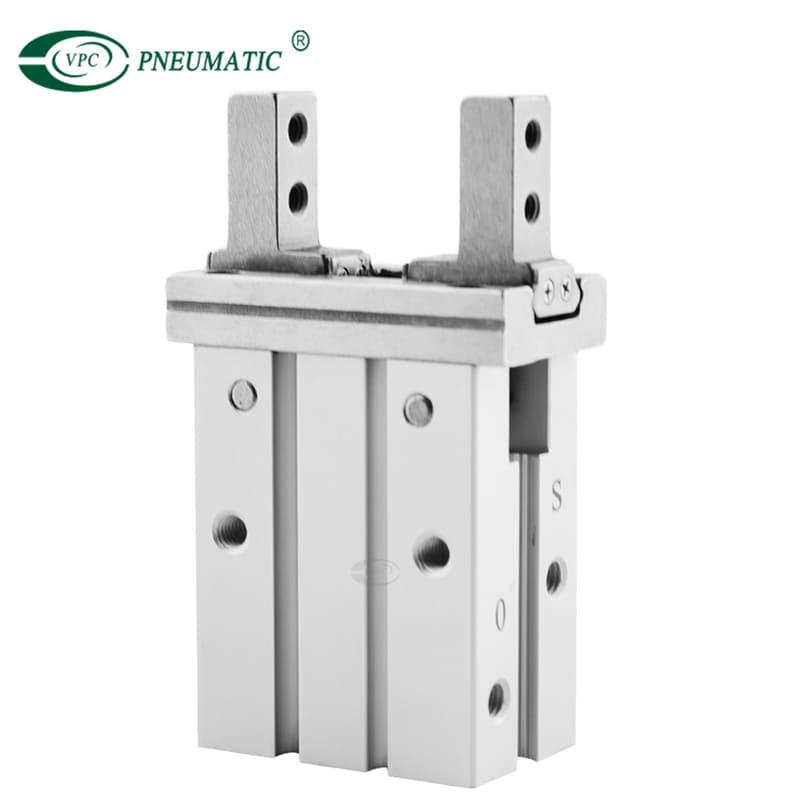

| MHZ2-20D(N) | 20 | 42 | 66 | 10 | 230 | ||
| MHZ2-25D(N) | 25 | 65 | 104 | 14 | 420 | ||
| MHZ2-32D | 32 | 158 | 193 | 22 | 715 | ||
| MHZ2-40D | 40 | 254 | 318 | 30 | 1275 | ||
| Single acting | Normally open | MHZ2-6S | 6 | 1.9 | - | 4 | 27 |
| MHZ2-10S(N) | 10 | 7.1 | 4 | 55 | |||
| MHZ2-16S(N) | 16 | 27 | 6 | 115 | |||
| MHN2-20S(N) | 20 | 33 | 10 | 235 | |||
| MHZ2-25S(N) | 25 | 45 | 14 | 425 | |||
| MHZ2-32S | 32 | 131 | 22 | 760 | |||
| MHZ2-40S | 40 | 217 | 30 | 1370 | |||
| Normally closed | MHZ2-6C | 6 | - | 3.7 | 4 | 27 | |
| MHZ2-10C(N) | 10 | 13 | 4 | 55 | |||
| MHZ2-16C(N) | 16 | 38 | 6 | 115 | |||
| MHZ2-20C(N) | 20 | 57 | 10 | 235 | |||
| MHZ2-25C(N) | 25 | 83 | 14 | 425 | |||
| MHZ2-32C | 32 | 161 | 22 | 760 | |||
| MHZ2-40C | 40 | 267 | 30 | 1370 | |||
* Values based on pressure of 0.5 MPa, gripping point L = 20 mm, at center of stroke

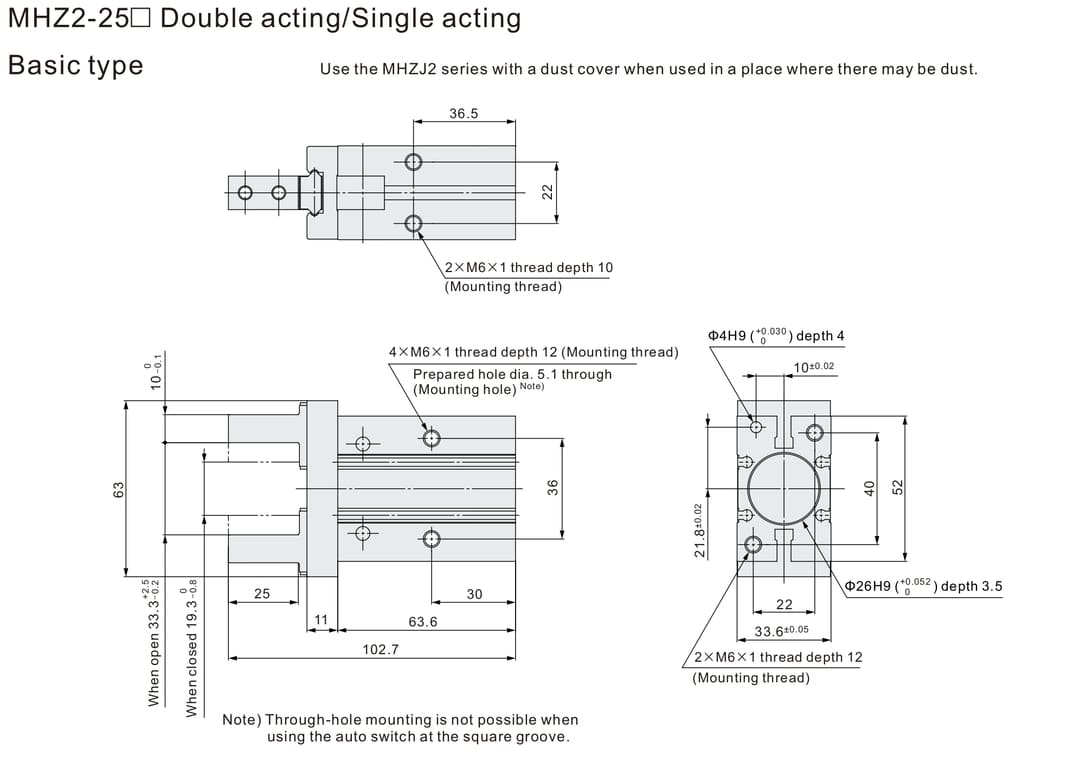

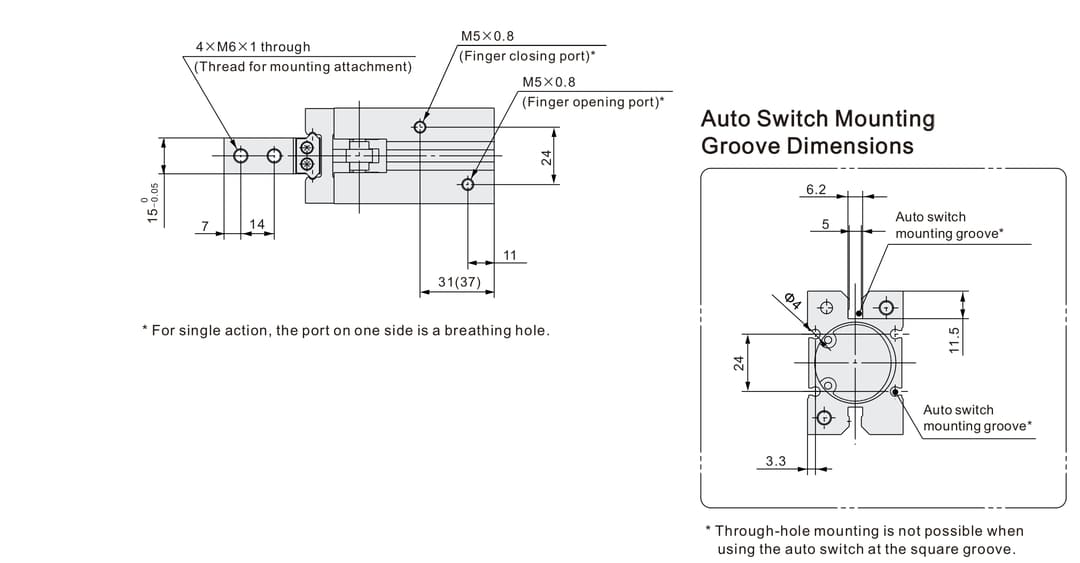

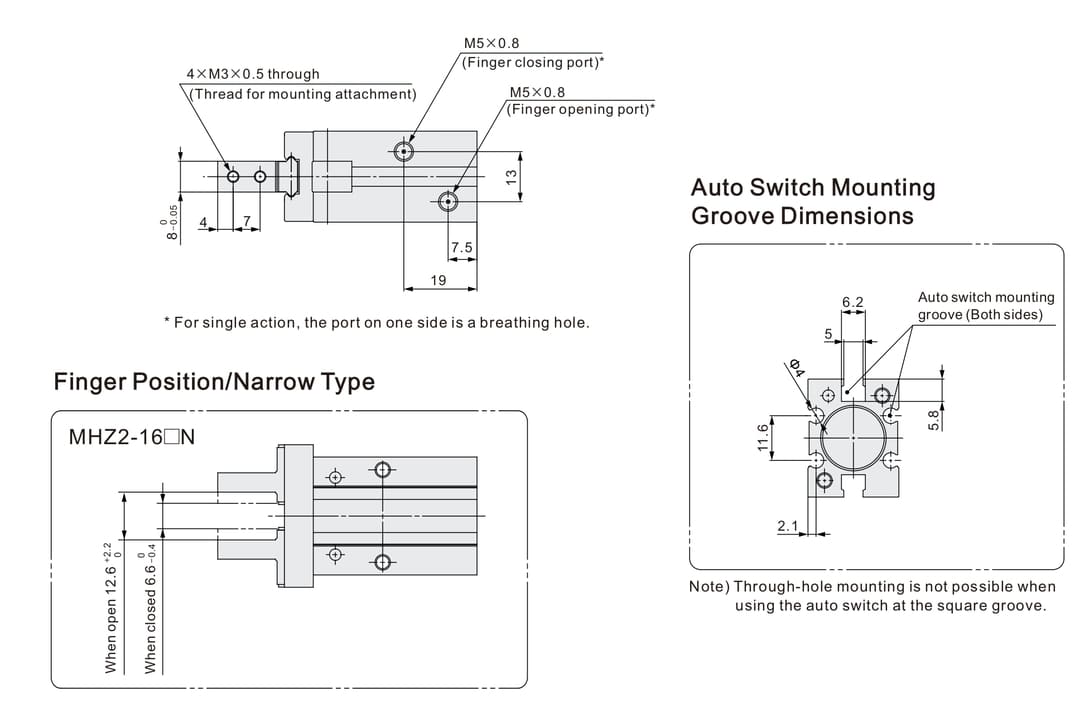

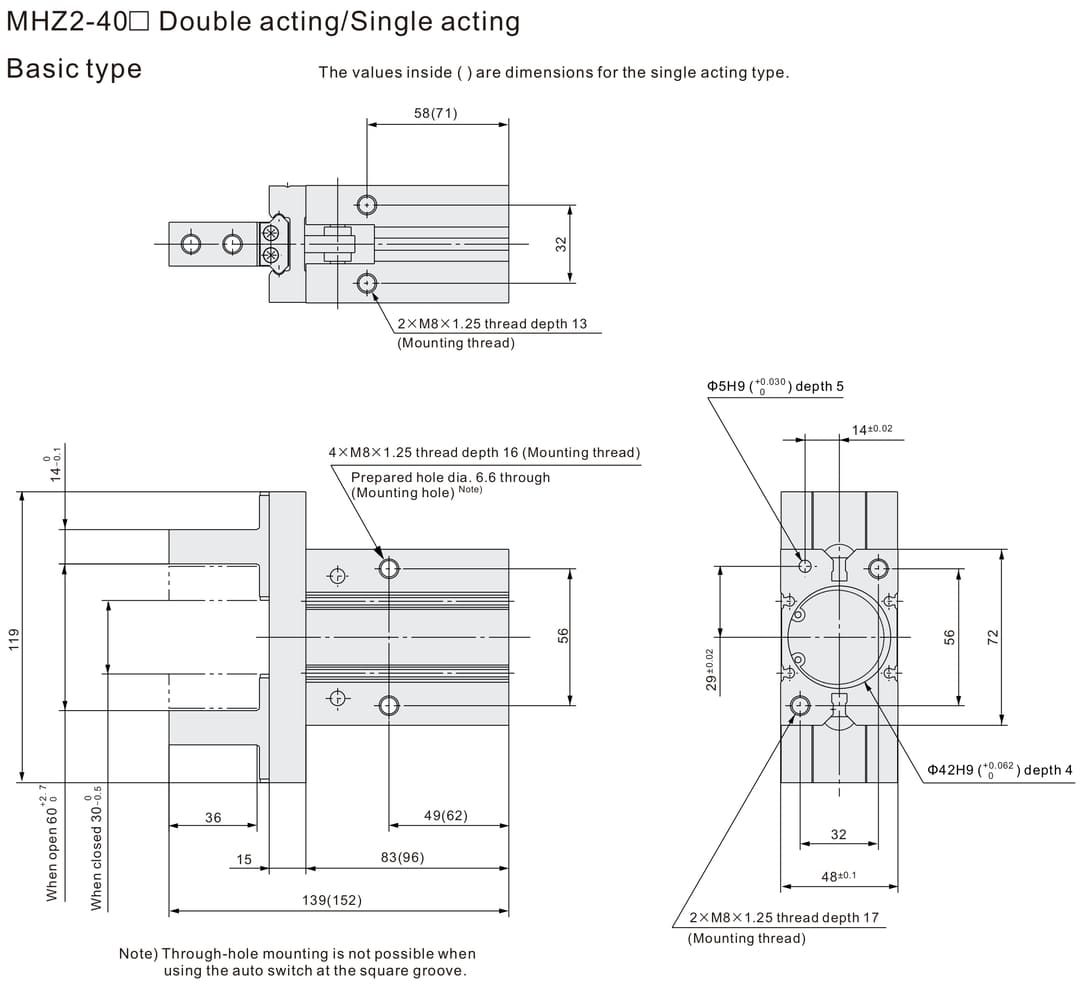

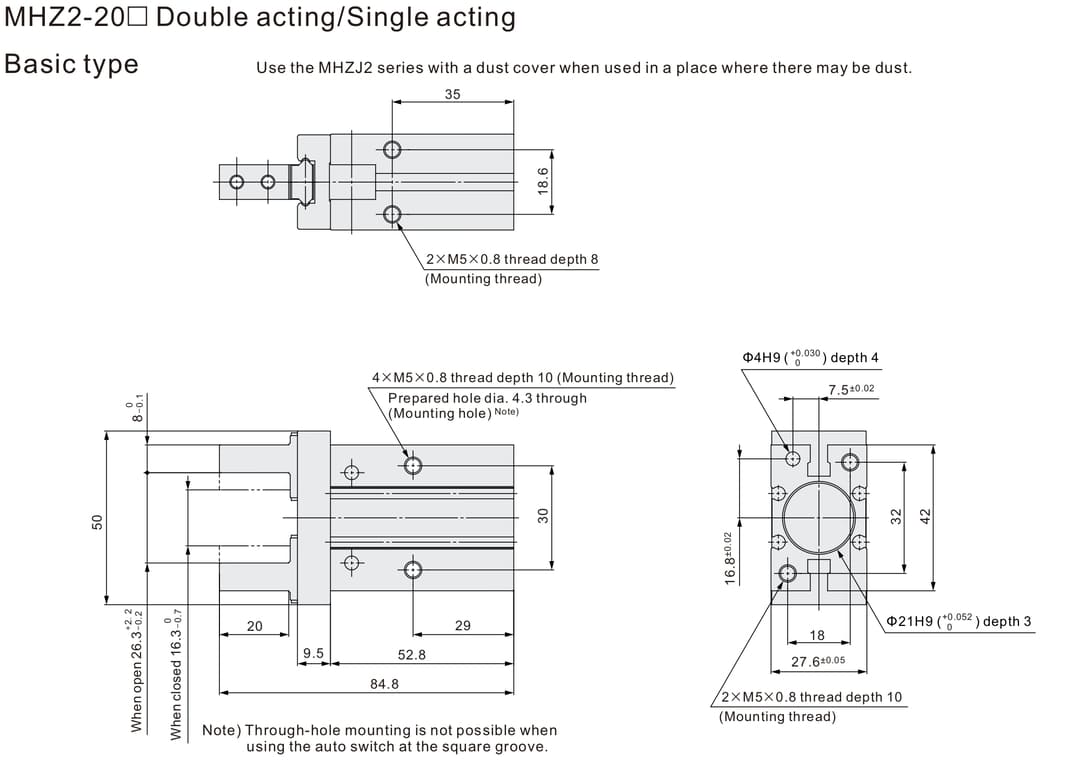

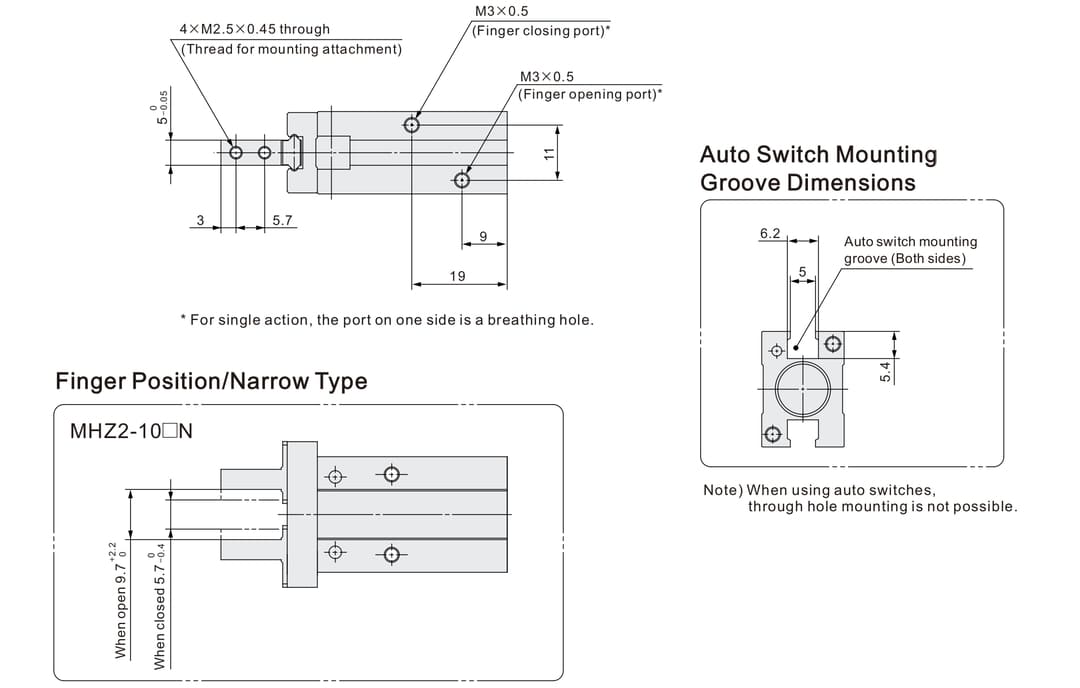

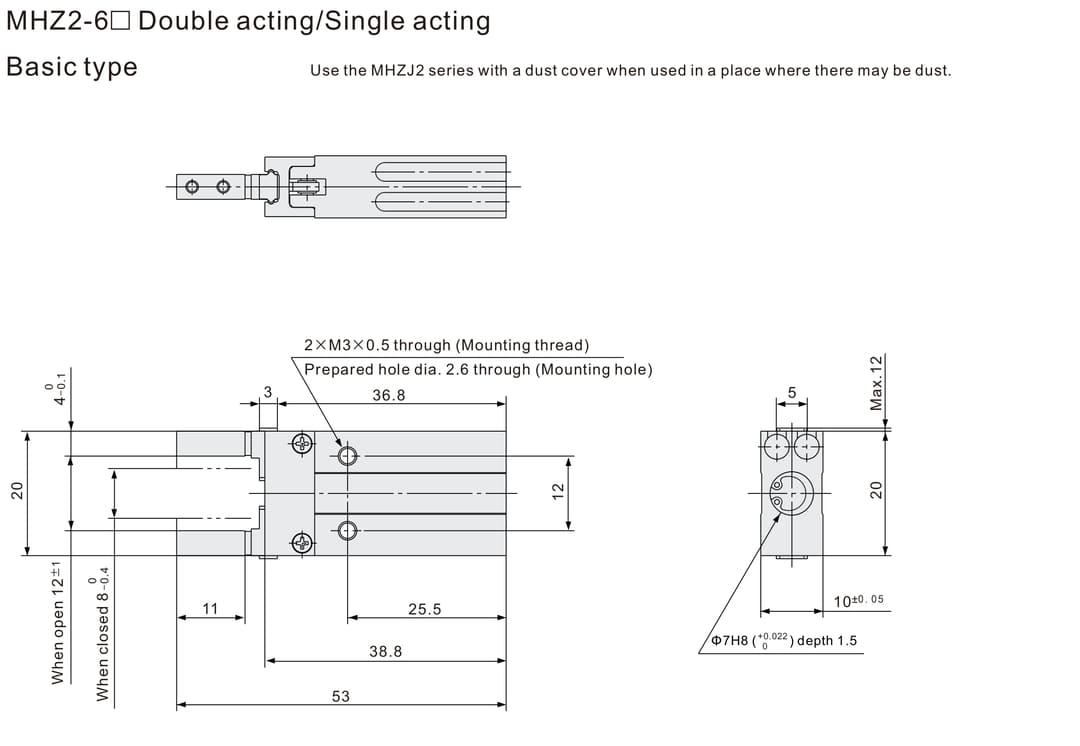

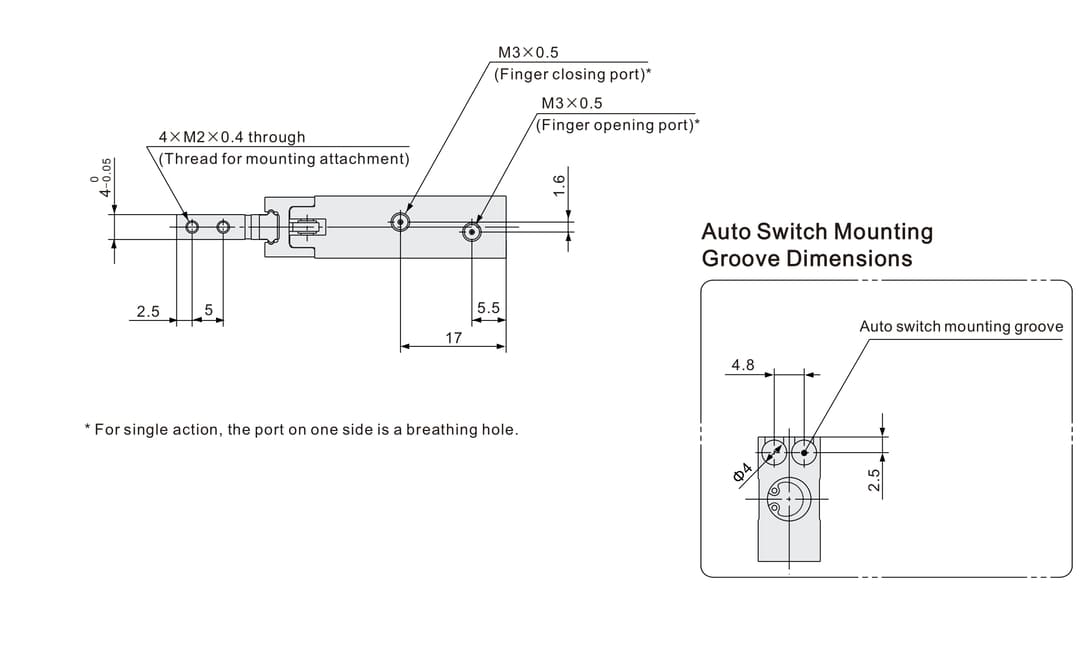

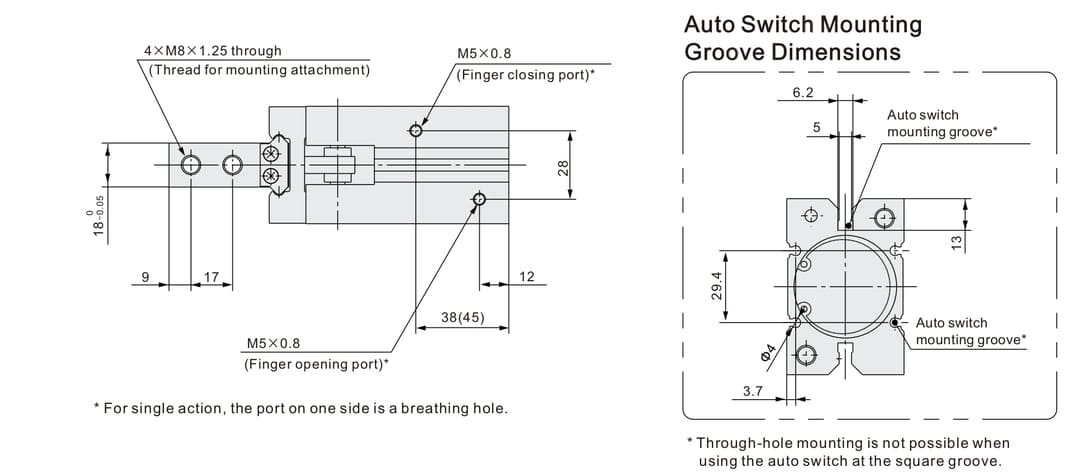

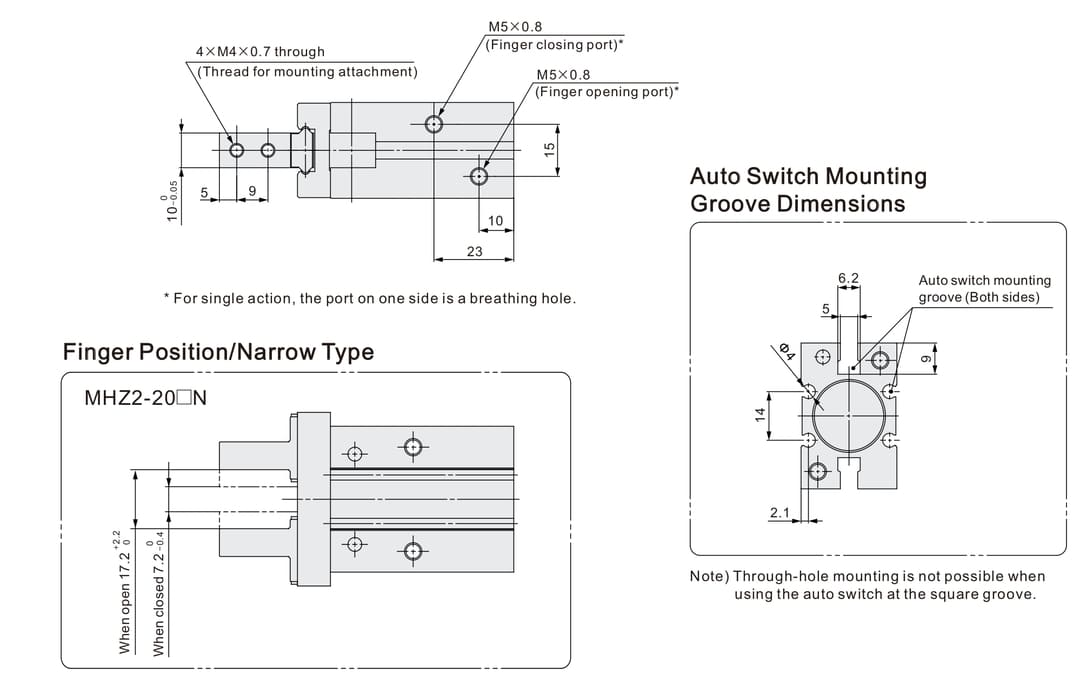

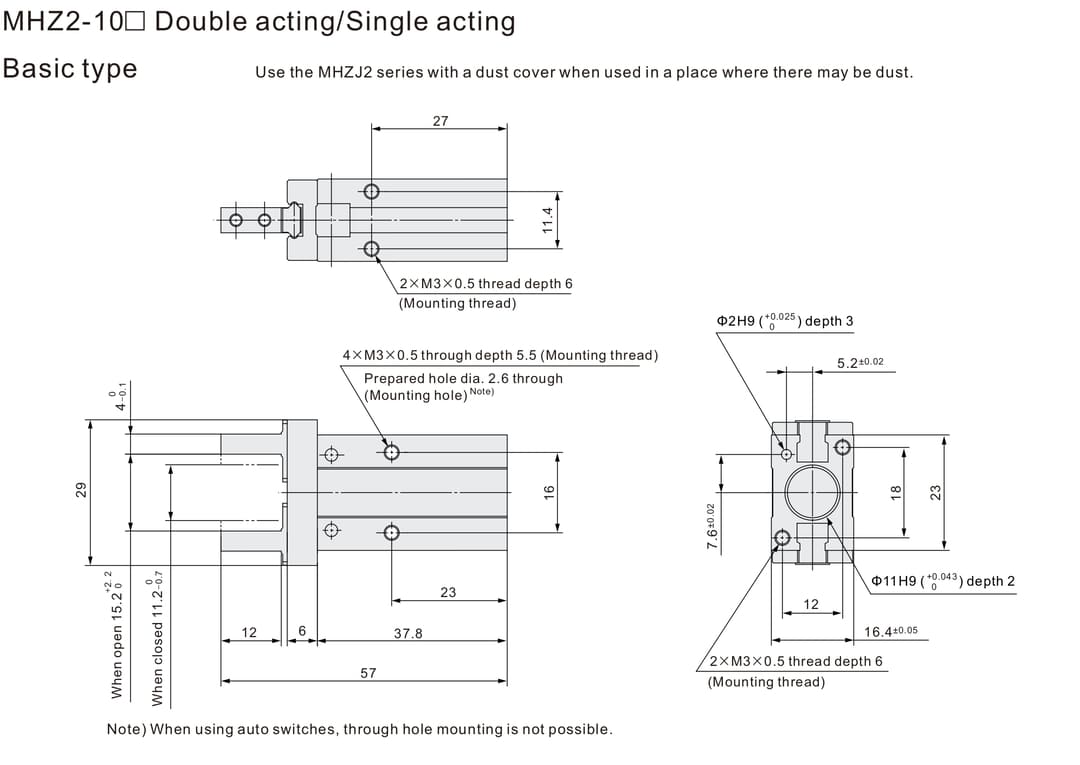

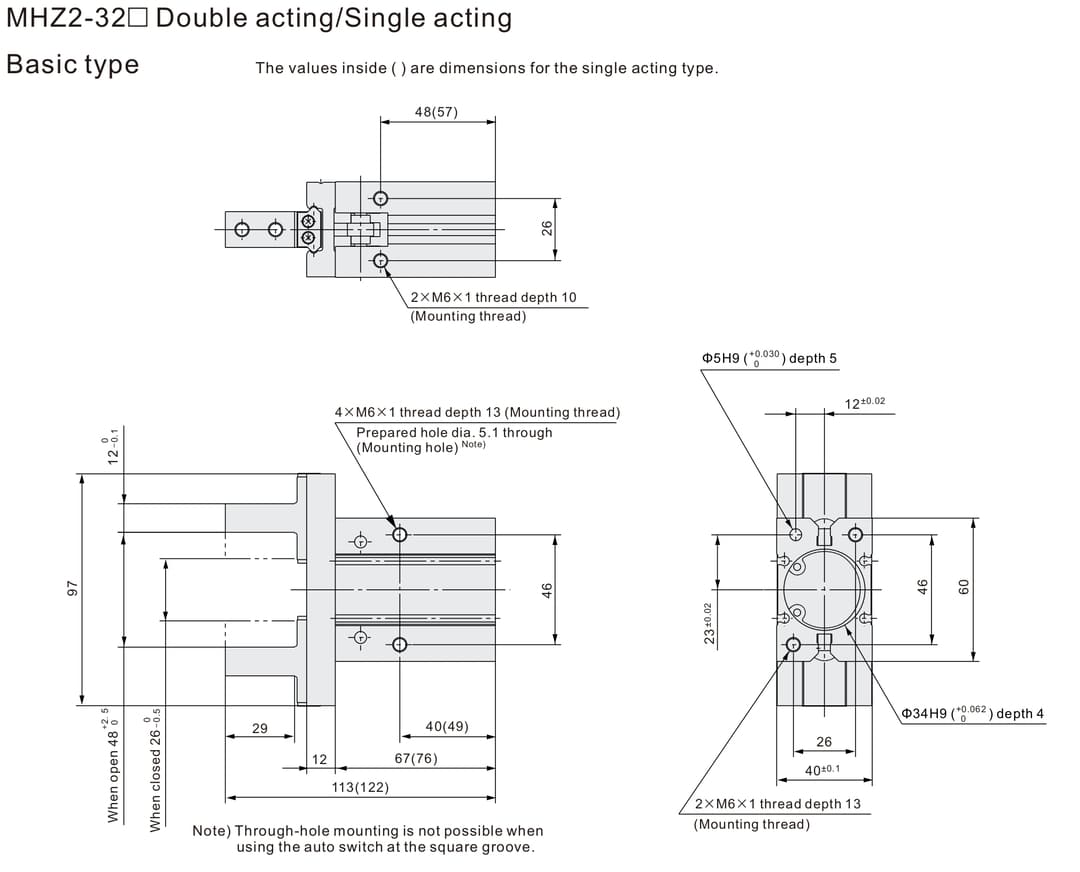

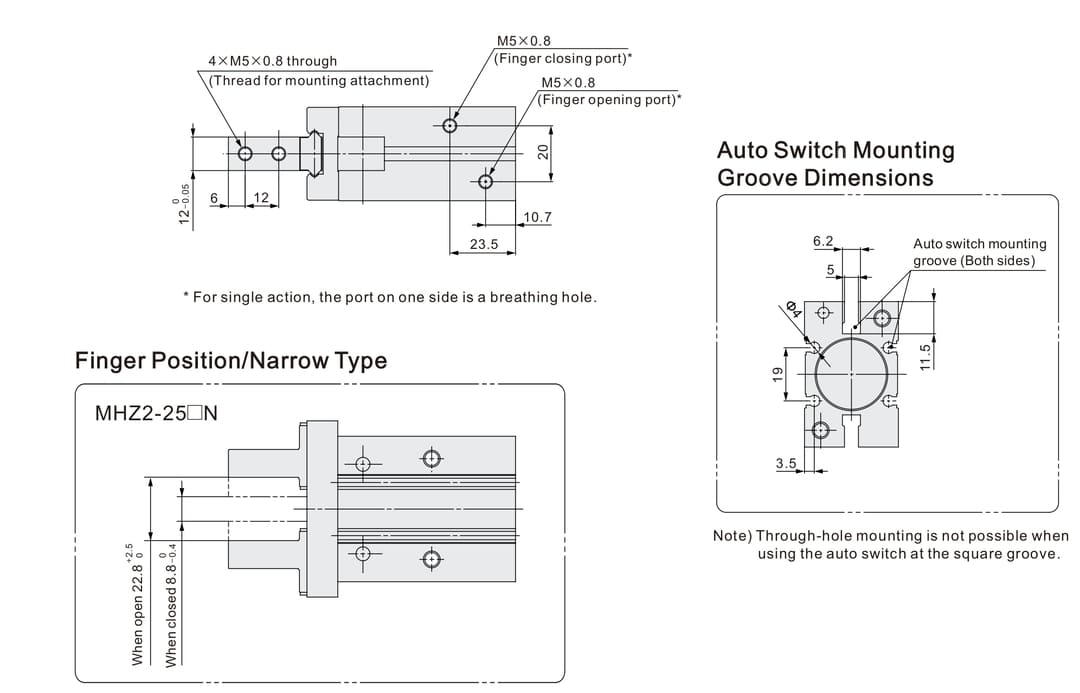

Main Dimensions
