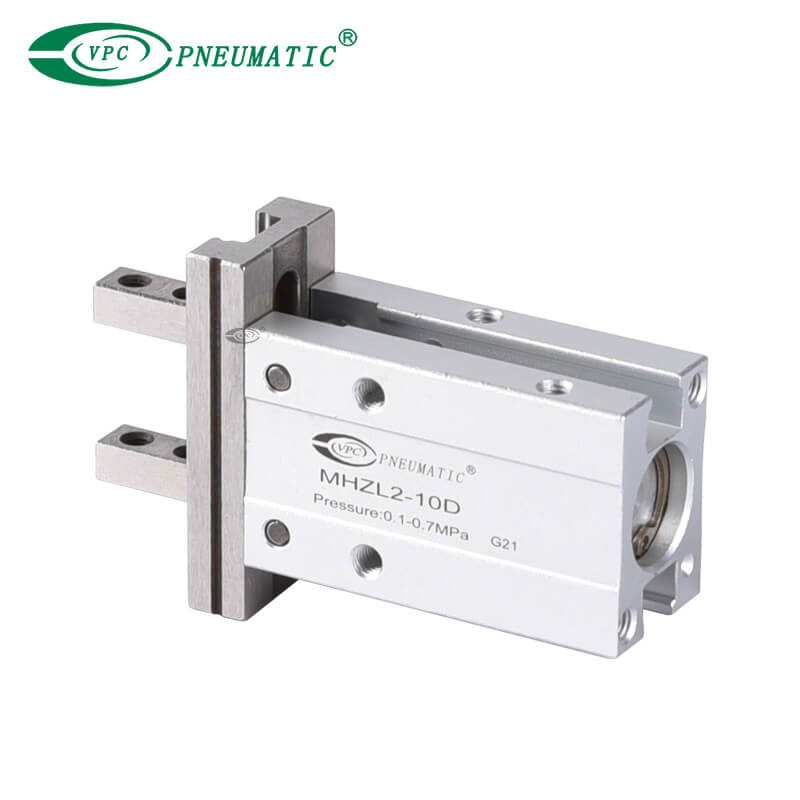

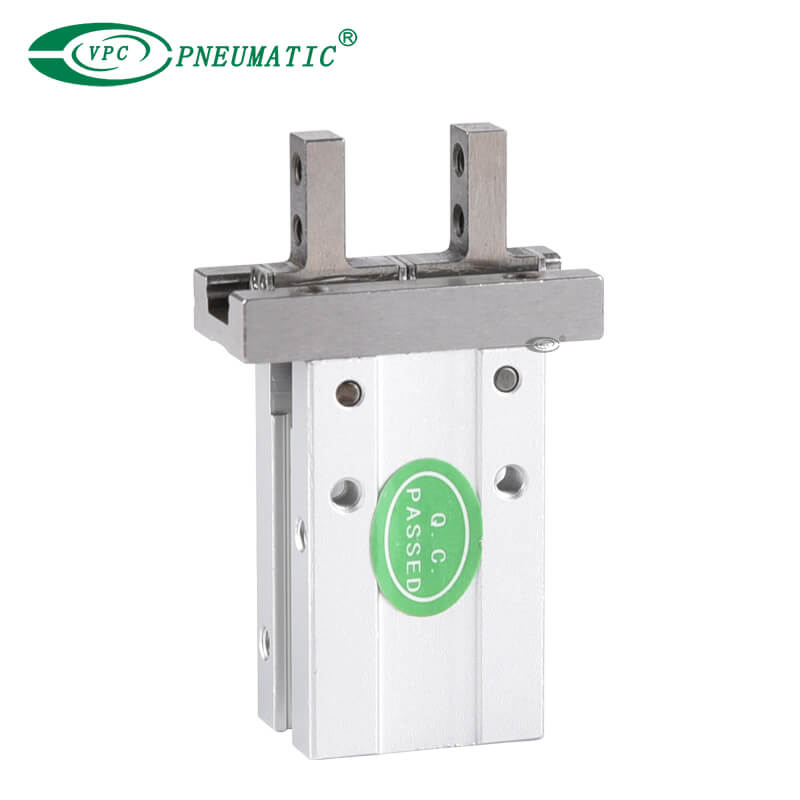

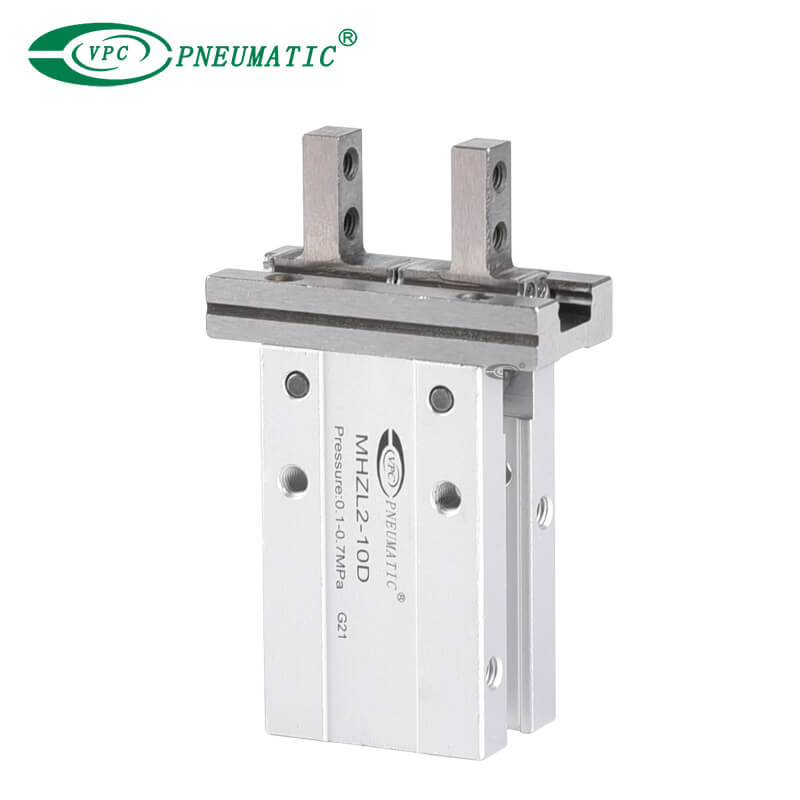

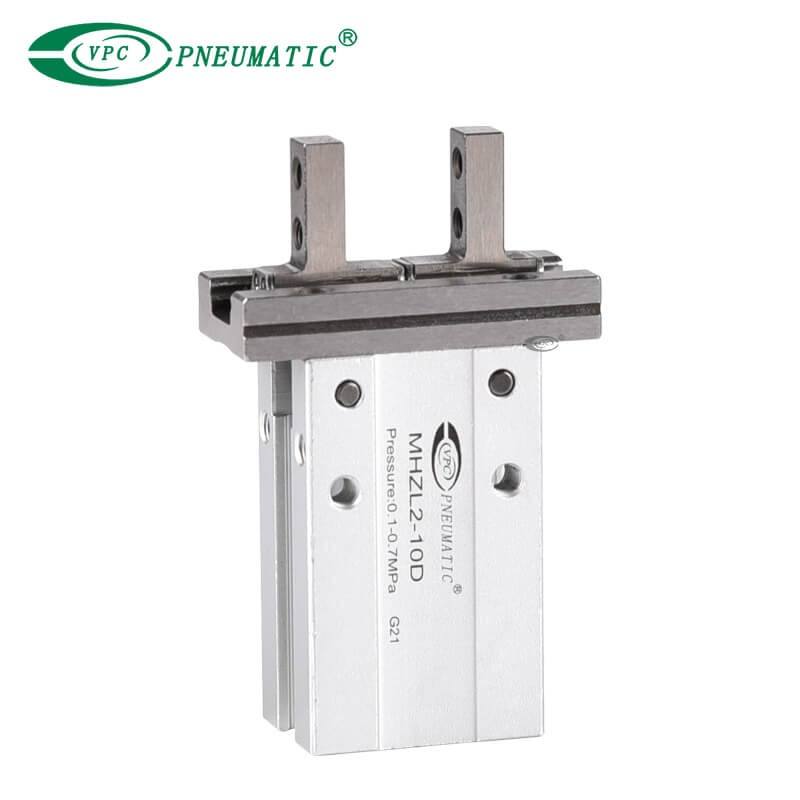

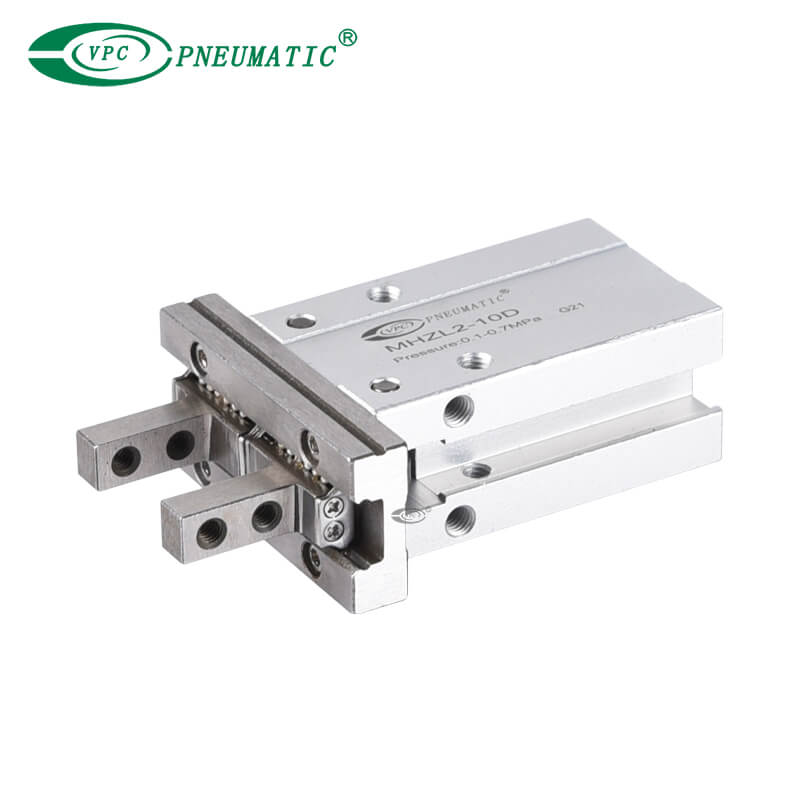

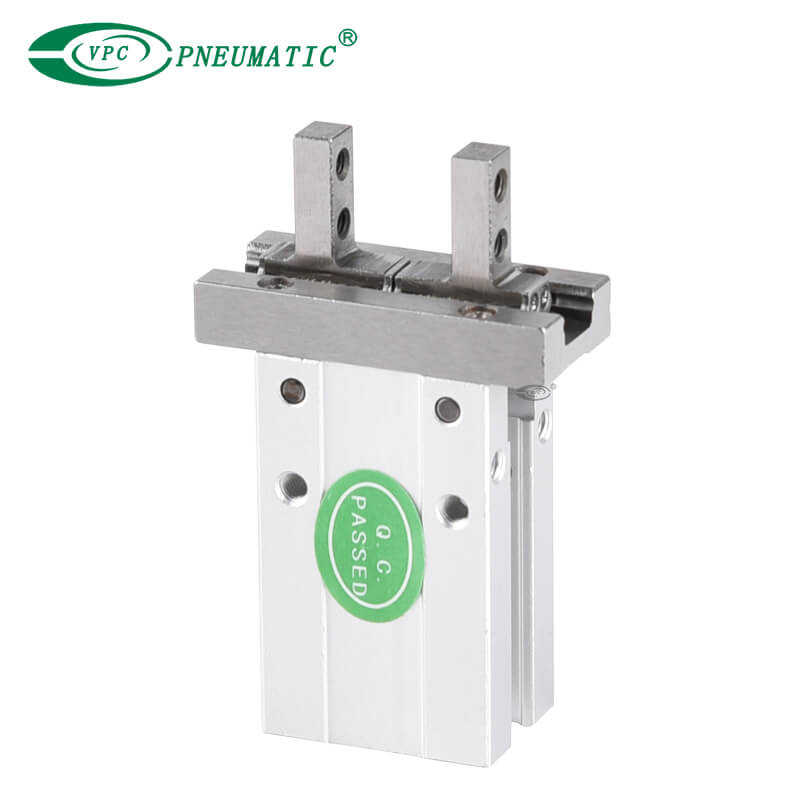

MHZL2 Series Parallel Gripper, Long Stroke Type

The MHZ2 Series gripper has an integrated linear guide for high rigidity, positioned with two dowel pins to prevent guide slippage. It has mounting versatility on three sides, in five configurations. Available in single acting (N.O., N.C.) and double acting.

Model:
MHZL2-10d
Brand:
VPC Pneumatic
Code:
8412310090

Number of fingers:	2 fingers
Bore size:	10mm, 16mm, 20mm, 25mm
Action:	Double acting Single acting (N.O) Single acting (N.C.)
Port thread type:	M, RC, NPT, G thread
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. Compact and Lightweight: Easy to install in tight spaces.

2. High Precision: Ensures accurate and reliable gripping.

3. Double Piston Mechanism: Provides strong gripping force.

4. Wide Opening Range: Capable of handling various object sizes.

5. Smooth and Stable Operation: Ensures consistent performance.

6. Multiple Mounting Options: Flexible installation possibilities.

■ Application

The MHZL2 air gripper is ideal for automation and robotics tasks such as pick-and-place operations, material handling, assembly processes, and packaging. Its precision and adaptability make it suitable for a wide range of industrial and manufacturing applications.

Product Specifications

Working medium			Air
Working pressure	Double acting		Ф10: 0.2 to 0.7 MPa Ф16 to Ф25: 0.1 to 0.7 MPa
	Single acting	Normally open	Ф10: 0.35 to 0.7 MPa Ф16 to Ф25: 0.25 to 0.7 MPa
		Normally closed
Working temperature			-10 to 60 ℃
Repeatability			±0.01 mm
Max.operating frequency			120 c.p.m.
Lubrication			Not required
Action			Double acting/Single acting
Auto switch (Option)			Solid state auto switch (3-wire, 2-wire)

Action		Model	Bore Size (mm)	Gripping force		Opening/Closing stroke (Both sides) (mm)
				Gripping force per finger Effective value (N)
				External	Internal
Double acting		MHZL2-10D	10	11	17	8
		MHZL2-16D	16	34	45	12
		MHZL2-20D	20	42	66	18
		MHZL2-25D	25	65	104	22
Single acting	Normally open	MHZL2-10S	10	7.1	-	8
		MHZL2-16S	16	27		12
		MHZL2-20S	20	33		18
		MHZL2-25S	25	50		22
	Normally closed	MHZL2-10C	10	-	13	8
		MHZL2-16C	16		38	12
		MHZL2-20C	20		57	18
		MHZL2-25C	25		85	22
