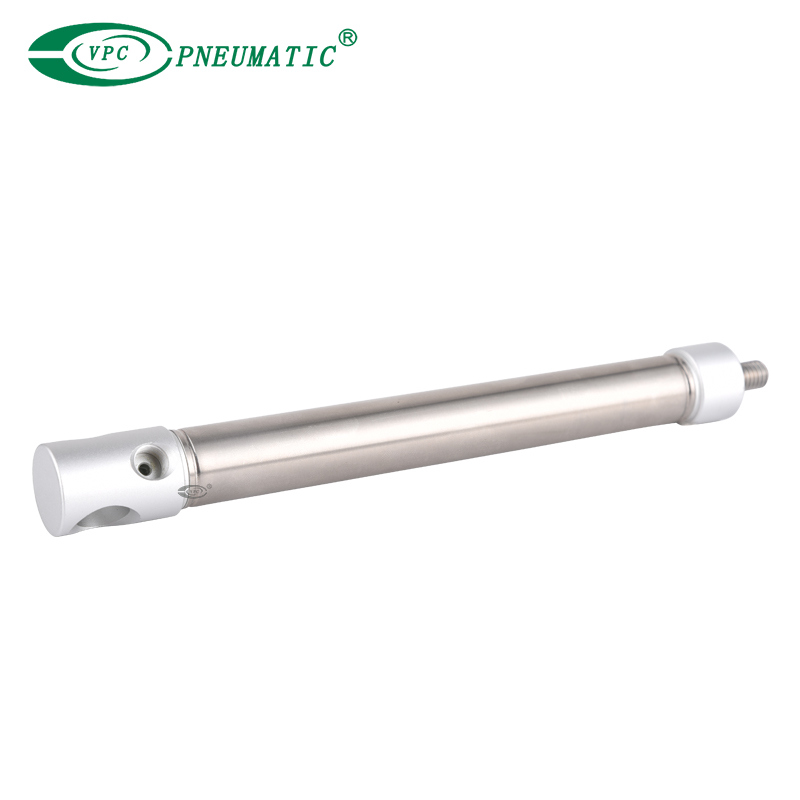

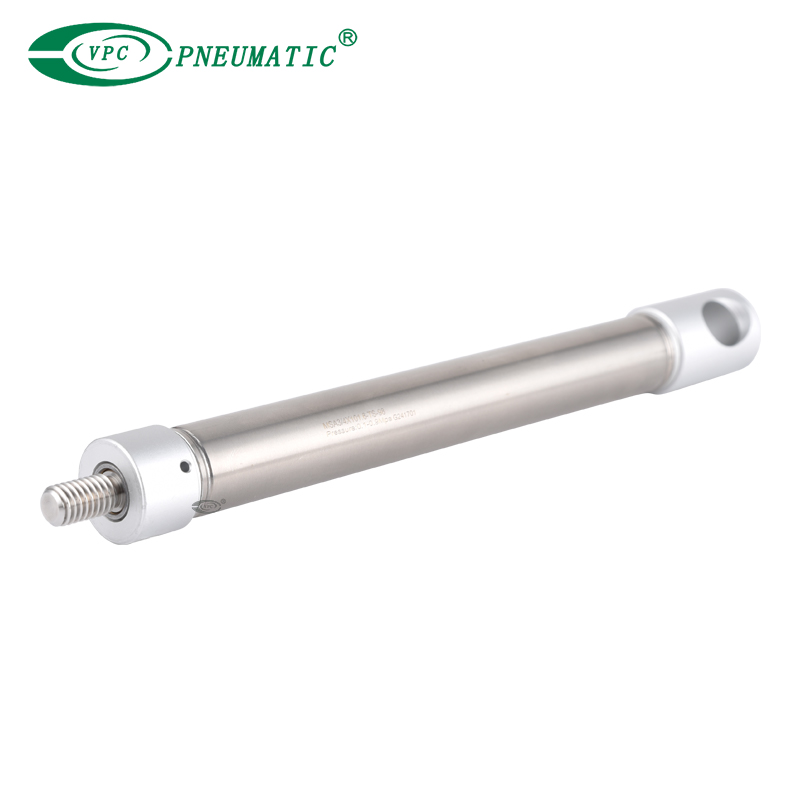

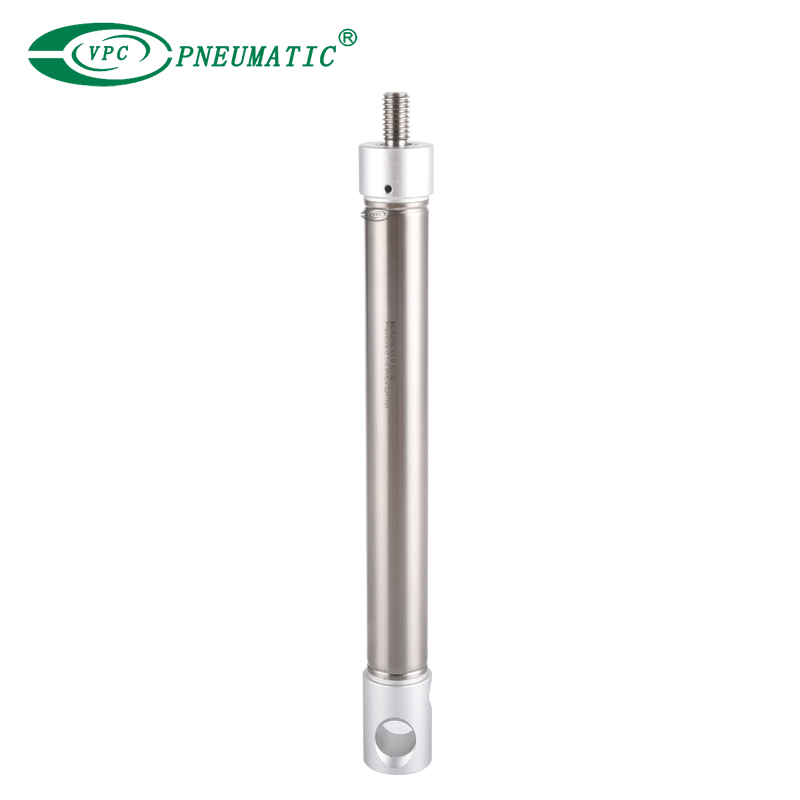

MSA Series Single Acting Spring Extend Mini Cylinder

MSA mini single acting spring return cylinder operates with a simple and efficient mechanism: compressed air enters through a single port to push the piston outward, performing tasks like ejection or pushing. When the air supply stops, an internal spring ensures reliable and automatic piston retraction.

Model:

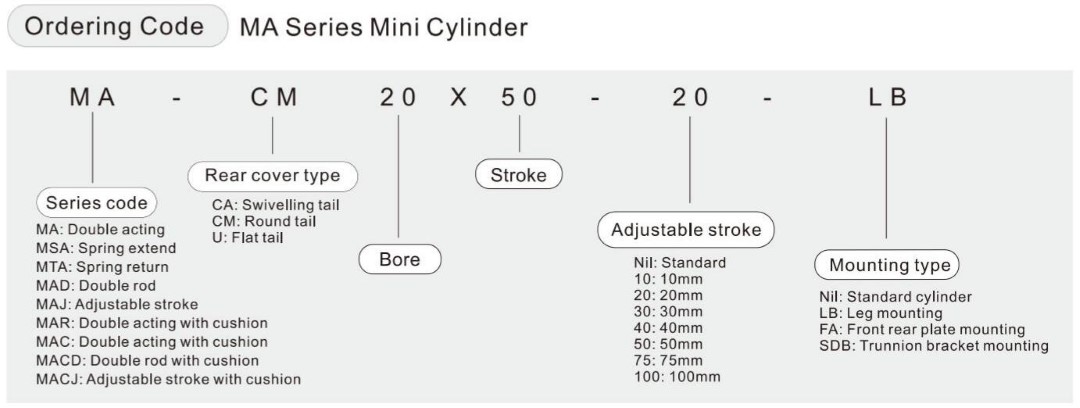

MSA34X101.6 TS 98
Brand:
VPC Pneumatic

Acting type:	Single acting spring extend
Working temperature:	5 to 70 ℃
Working pressure:	0.2 to 0.9 MPa
Guaranteed pressure:	1.5 Mpa
Speed range:	50 to 800 mm/s
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. Piston adopts a heterogeneous two-way seal structure. It has compact size and has the function of grease reservation.

2. Front cover has a fixed bumper which can reduce the impact of direction change of the cylinder.

3. There are several modes of back cover, which makes the installation of cylinder more convenient.

4. Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection.

5. The cylinder body has stainless steel pipes with high precision to produce high strength and corrosion resistance.

6. There are cylinders and mounting accessories with several specifications for your choice.

■ Symbol

MA round pneumatic cylinder symbol

spring return cylinder

Product Specifications

Bore(mm)		16	20	25	32	40	50	63
Mountin type	MSA MTA	Single acting					-
	MA MAD MAJ	Double acting					-
	MAR	-	Double acting
	MAC MACD MACJ	-	Double acting with cushion
Working medium		Clean air (40um Filteration)
Working pressure	Double acting	0.1 to 1.0MPa
	Single acting	0.2 to 1.0MPa
Guaranteed pressure		1.5Mpa
Working temperature		-20 to 70℃
Speed range		Double acting: 30 to 500mm/s Single acting: 50 to 500mm/s
Stroke tolerance		Stroke≤150+1.0 Stroke>150+1.4 0 0
Cushion type		MAC MACD MACJ Series: Adjustable cushion Other series: Bumper
Port size		M5X0.8	G1/8				G1/4
