MSQ Series Rotary Table Rack & Pinion Cylinder MSQ Series Rotary Table Rack & Pinion Cylinder
MSQ Series Rotary Table Rack & Pinion Cylinder MSQ Series Rotary Table Rack & Pinion Cylinder
MSQ Series Rotary Table Rack & Pinion Cylinder MSQ Series Rotary Table Rack & Pinion Cylinder
MSQ Series Rotary Table Rack & Pinion Cylinder MSQ Series Rotary Table Rack & Pinion Cylinder

MSQ Series Rotary Table Rack & Pinion Cylinder

Share to:

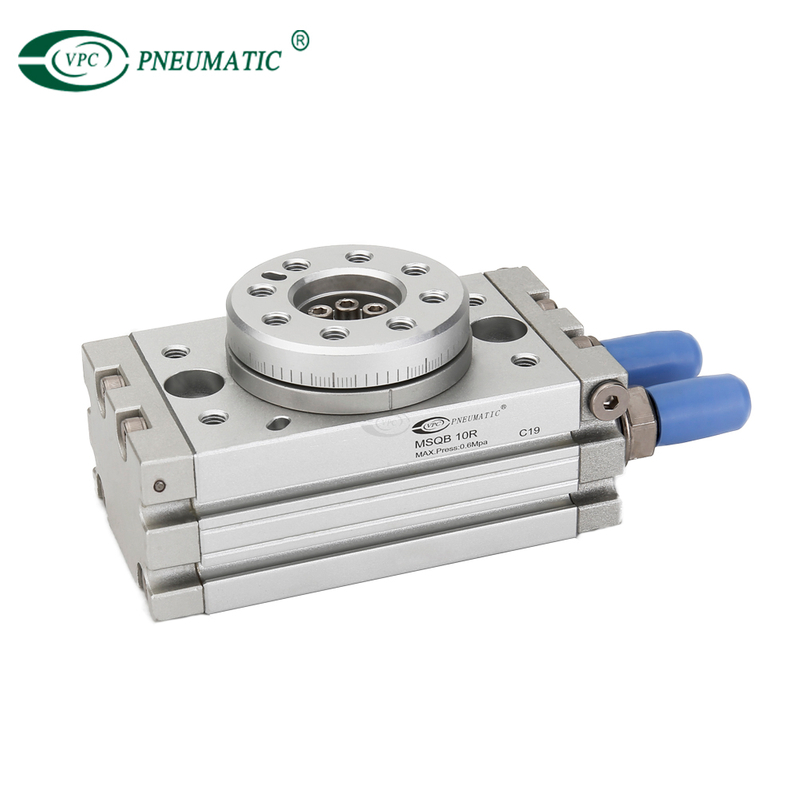

  • The MSQ compact rotary table is ideal for material transfer applications. It incorporates load bearings and a mounting face with a rack-and-pinion style rotary actuator.
  • The seven sizes are 10, 20, 30, 50, 70, 100, and 200 with rotational adjustments from 0-190 degrees, and auto switch capability. Additional features include a hollow shaft and direct load mounting possibility.
  • MSQ
  • VPC pneumatic
  • 8412310090
Material:
Aluminum alloy
Working medium:
Air
Working pressure:
0.1~1.0Mpa
0.1~0.6Mpa
angle adjustment range:
0 to 190°
Working temperature:
0 to 60℃（with no freezing）
Availability:
Inquire Add to Basket

Product Description

MSQ参数

Product Specifications


        Bore（mm）       10       20        30        50        70       100      200
     Working medium                                              Clean Air （40 μm filtration）
Working pressure range    A with adjustable angle screw:0.1~1.0Mpa，B with shock absorber:0.1~0.6Mpa
        Cushion type                   Cushion rubber cushion（standard）/shock absorber（optional）



Allowed power

 with adjustable angle screw



  0.007J



   0.025J



   0.048J



   0.081J



    0.24J



    0.32J



    0.56J
with shock absorber    0.039J

             0.116J

    0.294J      1.1J      1.6J      2.9J
Angle adjustable range                                                                 0~190°


Steady swing time range

                        A      0.2~1.0S/90° 0.2~1.5S/90° 0.2~2.0S/90° 0.2~2.5S/90°
                       B      0.2~0.7S/90°                    0.2~1.0S/90°
     Piston diameter Ф15 Ф18 Ф21 Ф25 Ф28 Ф32 Ф40
           Port size
             M5X0.8                                               G1/8
