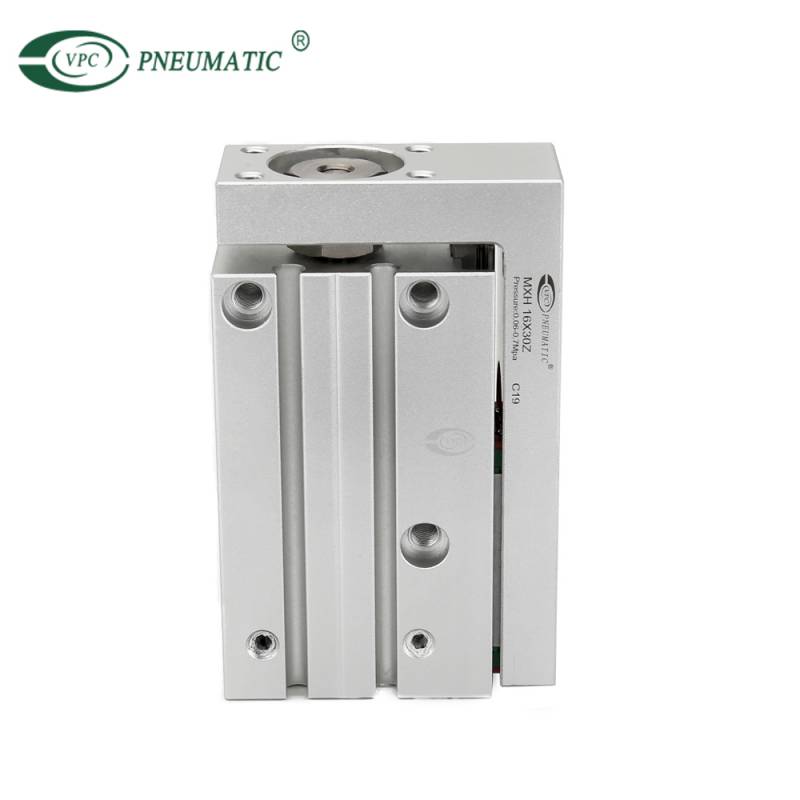

MXH Series Narrow Width Precision Slide Table Cylinder (Recirculating Bearings)

MXH Series Narrow Width Precision Slide Table Cylinder (Recirculating Bearings)

The MXH narrow width precision slide table incorporates recirculating bearings to its new linear guide system to increase rigidity by expanding the width where the load bearings come in contact with the linear guide. The new linear guide system also increases allowable pitch moment by 170%, yaw moment by 210% and roll moment by 240% as well as reduces its weight by as much as 19% from the previous model. Its narrow width footprint allows for multiple units to be mounted adjacently for applications with tight space constraints.

Model:
MXH16-30Z
Brand:
VPC
Code:
8412310090

Bore sizes:	6, 10, 16, 20 mm
Availability:



Inquire Add to Basket

Product Description

Order Code MXH Series Compact Slide

MXH 10^① - 60^② Z - M9BW^③ □^④ - □^⑤

① 10 → Bore Size

6	6 mm
10	10 mm
16	16 mm
20	20 mm

② 60 → Cylinder Stroke(mm)

Refer to "standard stroke" on the next page.

③ M9BW → Auto Swtich

Nil: Without auto switch(Built-in magnt)

* For applicable auto switch model.refer to the table below.

④ □ → Number of Auto Swtiches

Nil: 2pcs

S: 1pc

⑤ □ → Made to order

* Refer to page 20 for details.

Product Specifications

Bore size (mm)	6	10	16	20
Fluid	Air
Action	Double Acting
Piping port size	M5×0.8
Minimum operating pressure	0.15MPa	0.06MPa		0.05MPa
Maximum operating pressure	0.7MPa
Proof pressure	1.05MPa
Ambient and fluid temperature	Without auto switch:-10 to 70℃ (No freezing) With auto switch:-10 to 60℃ (No freezing)
Piston speed	50 to 500 mm/s
Allowable kinetic energy (J)	0.0125	0.025	0.05	0.1
Lubrication	Non-lube
Cushion	Rubber bumper on both ends
Stroke length tolerance	+1.0 0

■ Standard Stroke

Bore size (mm)	Standard stroke (mm)
6, 10, 16, 20	5, 10, 15, 20, 25, 30, 40, 50, 60

Note) Intermediate strokes are available with "Made to Order" model(-XC19).

■ Theoretical Output

(N)

Bore size(mm)	Rod size(mm)	Operating direction	Piston area(mm²)	Operating pressure (MPa)
Bore size(mm)	Rod size(mm)	Operating direction	Piston area(mm²)	0.3	0.5	0.7
6	3	OUT	28	8	14	19
6	3	IN	21	6	10	14
10	4	OUT	78	23	39	55
10	4	IN	66	19	33	46
16	6	OUT	201	60	101	141
16	6	IN	172	51	86	121
20	8	OUT	314	94	157	220
20	8	IN	264	79	132	185

■ Weight

(g)

Model	Stroke (mm)
Model	5	10	15	20	25	30	40	50	60
MXH6	61	66	75	80	88	93	107	120	134
MXH10	104	112	125	133	146	153	174	195	216
MXH16	194	204	222	232	250	260	288	316	343
MXH20	352	369	400	417	448	466	514	562	610
