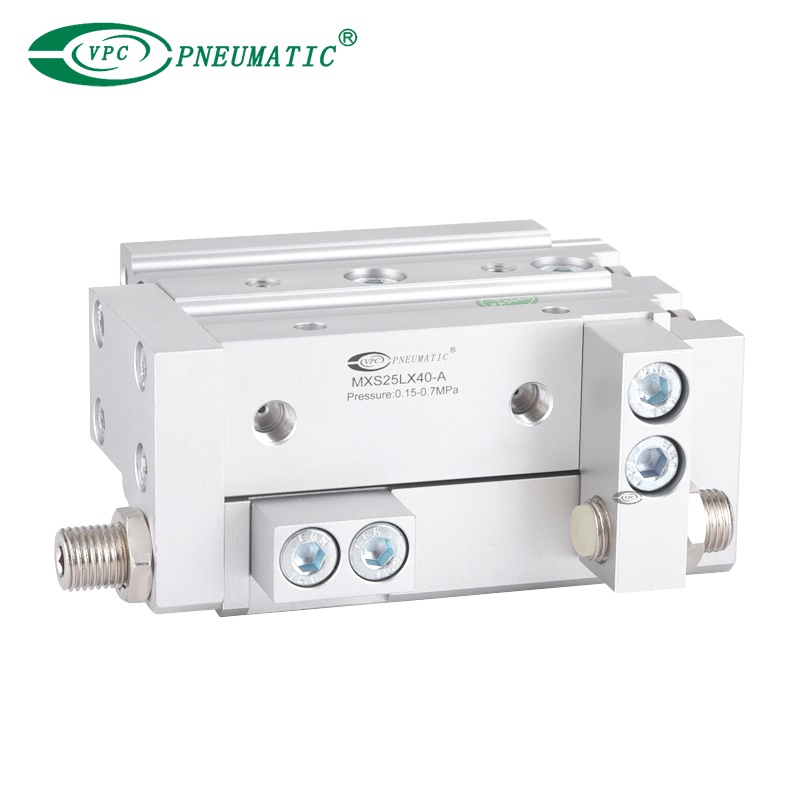

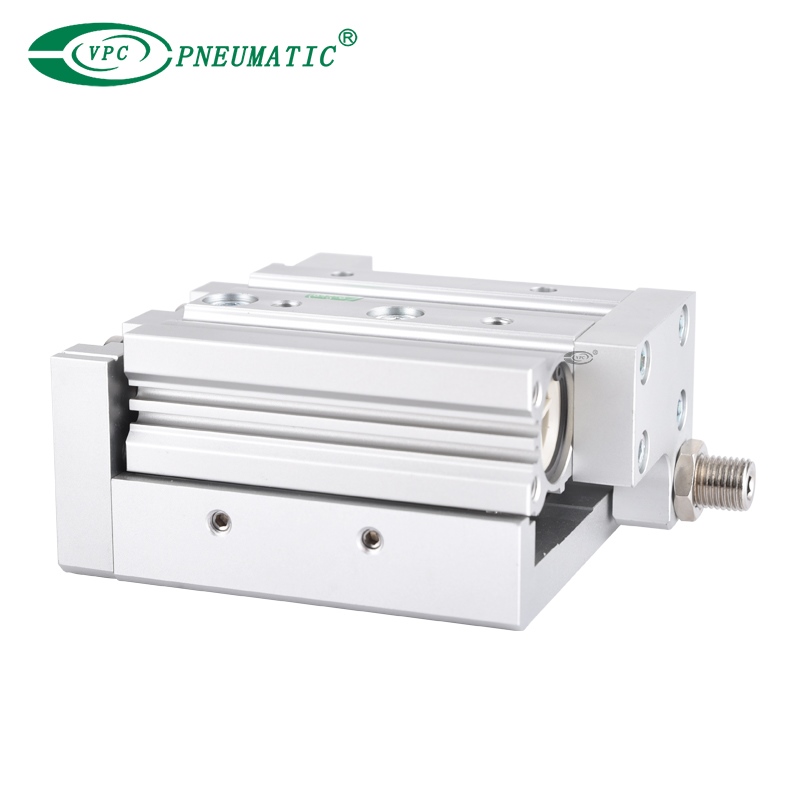

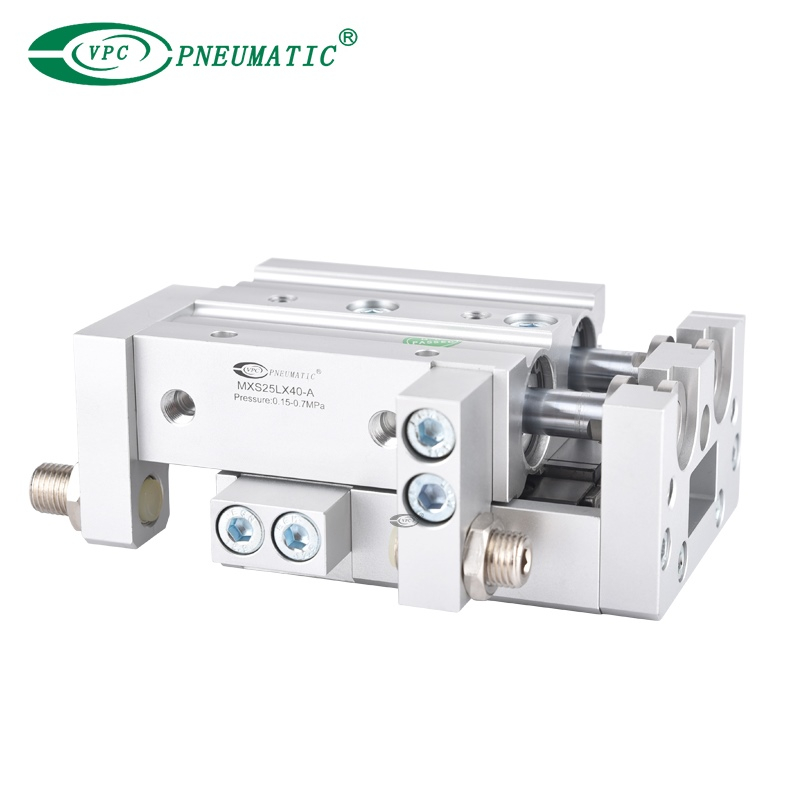

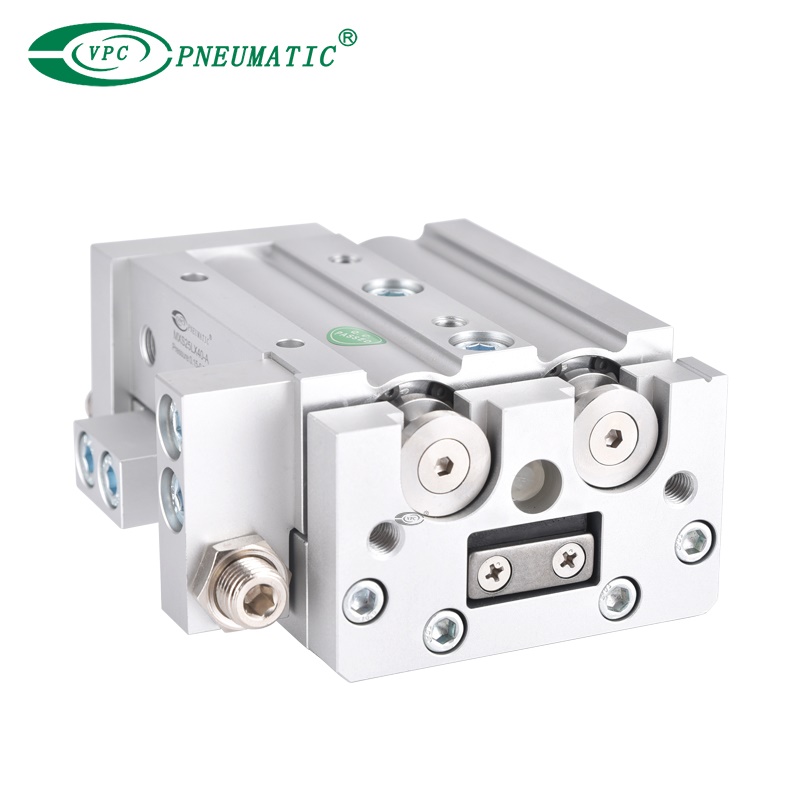

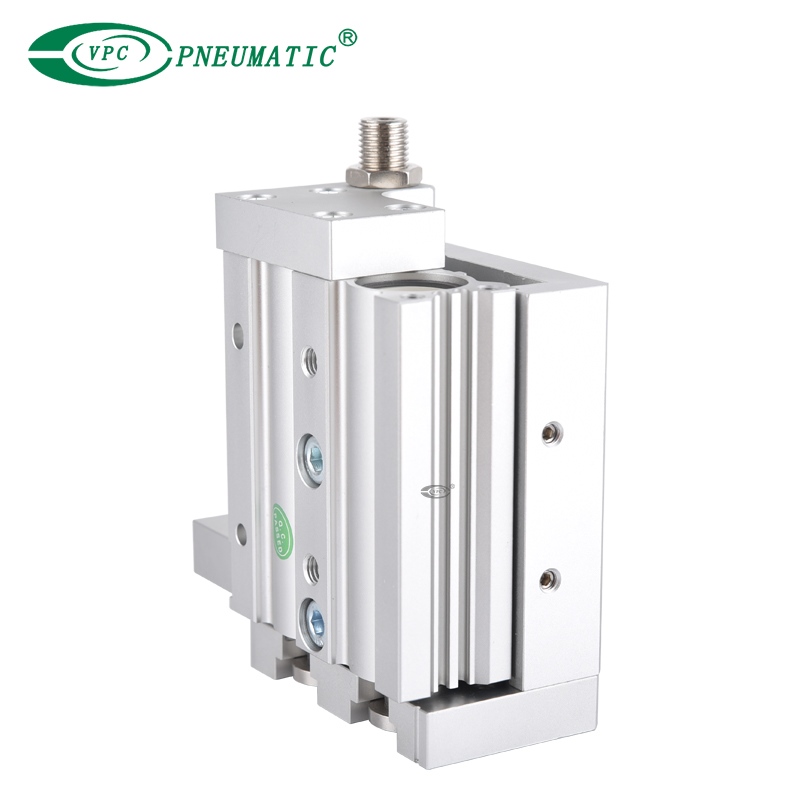

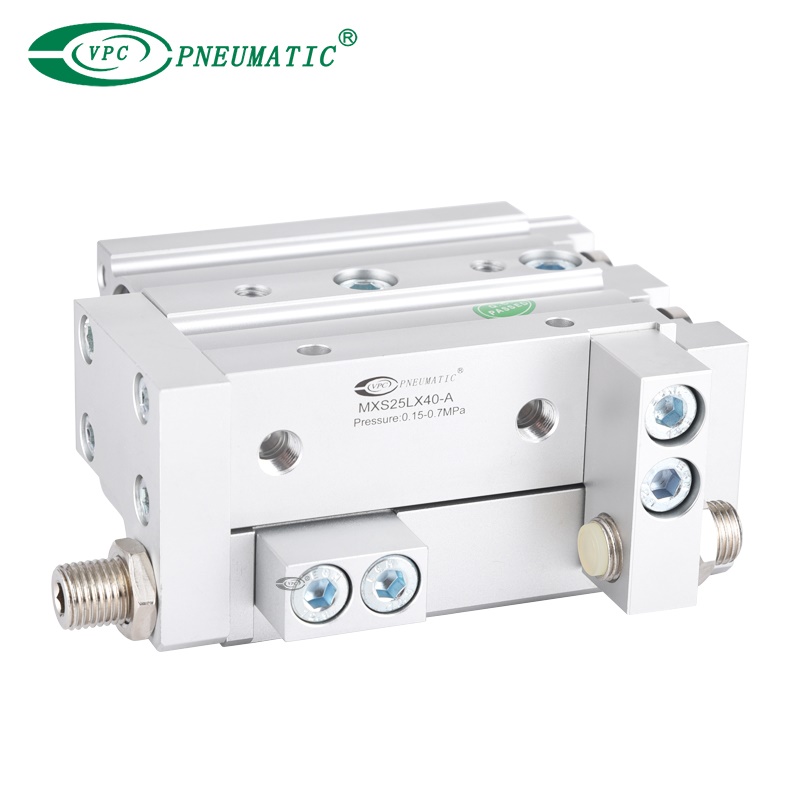

MXS Series Air Slide Table Cylinder

Share to:
MXS clean room air slide tables, rated for contamination grade 3, are great for applications that call for precise movement ranging from 10-150mm typically requiring a cylinder and precision guide.
The MXS is available in 6 bore sizes, each with set stroke lengths and is standard with auto-switch capability.
  • MXS
  • VPC Pneumatic
  • 8412310090
Working medium:
Clean air
Acting type:
Double acting
Working temperature:
-10 to 60℃
Operating pressure:
0.15 to 0.7Mpa
Speed of piston:
50 to 500mm/s
Availability:
Inquire Add to Basket

Product Description

MXS参数-1

Product Specifications

Model61015202532
Bore(mm)
Ф6x2
(equal to Ф8)
Ф8x2
(equal to Ф11)
Ф12x2
(equal to Ф17)
Ф16x2
(equal to Ф22)
Ф20x2
(equal to Ф28)
Ф25x2
(equal to Ф35)
Working mediumClean air(40μm Filteration)
Acting typeDouble acting
Max.Working Pressure0.7Mpa
Min.Working Pressure0.15Mpa
Working temperature-10 to 60℃
Speed of piston50 to 500mm/s
LubricationNo
Cushion typeRubber Cushion
Port sizeM3x0.5M5x0.8G1/8
