Product Description

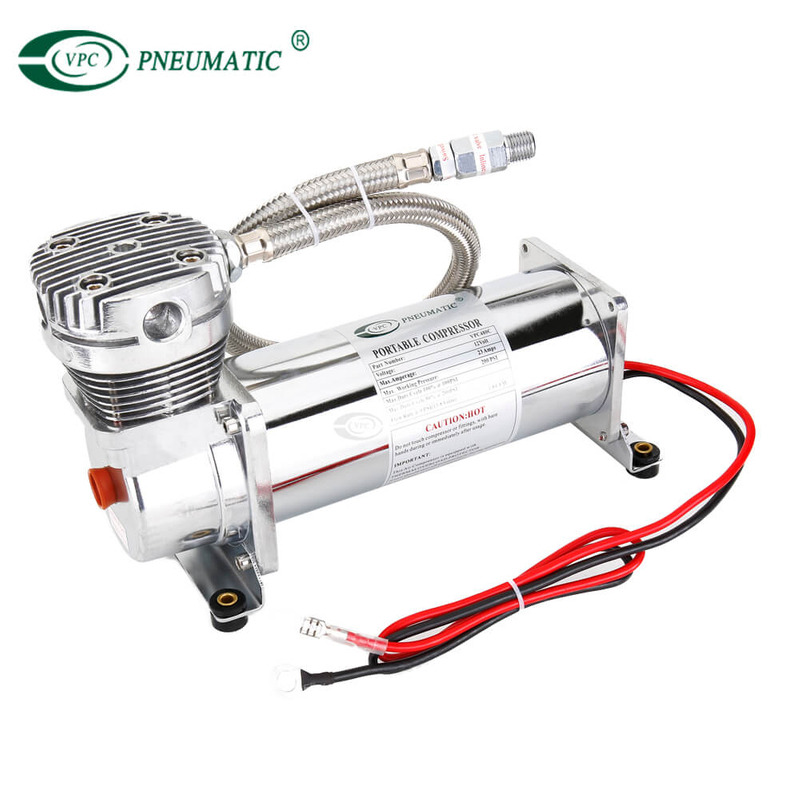

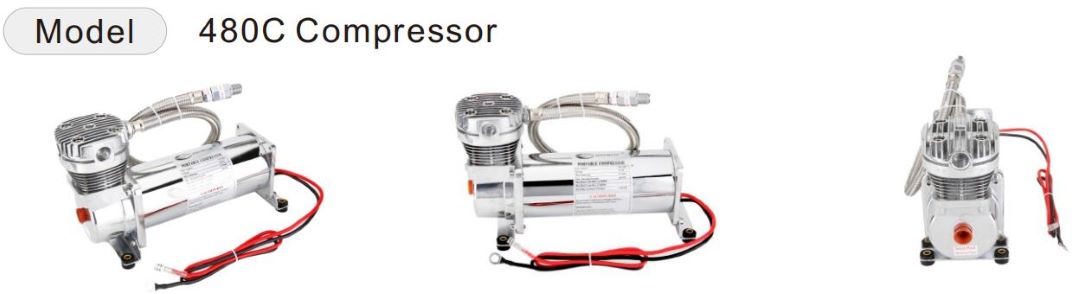

480C 444C is a truly rated, 200 PSI-rated compressor. It features horizontal cooling fins and a trapezoidal head design, a standard 3/8" stainless steel braided leader hose with 3/8” NPT inline check valve and insulated wiring.
Included Parts: Installation instructions,Mounting hardware,Vibration isolators,Remote mount air filter assembly,Stainless steel braided leader hose.Check valve.
Product Specifications
| PERFORMANCE DATA | |||||
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.86 | 10 | 0 | 52.7 | 10 |
| 10 | 1.75 | 12 | 1 | 47.5 | 13 |
| 20 | 1.59 | 14 | 2 | 43.2 | 15 |
| 30 | 1.52 | 15 | 3 | 40.7 | 16 |
| 40 | 1.45 | 16 | 4 | 38.1 | 18 |
| 50 | 1.41 | 17 | 5 | 35.3 | 18 |
| 60 | 1.33 | 18 | 6 | 32.6 | 19 |
| 70 | 1.26 | 18 | 7 | 30 | 20 |
| 80 | 1.2 | 19 | 8 | 27 | 22 |
| 90 | 1.13 | 19 | 9 | 25 | 22 |
| 100 | 1.07 | 20 | 10 | 22.3 | 21 |
| 110 | 0.99 | 21 | 11 | 20.1 | 21 |
| 120 | 0.93 | 23 | 12 | 18.3 | 21 |
| 130 | 0.88 | 22 | 13 | 16 | 20 |
| 140 | 0.82 | 22 | 14 | 14 | 19 |
| 150 | 0.75 | 21 | - | - | - |
| 160 | 0.71 | 21 | - | - | - |
| 170 | 0.67 | 21 | - | - | - |
| 180 | 0.61 | 21 | - | - | - |
| 190 | 0.55 | 20 | - | - | - |
| 200 | 0.51 | 19 | - | - | - |
Notes: Supply Voltage: 13.8 Volts
| FILL RATES | |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 4 min. 50 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 15 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 9 min. 45 sec. (± 15 sec.) |
| 165 to 200 PSI | 2 min. 25 sec. (± 05 sec.) |
Notes: Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
Product FAQ
Q1: Is air suspension good for daily driving?
A: Sure. An On-Board Air Compressor System allows you to inflate and deflate your air springs on the go. Compressors remove the hassle of pulling over or searching for service stations with air pumps.
Q2: How big of an air tank do I need for air suspension?
A: Most air suspension systems will utilize a 3-gallon or 5-gallon air tank.
Q3: How long does an air suspension compressor last?
A: While there is no specific life expectancy for air compressors, most VPC compressors will come with a 1 years warranty. From customer feedback, most VPC compressors will last between 3-5 years, depending on your usage behavior.
Q4: How do you know when your air suspension is bad?
A: The most likely first symptoms are a lower, sagging ride height or the selectable ride settings that no more extended function. Other symptoms include a rougher, noisier ride and sloppy handling through corners and over bumps. Fortunately, a failed air suspension kits is not as dangerous as a flat tire and can continue to be driven. If the failure is ignored, it can slowly cause more damage to the rest of the suspension, damaging the entire air suspension system.
