ORB Series Pressure Regulator Combinations

Share to:

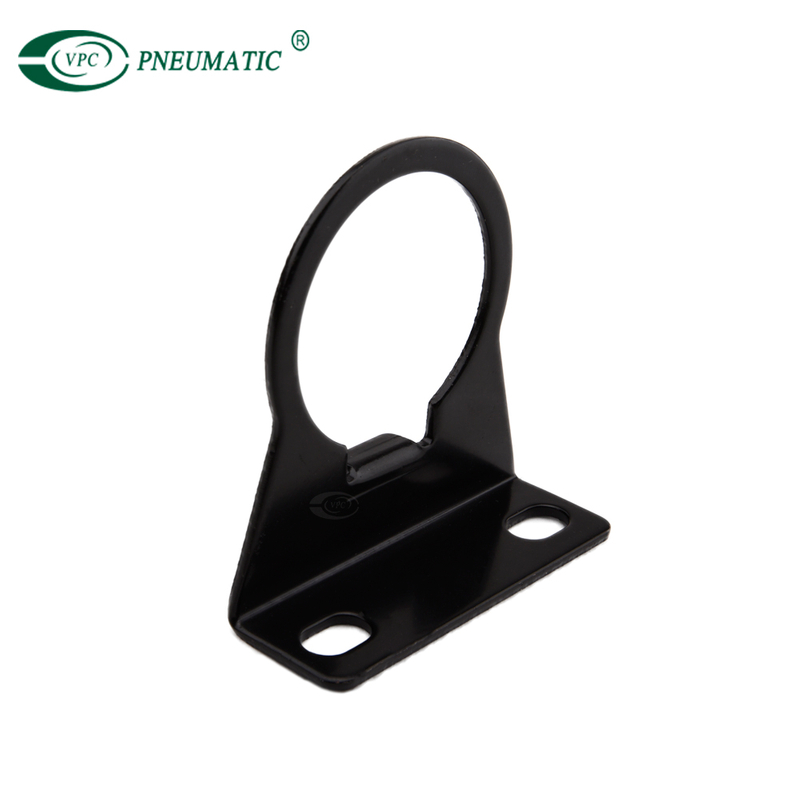

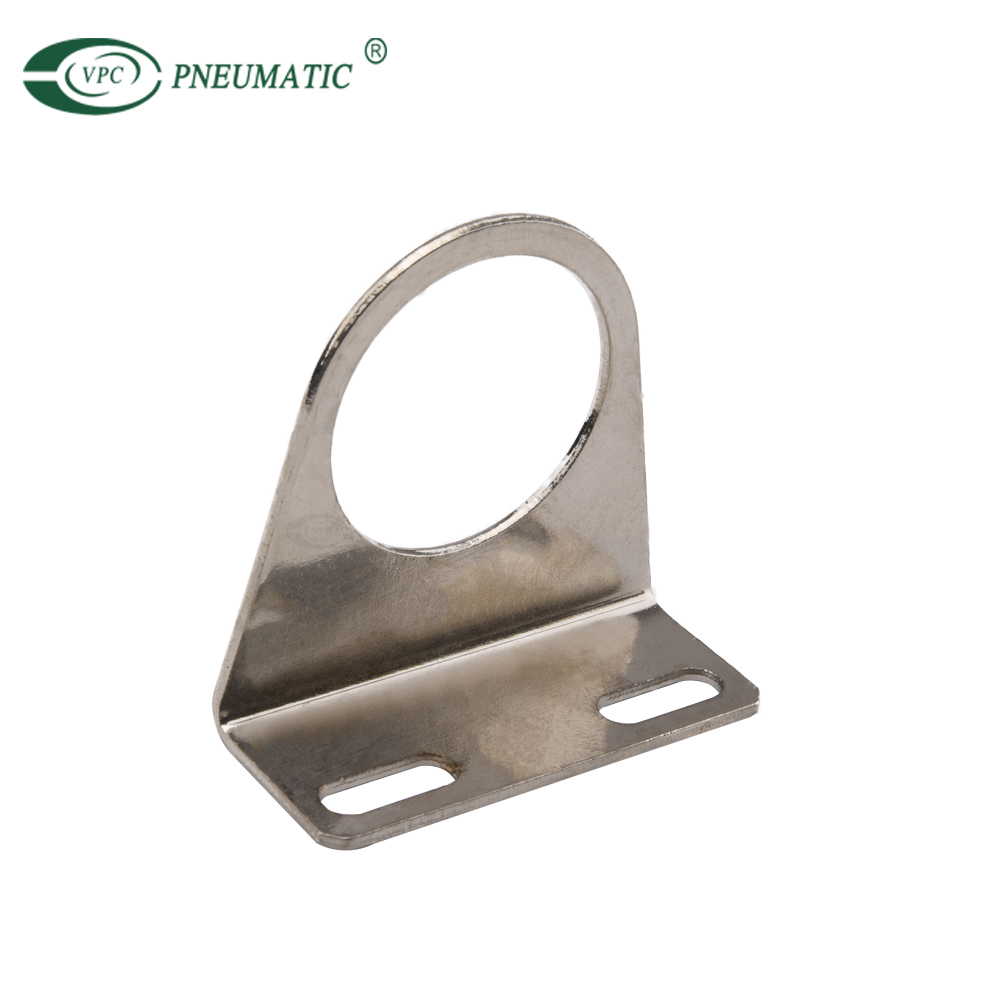

This bracket kit is used for mounting the OR Series of pneumatic pressure regulators to walls, machine surfaces, unistruts or aluminum framing material. It is made of Plated steel for strength and durability. The kit includes the following: L-bracket and panel mount nut.
  • ORB-1/4
  • VPC Pneumatic
  • 8421999000
Working medium:
Type of Mounting :
Working temperature:
Working pressure:
Assembly position:
Availability:

Product Description

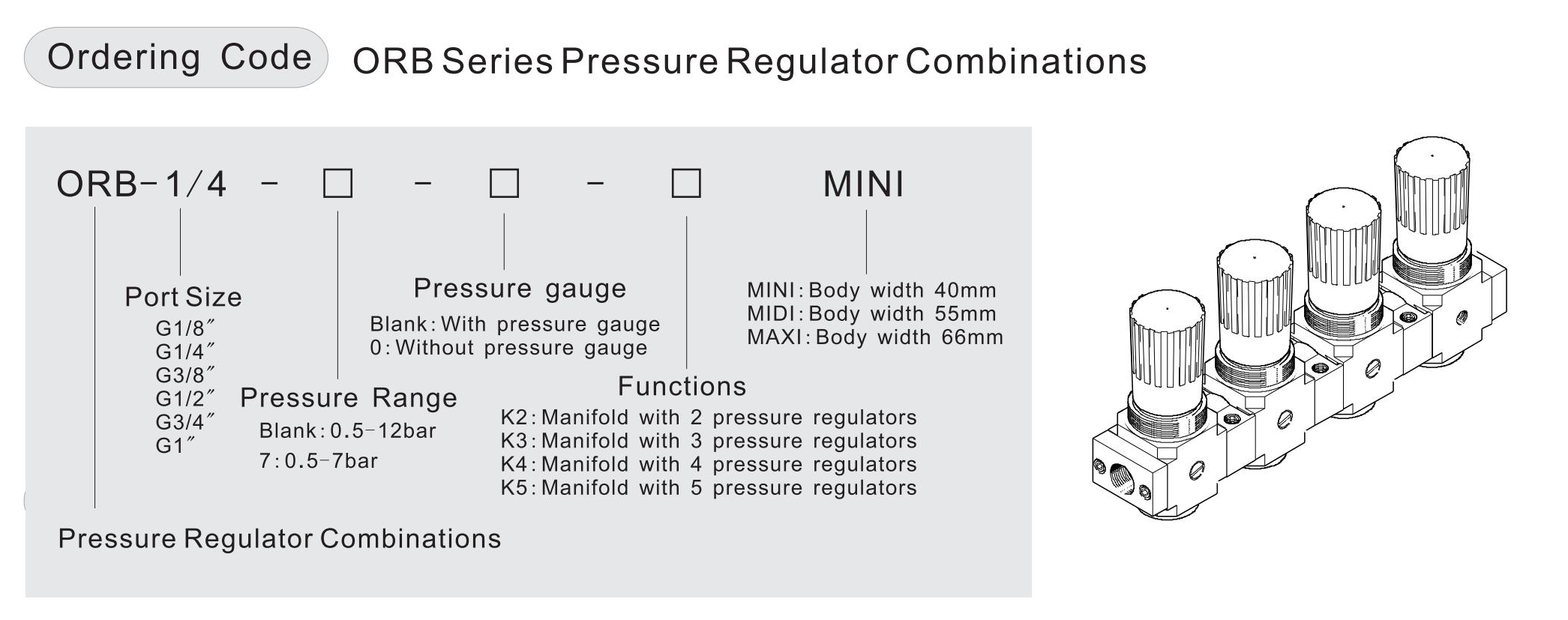

mounting bracket-order code

Product Specifications

Specification
MINI
MIDI
Working Medium
Compressed air
Type of Mounting

Via accessory

Assembly Position
Arbitrary position
Pressure Regulation Pressure
0.05-1.2Mpa/0.05-0.7Mpa
Working Temperature Range
0~60℃
Standard Rated Flow
0.05 to 1.2Mpa
1800L/min
3800L/min
0.05 to 0.7Mpa
1600L/min
3200L/min

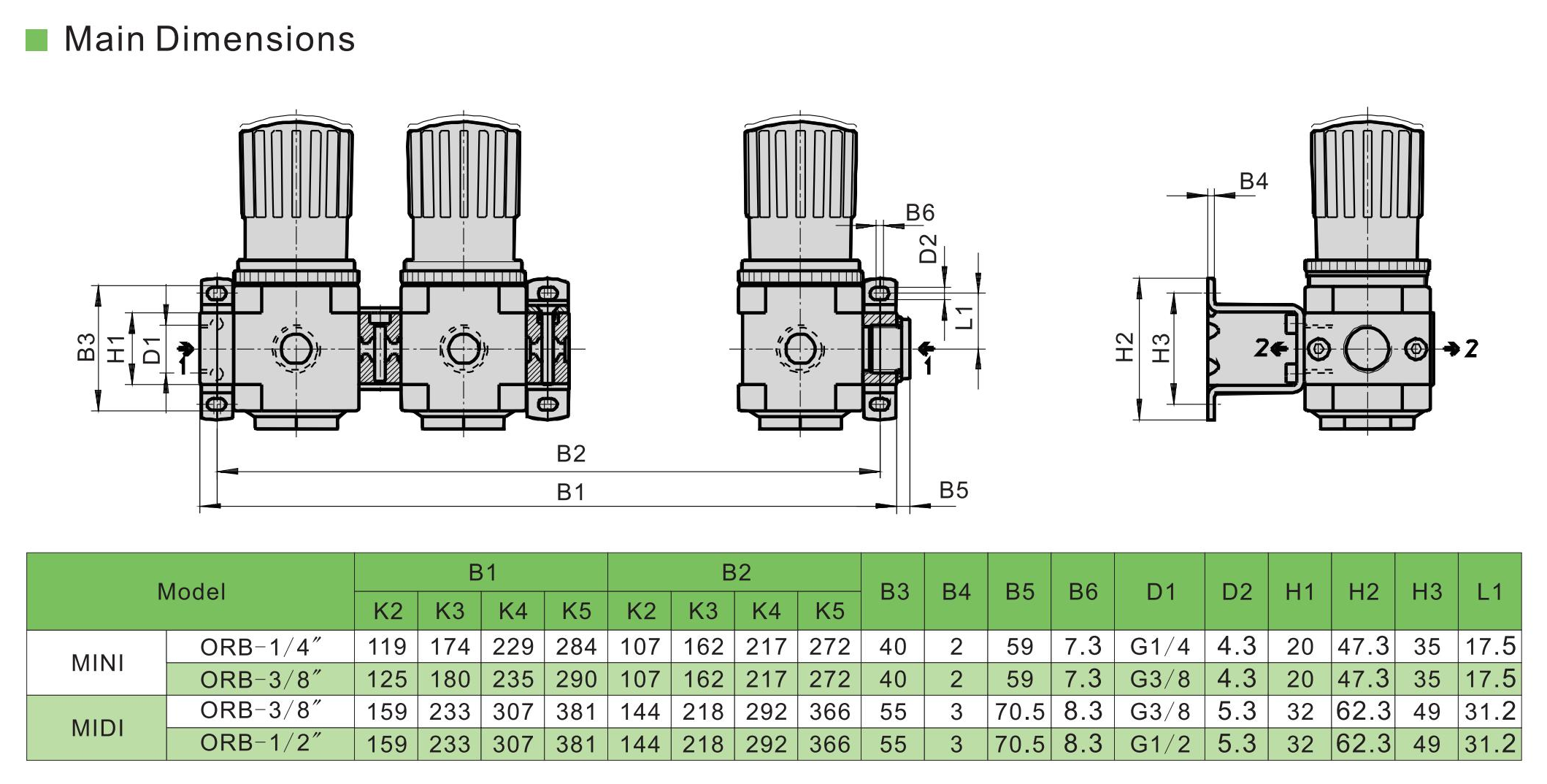

Main Dimensions

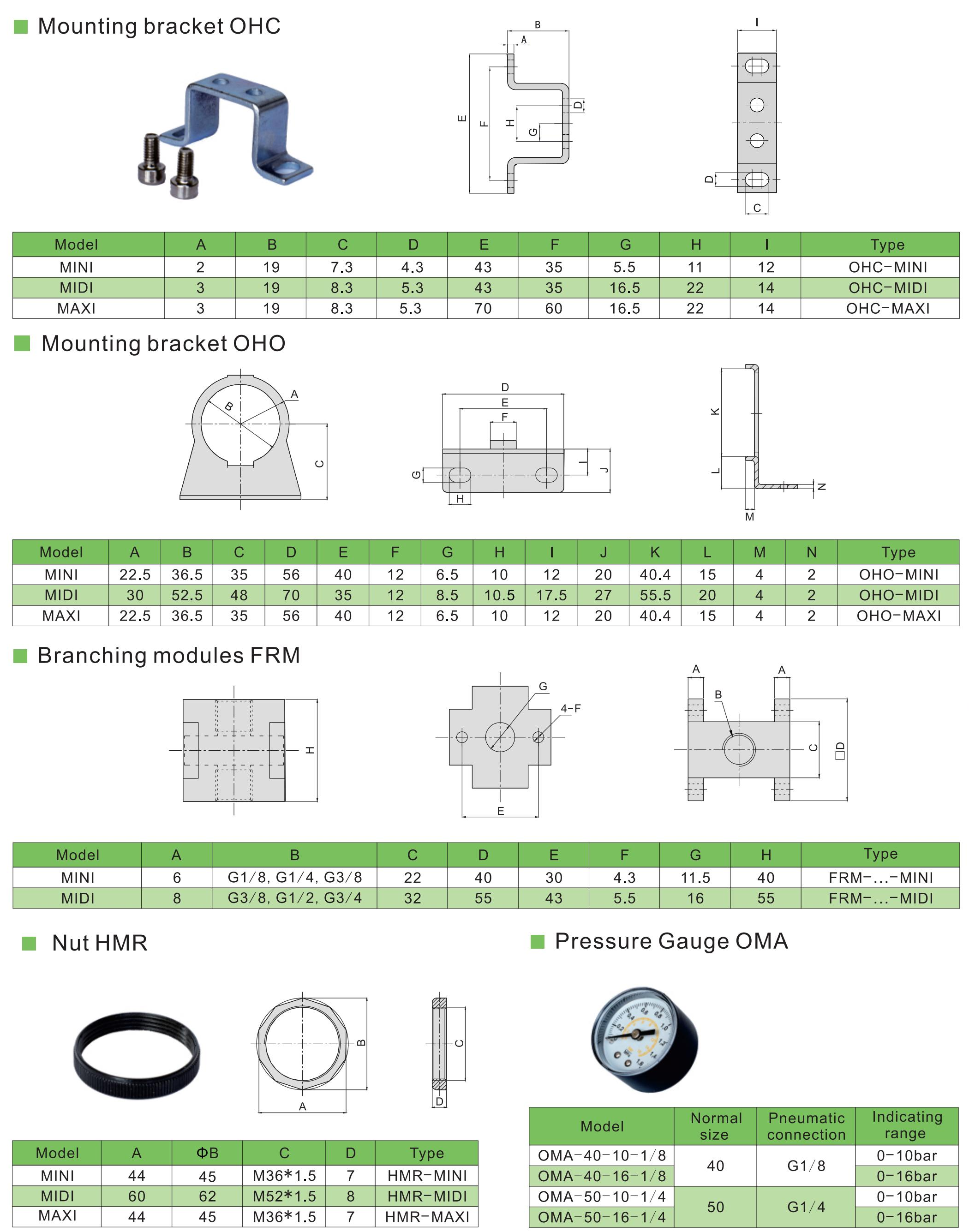

ORB-Main dimensionOR-accessoriesOR参数
