Product Description
Product Specifications

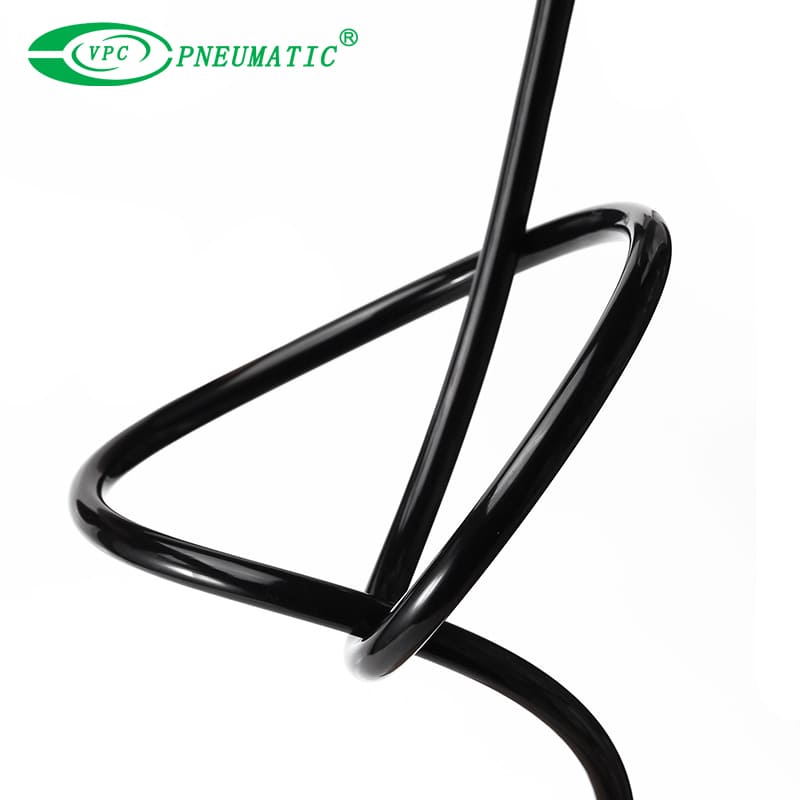

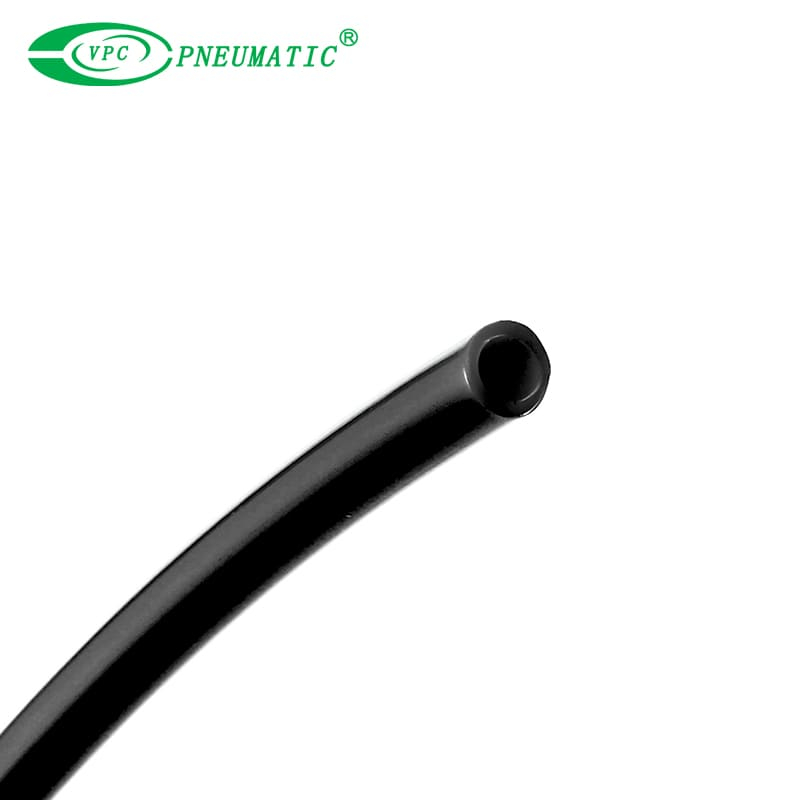

| Product Name | PA6 Nylon Tube |
| Material | PA6 |
| Fluid | Air, water, oil, grease |
| Working temperature | -40℃~+125℃ ( Air, other fluids)) |
| 0℃~+70℃( Water ) | |
| Hardness | 68D |

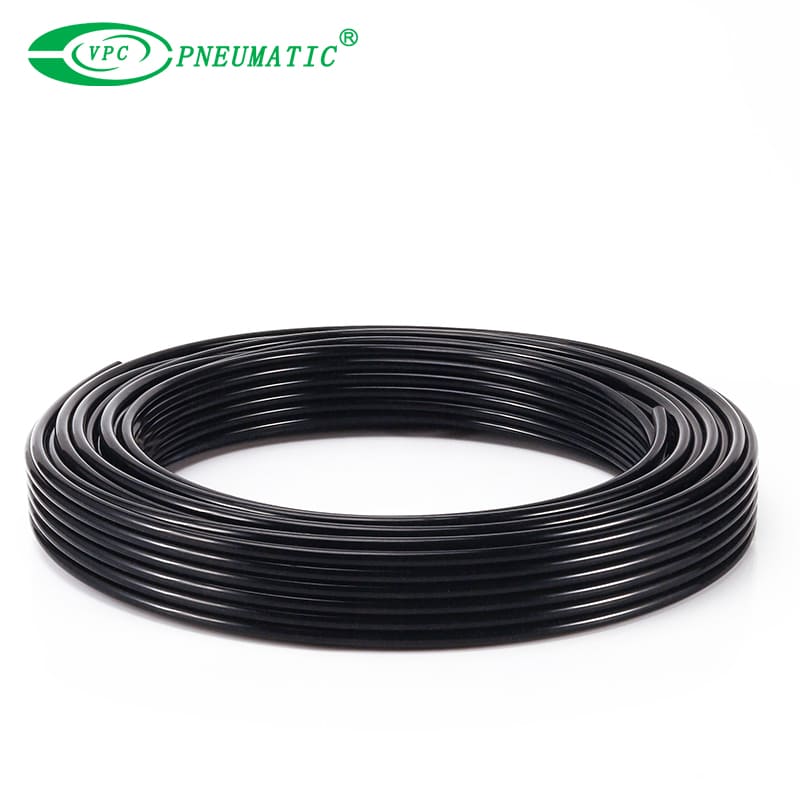

| Length | 200m/roll (OD less than 6mm) |
| 100m/roll (OD more than 8mm) | |
| Tolerance | OD4-6mm, tolerance is ± 0.08mm |
| OD8-16mm, tolerance is ± 0.1mm |
* Other sizes and colors can be customized, please contact VPC Pneumatic.
Main Dimensions
| Model | OD × ID (mm) | Working temperature (℃) | Maximum working pressure （MPA) | Minimum bending radius (mm) | ||
| 20 ℃ | 40 ℃ | 60 ℃ | ||||
| PA0402 | 4 × 2 | -40 ℃ ~ +125 ℃ （Air, other fluids) 0 ℃ ~ +70（Water) | 3.5 | 2.6 | 2 | 20 |
| PA0425 | 4 × 2.5 | 3.2 | 2.3 | 1.65 | 30 | |
| PA0604 | 6 × 4 | 2 | 1.4 | 1 | 45 | |
| PA0806 | 8 × 6 | 65 | ||||
| PA1075 | 10 × 7.5 | 75 | ||||
| PA1209 | 12 × 9 | 100 | ||||
| PA 1/8 | 3.18 × 2.18 | 2.3 | 1.6 | 1.2 | 20 | |
| PA 3/16 | 4.76 × 3.18 | 45 | ||||
| PA 1/4 | 6.35 × 4.23 | 65 | ||||
| PA 3/8 | 9.53 ×6.35 | 75 | ||||
| PA 1/2 | 12.7×8.46 | 110 | ||||
