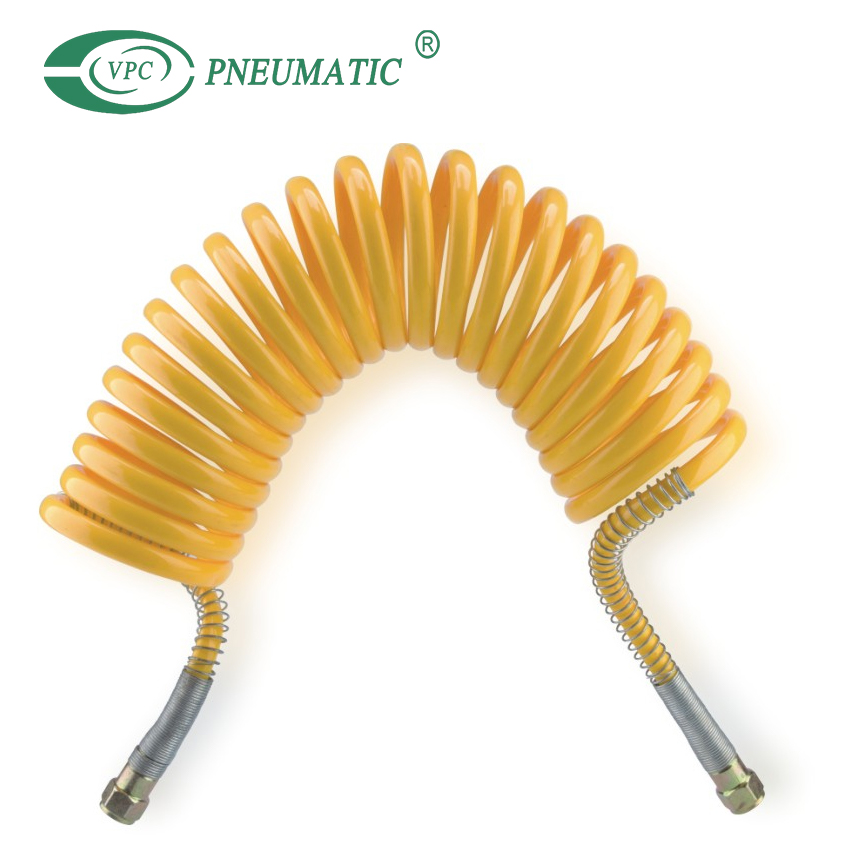

PAC Nylon Tube

Share to:
The PA coiling tube, featuring excellent flexibility and excelling in restoring force. Easy using for piping of movable parts.
  • PAC12
  • VPC Pneumatic
  • 391732000
Working medium:
Working temperature:
Pressure adjusting range:
Hardness:
Body Material:
Availability:

Product Description

PAC-order code

Product Specifications

ModelPAC6PAC11PAC12
MaterialNylon 6Nylon 11Nylon 12
Hardness64D60D60D
Fluid admittedAir,Water,Oil,Normal Solvents
Environment and fluid temperature-40-100℃-40-100℃-40-90℃


Main Dimensions

PAC-main

Model
D1(mm)

Maximum Length (m/roll)

E(mm)
F (mm)
PA6(PA12/PA11)-0425
32
1-15 80 80
PA6(PA12/PA11)-0604
38
1-15
80
80
PA6(PA12/PA11)-0806
48
1-20
80
80
PA6(PA12/PA11)-1075 58
3-20
80
80
PA6(PA12/PA11)-1209 68 3-20 80 80
PA6(PA12/PA11)-1/4 38 1-15 80 80
PA6(PA12/PA11)-3/8 58 3-20 80 80
PA6(PA12/PA11)-1/2
68
3-20
80
80

Note:Other sizes can be offered,please contact with us.
