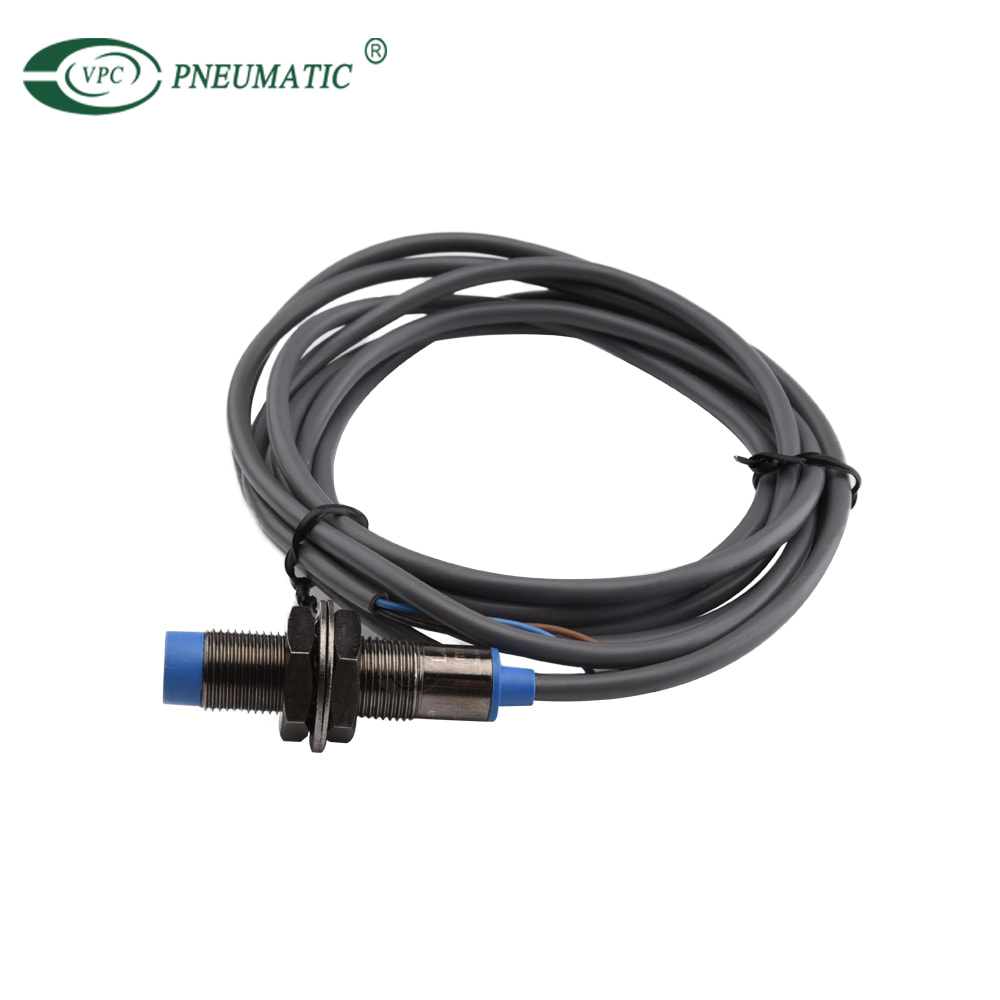

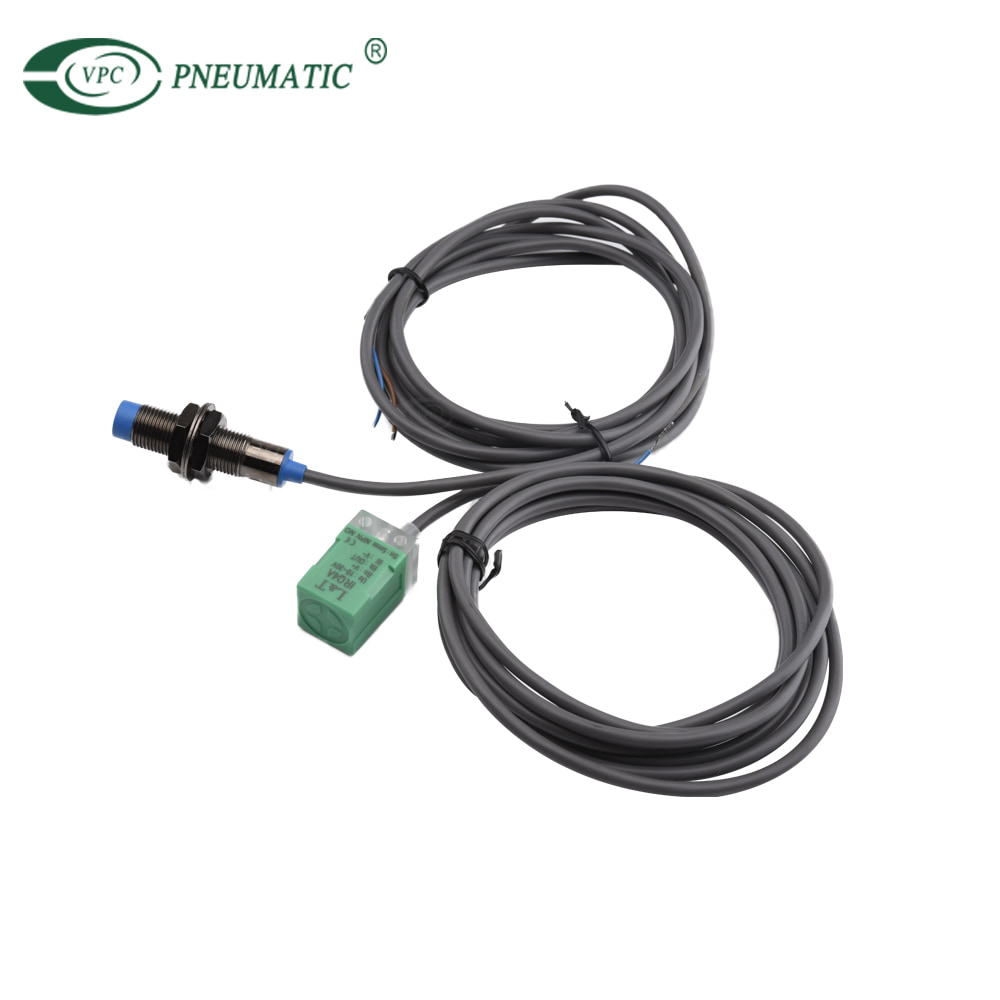

PS Series Inductive Proximity Sensor, PNP and NPN

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Proximity switch is non-contact detection, fast response, low energy consumption, IP67 protection. In addition, it supports NPN/PNP output mode with high detection accuracy and long life, suitable for industrial automation and other multi-scenarios.
  • PS12-NPN-NO

Output methods:
Size:
Availability:

Product Description

ModelPS12
Installation typeShieldedUnshielded
All the output methodsDC typeNPNNONO
NCNC
NO+NCNO+NC
PNPNONO
NCNC
NO+NCNO+NC
2 wireNONO
NCNC
AC type2 wireNONO
NCNC
Detection range2mm±10%4mm±10%
Setting distance0-1.6mm0-3.6mm
Delay distance≤10% detection range
Detection objectMagnetic metal (the detection distance decreases when it is non-magnetic metal)
Response frequencyDC: 1kHz, AC: 50Hz
Supply voltageDC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltageAC1000V 50/60Hz 1min between charging part and housing
Voltage influenceInside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption currentN/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control outputN/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protectionN/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidityOperation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influenceTemperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance≥50MΩ (DC500 megameter) between charging part and housing
MaterialHousing: Nickel plated brass, Detection surface: ABS
Protection classIP67
