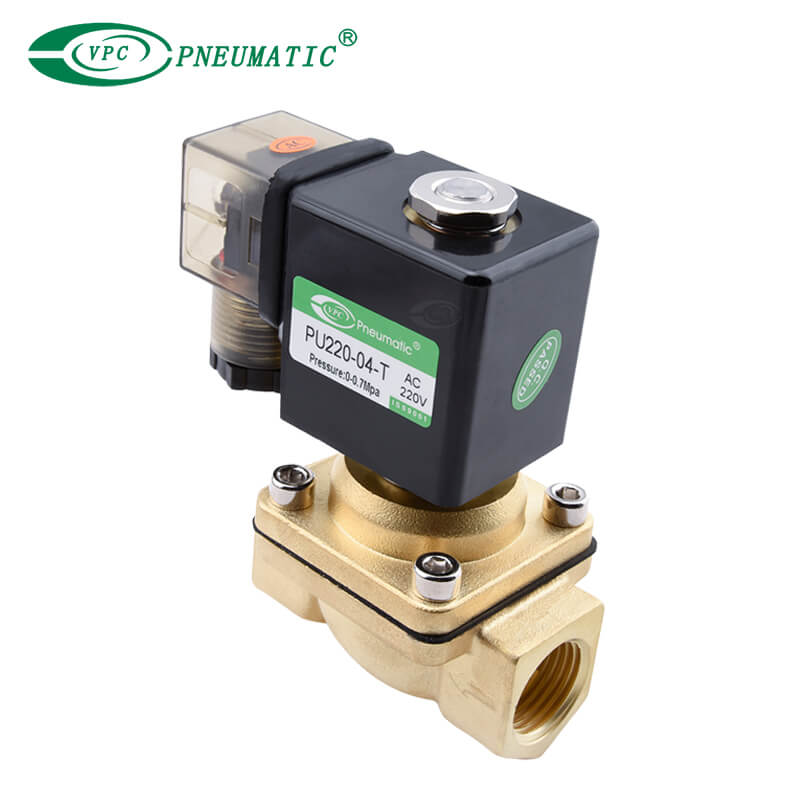

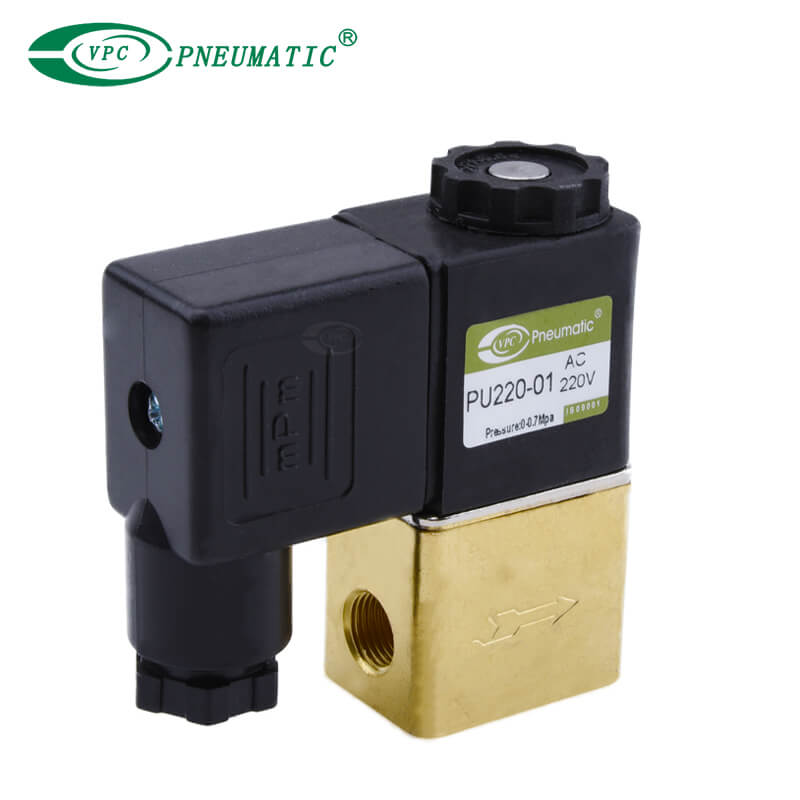

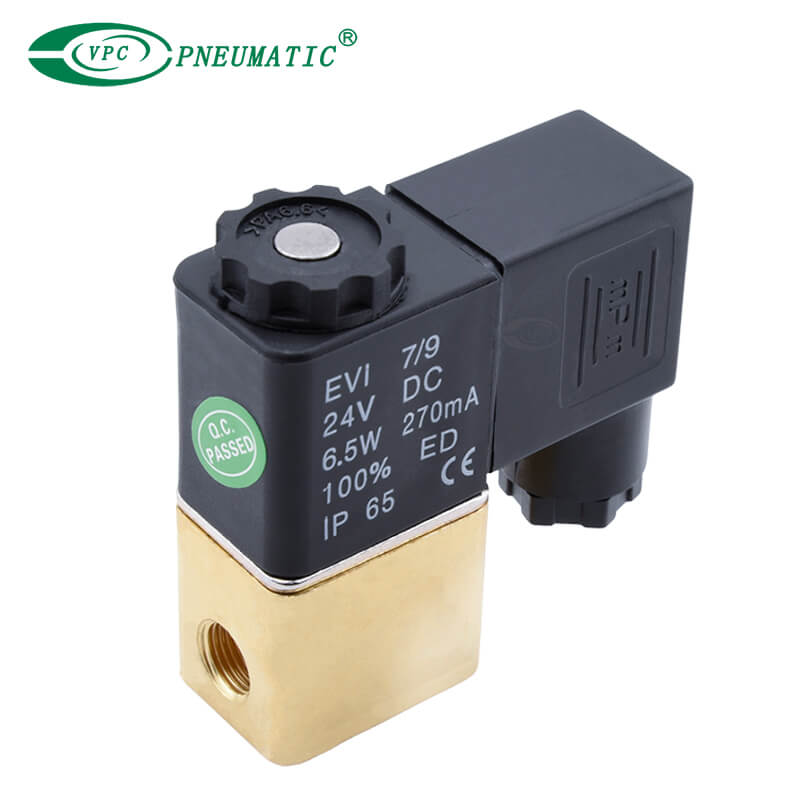

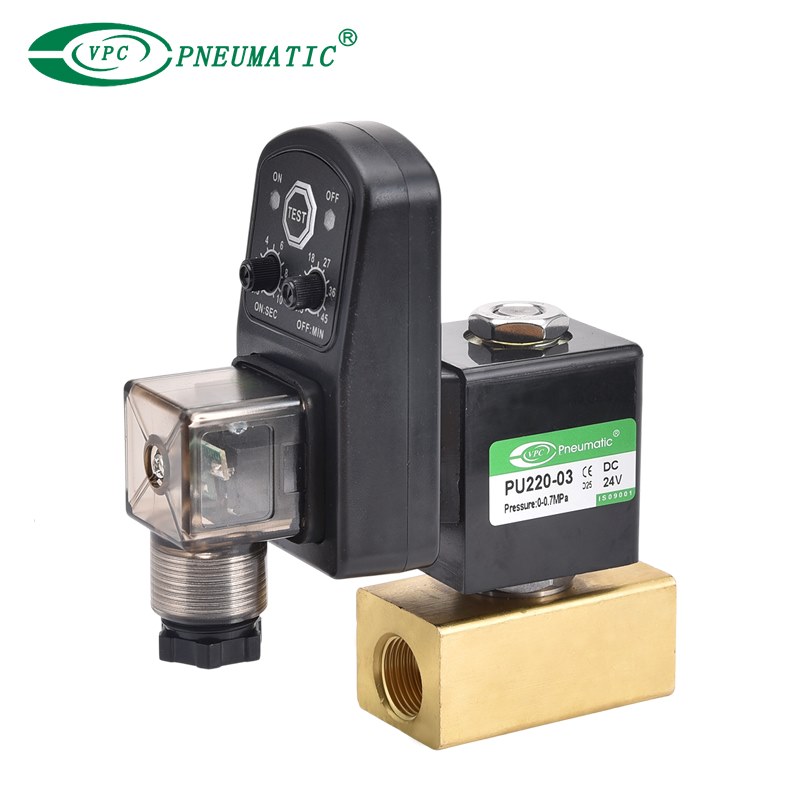

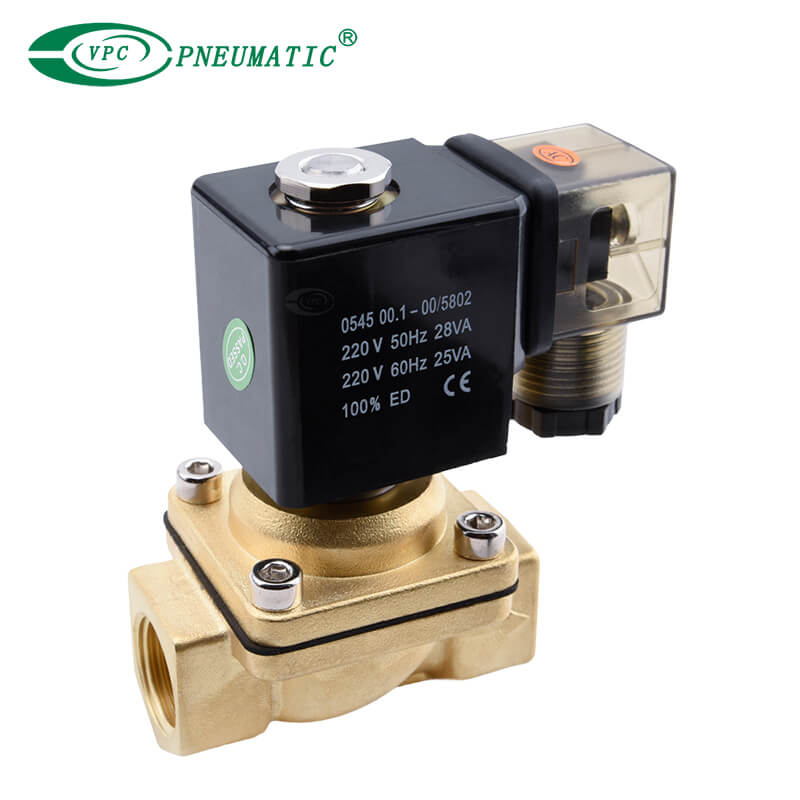

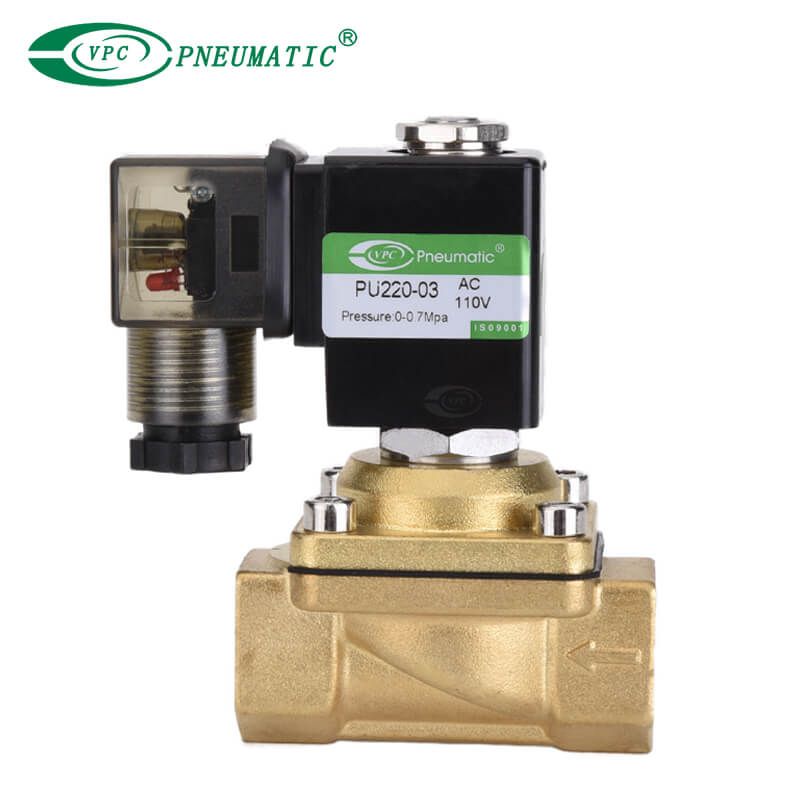

PU220 Series 2/2 Way Solenoid Valve

  • The VPC PU220 series 2 way Brass solenoid valve is an assisted lift electrically actuated valve for the ON/OFF control of fluids and gaseous media that are compatible with the materials of construction.
  • Sometimes referred to as a direct acting, hung diaphragm, kick pilot or zero rated valve the PU220 valve is designed to physically lift the diaphragm and utilise any pressure differential between inlet and outlet to assist the opening or closing of the valve.
Working medium:
Type:
Working temperature:
Working pressure:
Body Material:
Availability:
  • PU220-01
  • VPC Pneumatic
  • 8481804090

Product Description

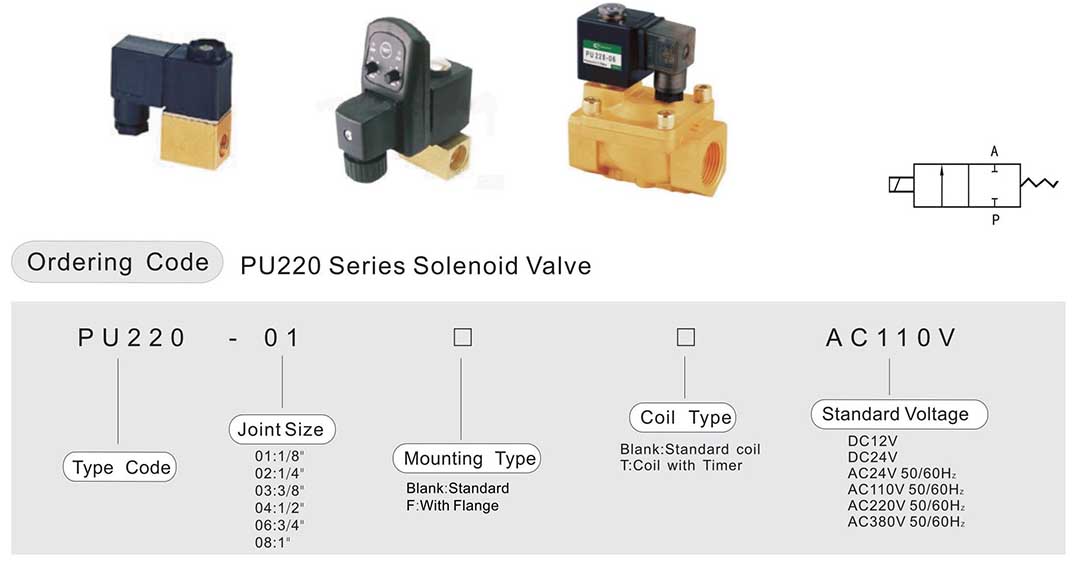

PU220-order code

Product Specifications

Model
PU220-01
PU220-02
PU220-03
PU220-04
PU220-06
PU220-08
Working Medium
Air,Water,Oil
Acting Type
Direct Acting Type
Control Style
Normal Close
Valve Body
Brass
Seal material
NBR、VITON 、EPDM
Joint Pipe
G1/8"
G1/4"
G3/8"
G1/2"
G3/4"
G1"
Orifice(mm)
1.5
2.3
8.0
13.0
20.0
25.0
CV Value(m3/h)
0.10
0.18
1.00
4.00
8.60
11.00
Working-pressure
0~0.7MPa
Max.Pressure Resistance
1.05MPa
Working Temperature
-10~90°C

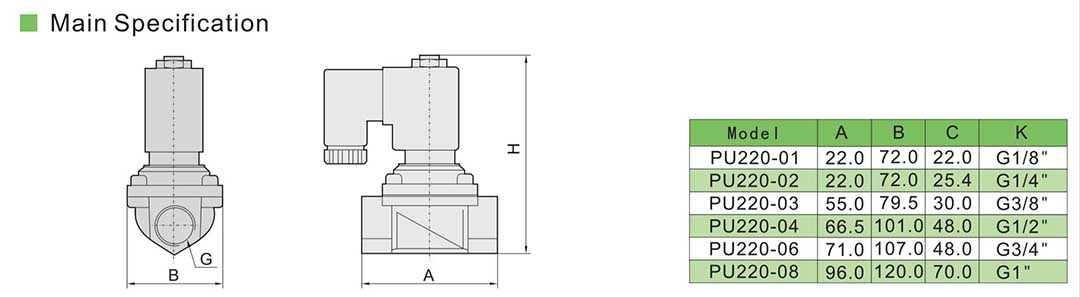

Main Dimensions

PU220-specification
