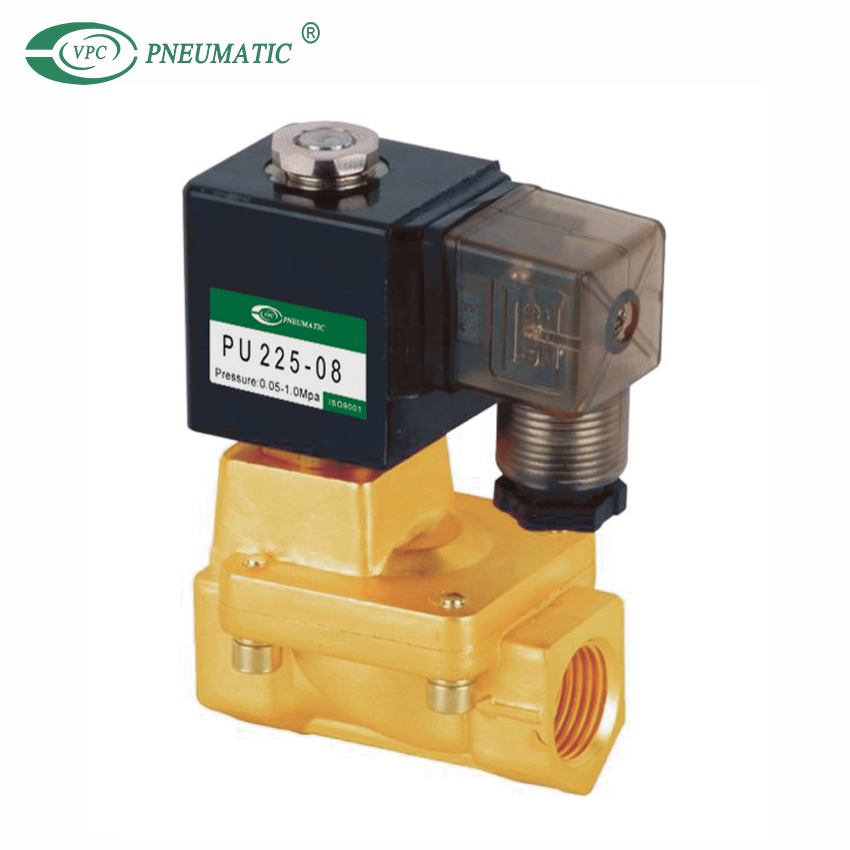

PU225 Series 2/2 Way Solenoid Valve

  • The VPC PU225 series 2 way Brass solenoid valve is a pilot assisted open/close electrically actuated valve for the ON/OFF control of fluids and gaseous media that are compatible with the materials of construction.
  • Sometimes referred to as a servo assisted, pressure assisted or floating diaphragm valve the PU225 valve is designed to utilise the pressure differential between inlet and outlet to control the opening or closing of the valve diaphragm.
Working medium:
Type:
Working temperature:
Working pressure:
Body Material:
Availability:
  • PU225-08
  • VPC Pneumatic
  • 8481804090

Product Description

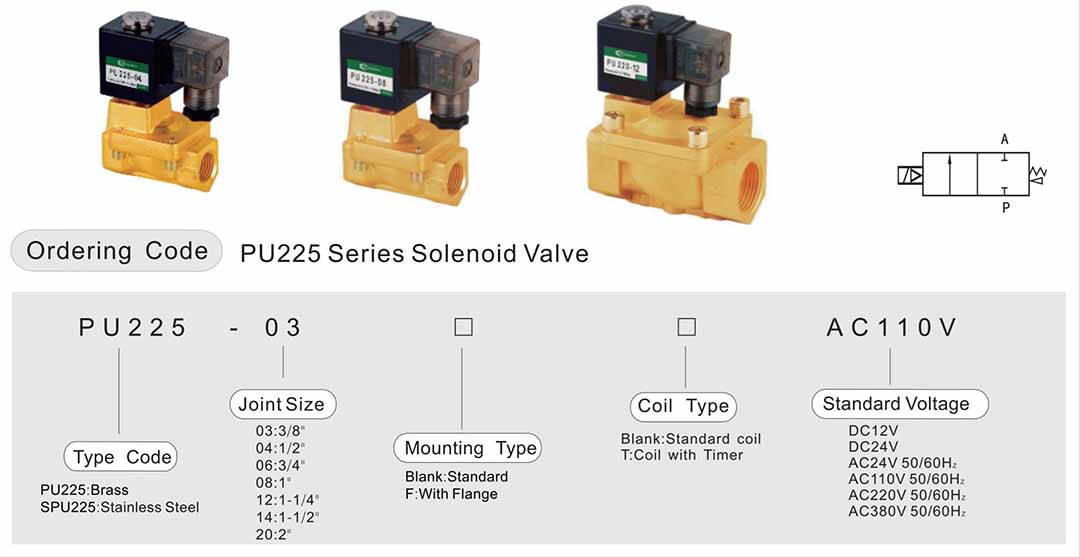

PU225-order coder

Product Specifications

Model
PU225-03
PU225-04
PU225-06
PU225-08
PU225-12
PU225-14
PU225-20
SPU225-03SPU225-04SPU225-06SPU225-08SPU225-12SPU225-14SPU225-20
Working Medium
Air,Water,Oil
Acting Type
Pilot Type
Control Style
Normal Close
Valve Body
Brass,Stainless steel
Seal material
NBR、VITON 、EPDM
Joint Size
G3/8"
G1/2"
G3/4"
G1"
G1-1/4"
G1-1/2"
G2"
Orifice(mm)
13
13
25
25
38
38
50
CV Value(m3/h)
4.5
4.5
12
12
22
30
48
Working-pressure
0.5~1.0MPa
Max.Pressure Resistance
1.5MPa
Working Temperature
-5~80°C

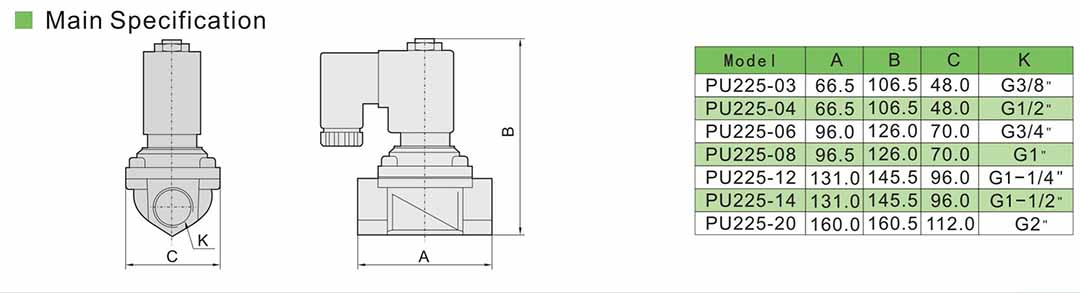

Main Dimensions

PU225-specification
