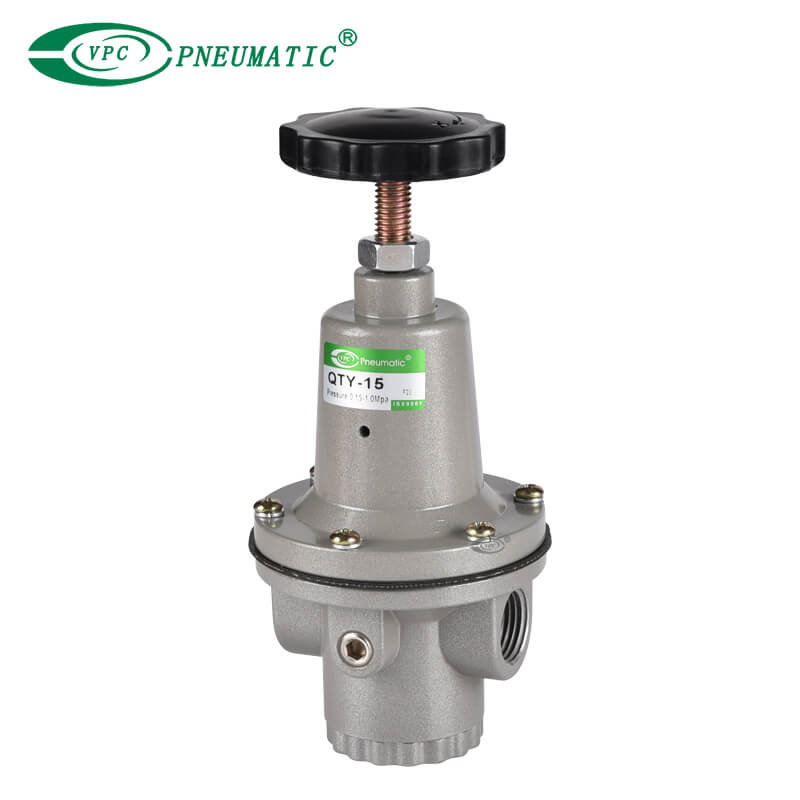

QTY Series Pressure Regulator Valve

QTY Series Pressure Regulator is engineered for precision control of air pressure in pneumatic systems, ensuring stable operation across a wide range of industrial applications. With its compact design and durable construction, this regulator is ideal for use in factories, automation lines, and various manufacturing environments that require accurate and reliable pressure control.

Model:
QTY-15
Brand:
VPC Pneumatic
Code:
8481804090

Working medium:	Compressed Air(Not Liquid)
Material:	Aluminum alloy
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. Pressure Range: The QTY Pressure Regulator offers a wide adjustable pressure range, allowing for fine-tuning of system pressure to meet specific operational requirements.

2. Durability: Designed with high-quality materials, it is built to withstand high wear and tear, providing long-lasting performance in demanding environments.

3. Compact Design: Its small footprint makes it suitable for installations in tight spaces, while maintaining superior performance.

4. Easy Adjustability: The easy-to-use adjustment knob allows operators to fine-tune pressure with precision, improving overall system efficiency.

5. Cost-Efficiency: Reduces energy waste by maintaining consistent pressure levels, thereby improving system efficiency and extending the lifespan of pneumatic components.

6. Versatile Applications: Suitable for a wide variety of industries including packaging, automotive manufacturing, and material handling, where consistent and reliable air pressure is essential.

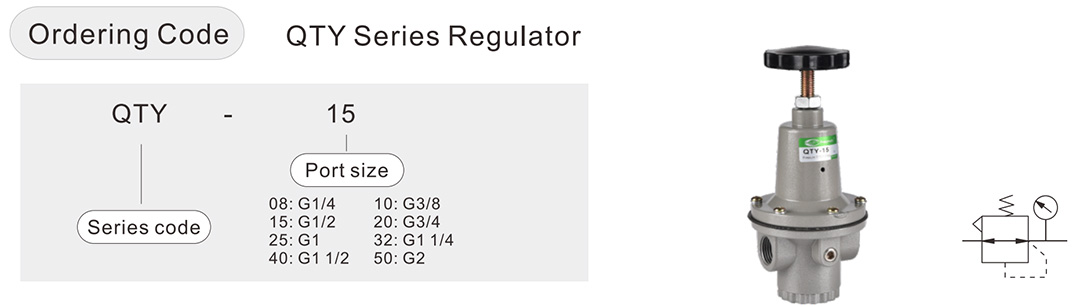

■ Symbol

QTY pressure regulator

Product Specification

Model	QTY-08	QTY-10	QTY-15	QTY-20	QTY-25	QTY-32	QTY-40	QTY-50
Port size	G 1/4"	G 3/8"	G 1/2"	G 3/4"	G 1"	G 1 1/4"	G 1 1/2"	G 2"
working medium	Compressed air
Condition	100% Brand new
Proof pressure	1.5 MPa
Pressure range	0.05 to 0.8 MPa
Temperature range	5 to 60ºC
Valve type	Overflow type
Connecting method	Female thread

Product Dimensions

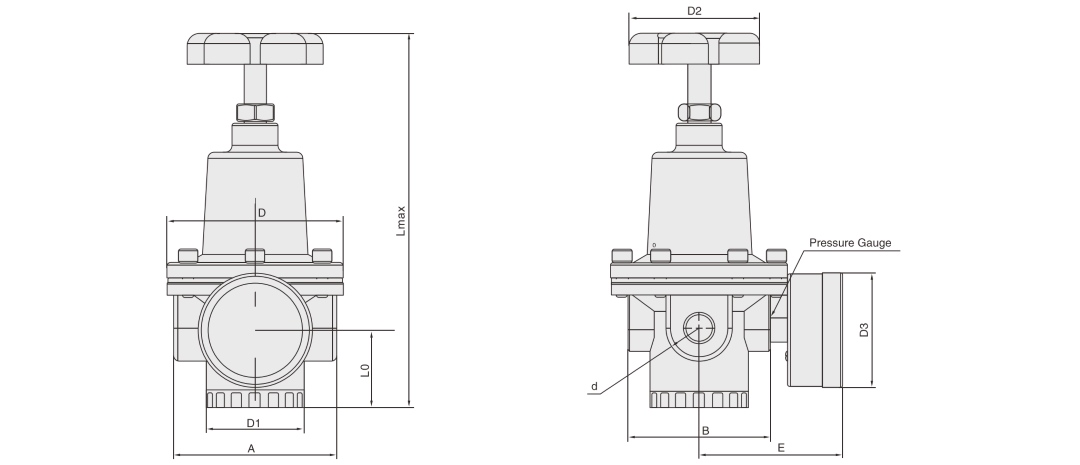

■ Main Dimensions

pneumatic pressure regulator

Model	Port Size	A	B	D	D1	D2	D3	d	_L0	E	L max.
QTY-08	G 1/4"	74	64	Φ80	Φ34	Φ60	Φ58	Φ16	36	80	113
QTY-10	G 3/8"	74	64	Φ80	Φ34	Φ60	Φ58	Φ16	36	80	113
QTY-15	G 1/2"	74	64	Φ80	Φ44	Φ60	Φ58	Φ21	37	80	181
QTY-20	G 3/4"	109	103	Φ120	Φ60	Φ90	Φ58	Φ30	48	100	250
QTY-25	G 1"	109	103	Φ120	Φ60	Φ90	Φ58	Φ30	48	100	250
QTY-32	G 1 1/4"	136	104	Φ120	Φ64	Φ90	Φ58	Φ40	60	100	280
QTY-40	G 1 1/2"	136	104	Φ120	Φ64	Φ90	Φ58	Φ40	60	100	280
QTY-50	G 2"	136	104	Φ120	Φ64	Φ90	Φ58	Φ45	60	100	280
