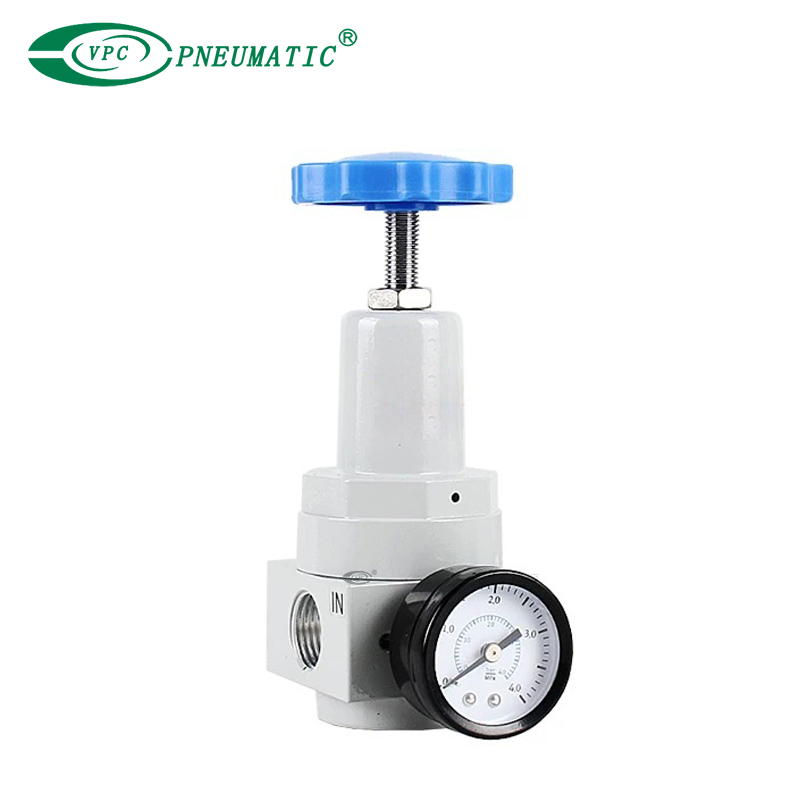

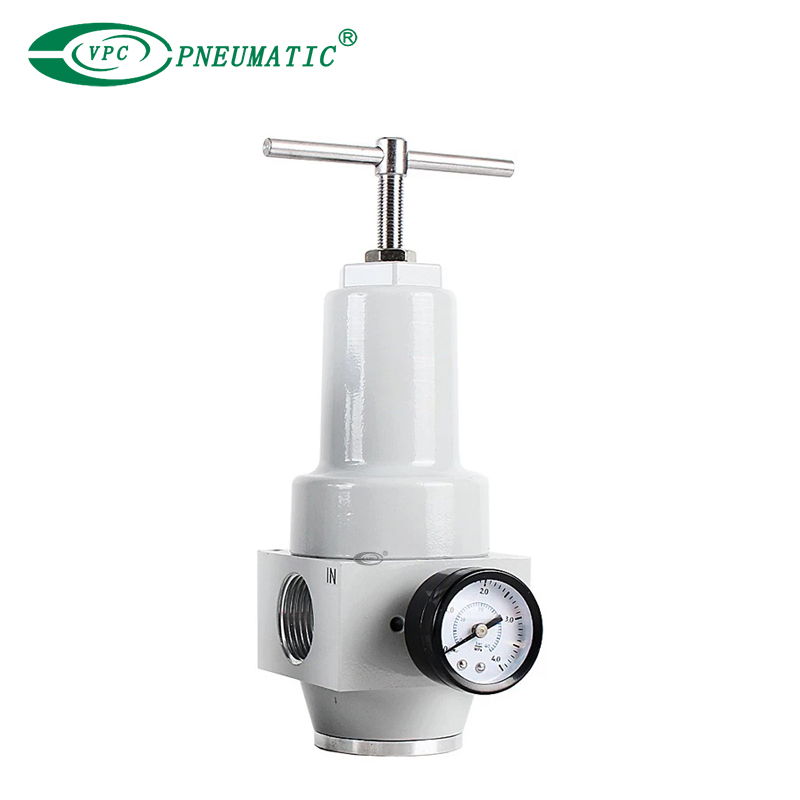

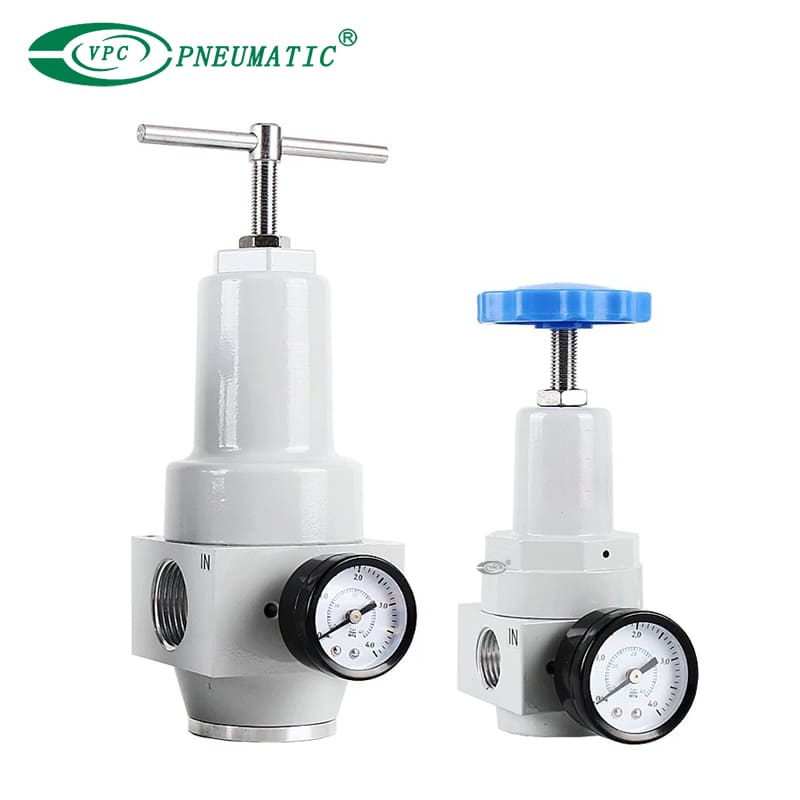

QTYH Series High Pressure Air Regulator, 0~40 Bar

QTYH High Pressure Regulator handles high-pressure systems up to 40 bar. It features robust construction, high flow rate, and safety valves, offering reliable performance and efficiency in demanding applications. This product is ideal for applications in industries such as heavy machinery, energy, and chemical processing, where high-pressure environments demand robust and reliable control solutions.

Model:
QTYH-15
Brand:
VPC Pneumatic
Code:
8481804090

Working medium:	Compressed Air(Not Liquid)
Material:	Aluminum alloy
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. High Pressure Capacity: Capable of handling pressures up to 40 bar, this regulator is engineered for high-performance, even in the most demanding systems.

2. Heavy-Duty Construction: Constructed with reinforced materials to handle high pressures safely and reliably, ensuring long-term durability.

3. High Flow Rate: Offers a high flow rate while maintaining precise pressure control, making it ideal for systems with significant air demand.
4. Safety Features: Includes integrated safety valves to protect against overpressure situations, ensuring both operator safety and system integrity.

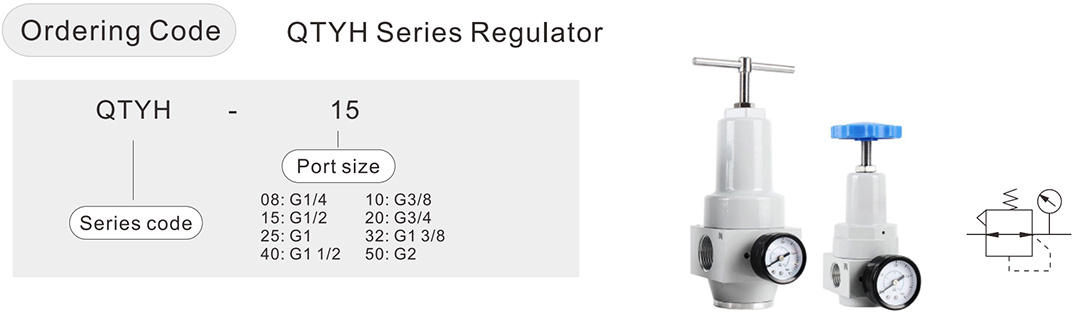

■ Symbol

high pressure regulator

Product Specification

Model	QTYH-08	QTYH-10	QTYH-15	QTYH-20	QTYH-25	QTYH-32	QTYH-40	QTYH-50
Port size	G 1/4"	G 3/8"	G 1/2"	G 3/4"	G 1"	G 1 1/4"	G 1 1/2"	G 2"
working medium	Clean air
Proof pressure	4.0 MPa
Pressure range	0.1 to 3.5 MPa
Temperature	-5 to 60ºC
Body material	Aluminum

Product Dimensions

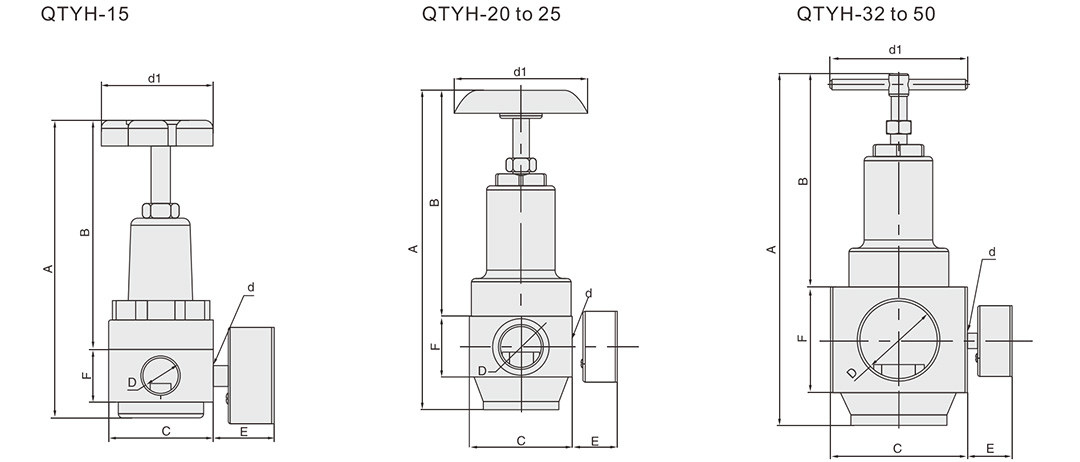

■ Main Dimensions

high pressure air regulators (mm)

Model	A	B	C	D	E	F	d	d1
QTYH-08	156.5	121	55 X 55	G 1/2	32.5	28	G 1/4	63
QTYH-10	156.5	121	55 X 55	G 1/2	32.5	28	G 1/4	63
QTYH-15	156.5	121	55 X 55	G 1/2	32.5	28	G 1/4	63
QTYH-20	232	164.5	75 X 75	G 3/4	32.5	44	G 1/4	98
QTYH-25	232	164.5	75 X 75	G 1	32.5	44	G 1/4	98
QTYH-32	256	155	100 X 100	G 1 1/4	32.5	77	G 1/4	100
QTYH-40	256	155	100 X 100	G 1 1/2	32.5	77	G 1/4	100
QTYH-50	256	155	100 X 100	G 2	32.5	77	G 1/4	100
