| Material: | |
|---|---|
| Type: | |
| Stroke: | |
| Adjustable stroke: | |

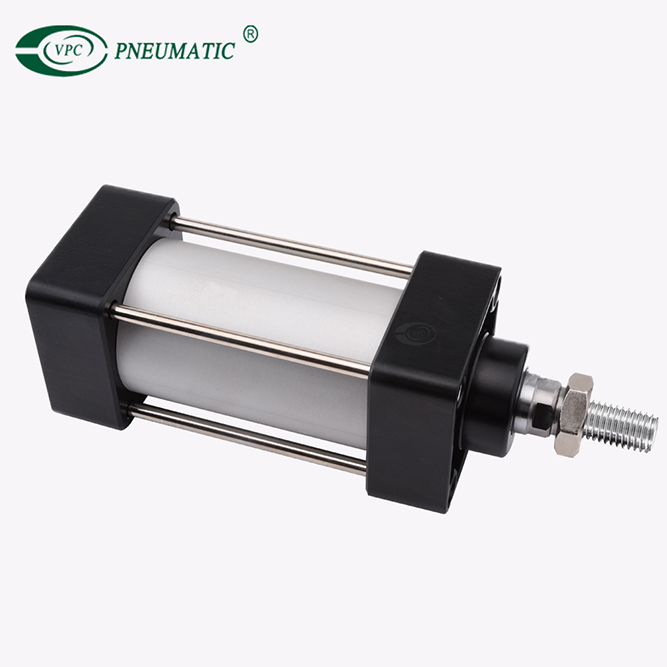

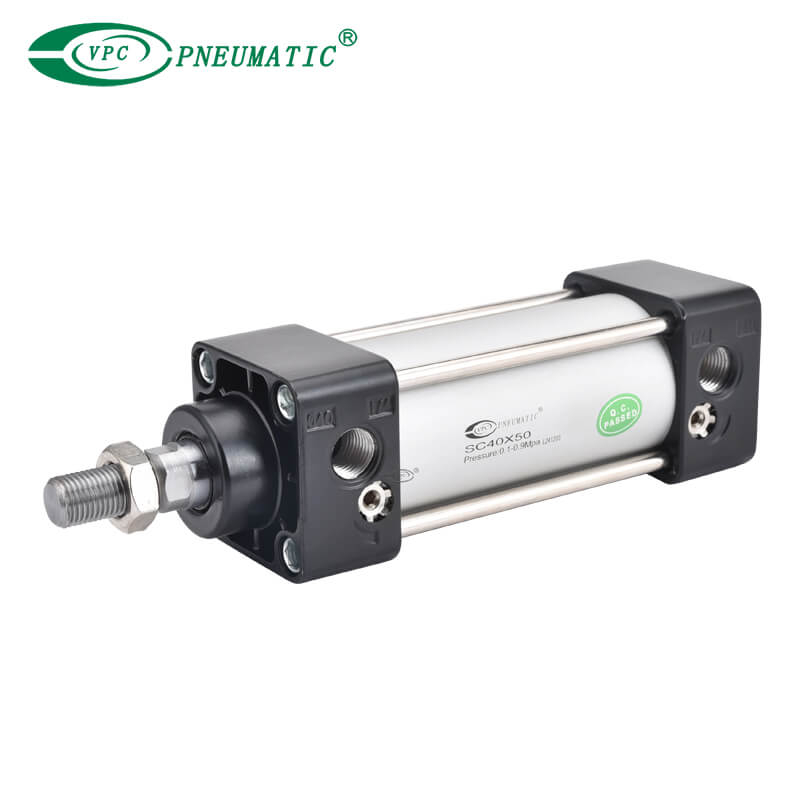

Product Description
1. Standardised design: conforms to ISO6431 and VDMA24562 standards.
2. Various mounting options: Including basic, trunnion, and swivel eye rose joint mounting options.
3. Cylinder bores from 32 to 200mm and strokes from 10 to 1000+mm to meet various usage requirements.
4. Widely used: Suitable for automation equipment, robotic arms and various industrial occasions.
Product Specifications
Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |
Acting type | Double acting | |||||||||
Working medium | Clean air(40um Filteration) | |||||||||
Mounting type | SU/SC Series | Basic type FA FB CA CB CR LB TC TC-M | ||||||||
| SCD/SUD Series | Basic type FA LB TC TC-M | |||||||||
| SCJ/SUJ Series | Basic type FA LB TC TC-M | |||||||||
Guaranteed pressure | 1.5Mpa | |||||||||
Working pressure range | 0.1 to 0.9Mpa | |||||||||
Working temperature | -5 to 70ºC | |||||||||
Speed range | 50 to 800mm/s | |||||||||
Cushion type | Adjustable cushion | |||||||||
Cushion stroke | 20mm | 32mm | 45mm | |||||||
Port size | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | |||||
Main Dimensions
